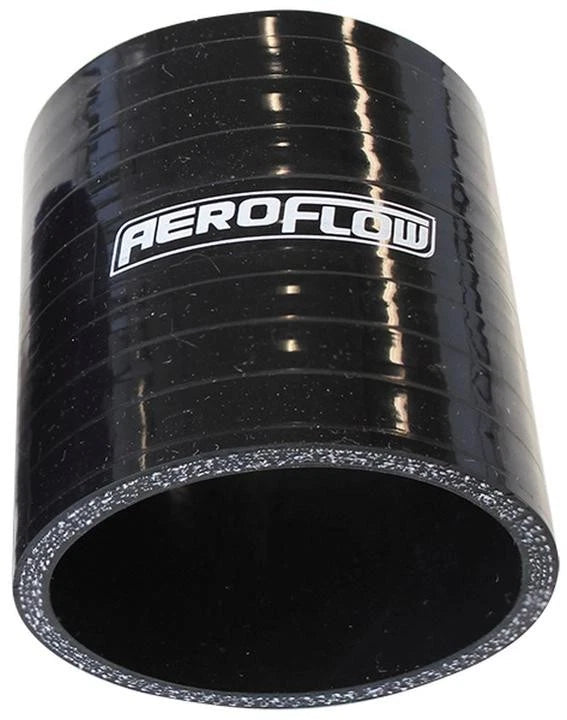

AF9201-400 Straight Silicone Hose 4" ID x 76mm Gloss Black

PRODUCT OVERVIEW

The AF9201-400 is a straight gloss black silicone hose designed for high-performance automotive, transport and industrial applications. It features a 4" (102mm) internal diameter and 3" (76mm) length, providing a durable solution for coolant, air and turbo plumbing where high temperature resistance is required.

KEY SPECIFICATIONS

• Part number: AF9201-400
• Type: Straight silicone hose
• Internal diameter (ID): 4" (102mm)
• Length: 3" (76mm)
• Construction: 4-ply reinforced
• Wall thickness: 5.3mm (13/64")
• Colour/finish: Gloss black

PERFORMANCE & MATERIAL

• Operating temperature range: -60°C to +180°C (-75°F to +350°F)
• Excellent ply adhesion from inner core to outer layers
• Weather resistant to harsh sunlight, dry conditions and rainwater
• Suitable for coolant, air and turbo/intercooler applications
• Not recommended for use with oil or fuel

TYPICAL APPLICATIONS

• Performance automotive cooling and induction systems
• Turbocharger and intercooler plumbing (hot and cold side air)
• General transport and industrial high-temperature hose runs
• Heater, radiator and auxiliary coolant lines where size permits

COMPATIBLE CLAMP OPTIONS

For secure installation, use clamps sized to suit a 4" (102mm) hose outer diameter. The following clamp part numbers are commonly paired with this hose:

• Worm drive clamp: AF23-9114
• Constant tension clamp: AF28-1012
• T-bolt clamp: AF24-1412

NOTES

• Universal component; no specific vehicle fitment is provided. Measure existing hose ID and length before ordering.
• Do not use in continuous contact with engine oil, transmission fluid or fuel.
