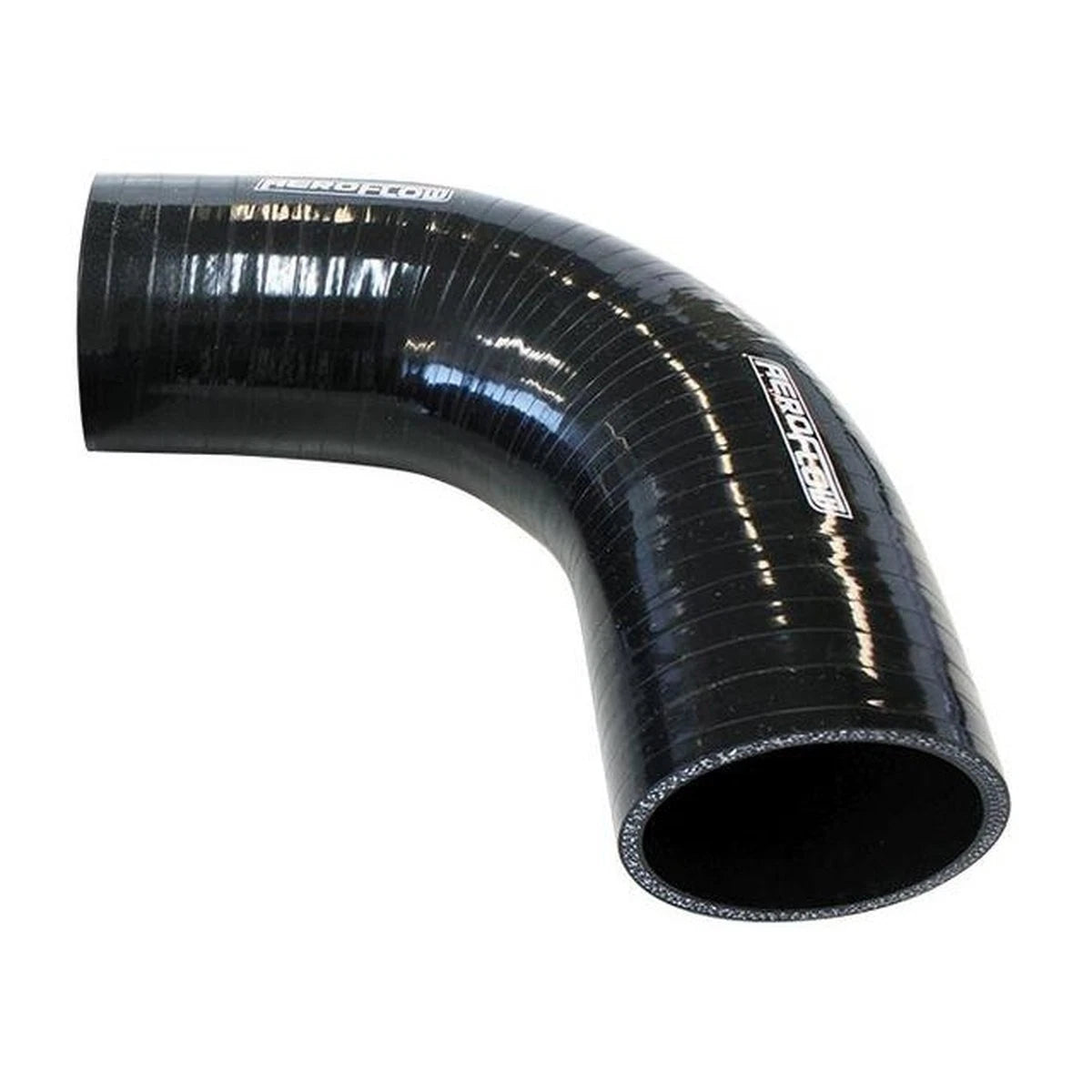

Aeroflow AF9203-175 90° Silicone Elbow Hose Black 1.75" ID

PRODUCT OVERVIEW

The Aeroflow AF9203-175 is a gloss black 90° silicone elbow hose engineered for performance automotive, transport and industrial applications. It is suitable for coolant, heater, vacuum and high-temperature turbo plumbing where a durable and flexible connection is required.

KEY FEATURES

• 90° silicone elbow hose in gloss black finish
• Inner diameter: 1-3/4" (44mm)
• 3-ply construction with approx. 4.5mm (11/64") wall thickness
• Approximate leg length: 145–150mm
• Excellent ply adhesion from inner core to outer layers for durability
• High temperature resistance from -60°C to +180°C (-75°F to +350°F)
• Weather resistant to harsh sunlight, dry conditions and rain
• Not recommended for use with oil or fuel

APPLICATIONS

• Performance automotive cooling and heater systems
• Turbocharger and intercooler plumbing (hot and cold side air)
• Vacuum and general-purpose high-temperature silicone hose runs
• Transport and industrial fluid or air transfer where silicone is suitable

COMPATIBLE CLAMPS (OPTIONAL)

• Worm drive clamp: AF23-3357
• Constant tension clamp: AF28-3956
• T-bolt clamp: AF24-5255

SPECIFICATIONS

• Part number: AF9203-175
• Brand: Aeroflow
• Hose type: 90° silicone elbow
• Colour: Gloss black
• Inner diameter: 1.75" (44mm)
• Wall thickness: 4.5mm (3-ply)
• Approx. leg length: 145–150mm (dimensions may vary slightly)
• Operating temperature range: -60°C to +180°C (-75°F to +350°F)

NOTES

• Leg sizes are approximate and may vary slightly between hoses.
• Not suitable for continuous contact with oil or fuel.
• No specific vehicle fitment is supplied; check dimensions before ordering.
