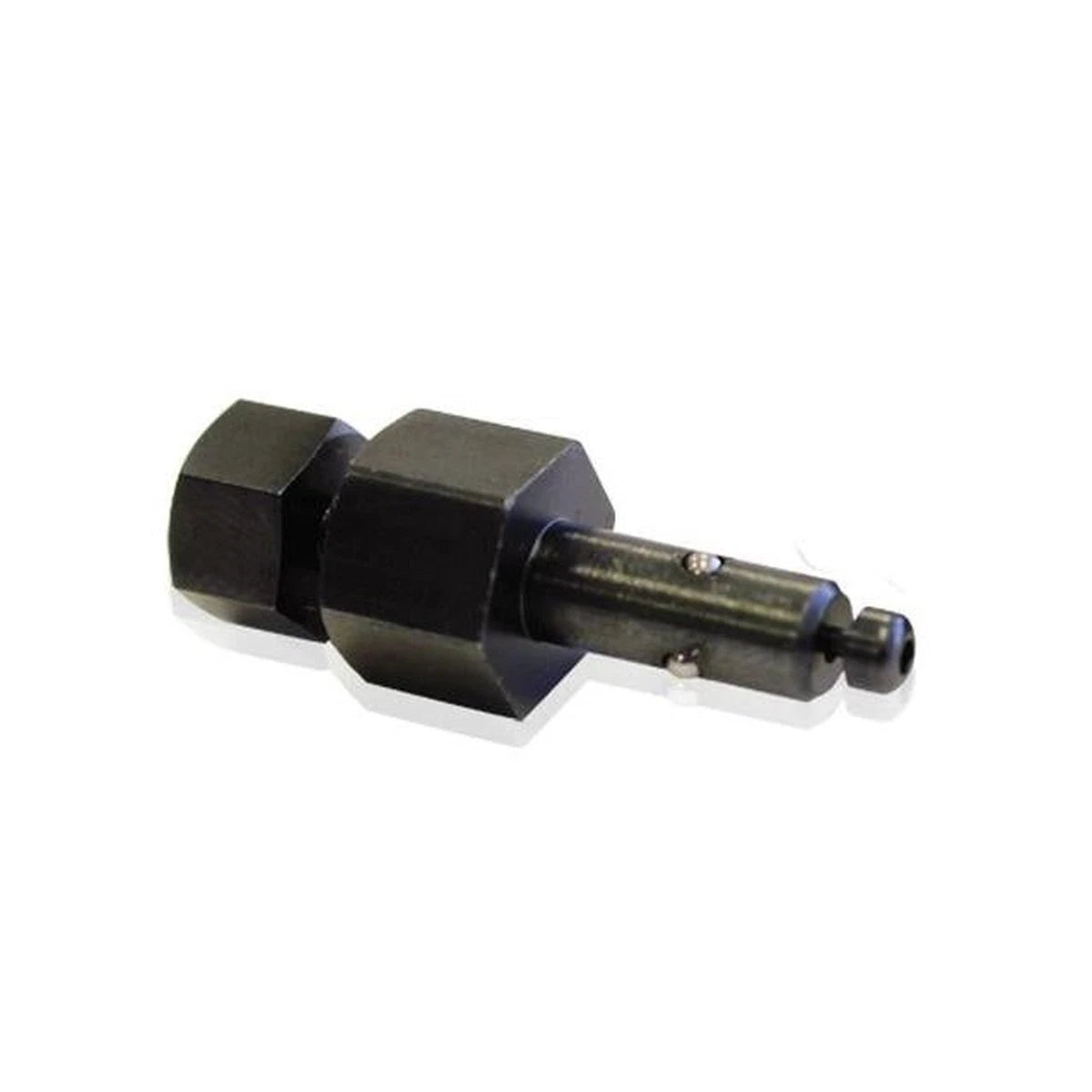

Aeroflow AF98-2019 Hand Pipe Beading Tool for 5/16 in & 8mm Tube

PRODUCT OVERVIEW

The Aeroflow AF98-2019 hand pipe beading tool is designed to create accurate hose-retaining beads on aluminium tubing, helping prevent hose slippage and leaks in custom fluid and fuel systems.

KEY FEATURES

• Compatible with 7.94mm (5/16"), 9.52mm (3/8") and 12.7mm (1/2") aluminium pipe
• Ideal for 5/16" and 8mm fuel and fluid hard lines
• Produces a properly positioned, smooth, radiused bead
• Hand-operated design for on-bench or on-vehicle use
• Constructed from heat-treated steel for strength and durability

APPLICATIONS

• Custom fuel lines and return lines
• Coolant, oil and general fluid hard line installations
• Performance, motorsport and custom fabrication projects

OPERATING INSTRUCTIONS

• Deburr the inside and outside of the tube end before use
• Apply suitable lubrication to the tool and tube I.D.
• Insert the tool into the tube
• Tighten gradually and rotate the tool to form the bead
• Increase clamping pressure in multiple stages until the desired bead height is achieved

IMPORTANT NOTES

• Do not over-tighten on the first pass; form the bead progressively
• Always deburr hard lines to avoid tube damage and tool wear
• Use appropriate lubrication to ensure a smooth beading operation

SPECIFICATIONS

• Part number: AF98-2019
• Brand: Aeroflow
• Material: Heat-treated steel
• Pipe sizes: 7.94mm (5/16"), 9.52mm (3/8"), 12.7mm (1/2") aluminium tube
• Tool type: Hand-held pipe beading tool
