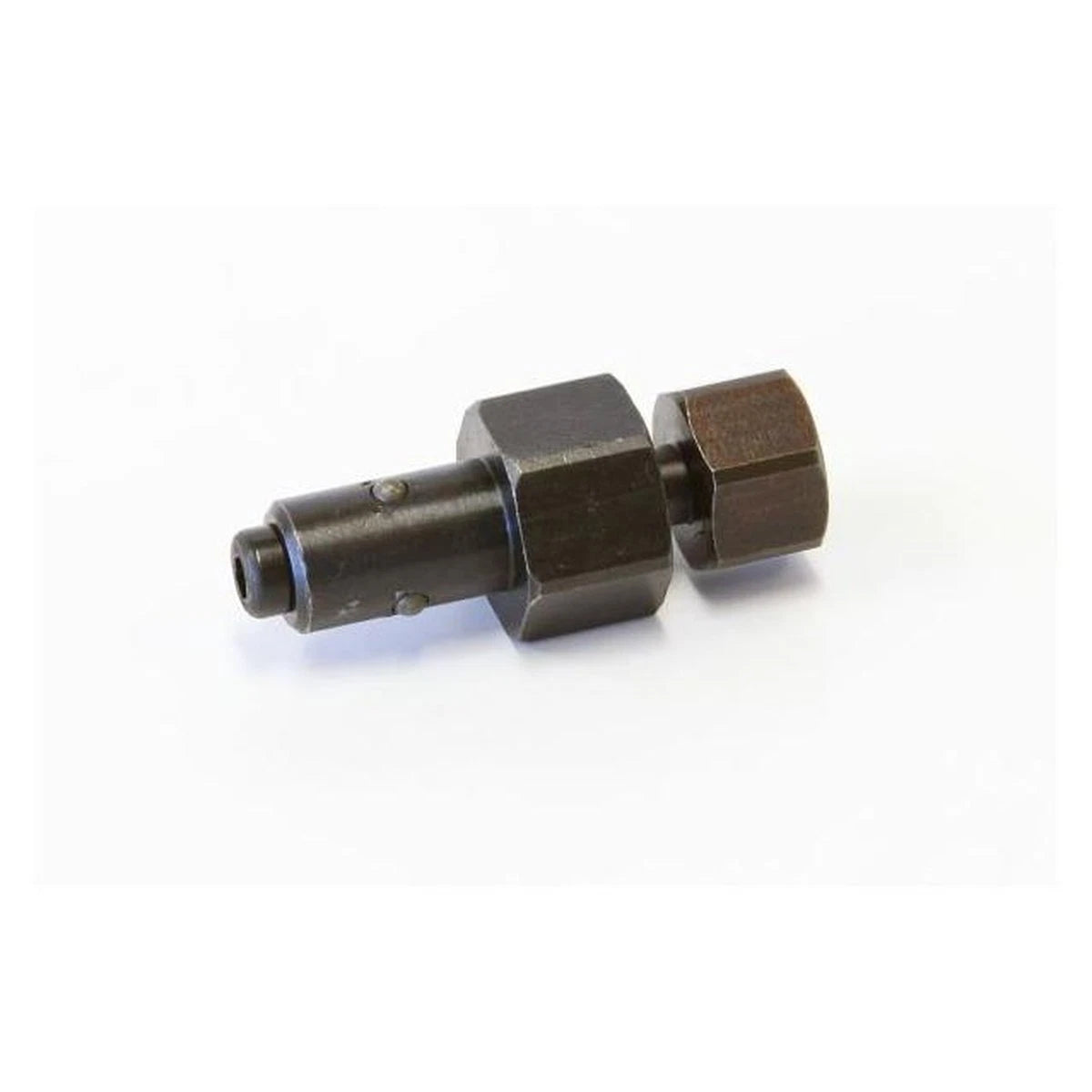

Aeroflow AF98-2021 Hand Pipe Beading Tool for 1/2" & 12.7mm Tube

PRODUCT OVERVIEW

The Aeroflow AF98-2021 hand-held pipe beading tool is designed to create consistent, leak-resistant beads on aluminium tubing. It is ideal for securing hoses on custom fuel lines and other performance fluid systems.

KEY FEATURES

• Compatible with 1/2" (12.7mm) aluminium tube
• Suitable for beading 7.94mm (5/16"), 9.52mm (3/8") and 12.7mm (1/2") pipe
• Produces a properly positioned, smooth-radius bead for secure hose retention
• Hand-operated design for easy use in confined or custom installations
• Constructed from heat-treated steel for strength and durability

APPLICATIONS

• Custom fuel lines and performance fuel systems
• General aluminium hardline hose connections
• Projects requiring reliable, slip-resistant hose clamping surfaces

OPERATING INSTRUCTIONS

• Ensure the tube end is deburred before inserting the tool
• Apply appropriate lubrication to the tool and tube ID
• Insert the tool inside the tubing
• Turn the tool slowly while tightening gradually to form the bead
• Increase clamping pressure in multiple stages until the desired bead is achieved

IMPORTANT NOTES

• Tool is designed for gradual beading only – do not fully tighten on the first pass
• Always deburr the hardline before use to prevent damage to the tool and tube
• Lubrication is required for smooth operation and optimal bead quality

SPECIFICATIONS

• Part number: AF98-2021
• Brand: Aeroflow
• Material: Heat-treated steel
• Tube compatibility: 5/16" (7.94mm), 3/8" (9.52mm), 1/2" (12.7mm) aluminium tube
• Tool type: Hand-held pipe beading tool
