Aeroflow Turbo T3 Single Entry Flange Gasket AF9557-0005

PRODUCT OVERVIEW

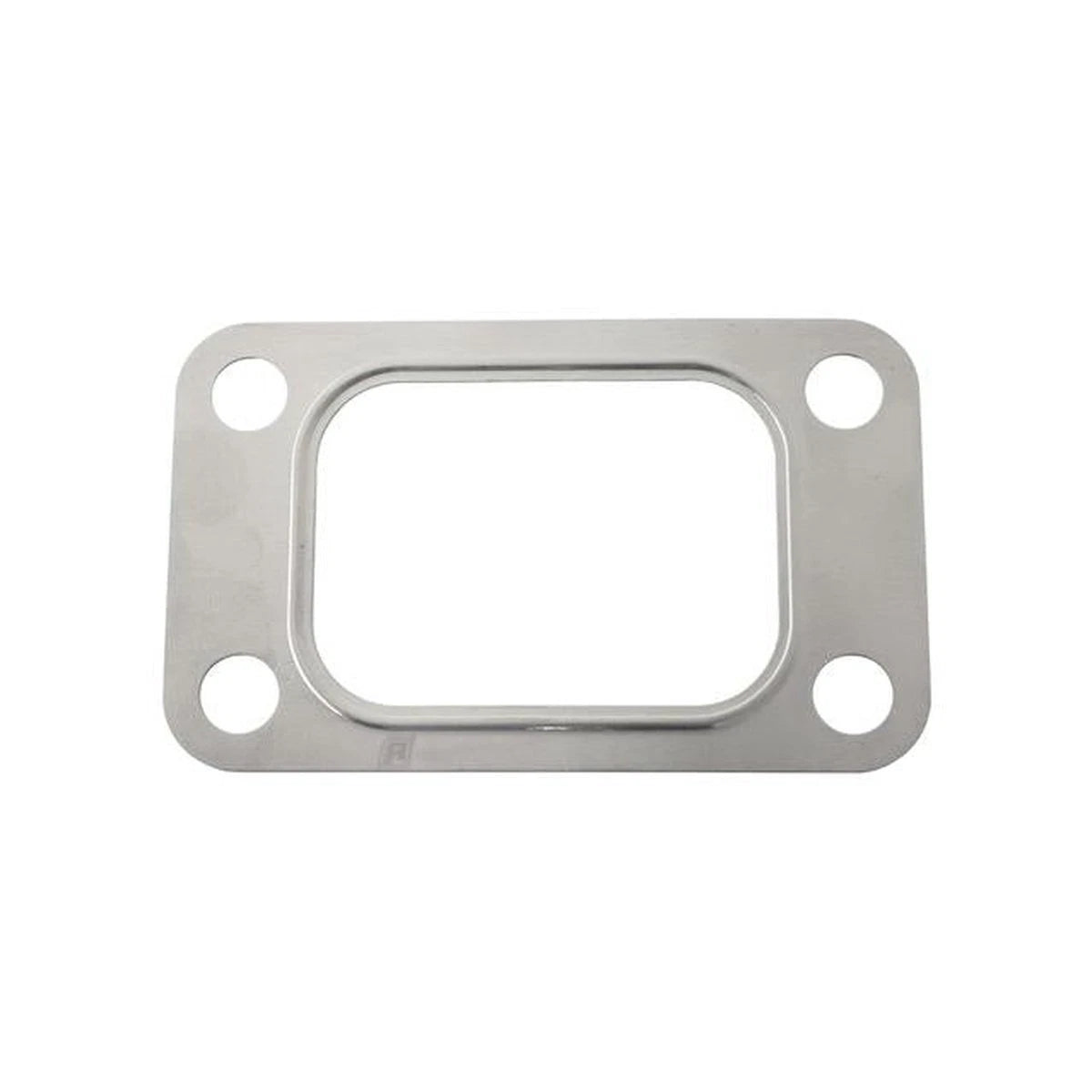

The Aeroflow AF9557-0005 turbo flange gasket is an embossed single-layer steel gasket designed to suit T3 turbine flanges with a single entry. It provides a secure, high-temperature seal between the turbocharger and turbine inlet flange.

KEY FEATURES

• Suit T3 turbine flange with single entry
• Single-layer embossed steel construction
• Engineered for high-temperature turbo applications
• Reinforced embossed edge for a secure, leak-free seal
• Durable metal gasket for performance and reliability
• Part Number: AF9557-0005

APPLICATION NOTES

This gasket is intended for use on turbocharger turbine inlet flanges using a T3 single-entry pattern. Always compare flange shape and bolt pattern with your existing components before installation. No specific vehicle fitment data is provided for this part.

INSTALLATION GUIDELINES

• Ensure mating surfaces are clean, flat and free from old gasket material
• Align gasket carefully with the T3 single-entry flange pattern
• Install using appropriate fasteners and torque to the turbo manufacturer’s specification
• Recheck fastener torque after initial heat cycles where applicable
