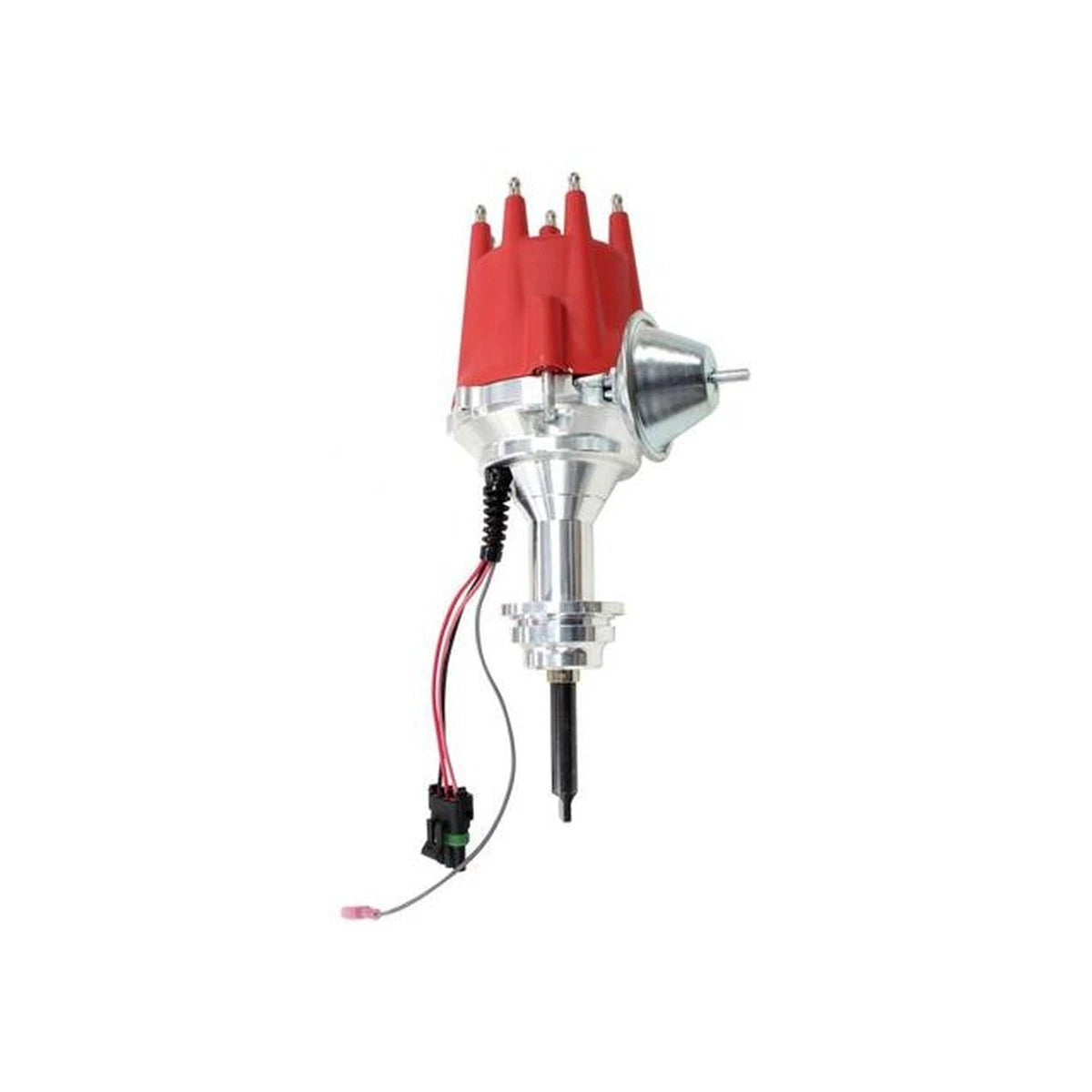

Aeroflow XPRO Ready to Run Distributor Red Cap for Chrysler 318-360 V8

PRODUCT OVERVIEW

The Aeroflow XPRO ready to run distributor is designed for Chrysler small block 318 and 360 V8 engines. It features a machined 6061-T6 billet aluminium body and a durable chromium manganese titanium steel gear (20CRMOTI), suitable for use with all camshaft types.

KEY FEATURES

• Ready to run design – no external ignition box required
• Internal ignition module with built-in adjustable rev limiter
• Machined 6061-T6 billet aluminium distributor body
• Chromium manganese titanium steel gear (20CRMOTI) compatible with all camshafts
• Red distributor cap with compact overall dimensions
• Weather-tight connector and wiring harness included

ELECTRICAL CONNECTIONS

This XPRO distributor is simple to install, requiring only three main connections: power, coil negative and earth. An additional grey output wire is provided to send a tachometer signal and to set the built-in rev limiter or trigger an aftermarket EFI system.

DIMENSIONS

• Height from base of collar: 233 mm (9-3/16")
• Total cap width: 120 mm (4-3/4")

APPLICATION

Suitable for Chrysler small block 318 and 360 V8 engines. No additional external ignition control box is required for operation.

PART DETAILS

• Part number: AF4010-8388R
• Brand: Aeroflow
• Series: XPRO ready to run distributor
• Cap colour: Red
