Airbag Man High Pressure Rear Suspension Helper Kit CR5051HP

PRODUCT OVERVIEW

The Airbag Man CR5051HP High Pressure Rear Suspension Helper Kit is designed to supplement existing coil-spring suspension in vehicles that regularly tow or carry heavy loads. The adjustable airbag system helps maintain vehicle height, stability and ride comfort under varying load conditions.

KEY FEATURES

• High-pressure air helper springs for heavy towing and load carrying
• Airbags mount inside existing rear coil springs
• Adjustable pressure for variable load support
• Helps reduce sag, improve stability and maintain ride height
• Easy-fit design with typical installation time of around two hours

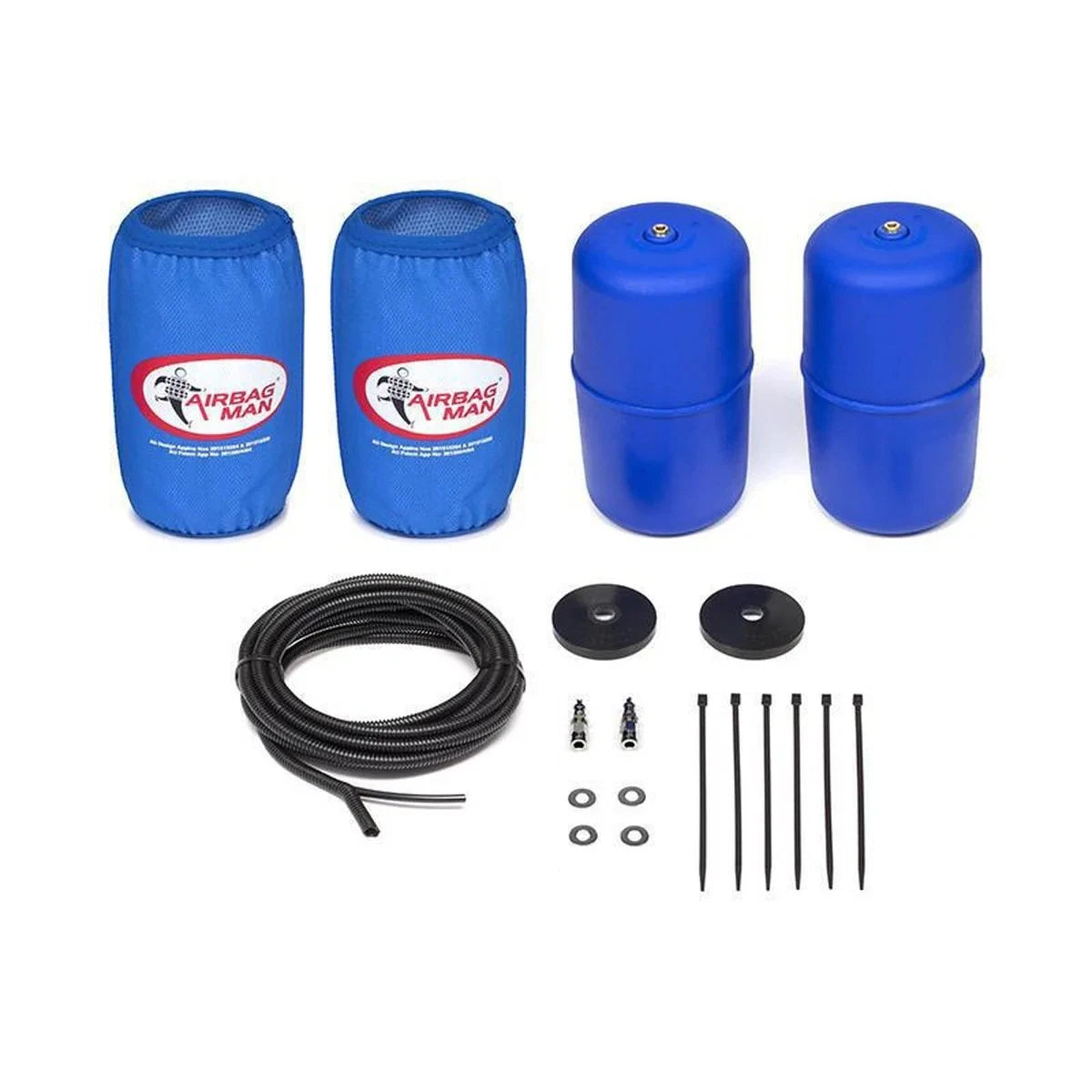

KIT CONTENTS

• Two heavy duty Firestone airbags
• High pressure sleeves
• Heat shield
• Protector spacers
• 1/4" nylon air line and protector tubing
• Two inflation valves
• Fittings and hardware
• Full installation instructions

SPECIFICATIONS

• Part number: CR5051HP
• Brand: Airbag Man
• Operating pressure range: 5–60 psi
• Fitment type: Easy fit
• Typical fitment time: Approximately two hours

APPLICATION NOTES

This high pressure rear suspension helper kit is suited to a range of Toyota LandCruiser coil-spring rear applications, including:

• LandCruiser 100 Series HDJ100, HDJ101R, UZJ100 (1998–2007)
• LandCruiser 105 Series FZJ105, HZJ105 (1998–2007)
• LandCruiser 200 Series UZJ200, URJ202, VDJ200 (2007–2018)
• LandCruiser 80 Series early FJ80, FZJ80, HDJ80, HZJ80 (1990–Jul 1991)
• LandCruiser 80 Series FJ80, FZJ80, HDJ80, HZJ80 (Aug 1991–1998)

Always confirm part number CR5051HP against your vehicle details before purchase and installation.
