Airbag Man Rear High Pressure Suspension Helper Kit CR5052HP

PRODUCT OVERVIEW

The Airbag Man CR5052HP High Pressure Rear Suspension Helper Kit is designed to support rear coil springs on selected Lexus LX 470 and Toyota LandCruiser models. It provides additional load-carrying assistance for heavy towing and vehicles operating near maximum allowable weights.

Two high pressure airbags are installed inside the rear coil springs and can be inflated or deflated to fine-tune support according to vehicle load, helping maintain ride height and stability under varying conditions.

KEY FEATURES

• High pressure rear airbag helper kit for coil-sprung vehicles
• Improves load support for towing and heavily loaded vehicles
• Air adjustable for variable load-carrying assistance
• Helps maintain level ride height and stability
• Easy-fit design with typical installation time of around two hours

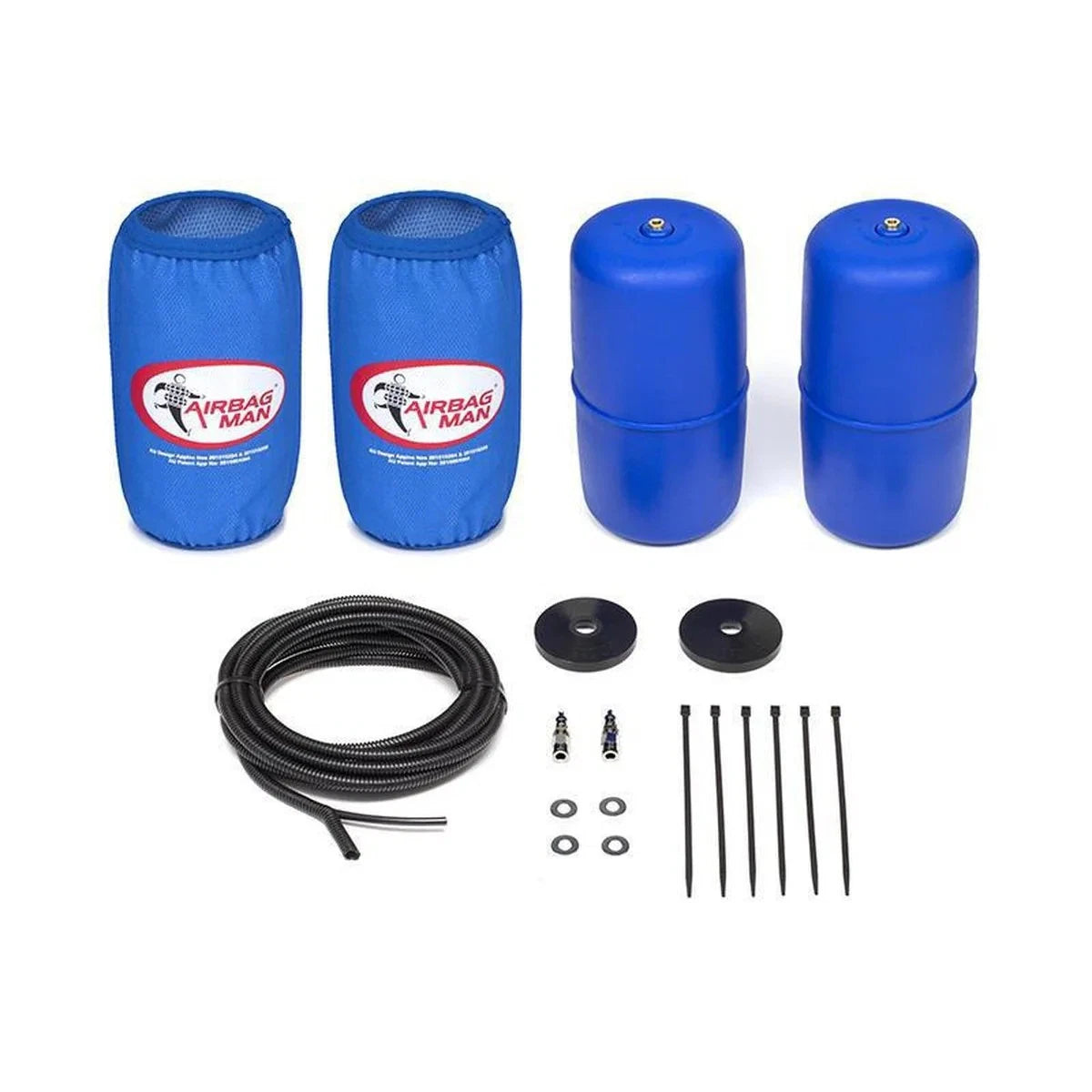

KIT CONTENTS

• Two heavy duty Firestone airbags
• High pressure sleeves
• Heat shield
• Protector spacers
• 1/4" nylon tubing and protector tubing
• Two inflation valves
• Fittings
• Full installation instructions

SPECIFICATIONS

• Part Number: CR5052HP
• Brand: Airbag Man
• Pressure Range: 5–60 psi (approx.)
• Fitment Type: Easy fit
• Approximate Fitment Time: 2 hours

APPLICATIONS

This kit is suitable for selected Lexus and Toyota LandCruiser rear coil spring applications, including:

• Lexus LX 470 Series 1998–2008
• Toyota LandCruiser 100 Series HDJ100, HDJ101R, UZJ100 1998–2007
• Toyota LandCruiser 105 Series FZJ105, HZJ105 1998–2007
• Toyota LandCruiser 200 Series UZJ200, URJ202, VDJ200 2007–2018
• Toyota LandCruiser 80 Series early FJ80, FZJ80, HDJ80, HZJ80 1990–Jul 1991
• Toyota LandCruiser 80 Series FJ80, FZJ80, HDJ80, HZJ80 Aug 1991–1998

Always check the part number and vehicle details before purchase to confirm compatibility with your specific vehicle and suspension configuration.

INSTALLATION & USE

• Airbags are installed inside existing rear coil springs
• Inflation valves allow manual pressure adjustment
• Set pressure according to load within the specified psi range
• Follow supplied instructions and safety guidelines during installation
