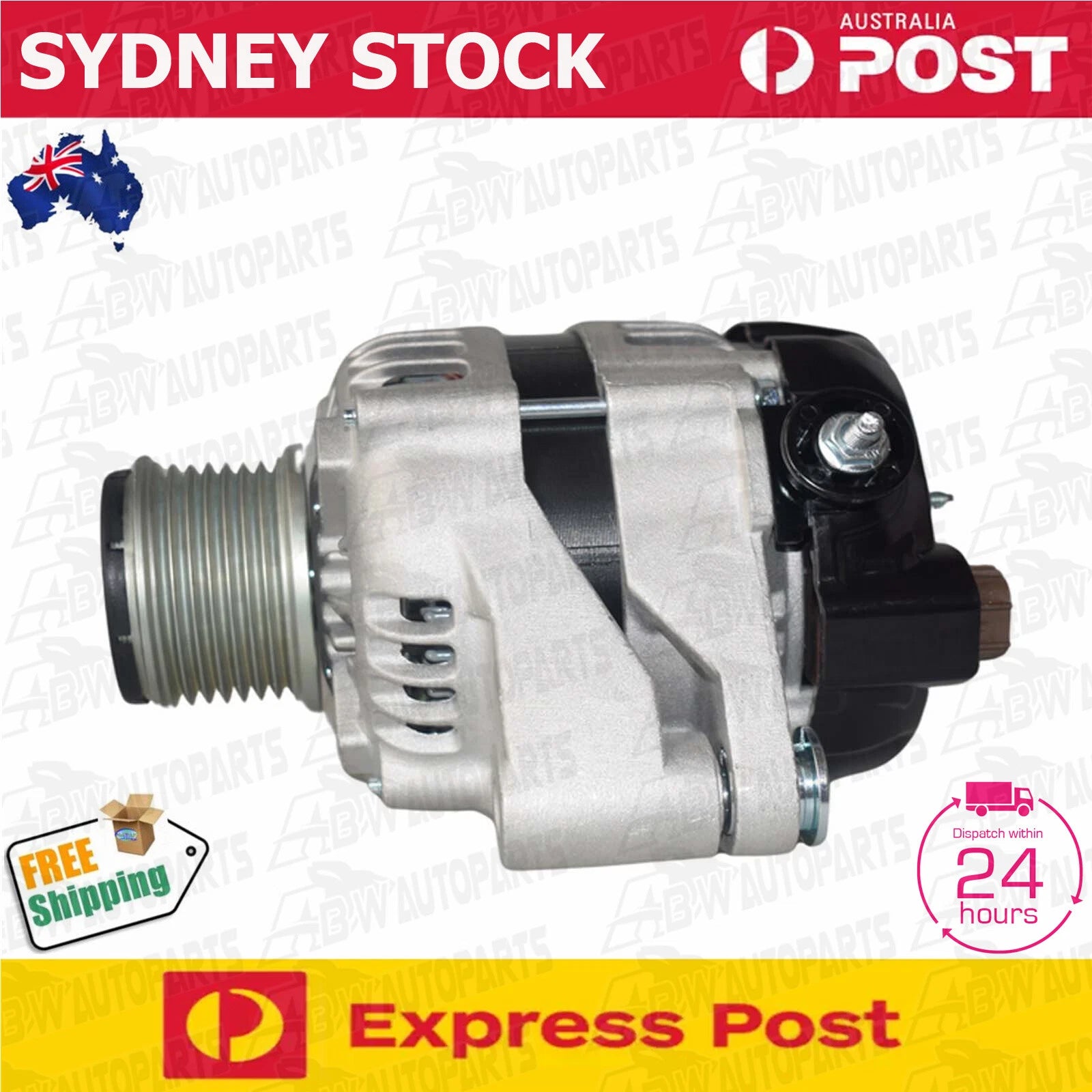

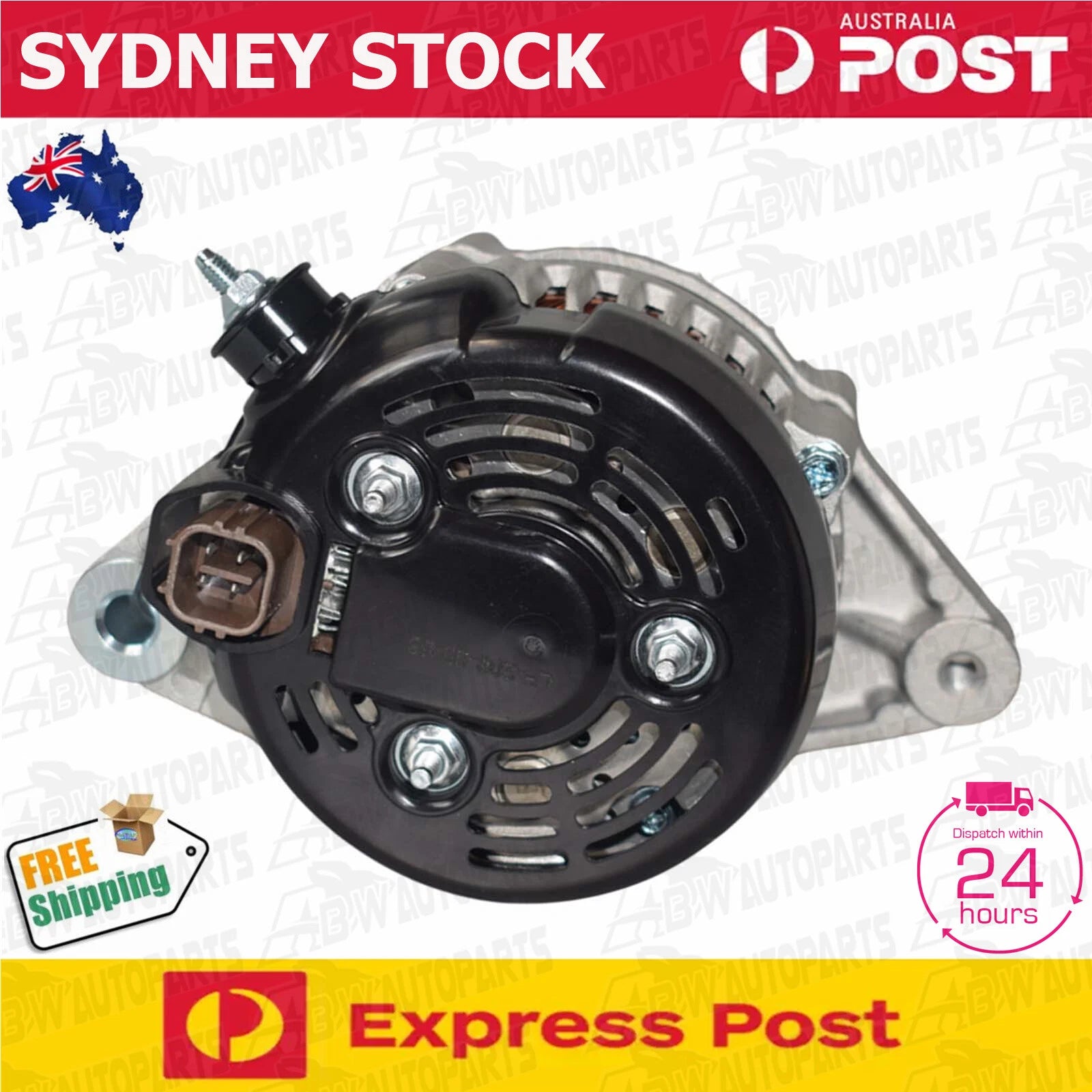

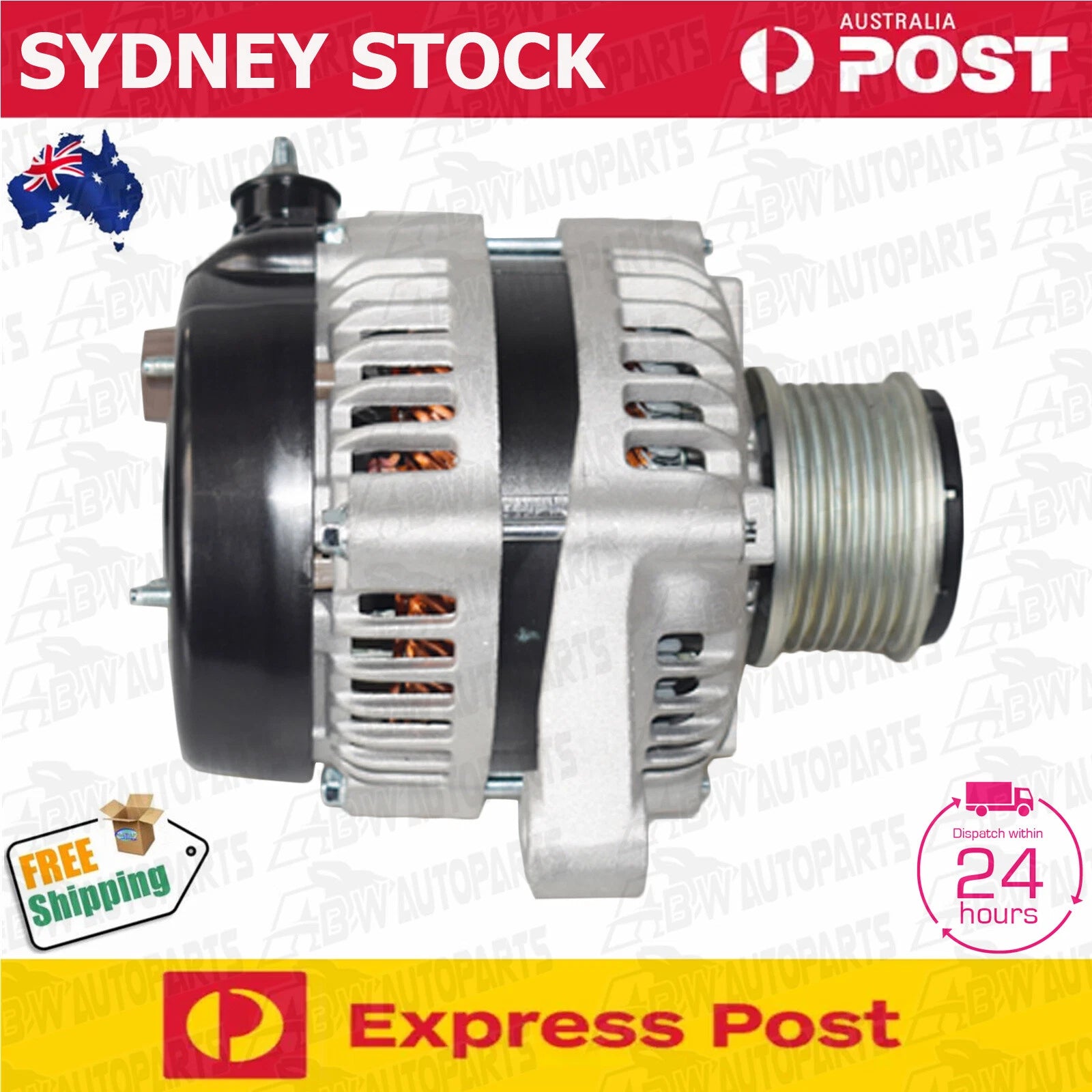

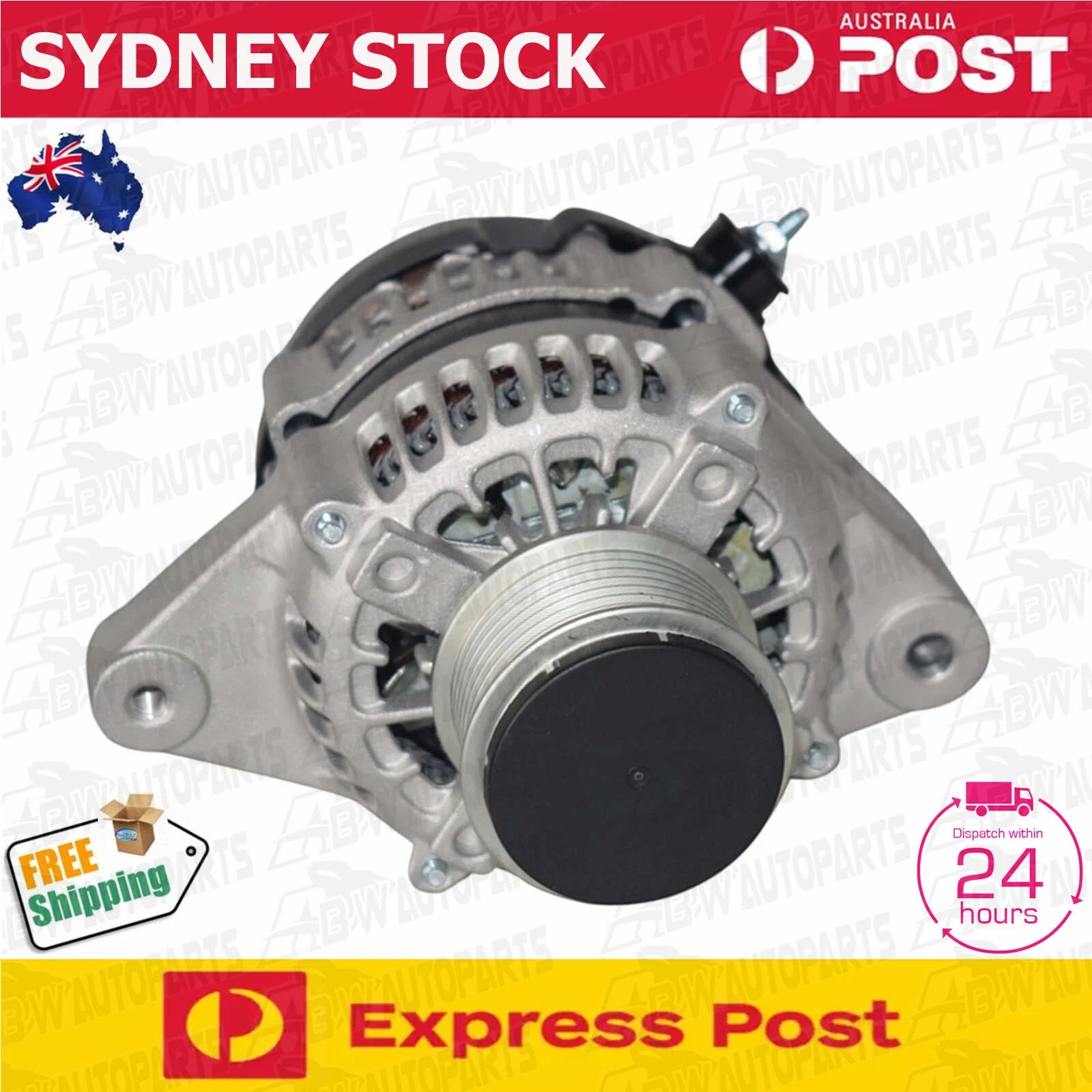

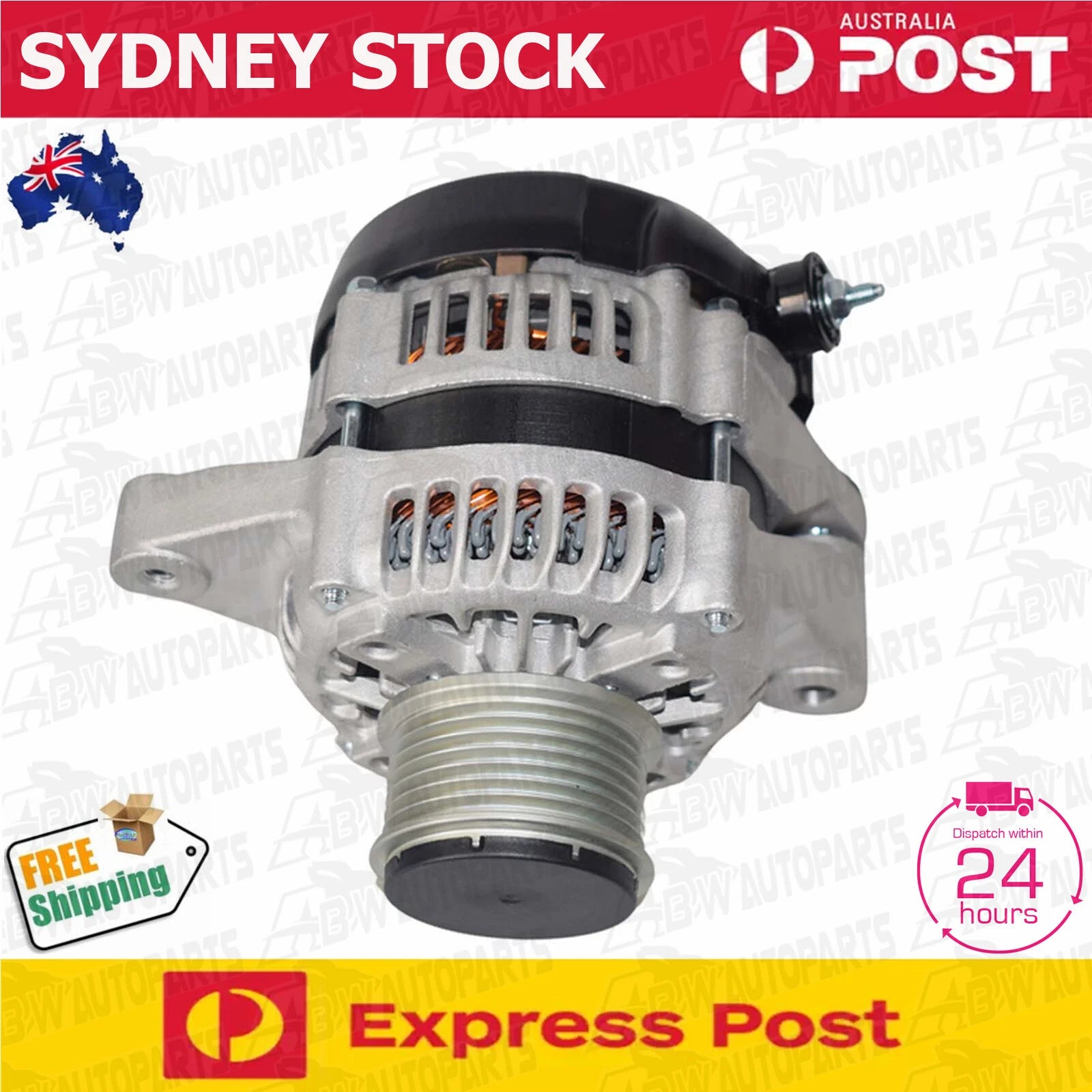

80A Alternator for Toyota Hilux KUN16R KUN26R 1KD-FTV D4D 3.0L 2005-2015

PRODUCT OVERVIEW

This 80A 12V alternator is designed as a direct replacement for select Toyota diesel models equipped with 1KD-FTV or 2KD-FTV engines. It features a clutch pulley and OE-style mounting and plug configuration for reliable charging performance and proper belt alignment.

KEY FEATURES

• Output: 80A, 12V alternator
• Clutch pulley type for smoother belt operation
• OE-style RP224 plug connection
• Direct-fit replacement for specified Toyota diesel applications

SPECIFICATIONS

• Voltage: 12V
• Current: 80A
• Adjustment hole: M8
• Pivot hole: M10
• Adjustment to pivot: 163 mm
• Pivot length: 58 mm
• Pulley diameter: 63 mm
• Number of grooves: 7PV

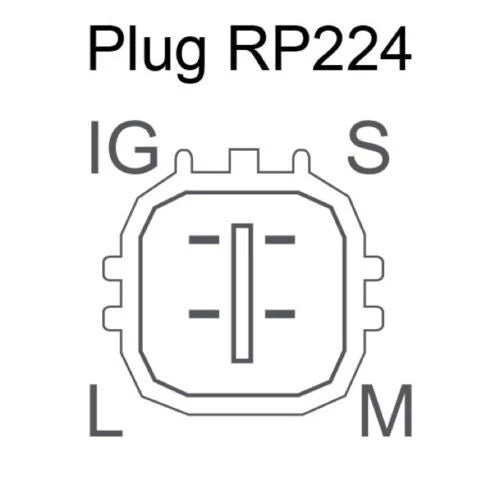

• Plug type: RP224
• Pulley type: Clutch pulley
• Reference: 27060-0L021 (for identification only)

COMPATIBILITY

Suitable for the following applications (where fitted with the matching 80A alternator):

• Toyota Hiace KDH220, KDH222, engine 2KD-FTV 2.5L diesel, approx. 2005–2006
• Toyota Hiace KDH201, KDH221, KDH223, engine 1KD-FTV 3.0L diesel, approx. 2005–2015
• Toyota Hilux KUN16, KUN26, KZN156, KZN167 turbo, engine 1KD-FTV 3.0L diesel, approx. 2005–2015
• Toyota LandCruiser Prado KDJ120, engine 1KD-FTV 3.0L diesel, approx. 2006–2009

There are 80A and 130A alternator variants for these vehicles and they are not interchangeable. Always compare the amperage rating and physical details with the original unit before purchase.

PACKAGE CONTENTS

• 1 x Alternator, 80A

INSTALLATION NOTES

• Professional installation is recommended.
• Verify plug type, mounting points, pulley configuration and output (80A) against the original alternator.
• Disconnect the battery before removal and installation of the alternator.
