Alternator for Holden Commodore & HSV LS1 Gen III 5.7L V8 140A 12V

PRODUCT OVERVIEW

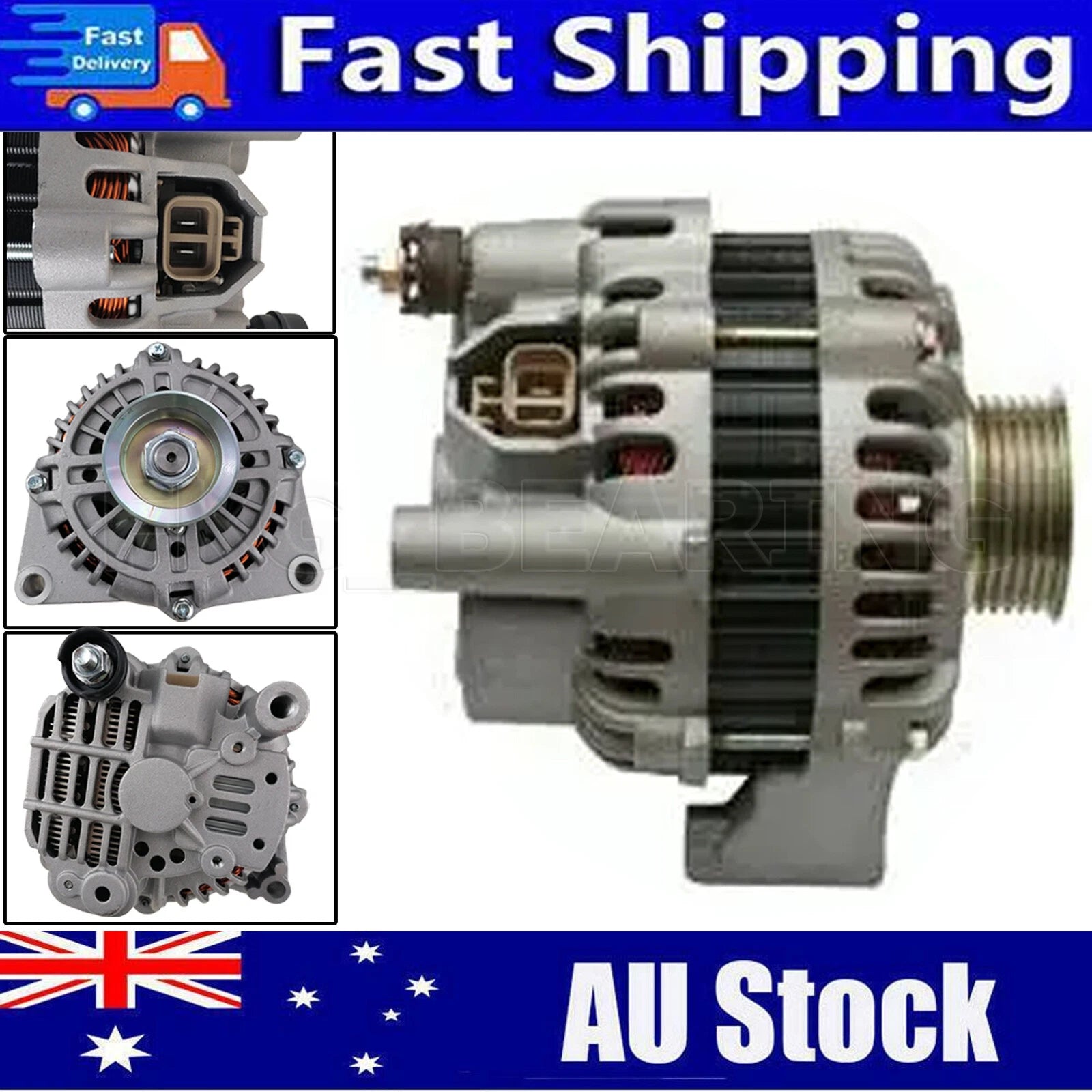

This 12V, 140A alternator is designed for Holden LS1 Gen III 5.7L V8 applications, including selected Commodore, HSV and related models using the big 2-pin plug, non-clutch type pulley.

KEY FEATURES

• 12V output with 140A high-current capacity
• 2-pin big plug connector (non-clutch type)
• Direct replacement for specified LS1 Gen III 5.7L V8 models
• Engineered for reliable charging performance

VEHICLE COMPATIBILITY

Suitable for selected Holden vehicles equipped with the LS1 Gen III 5.7L V8 petrol engine, including but not limited to:

• Adventra VY, VZ 5.7L LS1 (2003-on)
• Caprice V8 WH 5.7L LS1 (1999–2004)
• Commodore V8 VT, VX, VY, VZ 5.7L LS1 (1999–2005)
• Crewman Cross 8 5.7L LS1 (2003–2006)
• Crewman V8 5.7L LS1 (2003–2004)
• HSV Avalanche "Y" Series Wagon 5.7L LS1 (2003–2005)
• HSV Avalanche XUV Twin Cab Utility 5.7L LS1 (2004–2005)
• HSV Clubsport VT, VX, VY 5.7L LS1 (1999–2004)
• HSV Grange WH, WK 5.7L LS1 (2000–2004)
• HSV GTO Coupe 5.7L LS1 (2002–2004)
• HSV GTS VT, VX, VY 5.7L LS1 (1999–2004)
• HSV Maloo VU, VY 5.7L LS1 (2001–2004)
• HSV Senator VT, VX, VY 5.7L LS1 (1999–2004)
• Monaro V2 5.7L LS1 (2002–2006)
• Statesman WH, WK, WL 5.7L LS1 (1999–2006)
• Utility including 1 Tonne VY, VZ 5.7L LS1 (2002–2005)
• Utility SS VU, VY 5.7L LS1 (2001–2005)

Note for VZ models: Only suits some VZ vehicles with the big 2-pin plug. Please check the alternator plug on your vehicle before purchase.

SPECIFICATIONS

• Voltage: 12V
• Amperage: 140A

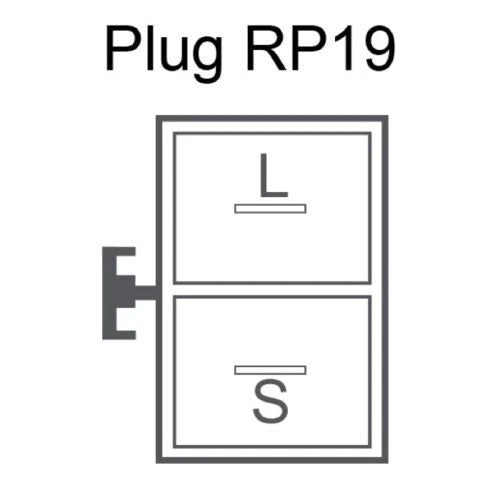

• Plug type: 2-pin, big plug
• Pulley type: Non-clutch

CROSS-REFERENCE PART NUMBERS

• A3TA7991
• 92058857
• A003TA7991

INSTALLATION NOTES

• Professional installation is highly recommended
• No installation instructions are included
• Always confirm plug type and part number against your original alternator
