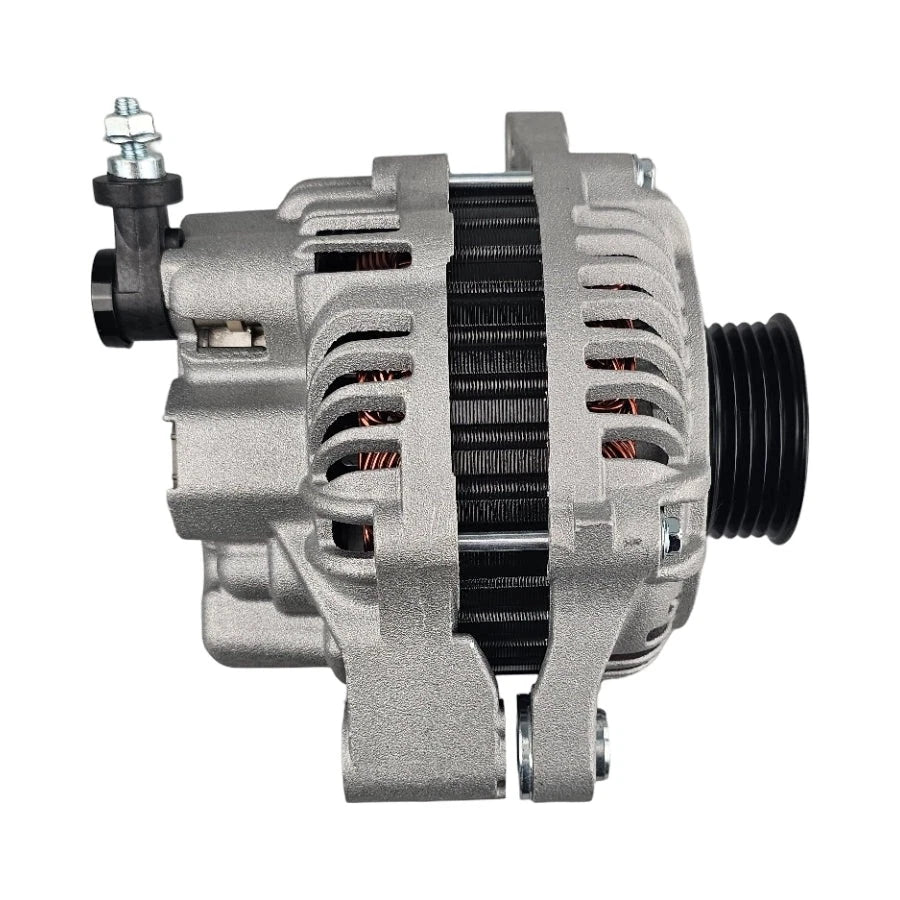

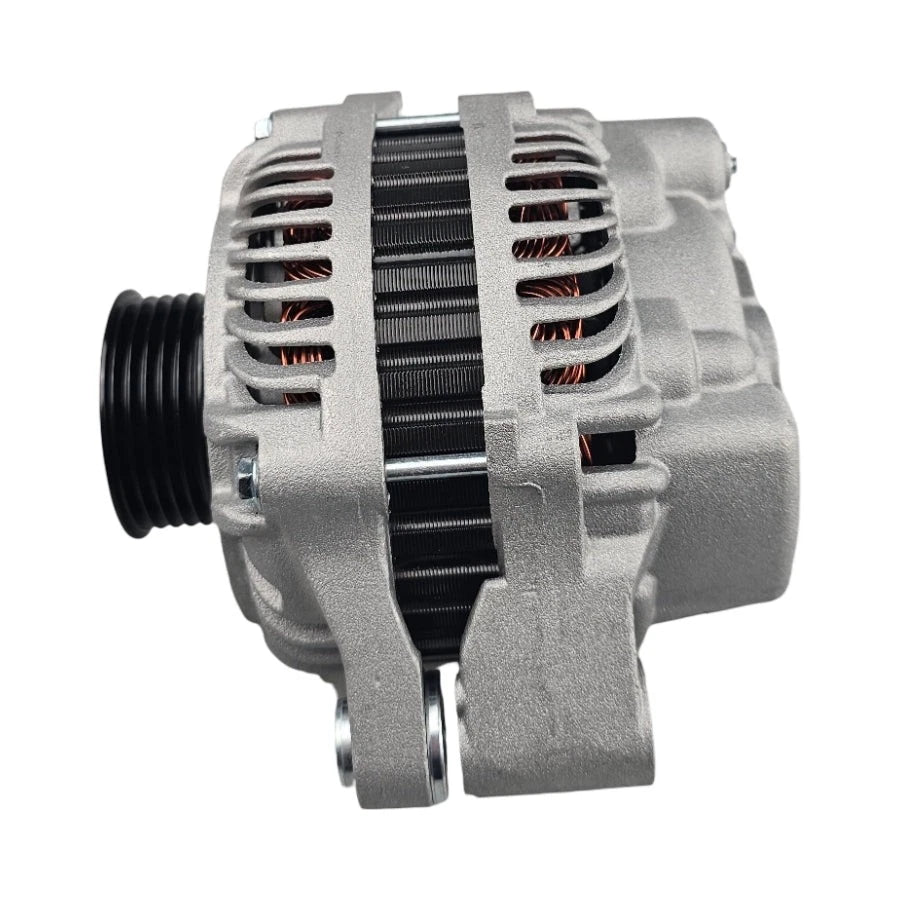

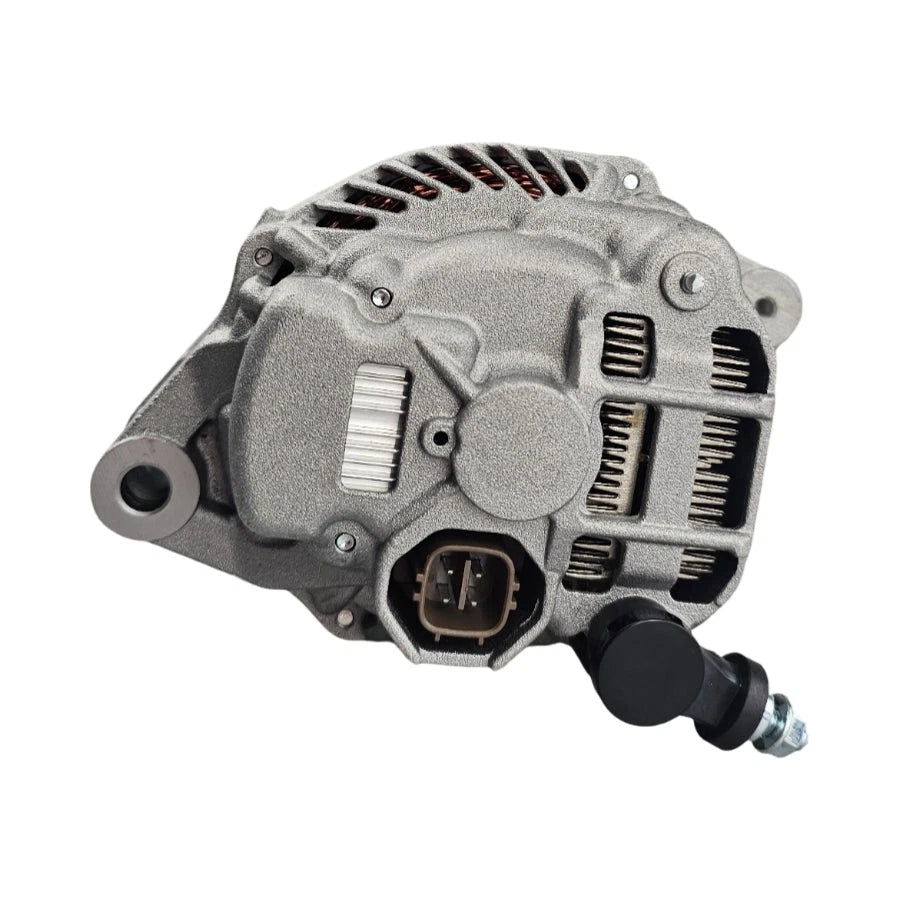

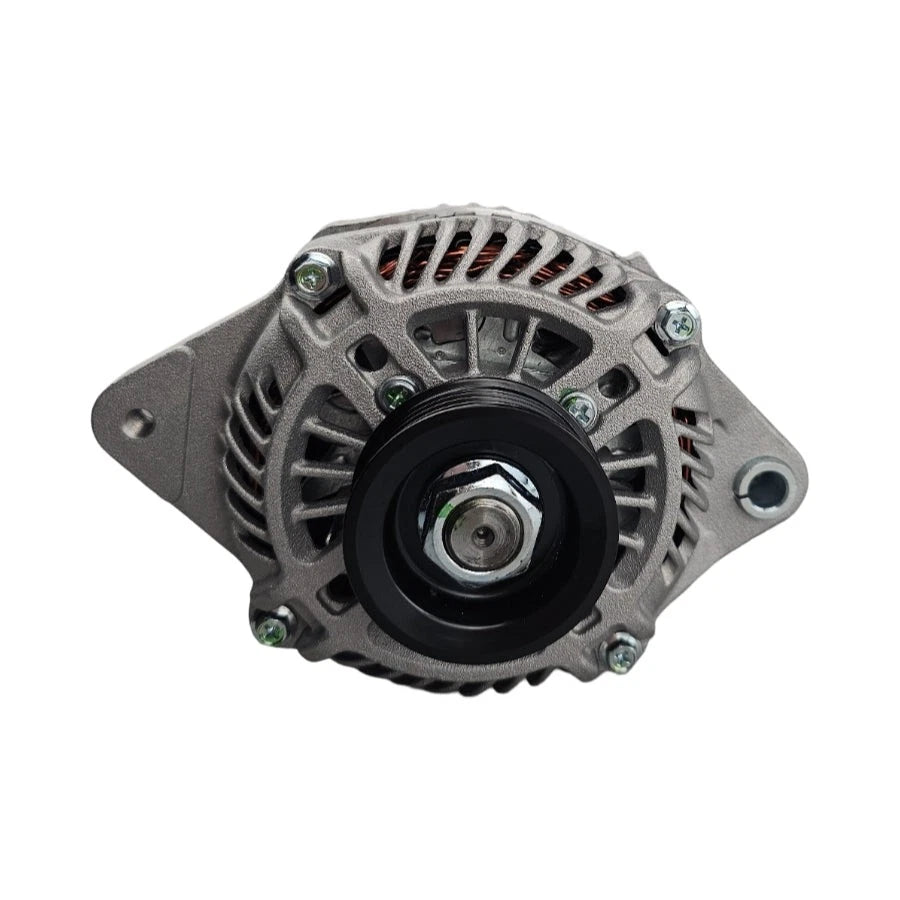

Alternator 80A 12V for Suzuki Grand Vitara JT M16A J20A & Splash K12B

PRODUCT OVERVIEW

This brand new 80A, 12V alternator is designed as a quality replacement unit for selected Suzuki Grand Vitara JT and Suzuki Splash K12B applications. Built to stringent international standards (ISO/TS16949), it provides reliable charging performance and long service life.

KEY FEATURES

• Brand new replacement alternator (not remanufactured)
• 80A output for stable electrical supply
• 12V system compatibility
• RP209 4-pin plug (IG, C, L, FR)
• Direct-fit design for specified Suzuki applications

VEHICLE APPLICATIONS

• Suzuki Grand Vitara JB416 / JT 1.6L M16A 4WD (09/2005 - 07/2008), including Trekker variants
• Suzuki Grand Vitara JB420 / JT 2.0L J20A 4WD (09/2005 - 07/2008), including Trekker variants
• Suzuki Splash XB32S 1.2L K12B FWD (10/2008 - 08/2014)

Important: Always confirm the OE part number and plug type (RP209 4-pin) against your original alternator before purchase.

SPECIFICATIONS

• Voltage: 12V
• Amperage: 80A
• Plug Type: RP209 4-pin (IG, C, L, FR)
• Pulley Type: 5PV
• Pulley Diameter: 59mm
• Adjustment Hole: M8 x 1.25
• Pivot Hole: 10mm
• Adjustment to Pivot Distance: 163mm
• Pivot Length: 58mm
• Inside Feet to Feet: N/A

WHAT'S INCLUDED

• 1 x Brand new alternator

WARRANTY

• 12 month / 20,000 km warranty (whichever occurs first)

Ensure compatibility by checking your existing alternator's specifications and plug configuration before ordering.
