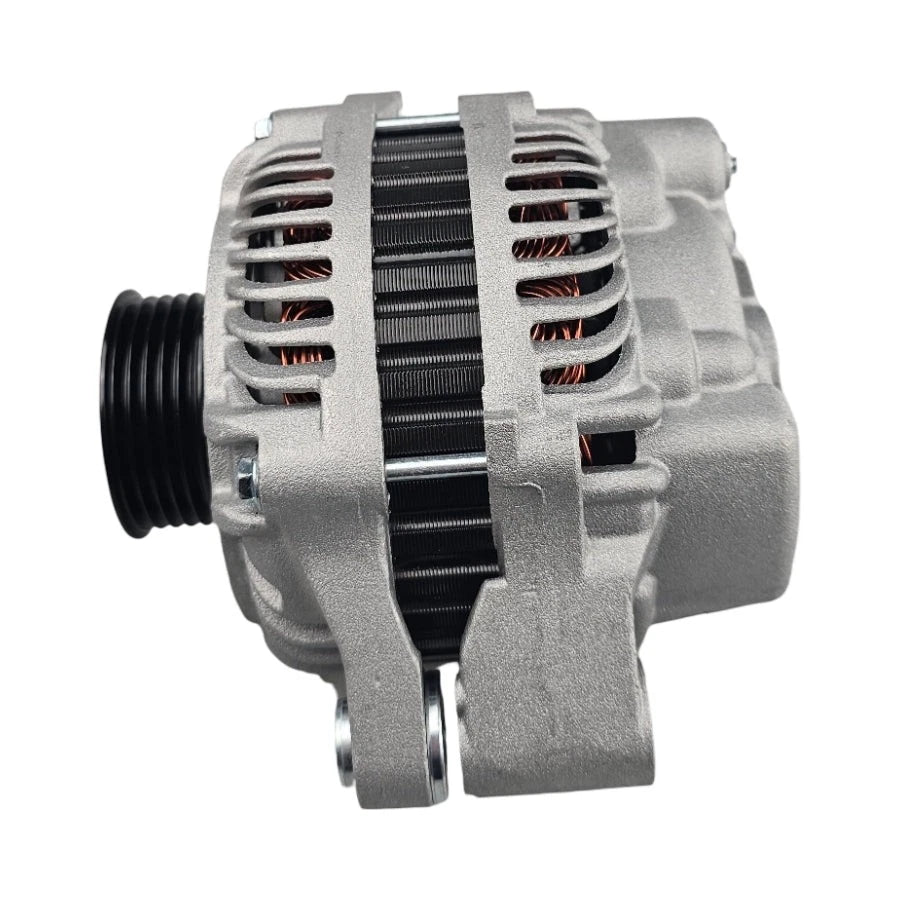

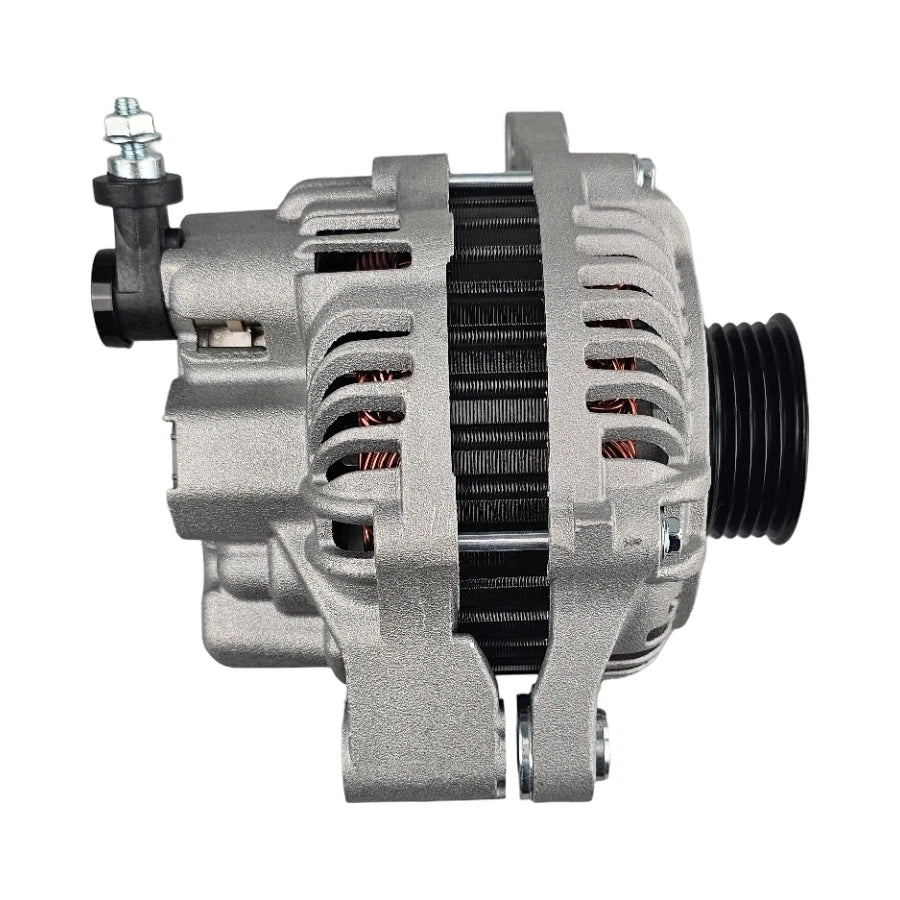

Alternator 80A RP209 4-Pin for Suzuki Swift FZ RS415 1.2–1.6L

PRODUCT OVERVIEW

Brand new 12V, 80A alternator suitable for selected Suzuki Swift models. Designed as a direct replacement unit with RP209 4-pin plug (IG C, L FR) and 5PV pulley for reliable charging performance.

KEY FEATURES

• Brand new replacement alternator (not remanufactured)
• 80A output for stable electrical performance

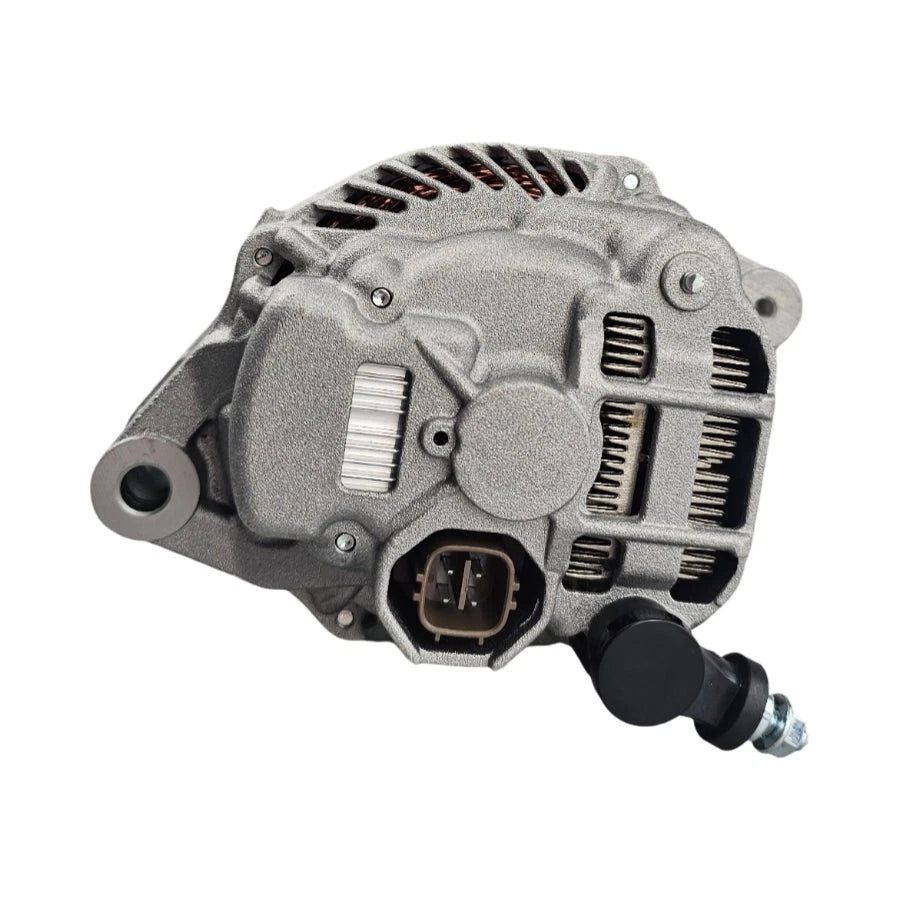

• RP209 4-pin plug (IG C, L FR) to match original connector

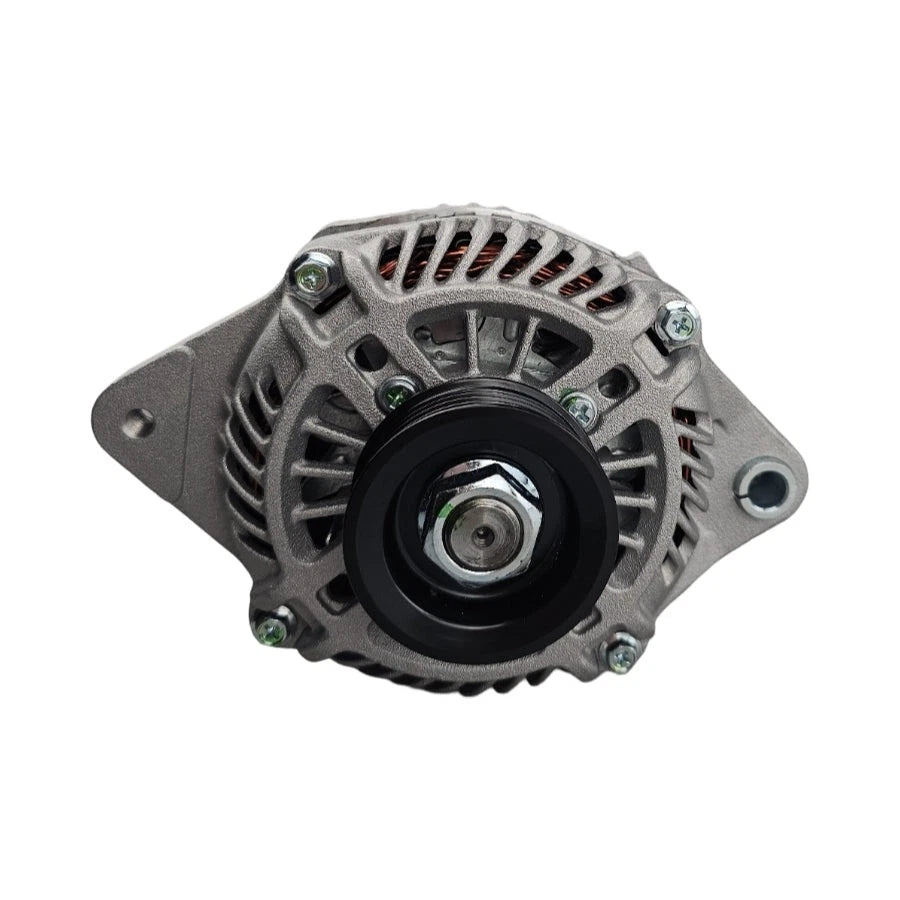

• 5PV pulley with 59mm diameter
• Manufactured to international quality standards (ISO/TS16949)

VEHICLE COMPATIBILITY

Use the OEM/part number and plug type to confirm compatibility before purchase.

• Suzuki Swift ZC71S, ZC72S, ZD72S (NZ models) 1.2L K12B FWD (05/2007–01/2017)
• Suzuki Swift HT51S, ZC11S, ZD11S (NZ models) 1.3L M13A FWD/4WD (01/2000–09/2010)
• Suzuki Swift FZ 1.4L K14B / 1.6L M16A FWD (02/2011–06/2017)
• Suzuki Swift RS415 EZ 1.5L M15A / 1.6L M16A FWD (11/2004–01/2011) with 4-pin plug only

For other plug types, a different alternator model is required.

SPECIFICATIONS

• Voltage: 12V
• Amperage: 80A
• Plug type: RP209 4-pin (IG C, L FR)
• Pulley type: 5PV
• Pulley diameter: 59mm
• Adjustment hole: M8 x 1.25
• Pivot hole: 10mm
• Adjustment to pivot distance: 163mm
• Pivot length: 58mm

WHAT'S INCLUDED

• 1 × Alternator unit

WARRANTY

This alternator is supplied with a 12 month / 20,000 km warranty, subject to correct installation and normal operating conditions. Please ensure compatibility and professional installation for best performance.
