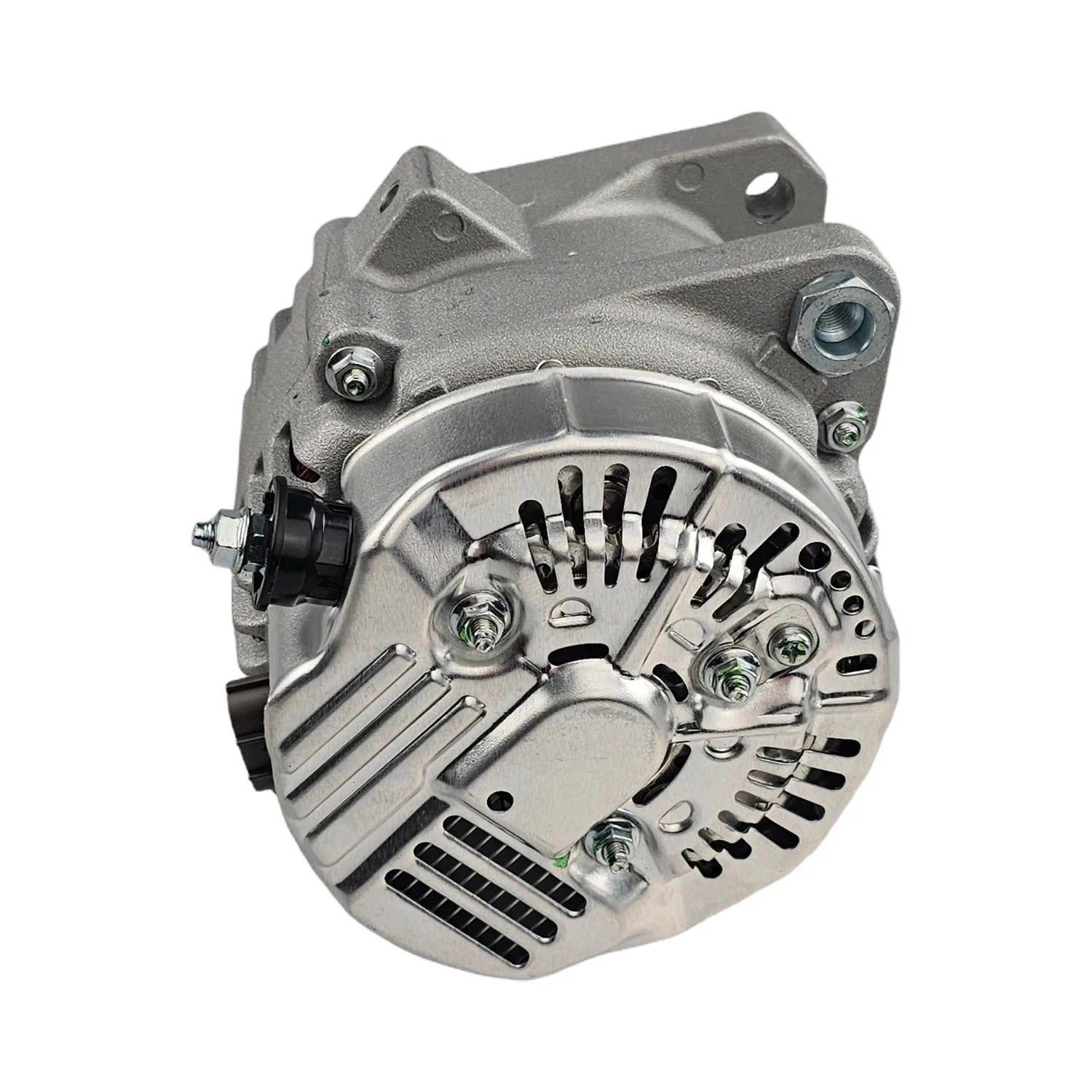

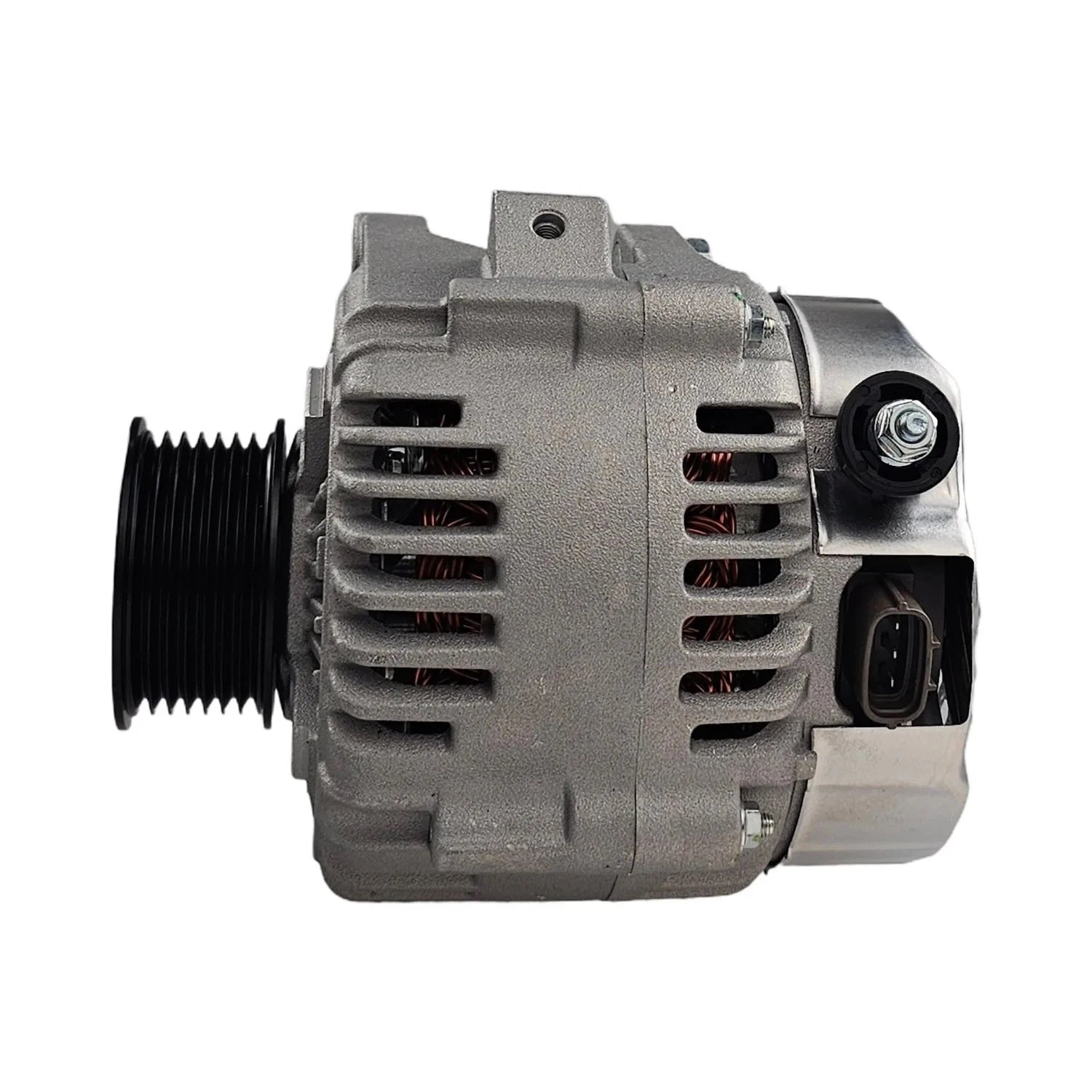

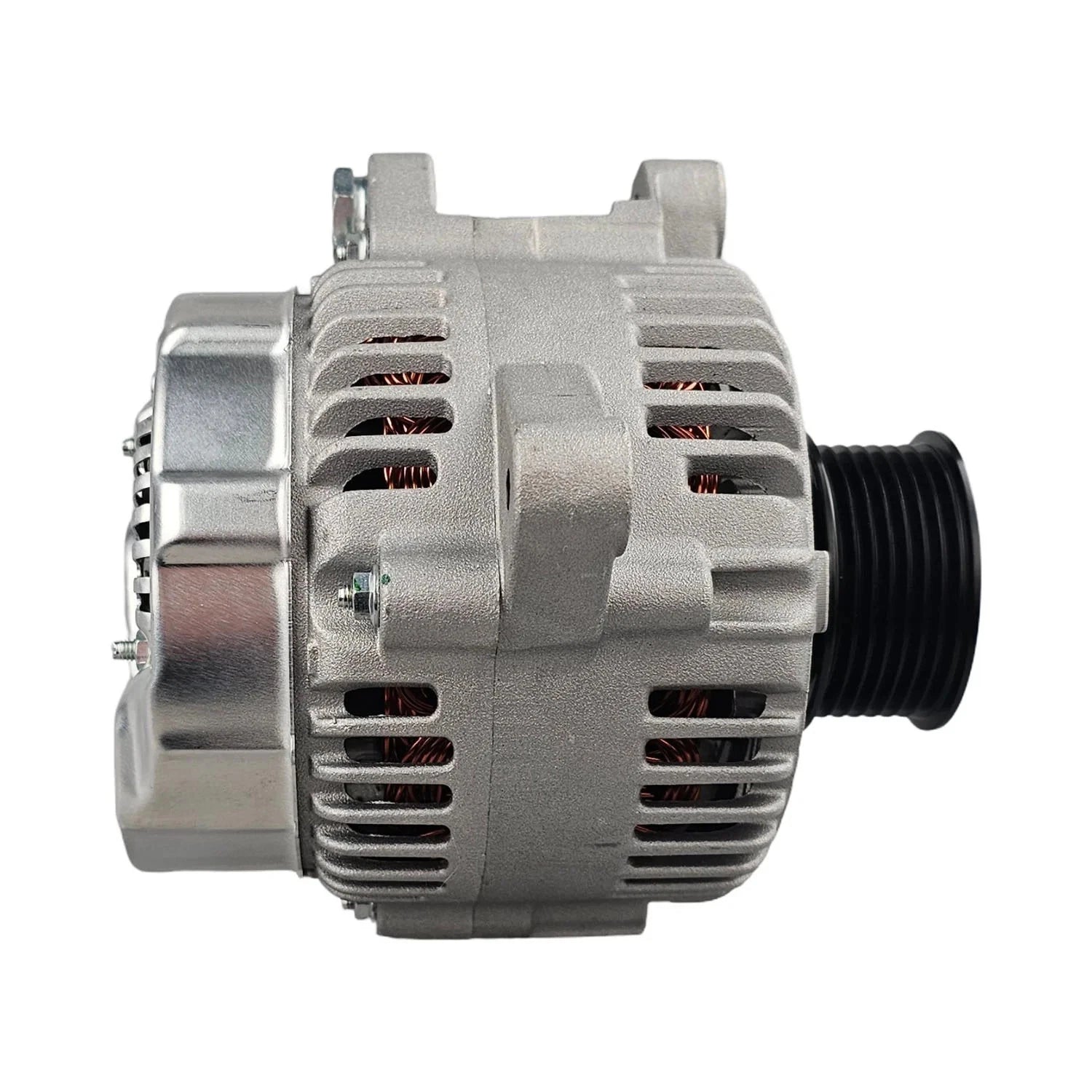

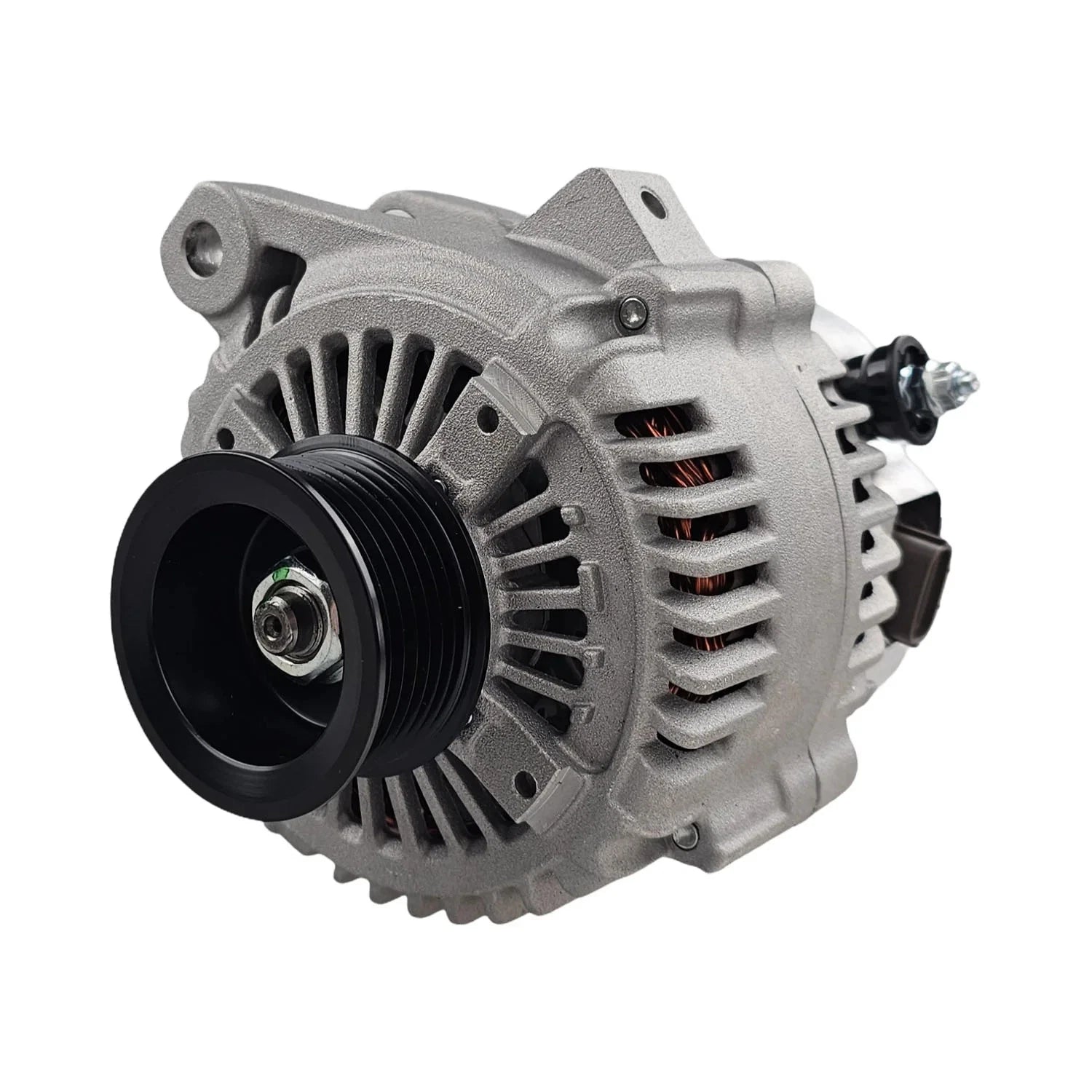

Alternator 100A 12V for Toyota RAV4 ACA20/21/22/23 & Estima MCR40 3‑Pin

PRODUCT OVERVIEW

Brand new 12V, 100A alternator suitable for selected Toyota RAV4 ACA20/ACA21/ACA22/ACA23 and Toyota Estima MCR40 applications. Features an RP11 3-pin oval plug (S IG L) and 7PV pulley for reliable charging performance.

KEY FEATURES

• Brand new replacement alternator (not reconditioned)
• Oval RP11 3-pin plug (S IG L) – please verify connector type before purchase
• 12V system, 100A output for stable electrical performance
• 7PV multi-groove pulley, 66mm pulley diameter
• Manufactured to international quality standards (ISO/TS16949)

VEHICLE APPLICATIONS

• Toyota RAV4 ACA20 2.0L 1AZ-FE 4WD (07/2000 - 01/2006), manual transmission, 3-pin plug
• Toyota RAV4 ACA21 2.0L 1AZ-FE 4WD (07/2000 - 01/2006), manual transmission, 3-pin plug
• Toyota RAV4 ACA22 2.4L 2AZ-FE 4WD (07/2000 - 01/2006), manual transmission, 3-pin plug
• Toyota RAV4 ACA23 2.4L 2AZ-FE 4WD (07/2000 - 01/2006), manual transmission, 3-pin plug
• Toyota Estima MCR40 3.0L 1MZ-FE 4WD (01/2000 - 12/2005), including L AERAS, L AERAS 4WD, G Edition, Limited, Premium, S Edition, L G, L X, T AERAS, T G, T X sub-models

Always confirm plug type, mounting points and specifications against your original alternator before ordering.

SPECIFICATIONS

• Voltage: 12V
• Amperage: 100A
• Plug type: RP11 3-pin (S IG L), oval
• Pulley type: 7PV
• Pulley diameter: 66mm
• Adjustment hole: M8 x 1.25
• Pivot hole: 11mm
• Adjustment hole to pivot hole: 125mm
• Inside feet to feet: 45mm

WHAT'S INCLUDED

• 1 x Alternator

WARRANTY & SUPPORT

• 12 month / 20,000 km warranty (whichever occurs first)
• Technical support available for pre-purchase and installation enquiries

Ensure compatibility by matching OE-style plug, mounting dimensions and electrical rating with your original unit before installation.
