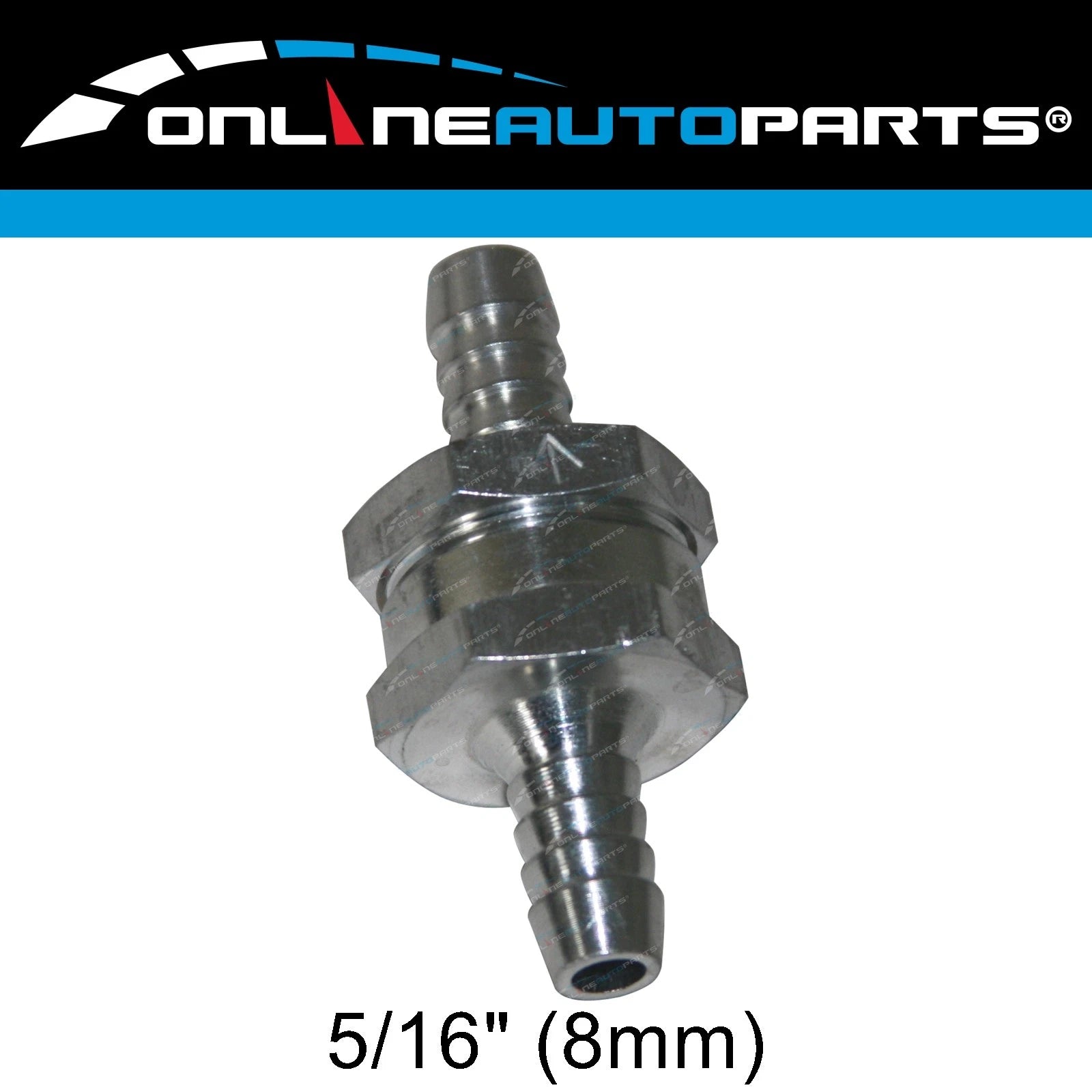

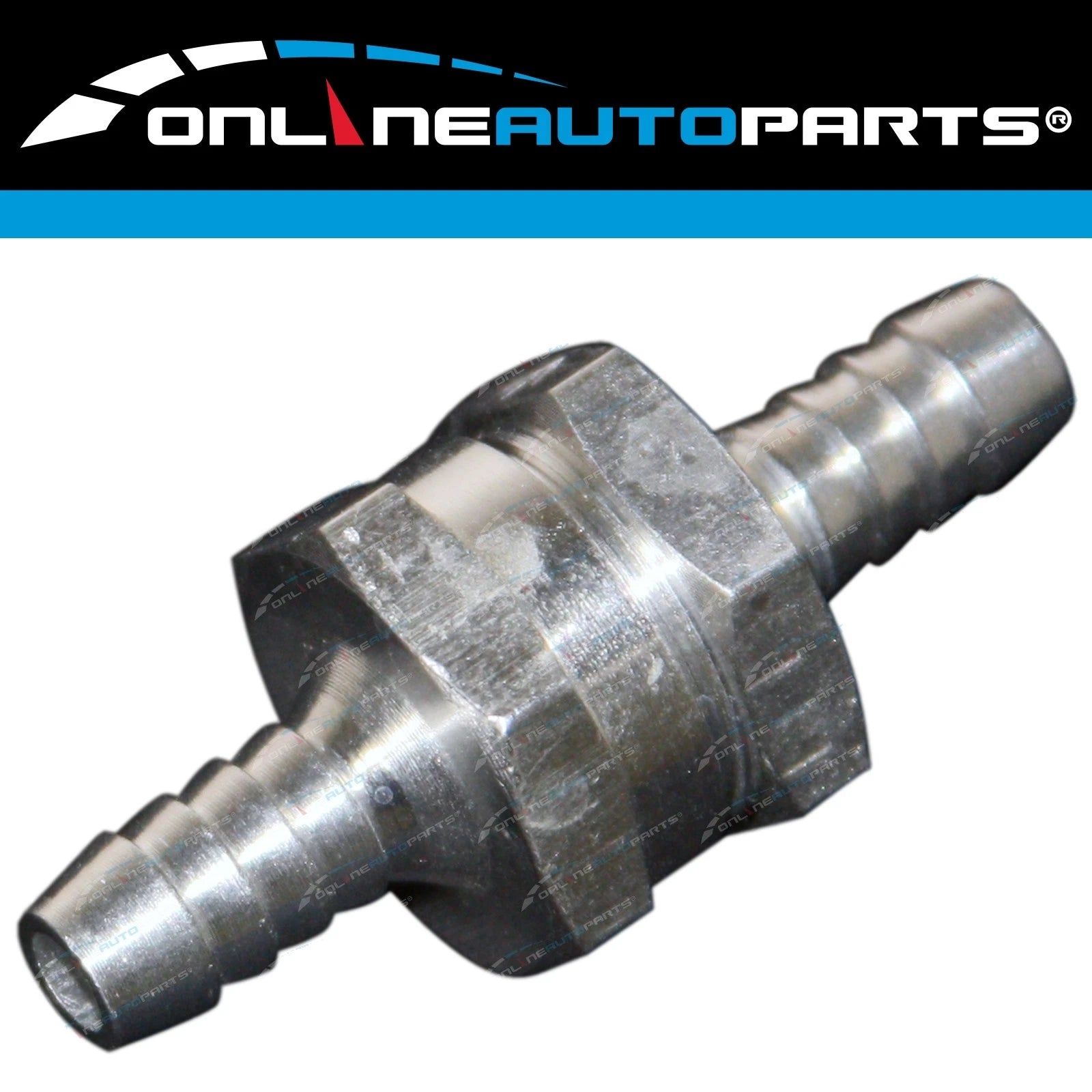

8mm (5/16") Aluminium One Way Non Return Fuel Line Check Valve

PRODUCT OVERVIEW

This aluminium one way non return fuel line check valve is designed to prevent fuel from flowing back to the tank, keeping fuel in the line for easier starting. It is suitable for use with petrol, diesel and water in low pressure applications.

KEY FEATURES

• Prevents fuel from returning to the tank and maintains prime in the fuel line
• Ideal for vehicles that are hard or slow to start due to fuel drain-back
• Suitable for carburettor and low pressure side fuel systems
• Compatible with petrol, diesel and water applications
• Durable aluminium construction for long service life
• Opening pressure: 1 PSI

SPECIFICATIONS

• Inlet: Suits 8mm (5/16") ID hose
• Outlet: Suits 8mm (5/16") ID hose
• Overall size: 59mm x 22mm (approx.)
• Opening pressure: 1 PSI
• Reference: NRFV8, ZPN-03791

APPLICATION NOTES

• For use on the low pressure side of fuel systems only
• Check hose size (8mm / 5/16" ID) before purchase to ensure compatibility
• Install with correct flow direction as marked on the valve body

REPLACEMENT TYPE

Aftermarket OEM-equivalent replacement component. Fit and performance are intended to be comparable to the original part, depending on application.
