Automatic Agricultural Robot Chassis - Laser & Finger Weeding UGV (Used)

GT-02 Agricultural Robot Chassis - Automatic UGV with Laser & Finger Weeding Support

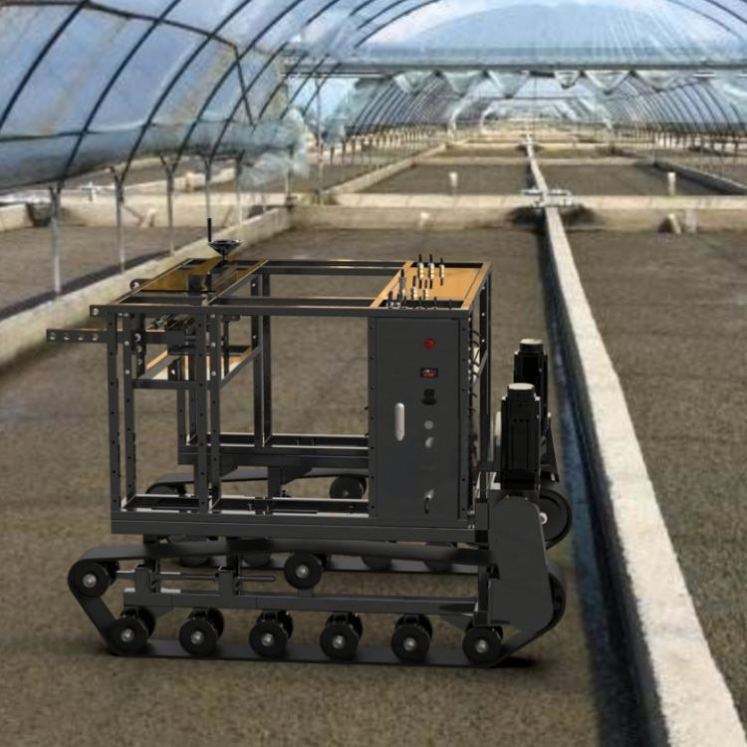

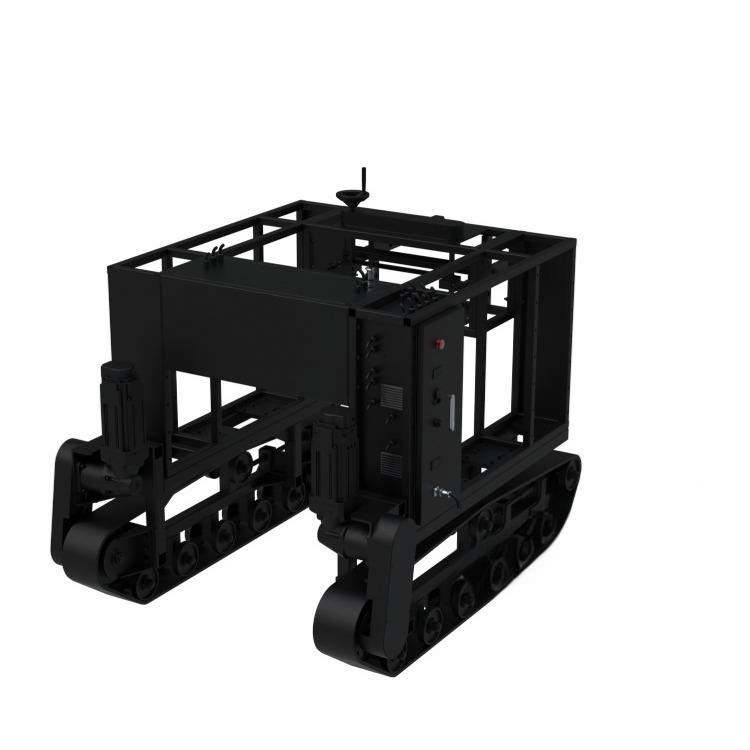

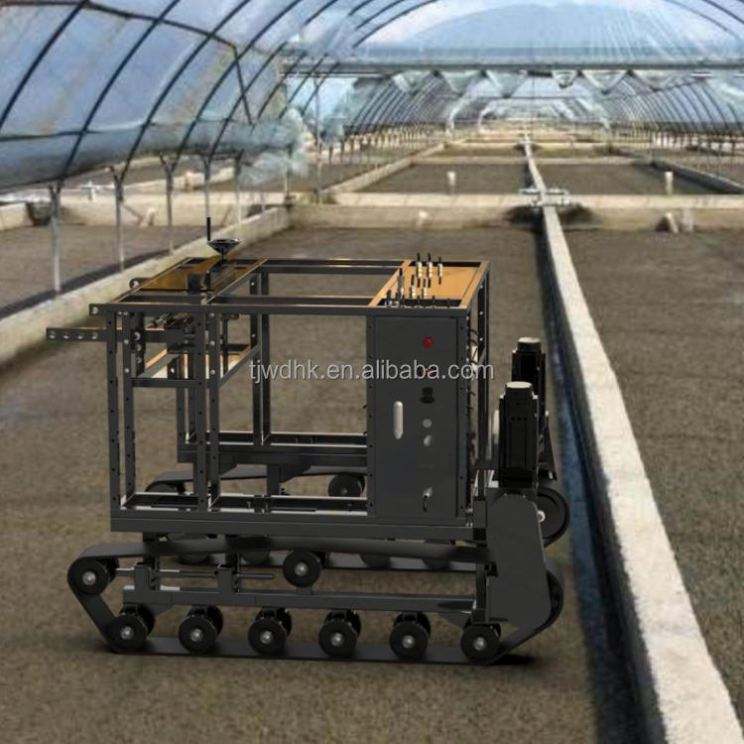

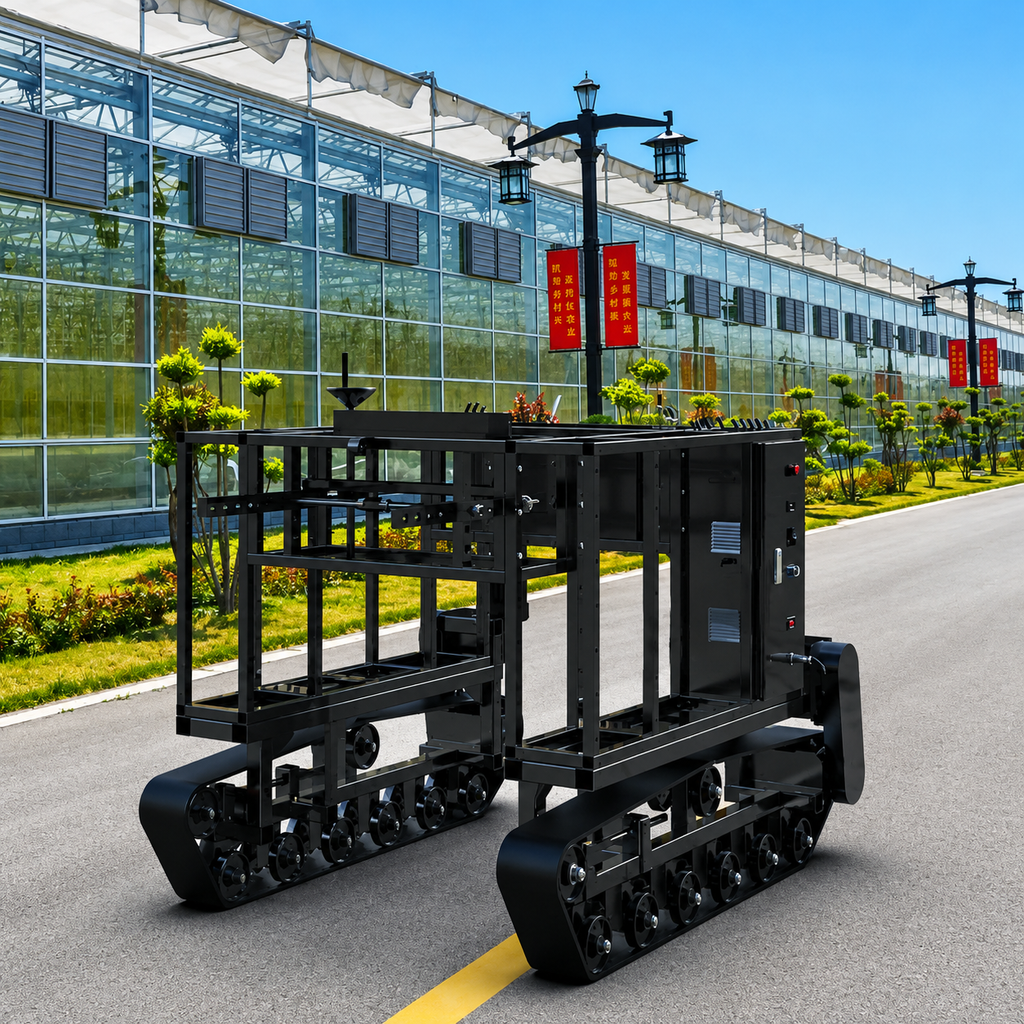

The GT-02 is a factory-priced, tracked automatic UGV chassis built for agricultural applications including laser weeding and finger weeding systems. Designed for rough field conditions, it features a durable Q235 steel frame, dual high-torque motors, and support for laser navigation upgrades - making it a flexible base platform for custom agricultural robot builds.

KEY SPECIFICATIONS

• Size: 1682 x 1353 x 1326mm
• Chassis Weight: 300kg
• Material: Q235 steel
• Ground Clearance: 851mm
• Wheel Track: 1030mm
• Wheel Diameter: 212mm
• Protection Class: IP22
• Operating Temperature: -10°C to 60°C
• Max Speed: 1.2 m/s
• Turning Radius: Rotation in place (0°)
• Vertical Load Capacity: 200kg
• Climbing Ability (with load): 20%
• Slope Parking: Supported

POWER & DRIVE SYSTEM

• Battery Type: Lithium battery
• Battery Capacity: 48V 50AH (expandable)
• Endurance (with load): 2 hours
• Voltage: 48V
• Charging Time: 5 hours
• Charging Mode: Manual
• Battery Quick Release: Supported
• Battery BMS Data: Supported (485 communication)
• External Power Supply: 48V / 24V / 19V / 12V
• Number of Motors: 2
• Motor Power: 2000W x 2
• Motor Reduction Ratio: 30
• Encoder Lines: 1,000 lines

CONTROL & NAVIGATION

• Control Mode: 232 serial port
• System Support: ROS / WIN / UBUNTU
• Emergency Stop Button: Supported
• Remote Control: 1 set included
• Optional Laser Navigation Kit: 16-line LiDAR, RGBD camera, IMU, RTK module, navigation host with display

STANDARD ACCESSORIES INCLUDED

• GT-02 robot body - 1 set
• Lithium battery charger (AC220V) - 1 set
• Power supply plug - 1 set
• 2.4G model aircraft remote control - 1 set
• External power supply module - 1 set

OPTIONAL LASER NAVIGATION ACCESSORIES

• Laser Navigation Kit - 1 set
• 16-Line LiDAR - 1 set
• Navigation host - 1 set
• Sensor bracket (with display) - 1 set
• RGBD camera - 1 set
• Automatic back-flushing module - 1 set
• IMU - 1 set
• RTK module - 1 set

BUILT-IN CONTROLS

• Emergency stop button
• Electricity meter (48V)
• Character charging port (48V)
• Key switch
• Power meter (24V)
• Airplug charging port (24V)

CUSTOMIZATION & SUPPORT

• Full vehicle customization and design support available (user consultation, technical assessment, unfolding design, manufacturing, assembly testing, delivery)
• Place of Origin: Tianjin, China
• Warranty: 3-6 months
• Machinery test report provided
• Video outgoing-inspection provided
• Self-weight: 300kg | Max Load: 200kg | Size: 1700 x 1400 x 1400mm

Condition: Used | Type: Automatic Agricultural Robot Chassis (UGV) | Compatible with laser and finger weeding attachments
