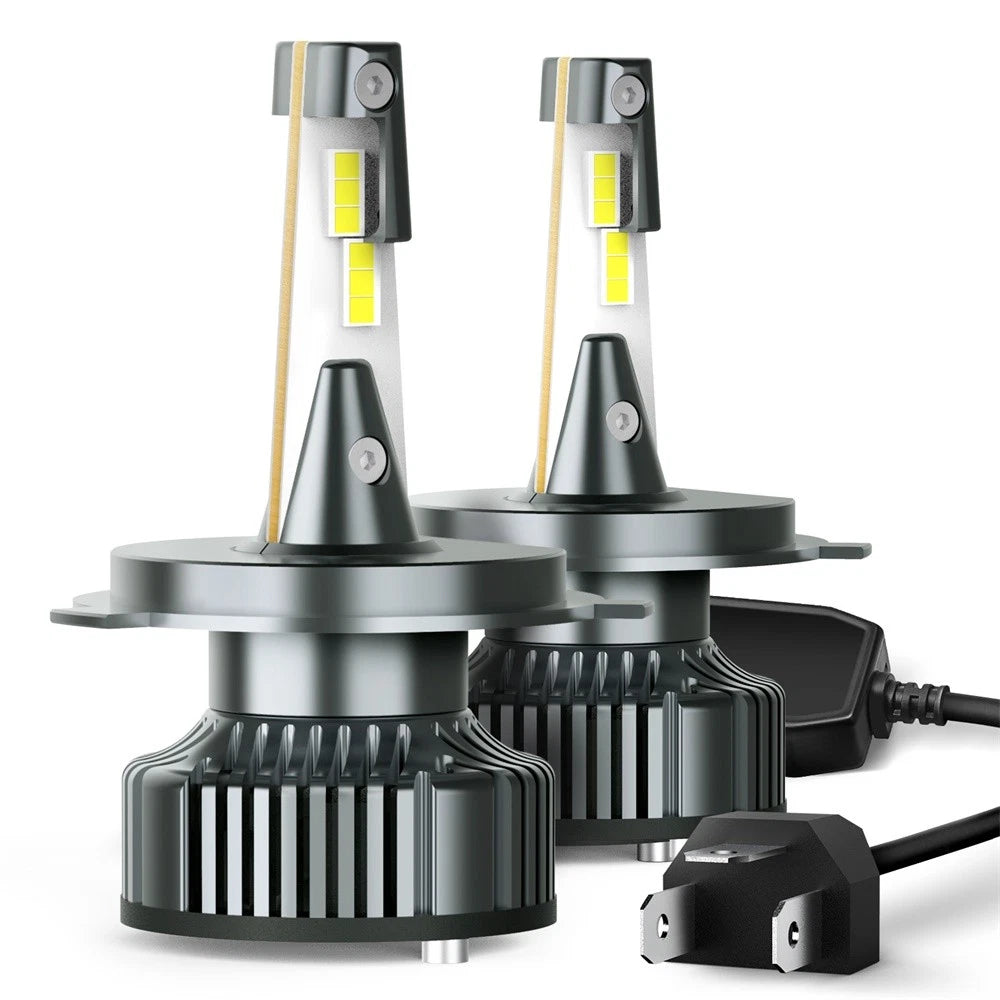

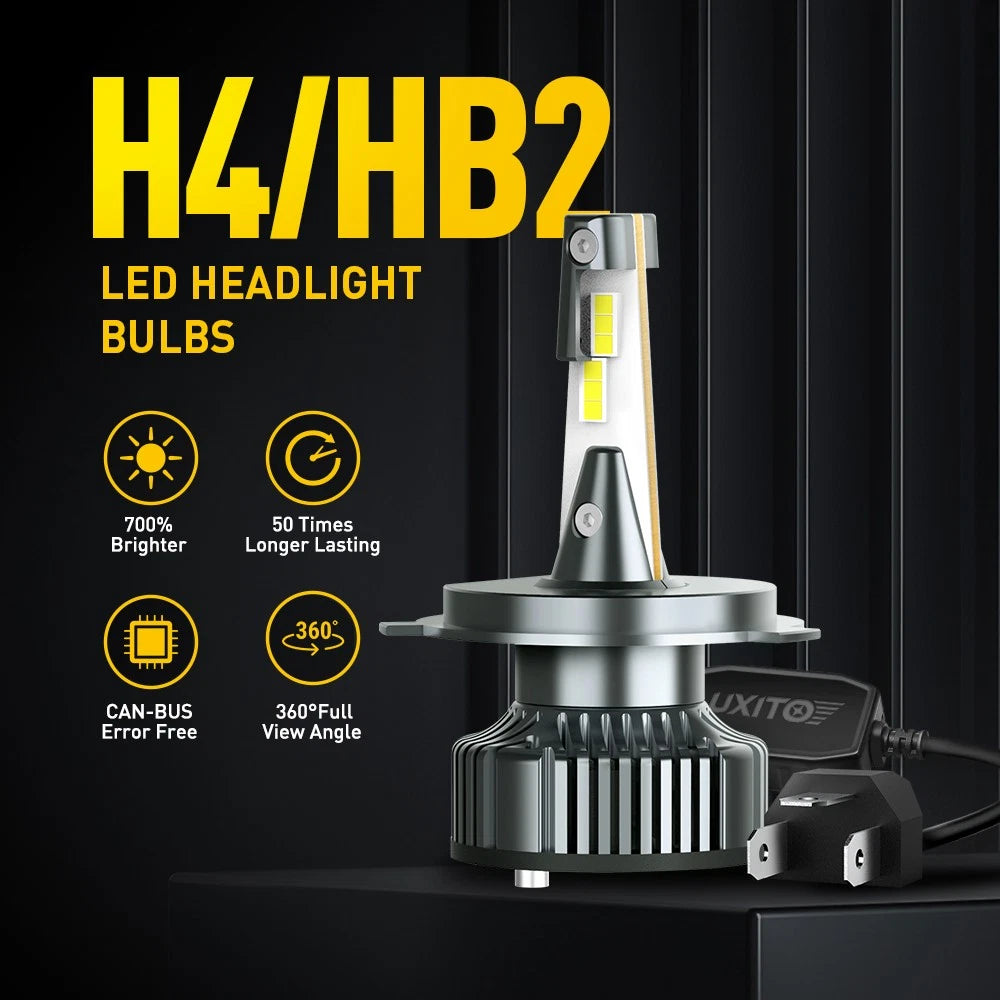

AUXITO H4 9003 HB2 LED Headlight Bulbs 120W 24000LM 6500K CANbus (Pair)

Product Overview

AUXITO H4 9003 HB2 LED headlight bulbs deliver up to 24000LM per set and 6500K cool white output for high and low beam applications. The compact, plug-and-play design with CANbus compatibility provides a straightforward upgrade from standard halogen bulbs.

Key Features

• High-output LED chips providing up to 120W, 24000LM per set
• 6500K cool white light for improved night-time visibility
• Optimized beam pattern designed to reduce glare to oncoming traffic
• Mini-sized, non-polarity bulb body fits standard H4/9003/HB2 housings
• CANbus-ready driver helps minimize dashboard error codes and radio interference
• IP68-rated construction for reliable performance in harsh weather

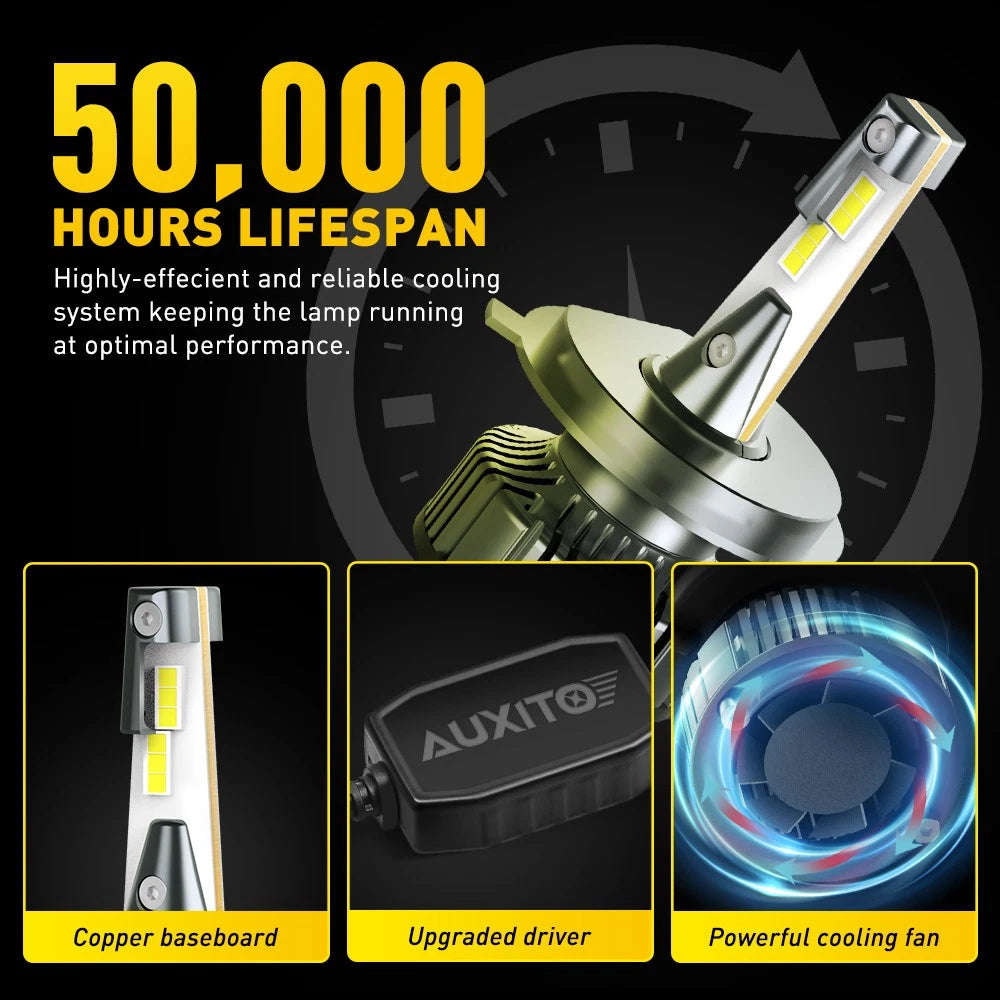

Cooling & Lifespan

• All-aluminum housing with A380 aluminum heatsink
• Hollow-carved heat sink design for increased airflow
• Built-in high-speed cooling fan (up to 12,000RPM)
• Advanced LED driver with intelligent IC and temperature control
• Designed operating life up to 50,000 hours (under typical conditions)

Specifications

• Bulb type / size: H4 (9003 / HB2)
• Manufacturer Part Number: DD-Y13-H4
• Application: Headlights or fog lights
• Beam pattern: 360° illumination
• Voltage: DC 9–32V (suitable for 12V and 24V systems)
• Power: 120W per set (approx.)
• Luminous flux: 24000LM per set (approx.)
• Color temperature: 6500K cool white
• Ingress protection: IP68
• Operating temperature: -40°C to +80°C
• Lighting technology: LED
• Placement on vehicle: Front, left, right

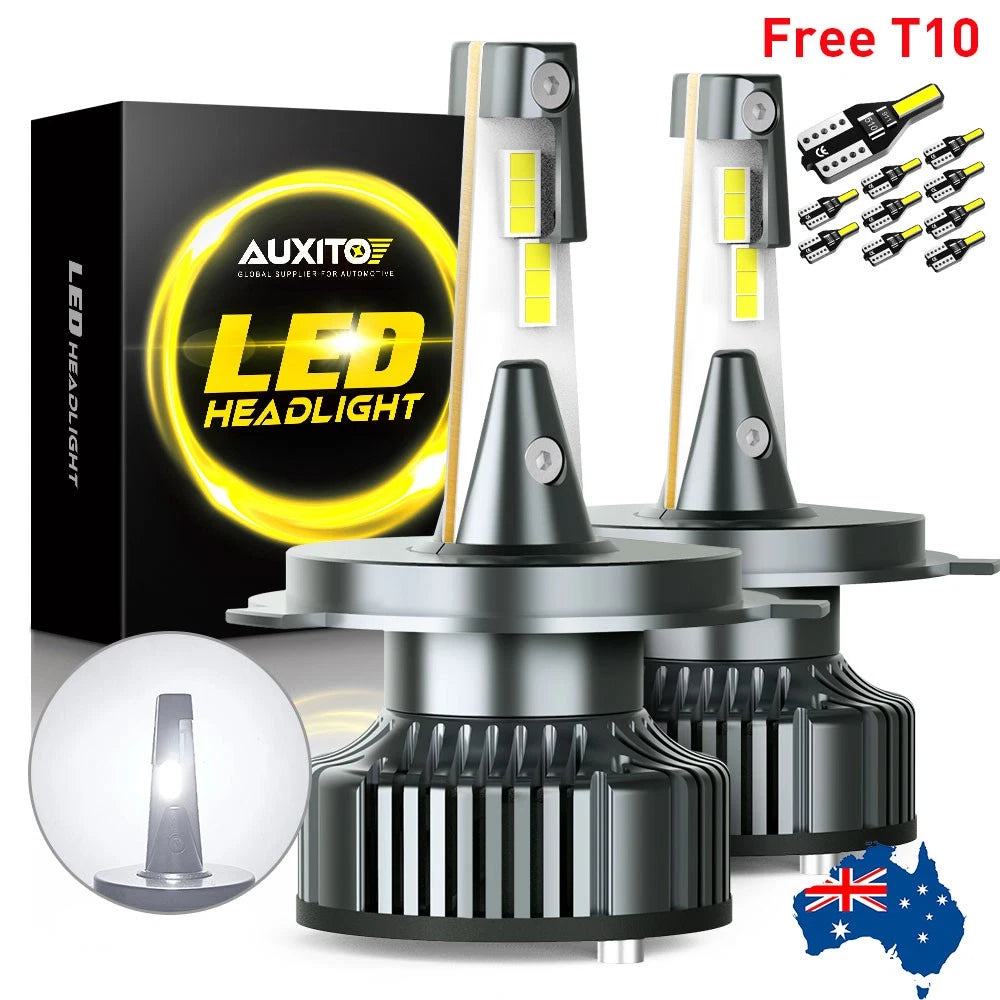

• Number of bulbs: 2 (pair)
• Suitable for: Headlight or fog light use, where H4/9003/HB2 is specified
• Features: CANbus compatible design

Installation Notes

• Allow the vehicle lighting system to cool before beginning installation.
• Park the vehicle securely and switch off the ignition; remove the key.
• Avoid touching LED chips with bare fingers to prevent contamination.
• Check all connectors, ports and wiring for secure, correct engagement.
• Ensure the bulb does not contact the internal headlight shield when adjusted.
• Professional installation is recommended if you are unfamiliar with headlight replacement.
