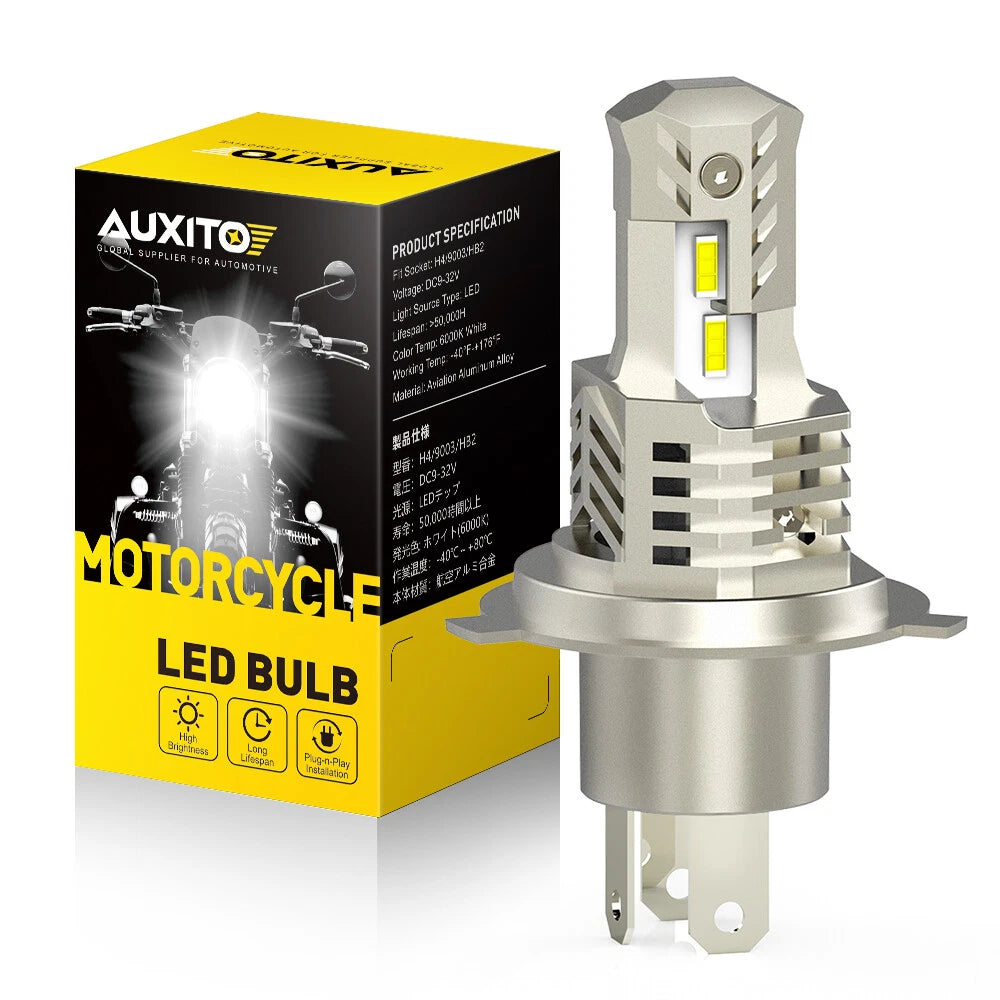

AUXITO H4 9003 HB2 LED Motorcycle Headlight Bulbs 6500K 30000LM Fanless

PRODUCT OVERVIEW

Upgrade your lighting with AUXITO H4 9003 HB2 LED motorcycle headlight bulbs, delivering high-output 6500K cool white illumination in a compact, fanless design. Engineered for reliable hi/low beam performance and straightforward plug-and-play installation.

KEY FEATURES

• High brightness: up to 30,000LM per pair for significantly improved visibility.
• 6500K cool white output for a clear, daylight-style beam pattern.

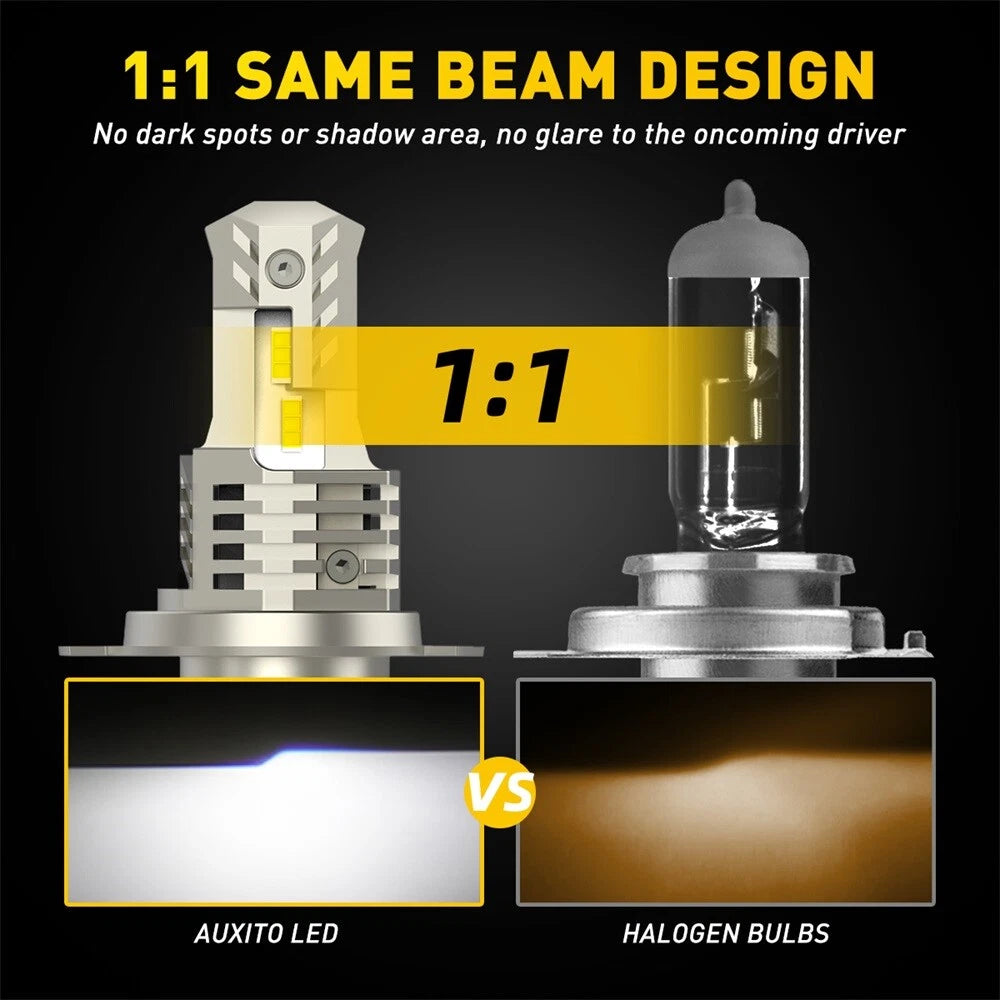

• 1:1 halogen filament layout for a precise, focused 360° beam with reduced dark spots and glare.
• Fanless thermal design using 6063 aviation aluminium housing for efficient heat dissipation.
• Plug-and-play installation into H4 / 9003 / HB2 factory housings, no external driver required.
• IP68-rated waterproof construction for reliable performance in harsh weather.
• Suitable for headlight, high beam and low beam positions (where H4 9003 HB2 is specified).

SPECIFICATIONS

• Model / Fitment: H4 9003 HB2
• Lighting technology: LED
• Power: 50W per set (25W per bulb)
• Luminous flux: 30,000LM per pair (15,000LM per bulb)
• Colour temperature: 6500K cool white
• Operating voltage: DC 9–18V (typ. 12–18V)
• Current: 2.25A ±10%
• Beam angle: 360°
• Waterproof rating: IP68 (housing table also notes IP67)
• Material: 6063 aviation aluminium

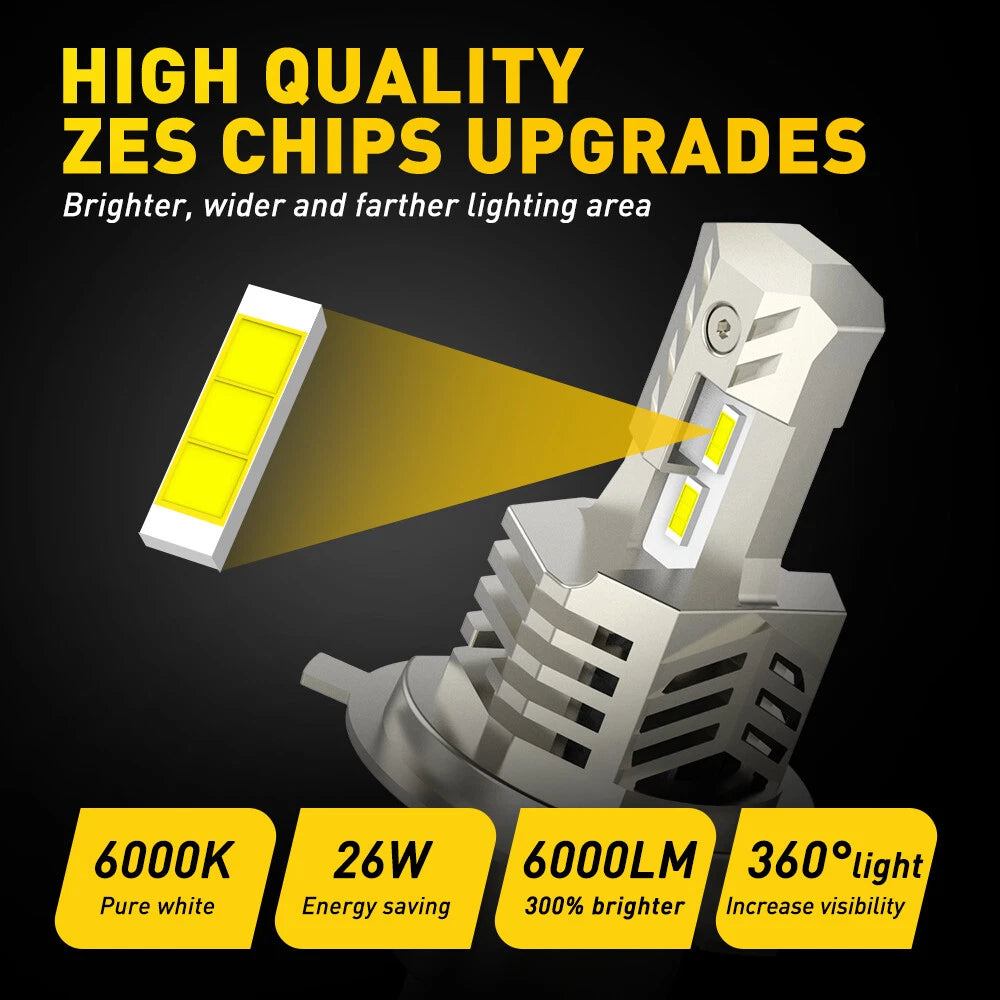

• LED quantity: 32 SMD
• Design: Fanless, integrated driver, ballast included
• Operating temperature: -40°C to +80°C
• Estimated service life: up to 50,000 hours
• Placement on vehicle: Front left and right (hi/low beam headlight positions)
• Certifications: CE, RoHS
• Manufacturer warranty: 2 years
• MPN: AUXITOM6H4
• UPC: 782890727594

PACKAGE CONTENTS

• 1 or 2 x H4 9003 HB2 LED headlight bulbs (depending on option selected).

BULB SIZE SELECTION

• Check your owner’s manual or the markings on your existing headlight bulbs.
• Use your vehicle’s parts lookup or fitment filter to confirm it requires H4 / 9003 / HB2.

INSTALLATION GUIDE (GENERAL)

• Remove the original halogen H4 bulb from the headlight housing.
• Install and secure the locking ring into the correct slot of the light housing.
• Insert the LED bulb into the ring and rotate clockwise to lock it in place.
• Connect the power plug and test high/low beam operation before driving.

COMPATIBILITY NOTE

These bulbs are designed for vehicles that use H4 / 9003 / HB2 headlight bulbs. Always confirm fitment and local road regulations before installation.
