AUXITO 1156 BA15S P21W LED Bulbs 6000K White 48-SMD 12V (Pair)

OVERVIEW

AUXITO 1156 BA15S P21W LED bulbs deliver a bright 6000K white light for enhanced visibility and a modern appearance. Designed as a direct replacement for standard 1156 incandescent bulbs, they are suitable for multiple automotive lighting applications and feature efficient 48-SMD 4014 LED chips.

KEY FEATURES

• 1156 BA15S P21W base for direct replacement of standard single-contact bulbs
• 6000K xenon white output for a crisp, modern look
• 48 pcs 4014 SMD LEDs per bulb for high brightness and uniform light
• Up to 1800 lm output with 360° beam angle for improved visibility
• Low power consumption and fanless design for quiet, efficient operation
• CANBUS compatible design to help prevent error messages, hyper flash and flicker on many vehicles
• Long service life rated over 50,000 hours
• IP67–IP68 rated waterproof and dustproof housing

TYPICAL APPLICATIONS

These 1156 BA15S P21W LED bulbs can be used in many 12V vehicles where a compatible single-contact bulb is required, including:

• Tail lights
• Brake / stop lights
• Reverse / backup lights
• Turn signal indicators
• Side marker lights
• Rear running lights and center high mount stop lights (where 1156-type is used)
• Interior and cargo area lighting in RVs and other 12V applications

Note: Always confirm the bulb base and function (tail, brake, turn, etc.) on your specific vehicle before purchase. Some positions may use different bulb types.

CROSS-REFERENCE

The 1156 BA15S P21W base can replace many single-contact incandescent bulbs, including but not limited to:

• 1156, P21W, 7506
• 1141, 1073, 1093, 1095, 1129, 1159, 12088, 1259, 1295, 1295NA
• 1459, 1619, 1651, 1680
• 199, 2396, 3496, 3497
• 5007, 5008, 7527
• 87, 93, 97, 97A, 97NA, 631

Compatibility may vary by vehicle and bulb position.

TECHNICAL SPECIFICATIONS

• Base type: 1156 BA15S P21W (single-contact)

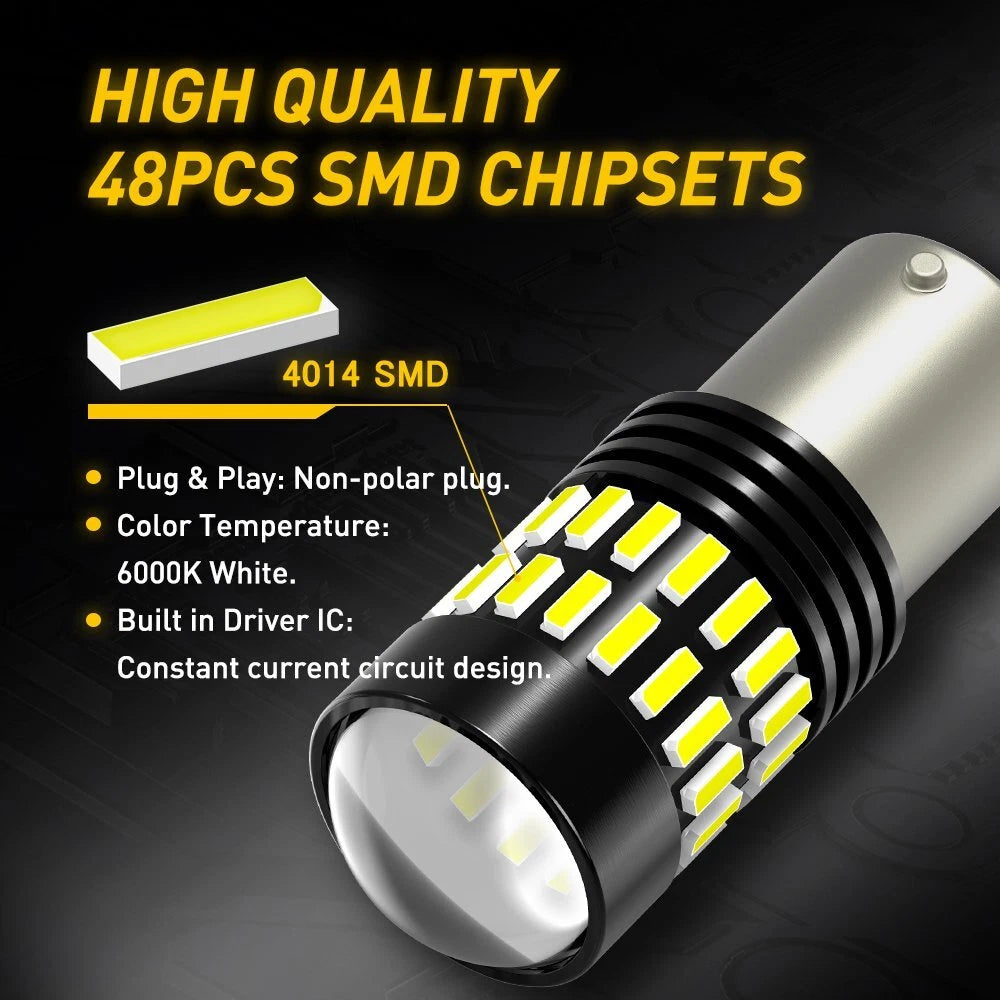

• LED type: 48 pcs 4014 SMD
• Light color: 6000K white
• Luminous flux: up to 1800 lm (per pair, approx.)
• Voltage: 12–14V DC
• Power: approx. 7 W per bulb (14 W per pair)
• Current draw: approx. 0.3 A per bulb

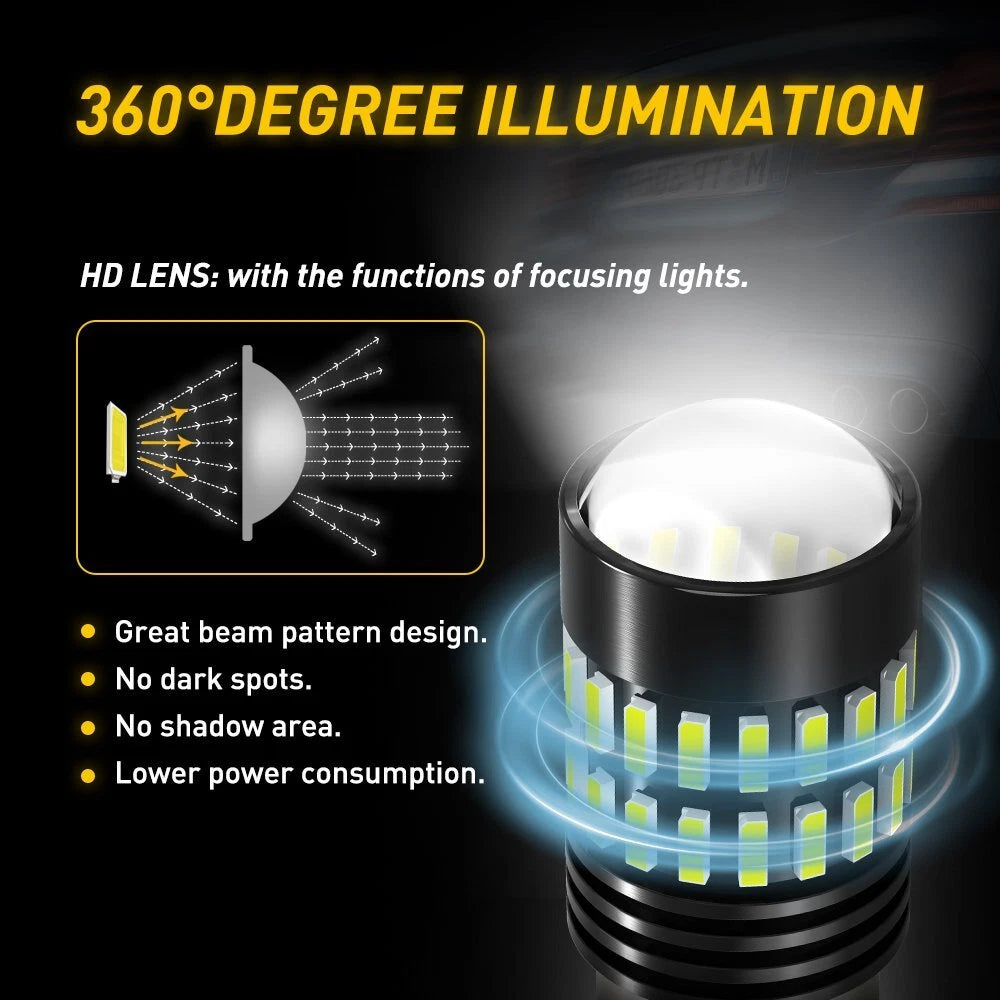

• Beam angle: 360°
• Operating temperature: -40℃ to +80℃
• Waterproof rating: IP67–IP68
• Estimated lifespan: > 50,000 hours

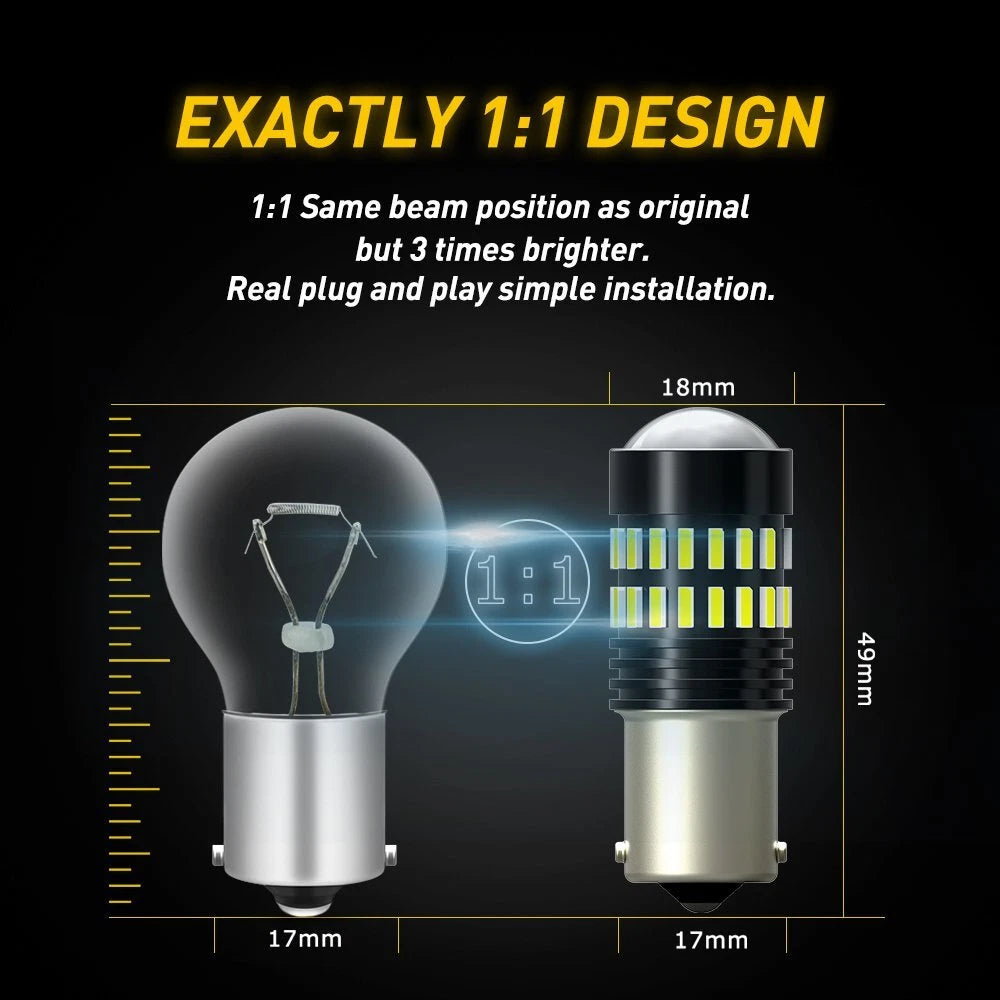

• Fitment type: direct replacement, plug-and-play
• CANBUS: anti-flicker, reduced hyper flash, error-free on many vehicles
• Certifications: CE, RoHS

INSTALLATION

• Remove the original 1156/BA15S bulb from the socket once cool
• Insert the AUXITO LED bulb into the same socket
• If the bulb does not light, remove and rotate 180° to match polarity
• Test all light functions before reassembling the lamp housing

Some vehicles with sensitive CANBUS systems may still require additional load resistors or decoders to eliminate warnings or hyper flash.

PACKAGE CONTENTS

• 2 × AUXITO 1156 BA15S P21W 48-SMD 6000K white LED bulbs

WARRANTY

• Manufacturer warranty: 2 years (subject to terms and conditions)
