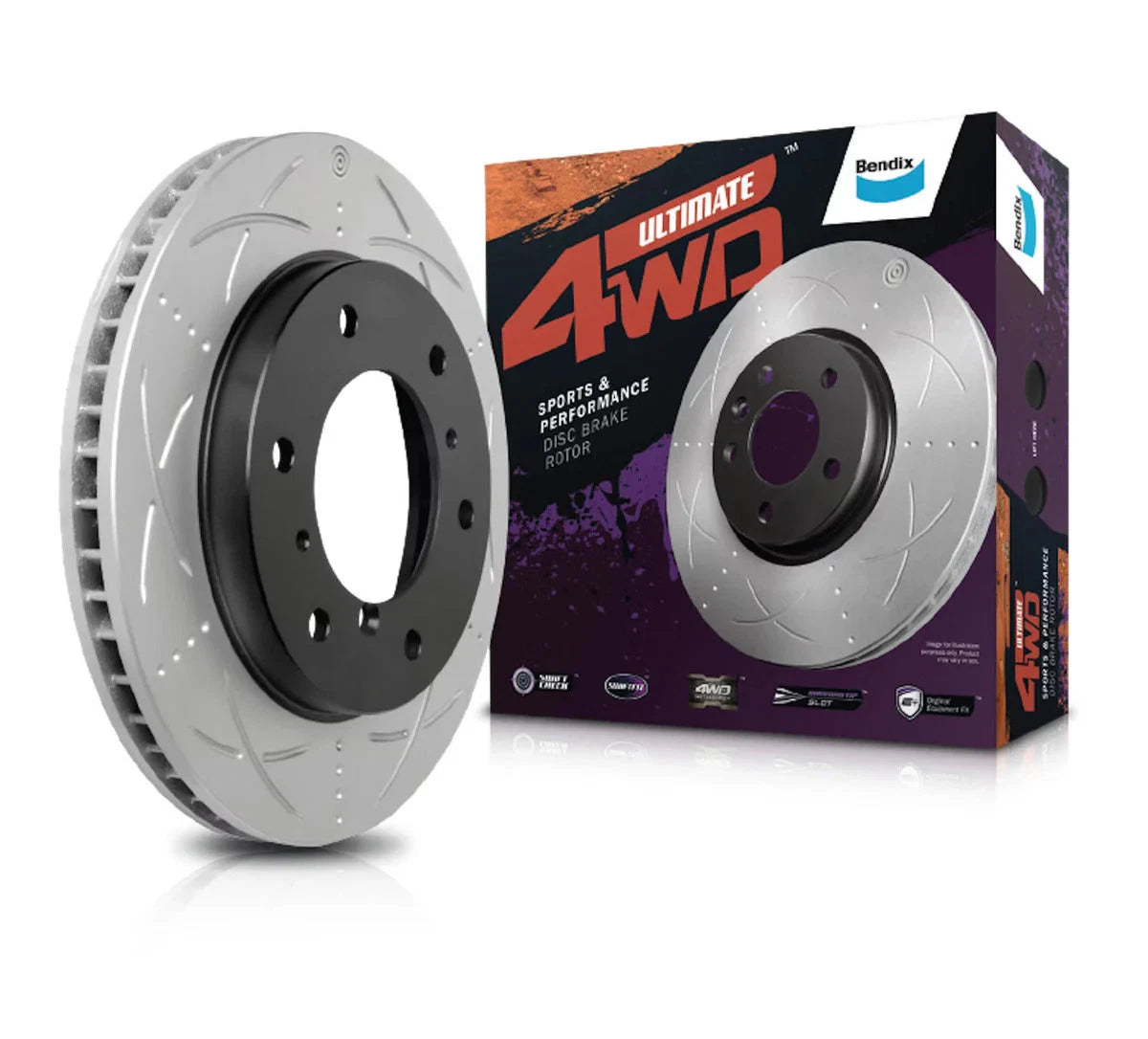

Bendix Ultimate 4WD Front Slotted & Dimpled Brake Rotor 302mm JK

PRODUCT OVERVIEW

High-performance Bendix Ultimate 4WD front slotted and dimpled disc brake rotor, designed to improve braking control, heat dissipation and rotor durability in demanding 4WD conditions. 302mm diameter rotor – always confirm disc diameter on your vehicle before ordering.

KEY FEATURES

• Ultimate 4WD metallurgy for increased rotor strength at high temperatures
• Slotted and dimpled design for improved pedal feel and braking control
• Enhanced resistance to warping and wear in heavy-duty use
• SwiftFit™ coating for no-prep installation and superior corrosion protection
• SwiftCheck™ wear indicator for quick visual rotor wear assessment
• Diamond tip slot pattern inspired by racing applications

VEHICLE FITMENT

Front rotor suitable for selected Jeep Wrangler JK models. Confirm disc diameter and existing rotor style before purchase.

• Jeep Wrangler JK (Sport, Renegade, Unlimited) 2.8L Diesel ENS (03/2007–09/2009)
• Jeep Wrangler JK (Sport, Renegade, Rubicon, Unlimited, Sahara) 3.8L Petrol EGT (03/2007–01/2012)
• Jeep Wrangler JK (Sport, Renegade, Unlimited) 2.8L Diesel ENS (10/2009–04/2018)
• Jeep Wrangler JK (Sport, Rubicon, Overland, Polar, Blackhawk, Unlimited) 3.6L Petrol ERB (02/2012–04/2018)

Note: This listing is for vehicles using 302mm front rotors. Always measure your existing discs to confirm size before ordering.

WHAT'S INCLUDED

• 1 x Bendix Ultimate 4WD front disc brake rotor (slotted & dimpled)

DESIGN & PERFORMANCE

The diamond tip slot pattern, developed from racing, enhances bite and control under hard braking. Specifically aligned slots and V-shaped dimples help keep the pad surface clean and primed for the next stop.

Dimples are engineered at a precise depth to increase braking power while retaining the structural integrity of a solid rotor, improving strength and resistance to cracking compared with fully drilled designs.

SWIFTFIT™ COATING

Factory-applied SwiftFit™ surface protection allows installation without cleaning off anti-rust oil. The coating guards against corrosion, supports longer shelf life, and helps maintain a clean, rust-free rotor hat visible behind alloy wheels. It also helps minimise corrosion between the rotor and hub face that can lead to vibration.

SWIFTCHECK™ WEAR INDICATOR

SwiftCheck™ is a machined wear indicator that forms circular grooves on the rotor surface. These grooves narrow and disappear as the rotor wears. When only a single dot remains in the centre, the rotor has reached its wear limit and should be replaced.

TECHNICAL SPECIFICATIONS

• Position: Front
• Rotor type: Slotted & dimpled, vented
• Diameter: 302 mm
• Height: 55.4 mm
• Thickness (new): 28 mm
• Minimum thickness: 26.4 mm
• Centre hole: 72 mm
• Bolt holes: 5
• Slots & V-shaped dimples efficiently expel gases, dirt and water
