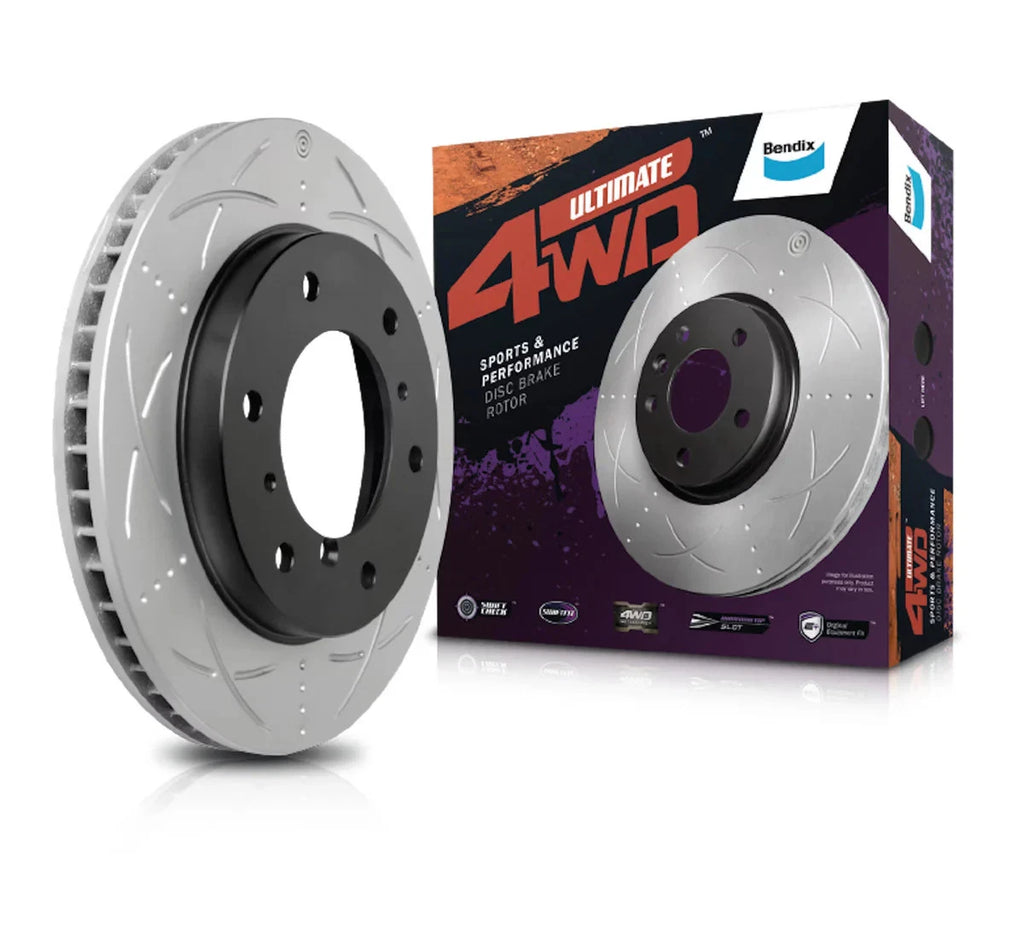

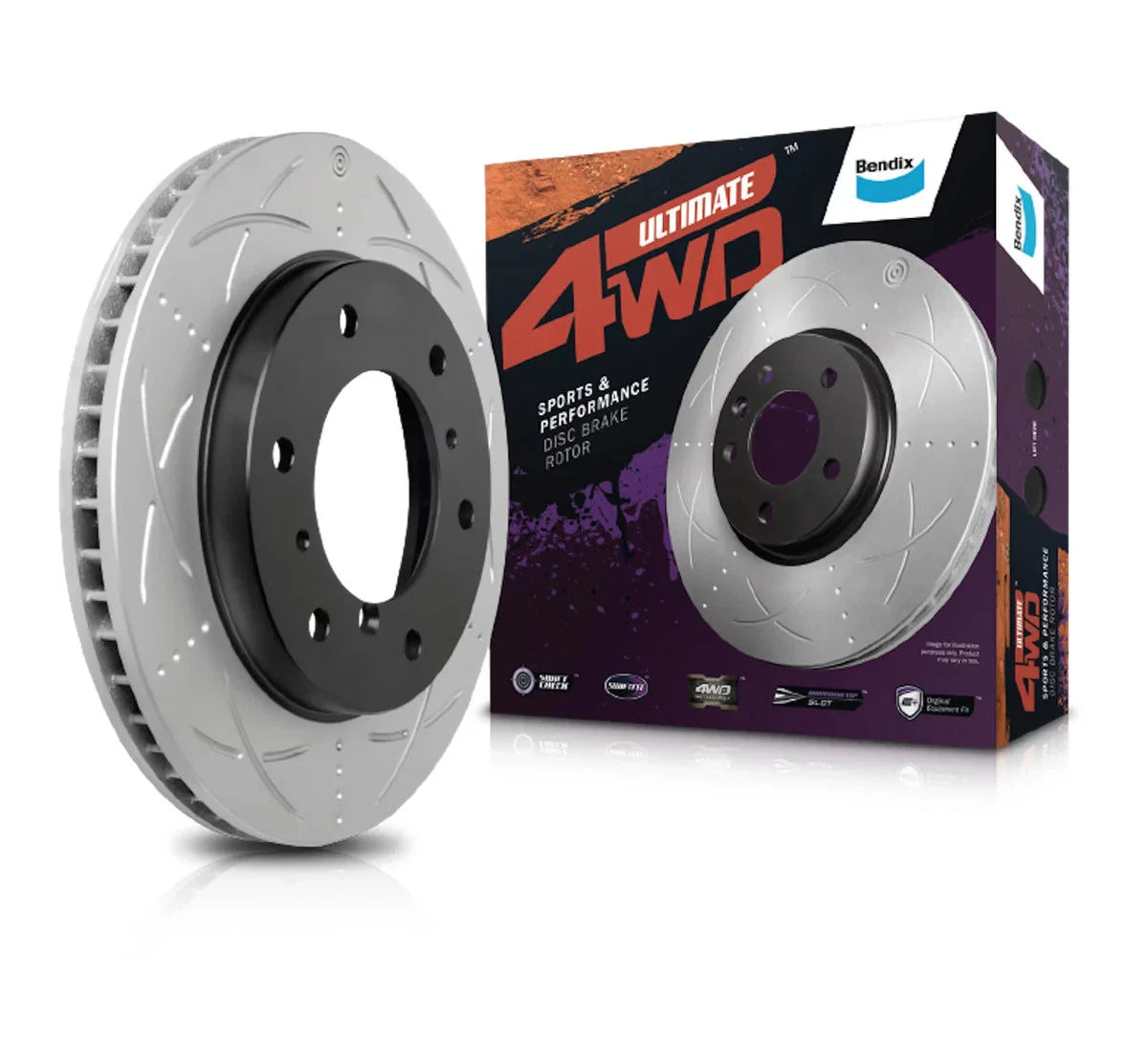

Bendix Ultimate 4WD Front Slotted & Dimpled Brake Rotor 290mm Pajero

PRODUCT OVERVIEW

Front Bendix Ultimate 4WD slotted and dimpled disc brake rotor designed for enhanced braking performance, heat dissipation and durability in demanding 4WD applications. 290mm slotted and dimpled rotor — please confirm original equipment size and specifications before fitting.

KEY FEATURES

• Ultimate 4WD rotor with 4WD Metallurgy™ for improved strength at high temperatures.
• Diamond tip slotted and V-shaped dimpled design for consistent, high-friction braking.
• Vented, straight-vane construction for efficient cooling and reduced fade.
• SwiftFit™ protective coating allows installation without cleaning anti-rust oils.
• SwiftCheck™ wear indicator grooves for quick visual inspection of rotor wear.
• High wear resistance to help minimise warping under extreme braking conditions.

FITMENT INFORMATION

Suitable for selected Mitsubishi Pajero models with 290mm front rotors. Refer to detailed vehicle application data and confirm rotor dimensions, mounting and specifications against your existing components before purchase and installation.

WHAT'S INCLUDED

• 1 x Bendix Ultimate 4WD front disc brake rotor

TECHNICAL SPECIFICATIONS

• Position: Front
• Type: Vented disc rotor
• Vane pattern: Straight vane
• Rotor direction: Multi-directional
• Diameter: 290 mm
• Height: 46 mm
• Thickness (new): 26 mm
• Minimum thickness: 24.4 mm
• Centre hole: 94 mm
• Mounting holes: 6
• Approximate weight: 6.4 kg
• Slots and V-shaped dimples to more efficiently expel gases, dirt and water.

DIAMOND TIP SLOT & DIMPLED DESIGN

The evolved diamond tip slot pattern is derived from racing applications, providing strong and predictable braking control under hard use. Specifically aligned slots and V-shaped dimples help keep the pad surface clean and primed, evacuating gases, dust and water while maintaining the structural integrity of a solid rotor.

SWIFTFIT™ COATING

SwiftFit™ surface protection allows the rotor to be installed straight from the box without cleaning off storage oils. The coating helps prevent corrosion, supports longer shelf life, and keeps the rotor hat area cleaner, which is especially visible behind open alloy wheels. It also assists in maintaining a clean mating surface between the rotor and hub to help prevent vibration issues.

SWIFTCHECK™ WEAR INDICATOR

SwiftCheck™ is a machined wear indicator system that uses circular grooves on the rotor surface. These grooves narrow and disappear progressively as the rotor wears. When only a single dot remains in the centre, the rotor has reached its wear limit and should be replaced. This allows quick, tool-free assessment of rotor condition by both technicians and vehicle owners.
