BMW ZF8HP CNC Billet Aluminium Transmission Oil Pan G8X M3 M4, F9X M5 M8 X3 M X4 M, Supra A90, OEM 24118612901

Product Overview

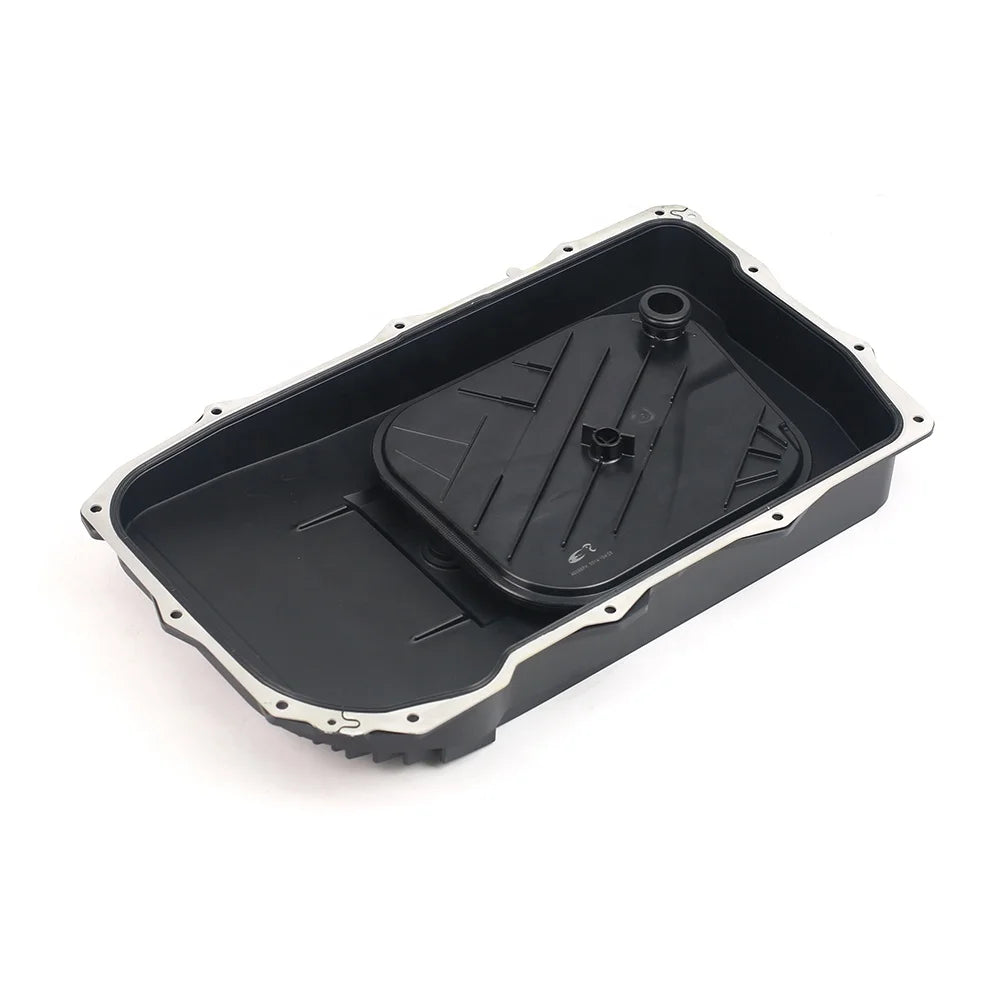

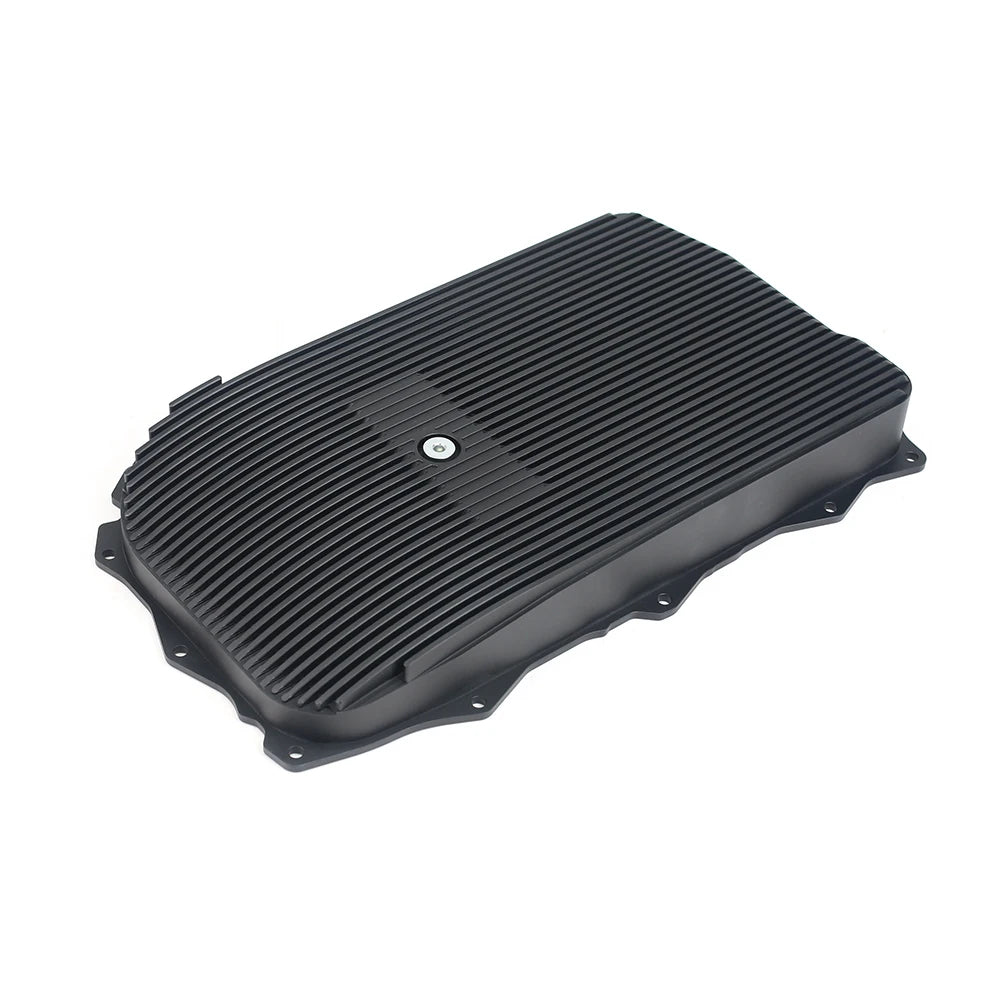

This CNC machined billet aluminium transmission oil pan is designed for vehicles fitted with the ZF 8HP automatic gearbox. The supplier lists BMW G8X M3 and M4, F9X M5, M8, X3 M and X4 M, Toyota A90 Supra and BMW G2X and G3X models. It replaces the factory transmission pan with a machined aluminium alternative and cross-references several genuine OE numbers.

Key Features and Benefits

• CNC machined billet aluminium construction
• Designed for the ZF 8HP automatic transmission
• Cross-referenced to genuine OE pan part numbers
• Listed for a wide range of BMW and Toyota models
• Retrofit and upgrade part, supplied new

Vehicle Compatibility

The supplier lists fitment for BMW G8X M3 / M4, F9X M5 / M8 / X3 M / X4 M, Toyota A90 Supra and BMW G2X / G3X models with the ZF 8HP gearbox, and references OE numbers 24118612901, 24117624192, 24117613253, 24117604960, 24115A13116 and 24115A13115. This fitment is supplier-stated and has not been independently verified. ZF 8HP variants differ between engines and drivetrains, so please confirm your transmission before ordering.

Product Specifications

• Product type: transmission oil pan
• Material: CNC billet aluminium
• Transmission: ZF 8HP
• OE references: 24118612901, 24117624192, 24117613253, 24117604960, 24115A13116, 24115A13115
• Package size: 54 x 36 x 14 cm
• Gross weight: approx. 3.5 kg

Installation and Usage

Replacing the transmission pan requires draining the fluid and correctly refilling and levelling the transmission at the specified temperature, often with diagnostic equipment. This work should be performed by a qualified technician. Use the correct transmission fluid and check carefully for leaks after a test drive.

Package Contents

Sold as a single item: one transmission oil pan as pictured. The supplier has not confirmed whether a filter, gasket, magnets or bolts are included.

Important Fitment Notice

Please send us your VIN or chassis number, or your existing pan part number, before ordering so we can help confirm fitment. Images are for reference only.
