Camper Trailer Stone Guard Shield with Black Mesh & Mud Flaps 2310x500mm

PRODUCT OVERVIEW

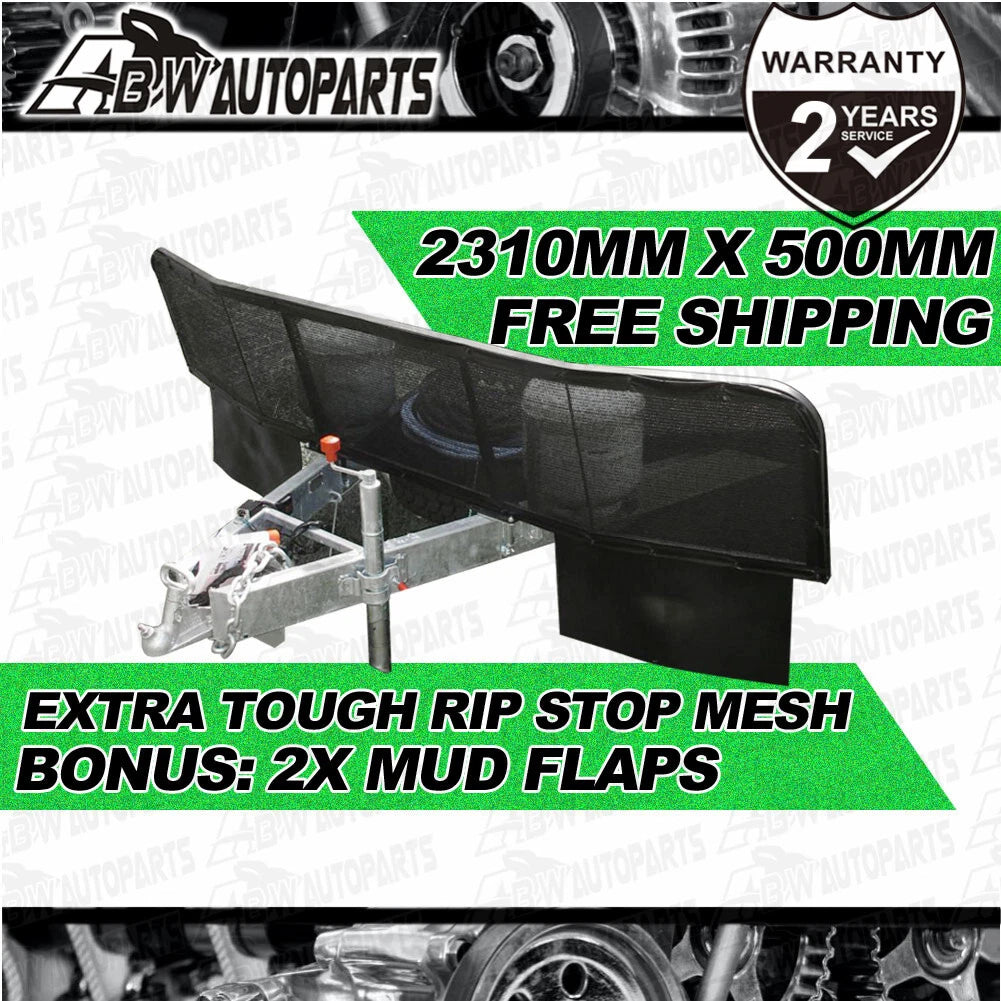

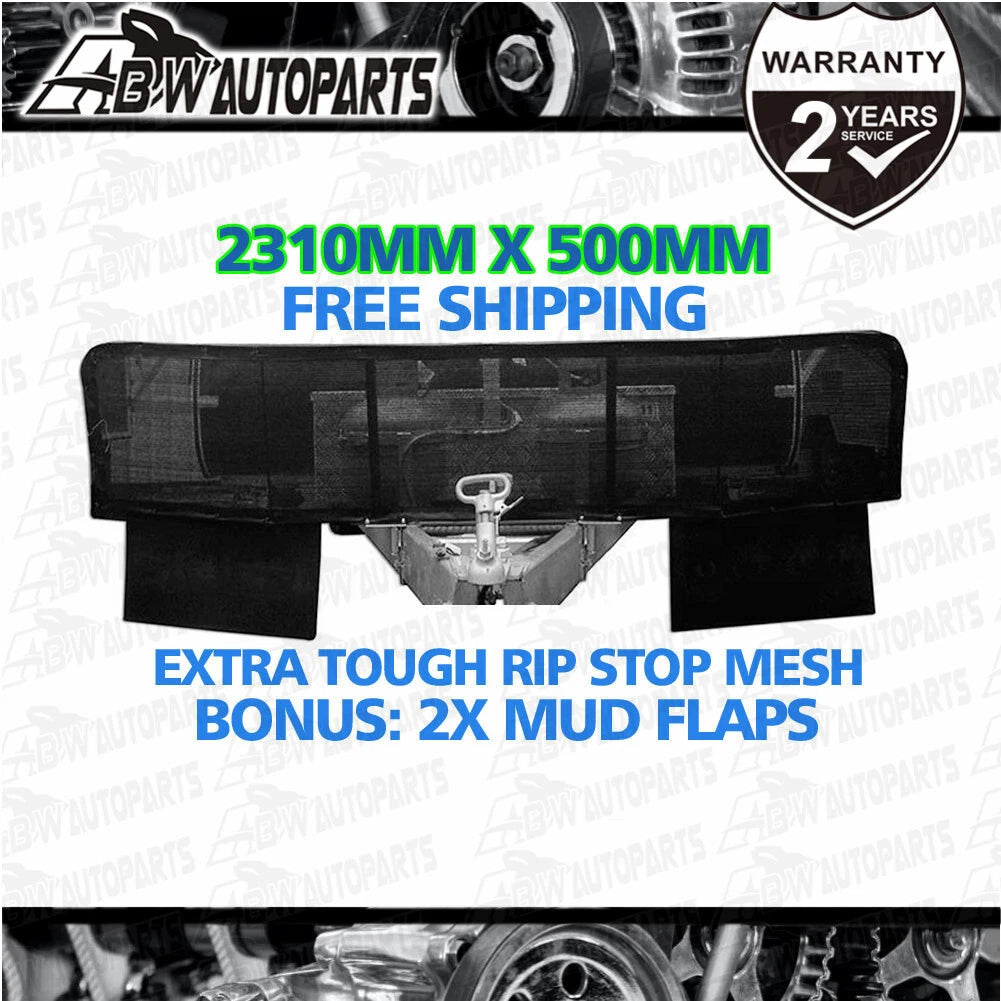

This removable camper trailer stone guard shield provides heavy-duty protection for caravans, camper trailers and RVs by stopping stones and road debris from damaging front panels and undercarriage components.

KEY FEATURES

• Durable black mesh shield to deflect stones and road debris
• Helps prevent chipping, denting and paint damage to the front of your caravan or camper trailer
• Includes two extra-large heavy-duty rubber mud flaps for added undercarriage protection
• Removable design for convenient installation and removal
• Quick to assemble and mount to the A-frame of most caravans or camper trailers (within specified dimensions)
• Rip-stop style mesh, tough and resistant to tears

SPECIFICATIONS

• Overall dimensions: 2310mm x 500mm
• Approximate weight: 17kg

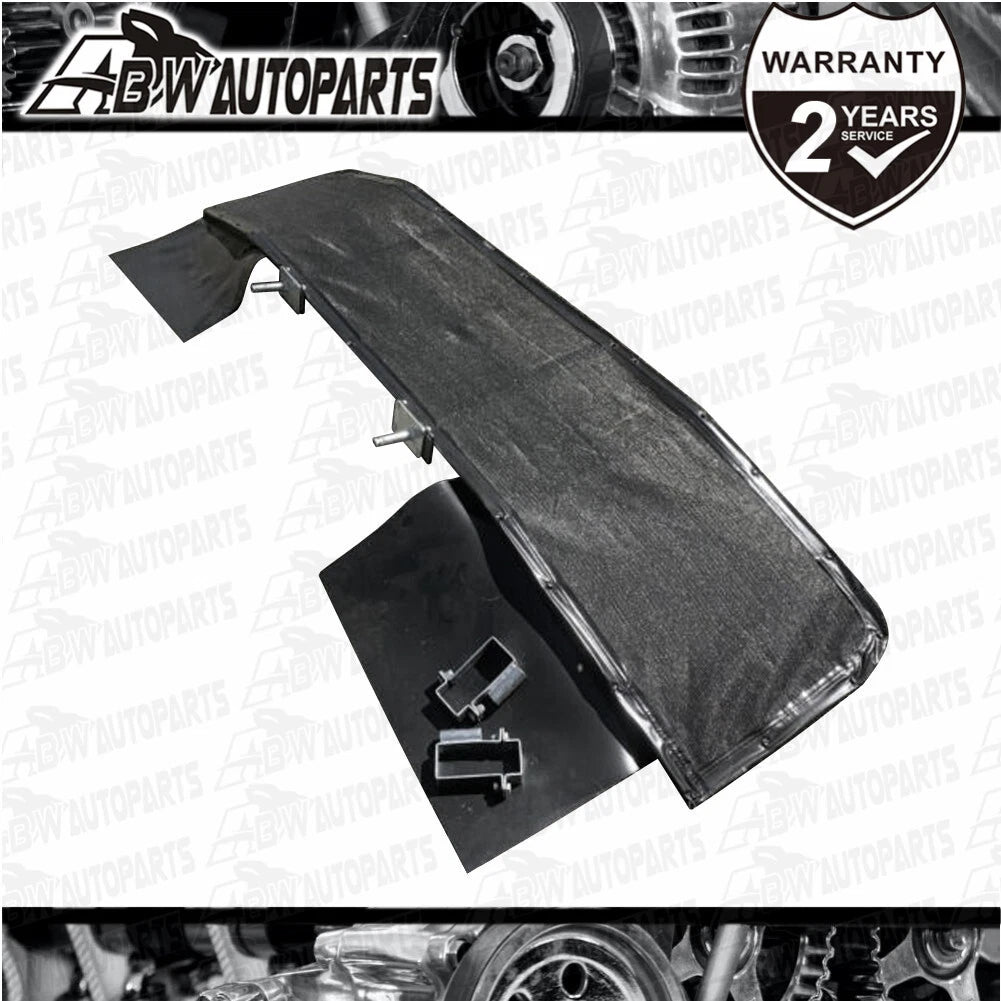

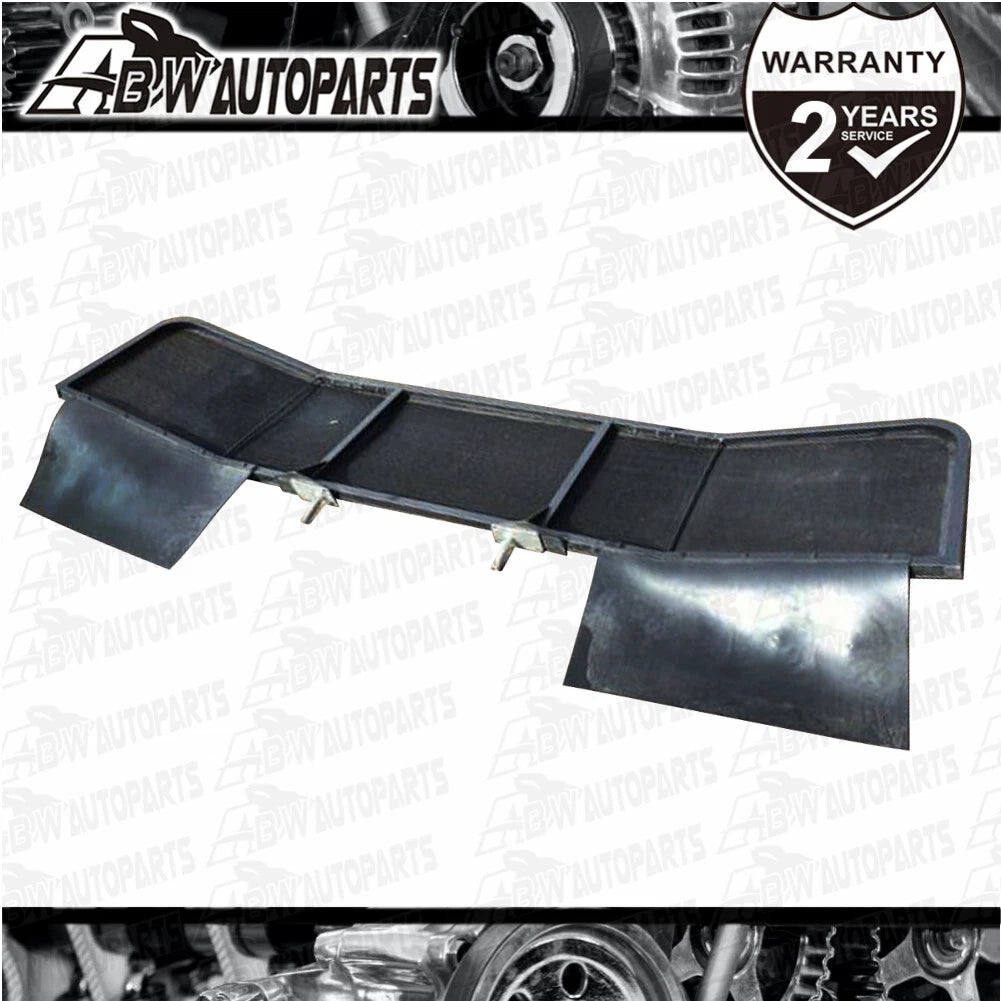

PACKAGE CONTENTS

• 2 x Mud flap bars
• 1 x Centre piece
• 1 x LH end piece
• 1 x RH end piece
• 2 x A-frame receptors
• 2 x Locking "R" pins
• 2 x Mounting kits (including 4 rubber spacers)
• 2 x Rubber mud flaps
• 1 x Rip-stop mesh panel
• 1 x Bag 18mm threaded screws
• 1 x Bag 15mm threaded screws

MOUNTING & COMPATIBILITY

• Suitable for A-frames with widths between 415mm and 750mm
• U-brackets fit A-frame bars with width: 50mm
• Compatible A-frame bar heights: 100mm, 125mm, 150mm

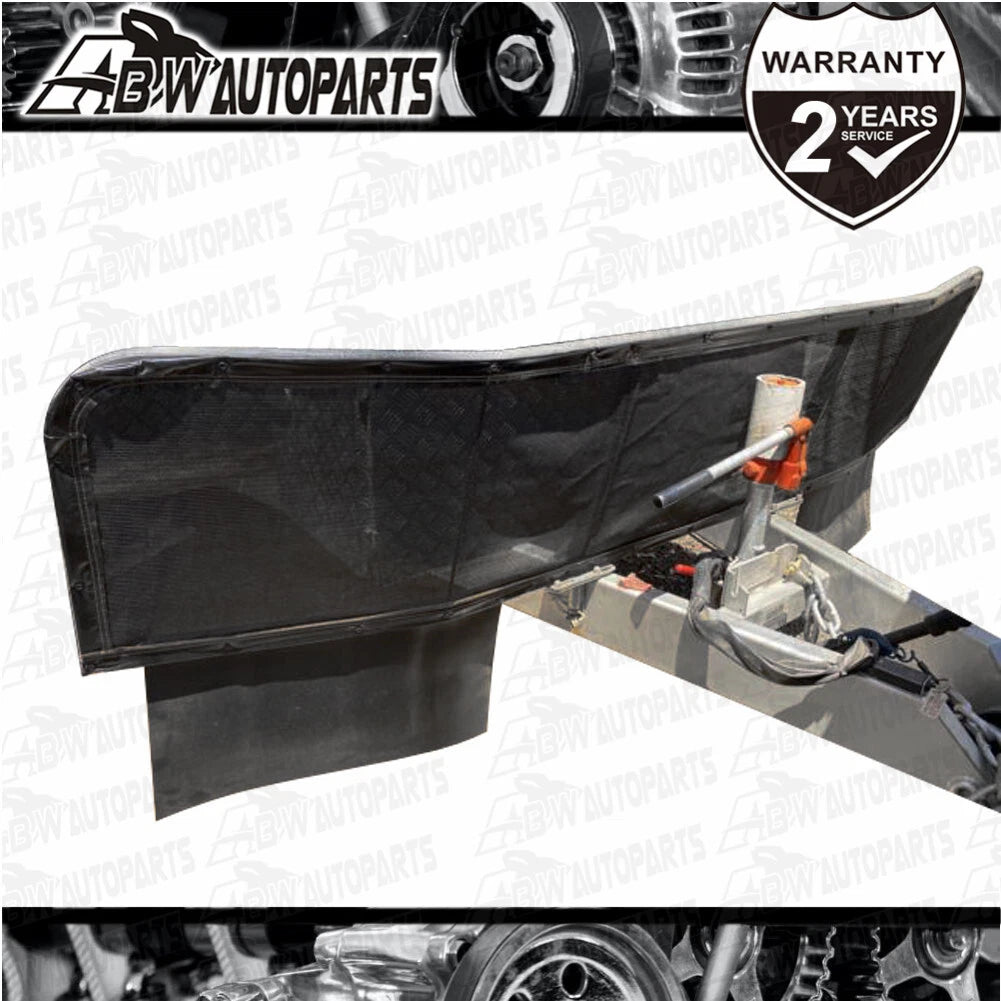

• Stone guard frame drops into receptors mounted on the A-frame
• Locking "R" pins secure the stone guard in place and prevent lifting

Always check and measure your caravan or trailer A-frame to confirm compatibility before purchase and installation.
