H7 CANbus LED Headlight Bulbs 6500K 24000LM Pair – Asia Parts Store
Pair of H7 CANbus LED headlight bulbs 6500K white, 100W 24000LM high low beam
H7 CANbus LED Headlight Bulbs 6500K 100W 24000LM Pair – High/Low Beam
H7 CANbus LED Headlight Bulbs 6500K 100W 24000LM Pair – High/Low Beam
H7 CANbus LED Headlight Bulbs 6500K 100W 24000LM Pair – High/Low Beam
H7 CANbus LED Headlight Bulbs 6500K 100W 24000LM Pair – High/Low Beam
H7 CANbus LED Headlight Bulbs 6500K 100W 24000LM Pair – High/Low Beam
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Fast Delivery

    Get your order delivered at lightning speed

H7 CANbus LED Headlight Bulbs 6500K 100W 24000LM Pair – High/Low Beam

2 8
376764041699
In stock
Lighting
A$72.58
PRODUCT OVERVIEW Upgrade your headlights with this pair of H7 CANbus compatible LED bulbs. Delivering up...
A$72.58

customers are viewing this product
H7 CANbus LED Headlight Bulbs 6500K 100W 24000LM Pair – High/Low Beam

PRODUCT OVERVIEW

Upgrade your headlights with this pair of H7 CANbus compatible LED bulbs. Delivering up to 100W and 24,000 lumens per pair at 6500K cold white, they provide significantly improved brightness and clarity for night driving.

KEY FEATURES

  • H7 fitment for headlight applications (high beam, low beam, DRL or fog light where compatible).
  • 6500K cold white output for a modern, daylight-style beam.
  • Up to 24,000 lumens per pair (12,000LM per bulb), approx. 4× brighter than stock halogen.

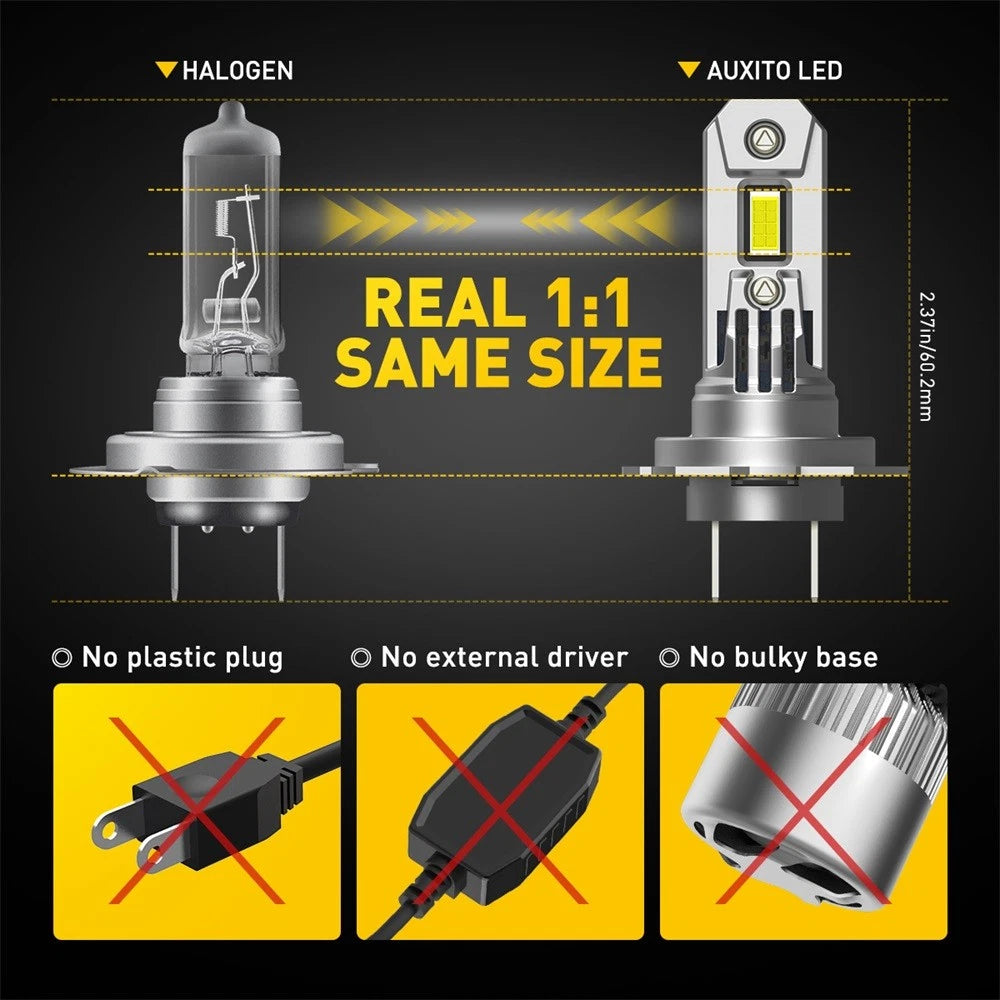

  • 1:1 halogen-style light source position with ultra-thin base for a focused, uniform beam.
  • 360° lighting with no dark spots to improve road visibility and reduce glare when correctly aimed.
  • All-in-one compact design with built-in driver for easy plug-and-play installation.
  • CANbus compatible for most vehicles to minimise error codes and flicker (some vehicles may require additional decoders).
  • IP67 water-resistant construction for reliable performance in harsh weather.

PERFORMANCE & COOLING

  • Power: 100W per pair (approx. 50W per bulb).
  • Luminous flux: 12,000LM per bulb, 24,000LM total (pair).
  • LED type: 6040 automotive-grade chips for high brightness and efficiency.
  • Beam angle: 360° lighting effect.

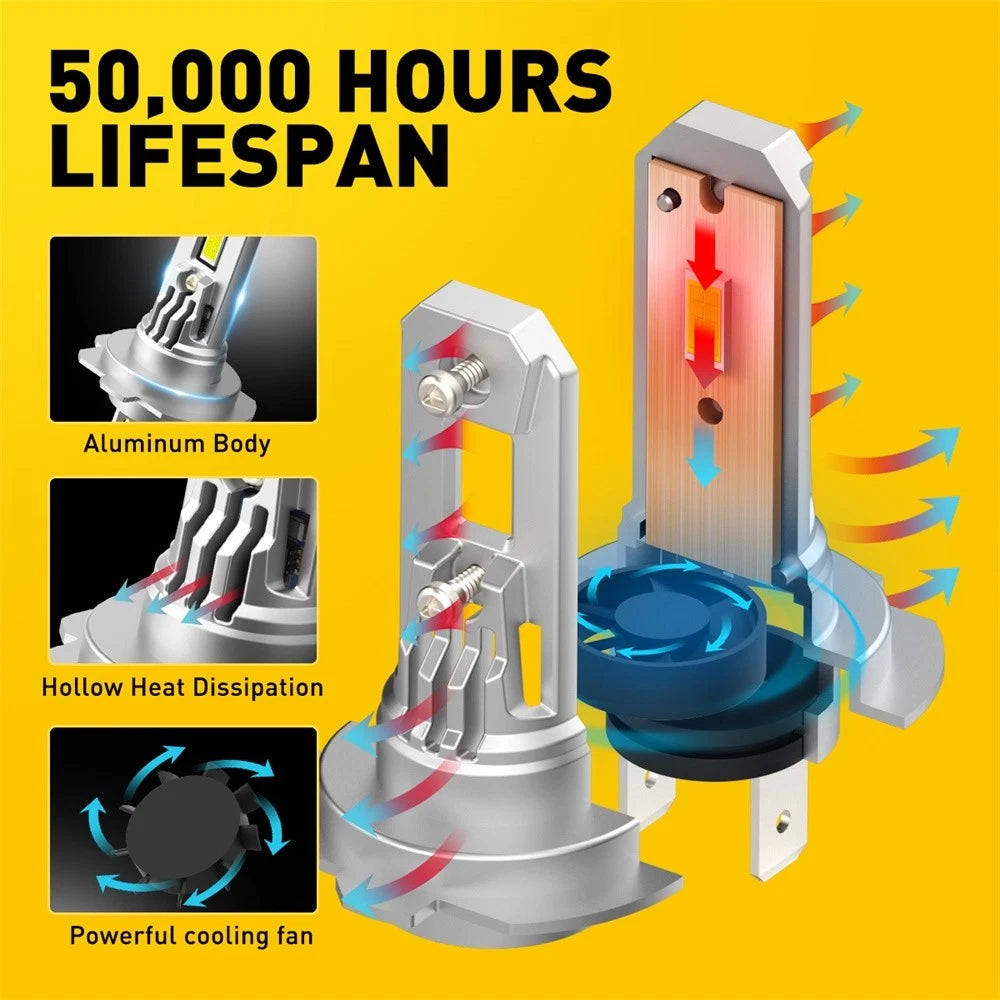

  • Advanced cooling: full aluminium body, copper base board and high-speed cooling fan.
  • Rated lifespan: >50,000 hours under normal operating conditions.

ELECTRICAL SPECIFICATIONS

  • Bulb type: H7 LED headlight bulb.
  • Voltage: 12V nominal.
  • Operating voltage range: DC 9–30V.
  • Colour temperature: 6500K (cold white).
  • Beam type: high beam and low beam (depending on vehicle headlight design).
  • Viewing angle: 360°.
  • Working temperature: approx. -40°C to +80°C.

CONSTRUCTION & DURABILITY

  • Material: aluminium heat-sink housing.
  • Integrated turbo cooling fan.
  • Waterproof rating: IP67 for dust and water resistance.
  • Certification: CE, RoHS (as per supplier information).

FITMENT & COMPATIBILITY

  • Bulb fitment code: H7.
  • Suitable for: headlight applications; may also be used for high beam, low beam or fog light where H7 is specified.
  • Placement on vehicle: front left and right.
  • Direct replacement: designed as a plug-and-play upgrade for halogen H7 bulbs.
  • CANbus note: some vehicles with sensitive CANbus systems may require additional decoders or resistors (not included).
  • Always confirm bulb type and compatibility in your vehicle owner’s manual before purchase.

INSTALLATION GUIDELINES

  • Ensure the vehicle is switched off, keys removed and headlamps cool before starting.
  • Set the vehicle in park or securely in gear and apply the parking brake.
  • Avoid touching the LED chips directly; handle bulbs by the base.
  • Check all connectors and wiring for secure, correct fitment.
  • Ensure the bulb does not contact internal headlight components when installed.
  • After installation, adjust headlight aim if required to avoid glare to other road users.

PACKAGE CONTENTS

  • 2 × H7 LED headlight bulbs with built-in driver/ballast.

Vehicle Compatibility

Shop Category Store Home  LED Headlight ◈  H4 9003 HB2 ◈  H1  LED Foglight ◈  H8 H9 H11  T10 168 192 912 W5W  LED Interior light  LED Brake Light ◈  1157 BAY15D 7528 2057 P21/5W  1156 BA15S 7506 7527 1651  1157 BAY15D 7528 2057 P21/5W  7443 7444 7441 7440 W21W  OtherHot Item
AUXITO T10 18-LED White Car Interior Light Parker Bulb Wedge Globe 6500K 12V New
AUD 10.44
Canbus T10 White 194 168 W5W LED Car Side Wedge Parker Light Globe Bulbs 12V 10x
AUD 25.99
10X AUXITO CANBUS T10 LED Wedge Parker License Plate Light Globes W5W 194 168
AUD 13.68
AUXITO 10X T10 LED White Car Interior Light Parker Bulb Wedge Globe 6000K White
AUD 10.99
3M Window Roll Uncut Tint Film VLT 5/15/20/35/50/70% 10ft Car Home Office 50cm
AUD 19.99
New List Item
2x LED Car White Bulb BA15S P21W 1156 Backup Reverse Light 54-SMD Amber Red NEWA
AUD 25.99
2-8X 4" Round LED Tail Lights Stop Indicator Trailer Truck Caravan Waterproof
AUD 21.99
Suit For Ford Ranger PX Rear Drive Shaft Dynamic Damper & Mazda BT-50 2011-2021
AUD 110.49
Car Rear Bumper Protector Sill Carbon Protector Fiber Boot Protector Guard 90CM
AUD 11.99
8x Injection Weather Shields Window Visor for Ford Everest Next-Gen 2022-Onwards
AUD 91.99

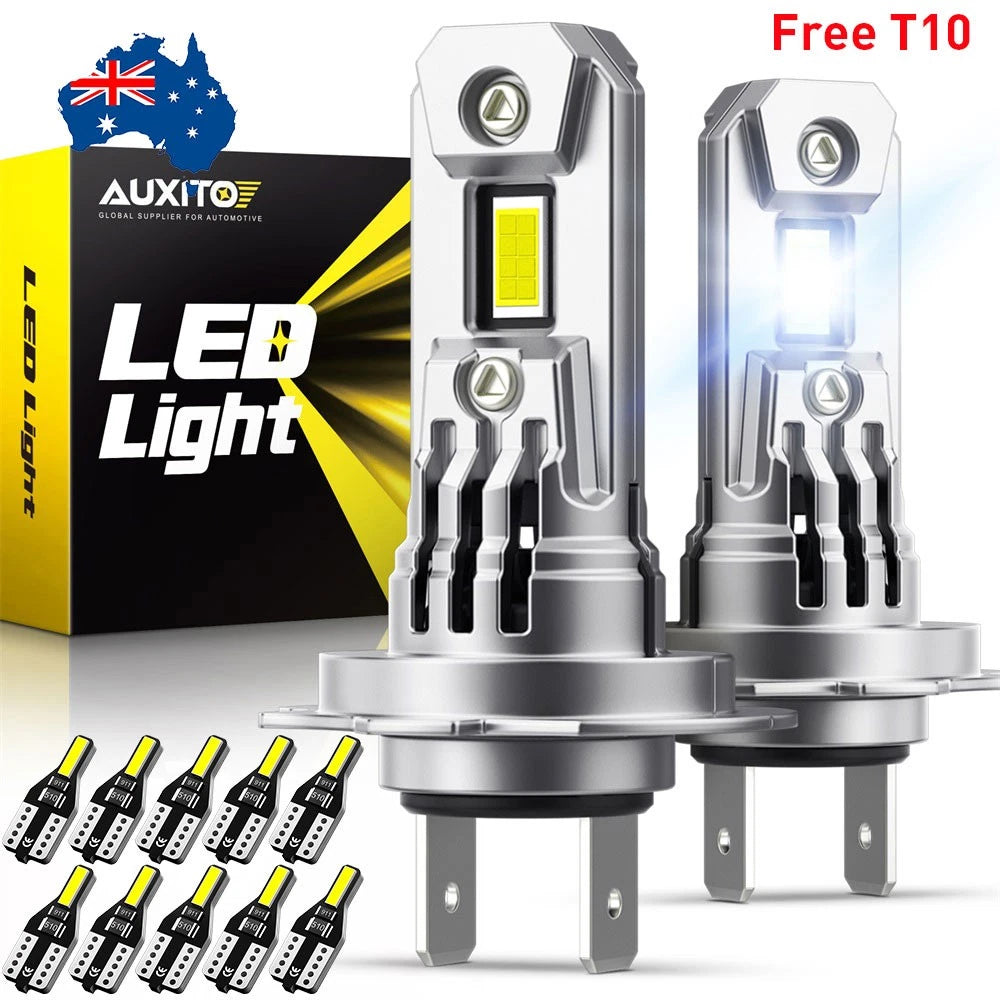

Canbus 2x H7 Headlight LED Globes Bulb High/Low Super Beam Bright 6500K White

Features:

-Enhanced Beam Pattern:1:1 same halogens’ light filament and adjustable beam for the 9003/h4 LED light. Easily fit into the housing and aim the luminous direction for a perfect light beam pattern. No dark spots, no glare to drivers and passerby. Safer driving

-6500K White, 400% Brightner:AUXITO LED light bulbs are designed with 6040 led chips, 6500K soft light, up to 100W24,000lm per pair, about 4 times brighter than stock halogen bulbs allowing you to see wider and and farther on the road, improving nighttime visibility

-Perfect Beam, No Dark SpotsThe 0.03 inch ultra-thin base board makes AUXITO LED bulb closer to the light-emitting area of the halogen bulbs, ensuring 360° lighting without black spots. No glare to oncoming vehicles and drivers, making it safer to drive at night

-Compact Design, Easy to InstallAUXITO LED light features an all-in-one compact design, built-in driver and fan take up less housing space, almost the same design as original halogen bulbs which makes it easy to install, just plug and play

-Triple Cooling Design, Long Lifespan:These LED bulbs are designed with full body aluminum material, built-in 12,000RPM high-speed cooling fan and copper base board, which can effectively take away the heat of the LED chip, ensuring a lifespan of up to 50,000 hours

-Canbus Ready, No WorriesAUXITO LED bulb fits for 98% vehicle's computer system without error or flickers, but some sensitive models may require canbus decoder. Please check the part number on your original bulbs, owner's manual or amazon fitment before ordering

Specifications:

  • Brand:AUXITO
  • Compatible With: H7
  • Condition: 100%Brand New/ Never Used
  • Lifespan:>50000hr
  • Lumens: 12000LM/Bulb, 24000LM Total
  • Voltage:9-30V
  • Color: 6500K(White Color)
  • Interchange Part Number: Use for high Beam, Low Beam, DRL or Fog Lights…
  • Beam Angle: 360 Degrees
  • Placement on Vehicle: Left, Right, Front
  • Heat Control: Aluminum shell base including Turbo cool fan
  • Warranty: Yes
  • Complete Kit: No Other Ballast/Driver Required Just Plug and Play - Newest Technology
  • Beam Angel: 360 Degrees
  • Operating TemperatureWith or without fan:-40°C ~ +80°C
  • With or without fan:with fan

Package include:

2x LED Headlight Bulbs ( Built-in Driver Ballast )

Install Caution
1. As a safety precaution, make sure that the car has had time to cool down properly before starting the installation process.
2. Put the vehicle into park or make sure it is securely in gear.
3. Make sure to have the ignition turned off and the keys removed.
4. Be careful to avoid burns, especially when turning on or off the vehicles lighting.
5. Be careful to avoid crushing or cutting the bulbs. Also make sure to not touch the bulbs with your fingers, as this will cause blotting.
6. Fully examine the connection of the contact points, ports and the wires as faulty connections can cause lighting problems.
7. Make certain that the end of the bulb does not come in contact with the interior light shield of the headlight when adjusting the bulb.

CANBUS ERROR FREENo. For most vehicles, just directly plug and play. Yet for some vehicles with CAN-BUS system, it may require install decoder or load resistor to avoid hyper flash or fast blinking.

Please Note:


Item Specifics
UPC 782890730006
Brand AUXITO
Lighting Technology LED
Suitable For Headlight
Bulb Fitment Code H7
Number of Bulbs 2
Light Colour Cold White
Voltage 12v
Voltage Range DC9-30V
Colour Temperature 6500k
Wattage 100W
Lumens 24000lm
Bulb Life Hours > 50,000 Hours
Model H4
Waterproof IP67
Bulbs Other name 0
LED Type 6040
Fan With FAN
Type Light Bulb
Features CANbus Compatible
Manufacturer Warranty 2 Years
Universal Fitment YES
Working Temperature 40-80 degree Celsius
Placement on Vehicle Front Left,right
MPN Dose not apply
Material Aluminum
Fitment Type Direct Replacement
External Testing Certification CE / Rohs
Decoding Some cars need use decoder,In addition purchase
Beam Type High Beam and Low Beam
Beam Angle 360° lighting effect
To Fit High LOW BEAM Headlight Kit
Viewing Angle(θ) 360 degree
Certificates CE, RoHs
LED Chip Automotive grade custom chip AUXITO
Features2 Road Legal
Suitable For2 High Beam, Low Beam, Fog Light
Quality 100% guaranteed
Quality 100% guaranteed
