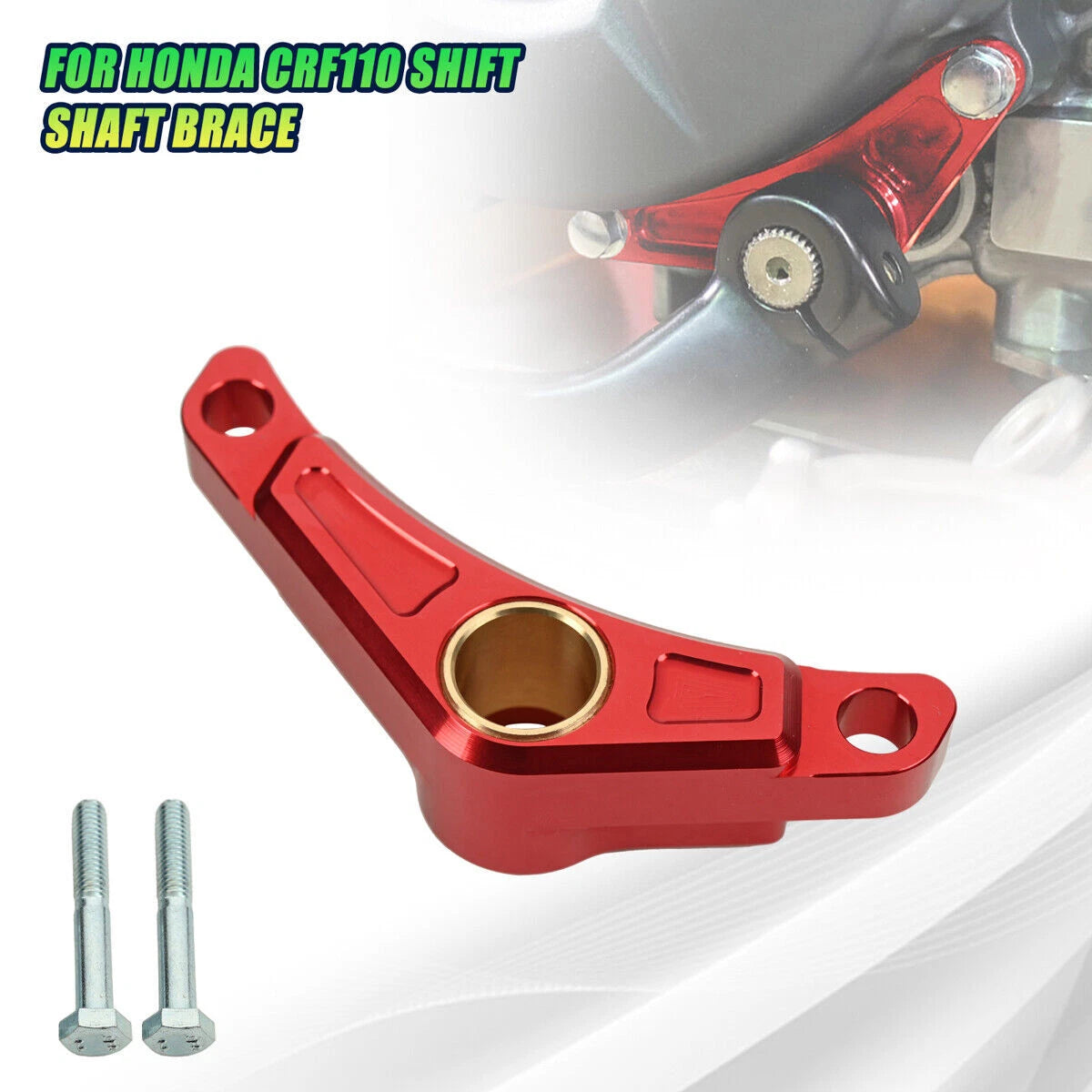

CNC 6061 Billet Aluminum Shift Shaft Brace for Honda CRF110F 2013-UP

PRODUCT OVERVIEW

This CNC-machined shift shaft brace is designed to add critical support to the shift shaft on Honda CRF110F models (2013 and up). It helps reduce the risk of bent shafts and costly transmission damage.

KEY FEATURES

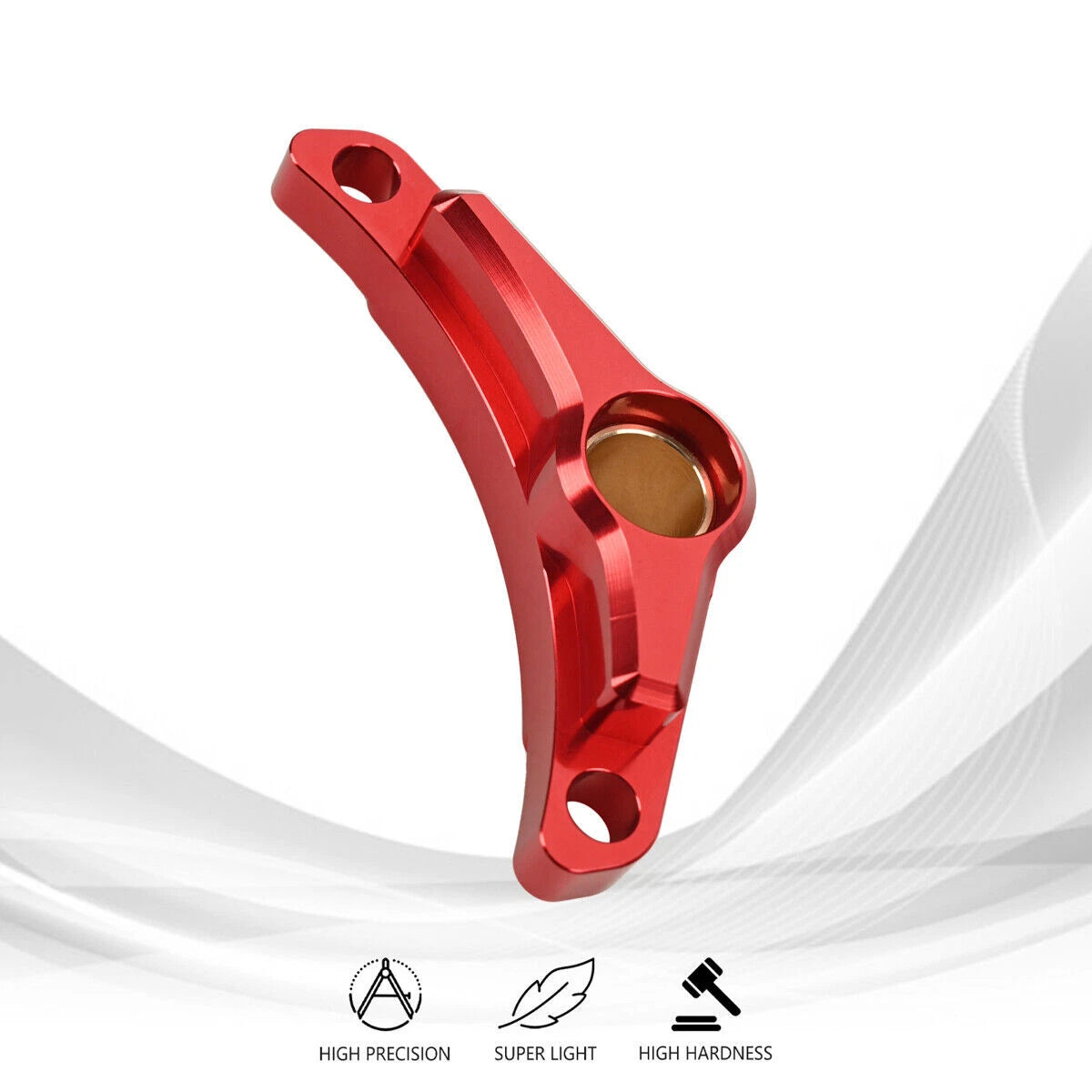

• CAD designed and CNC machined from 6061 billet aluminum for strength and precision.

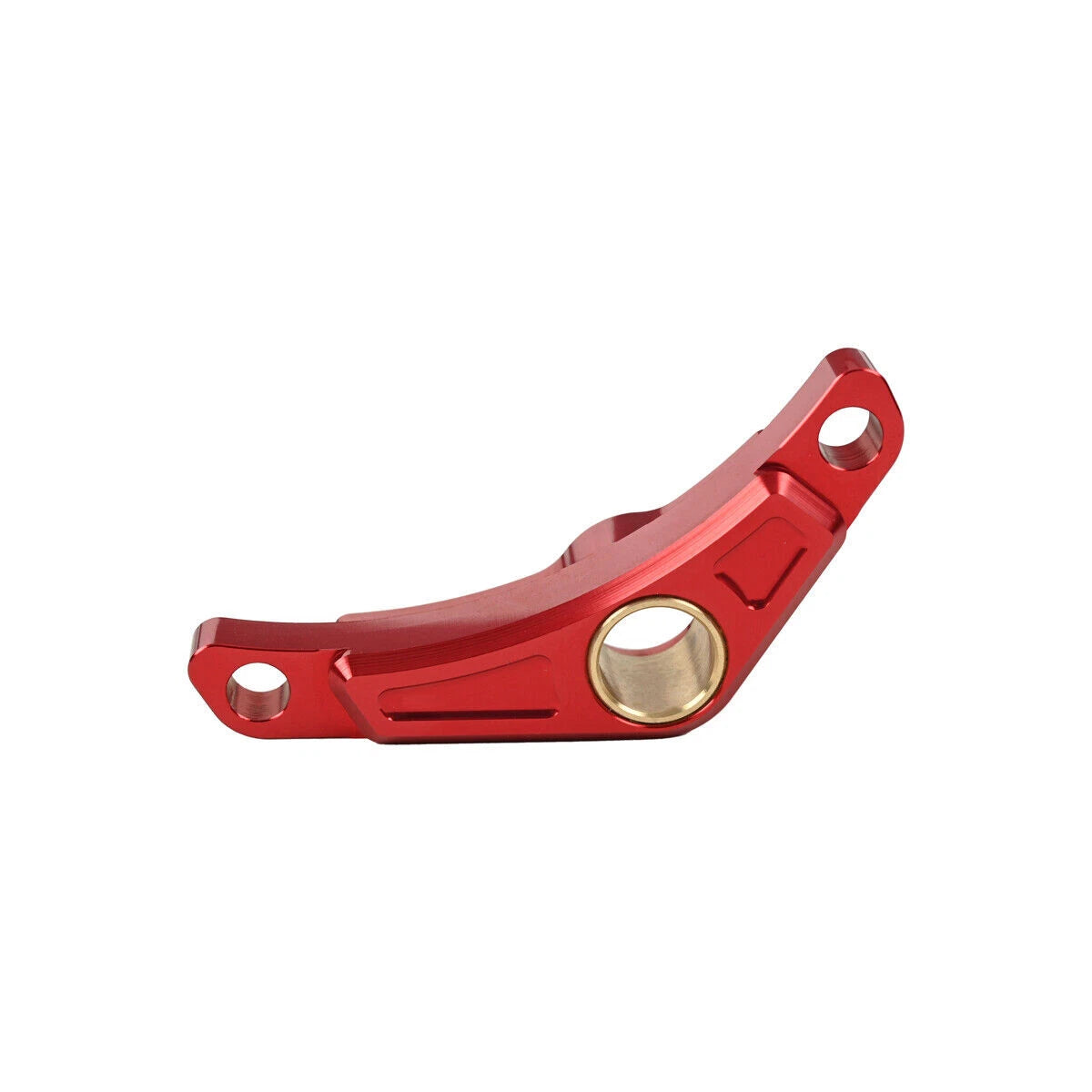

• 16 mm wide oil-embedded bronze bushing provides smooth operation and added shaft support.
• Helps prevent common shift shaft bending and expensive repair work.
• Improves longevity of the OEM shift shaft by reducing flex and load.

MATERIAL & FINISH

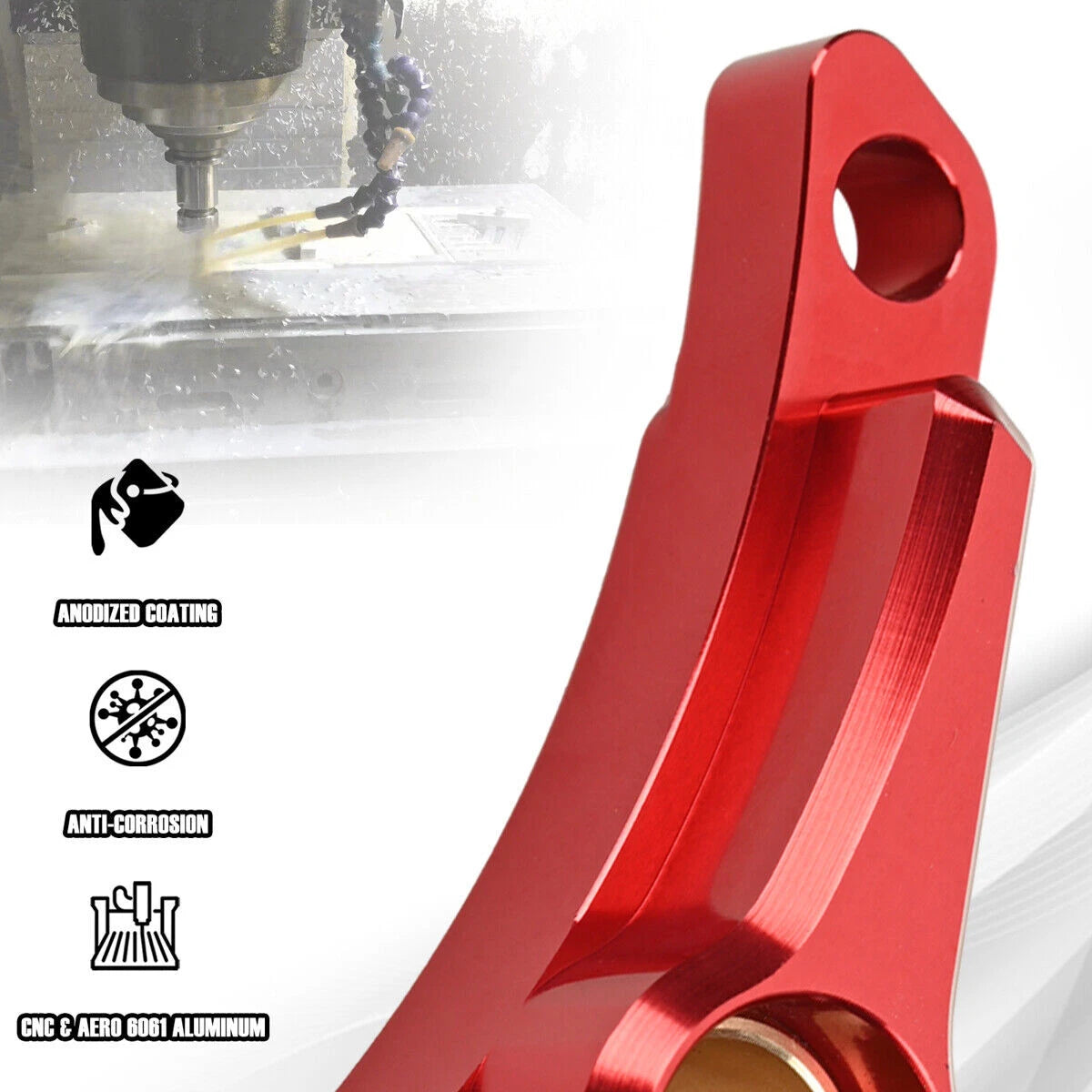

• Material: 6061 billet aluminum body.
• Bushing: Oil-embedded bronze, 16 mm wide.
• Color: Red (anodized finish).

FITMENT

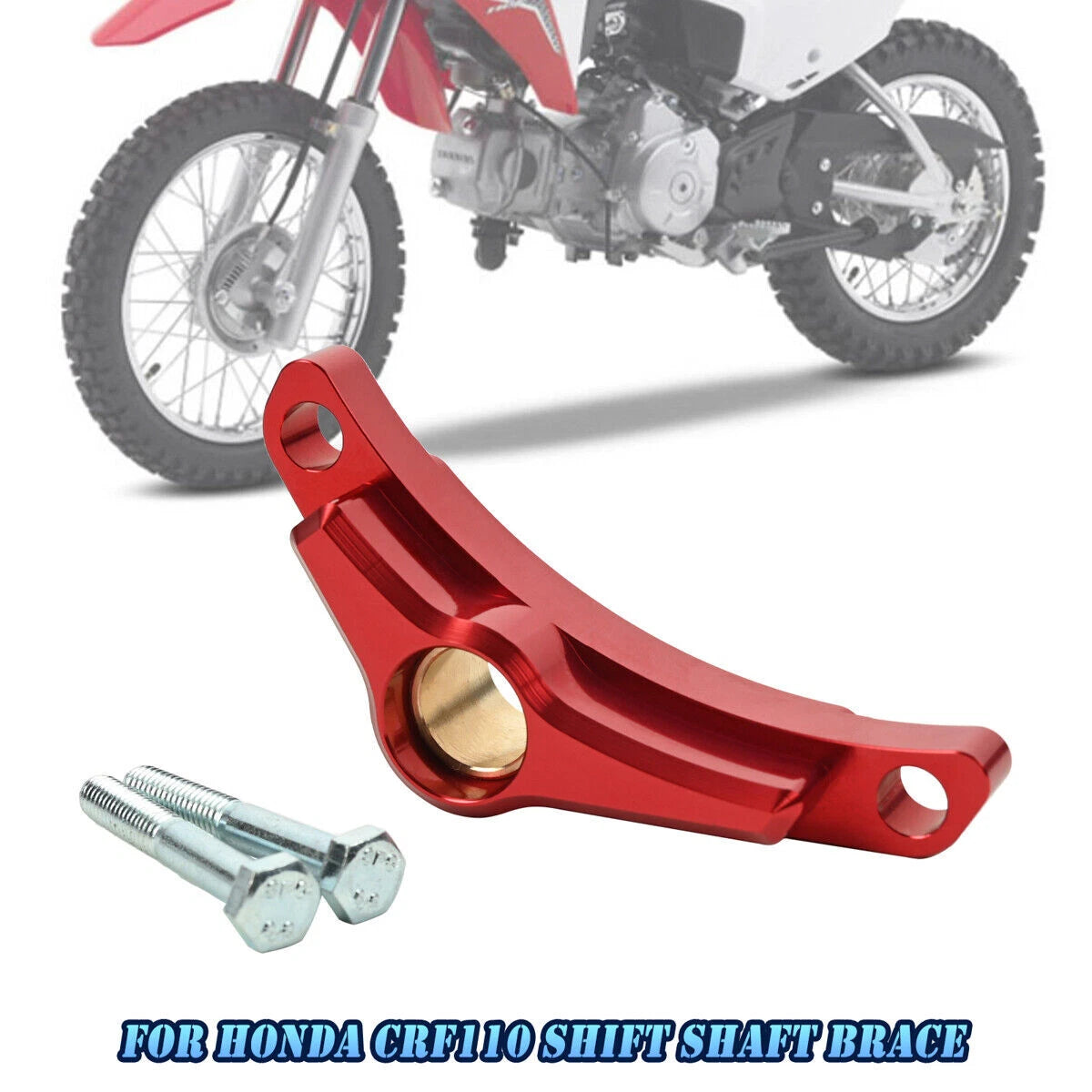

Intended for Honda CRF110F 2013 and newer. Always verify compatibility with your specific model and year before purchase and installation.

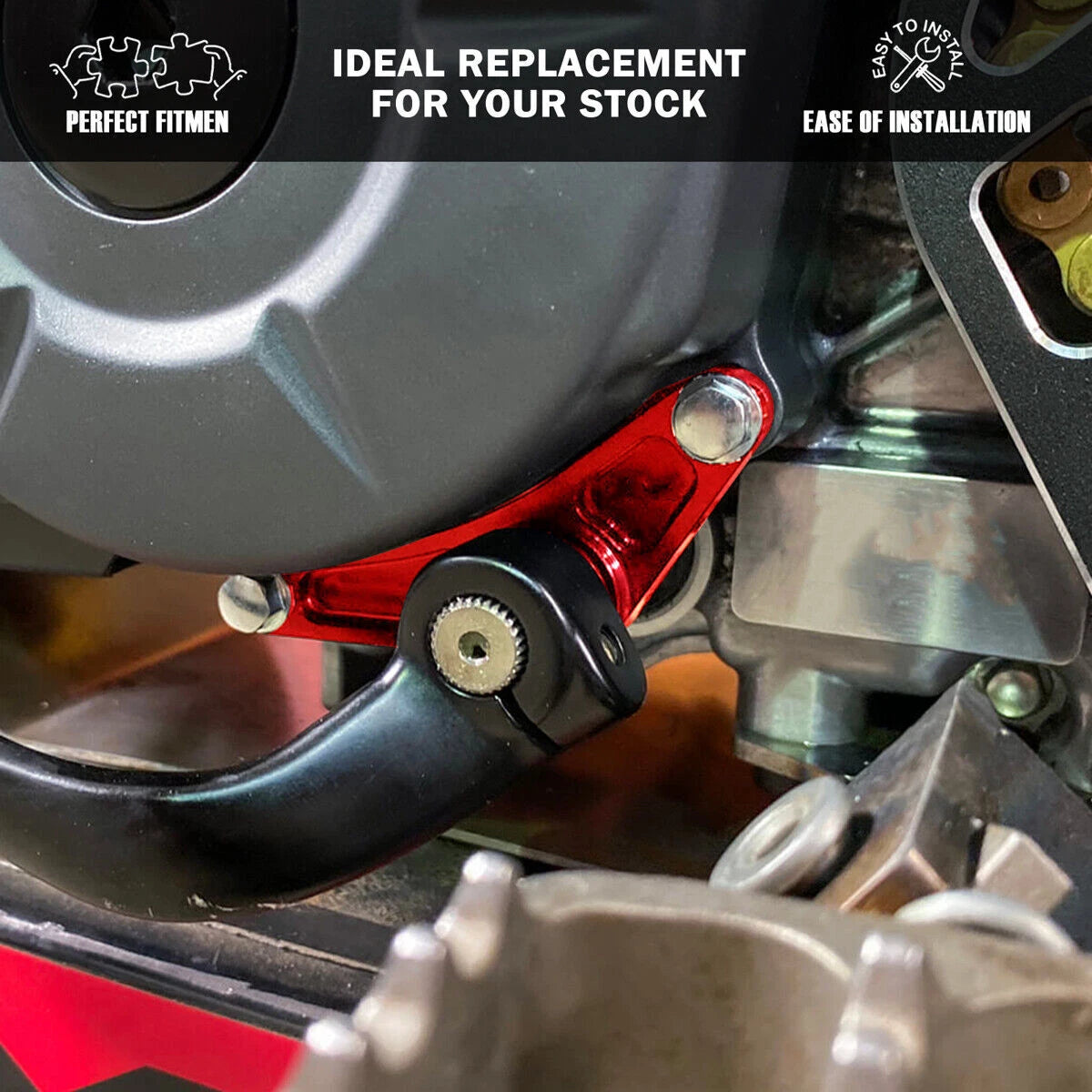

INSTALLATION DETAILS

• Fast, simple bolt-on installation.
• Remove the shifter and the two bolts from the bottom of the ignition cover.
• Slide the brace over the end of the shift shaft and reinstall the two bolts to secure it.
• Minor trimming may be required on the OEM plastic sprocket cover, or the cover can be removed if using a billet sprocket cover.

Important: Due to the tight clearance of the bearing, this brace will not fit if the shift shaft is already bent. The shaft must be straightened or replaced before installation.

BENEFITS

• Reduces the likelihood of bending the exposed shift shaft.
• Helps protect the transmission from serious damage caused by shaft misalignment.
• Extends service life of OEM shift components by providing additional support.

PACKAGE CONTENTS

• 1 x Shift shaft brace.
• 2 x Mounting bolts.
