CNC No-Leak O-Ring Exhaust Manifold Flange Silver for Honda CR125 1990-2002

PRODUCT OVERVIEW

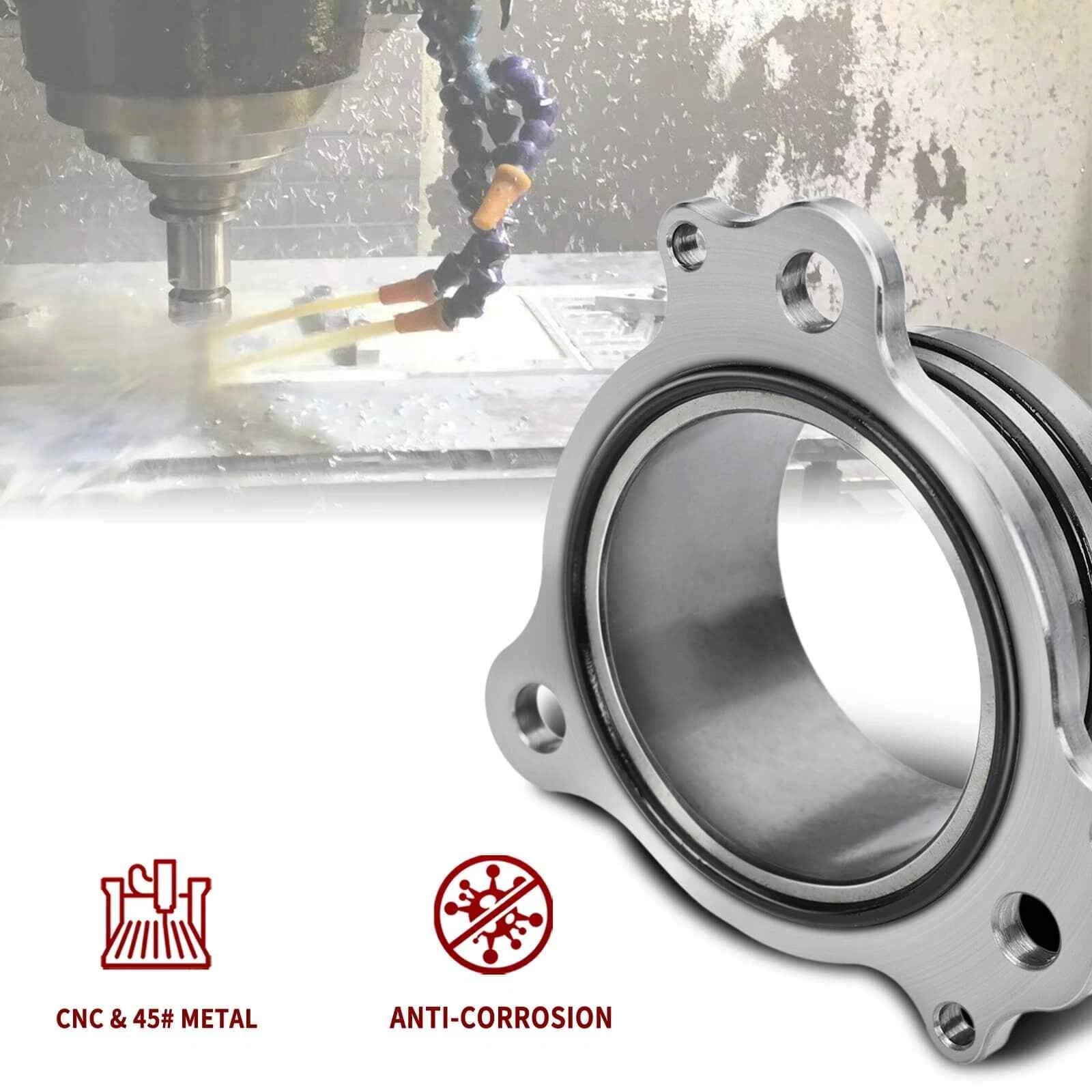

This CNC-machined exhaust manifold flange with integrated O-ring grooves replaces the factory flange and seals the pipe to the motor without additional sealants. It provides a clean, leak-resistant connection and helps keep the front of the engine looking clean.

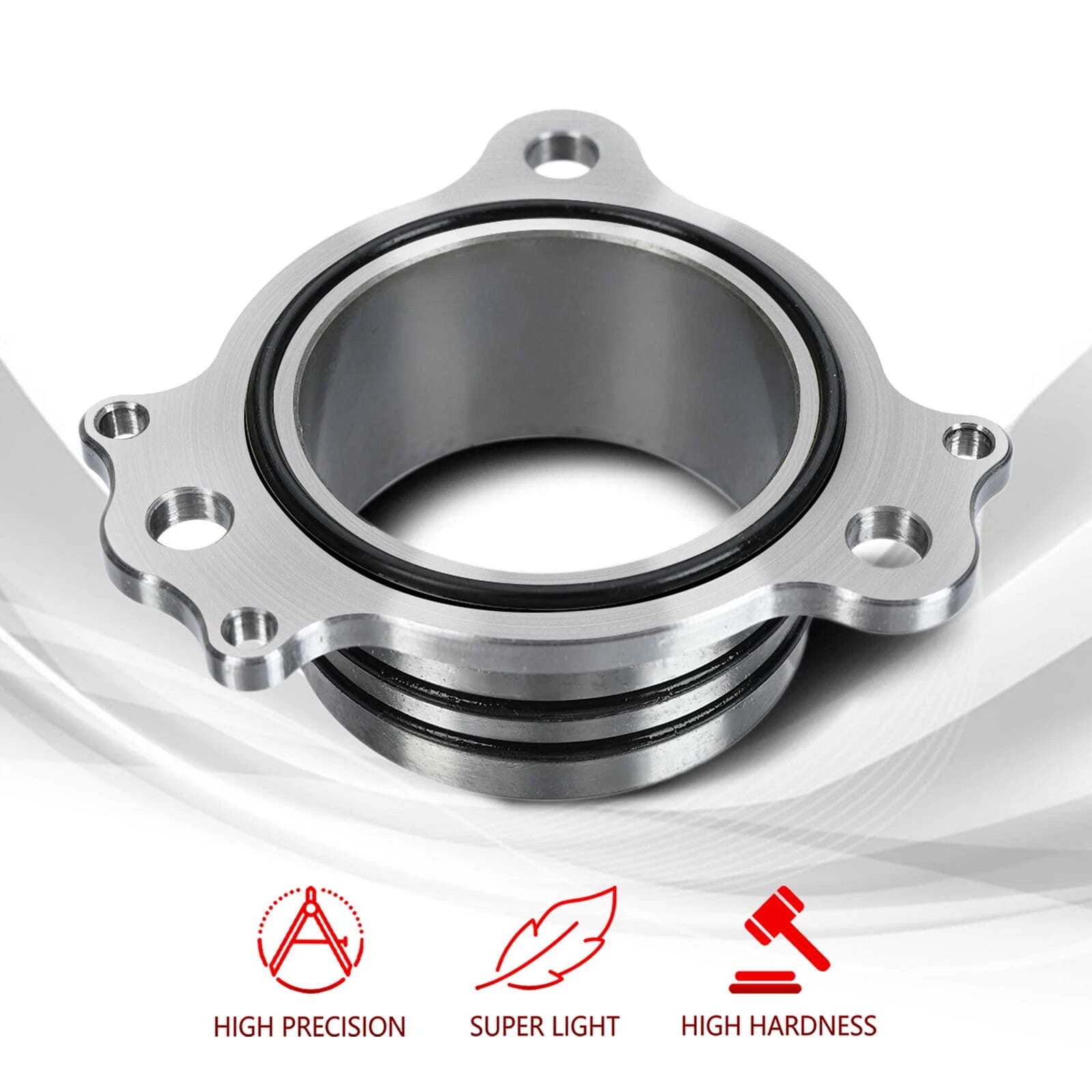

KEY FEATURES

• CNC machining for high precision and consistent fitment
• No-leak O-ring design eliminates the need for sealants at the joint
• High hardness 45# metal for strength and durability
• Waterproof, dustproof and anti-corrosion construction

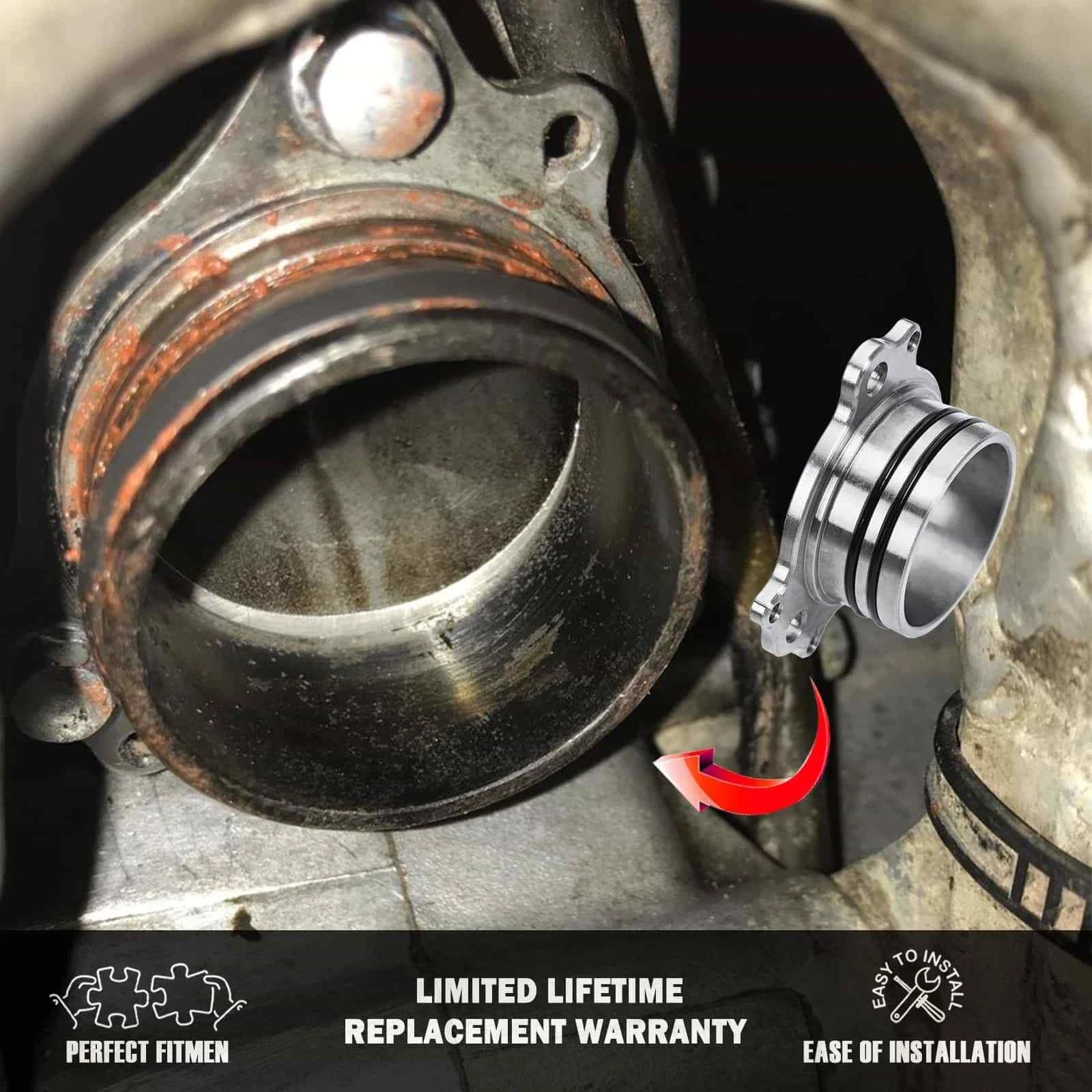

• Direct replacement for the stock exhaust manifold flange
• Lightweight design with high quality finish

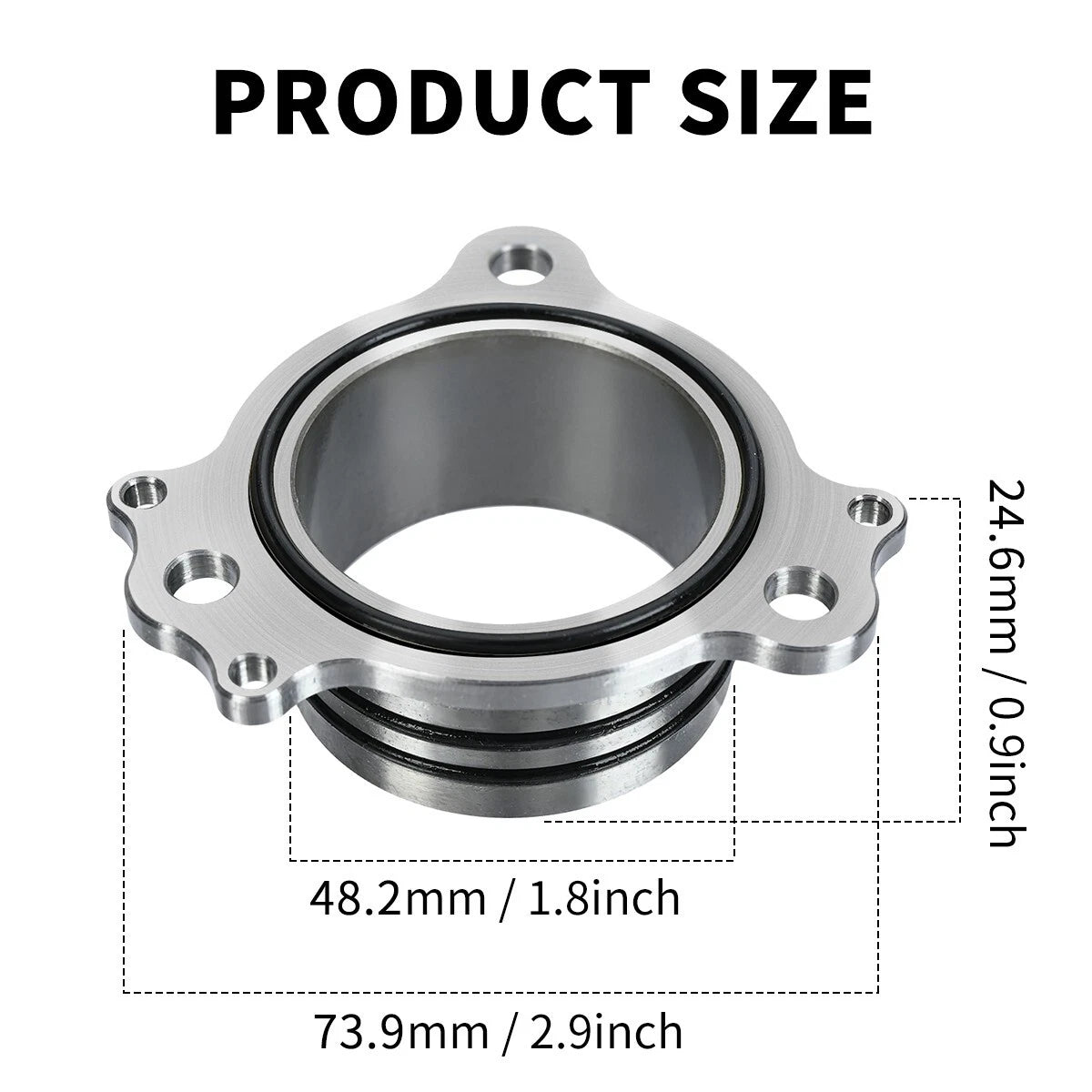

SPECIFICATIONS

• Condition: Brand new
• Color: Silver
• Material: 45# metal
• Flange diameter: 47.7 mm
• Flange length (male section into pipe): 18.5 mm
• Bolt hole spacing (center to center): 54 mm

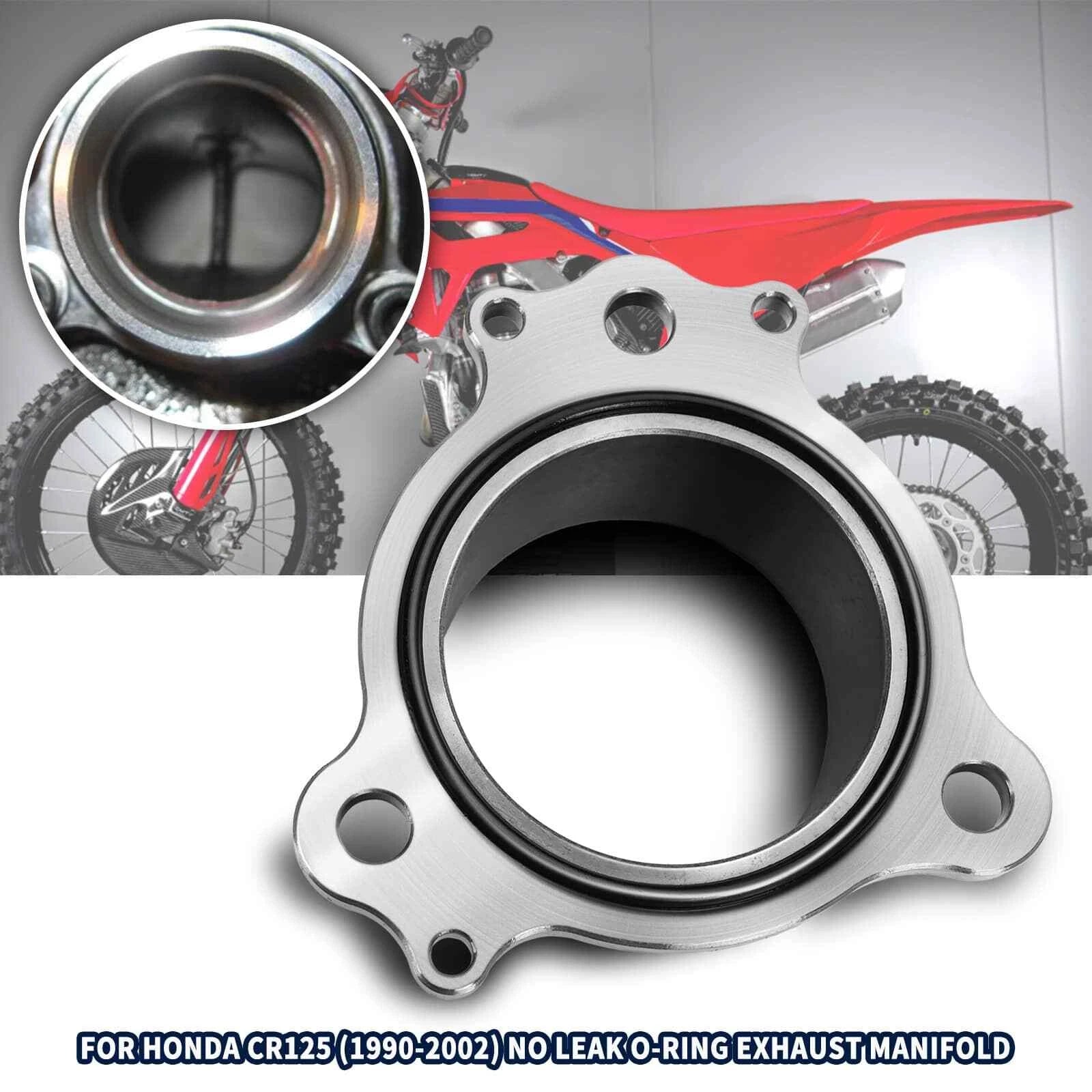

FITMENT

• For Honda CR125 1990-2002
• May also fit up to 2007 with minimal modification (for example, elongating a mounting hole). Verify dimensions before purchase.

PACKAGE CONTENTS

• 1 x Exhaust manifold flange
• 3 x O-rings

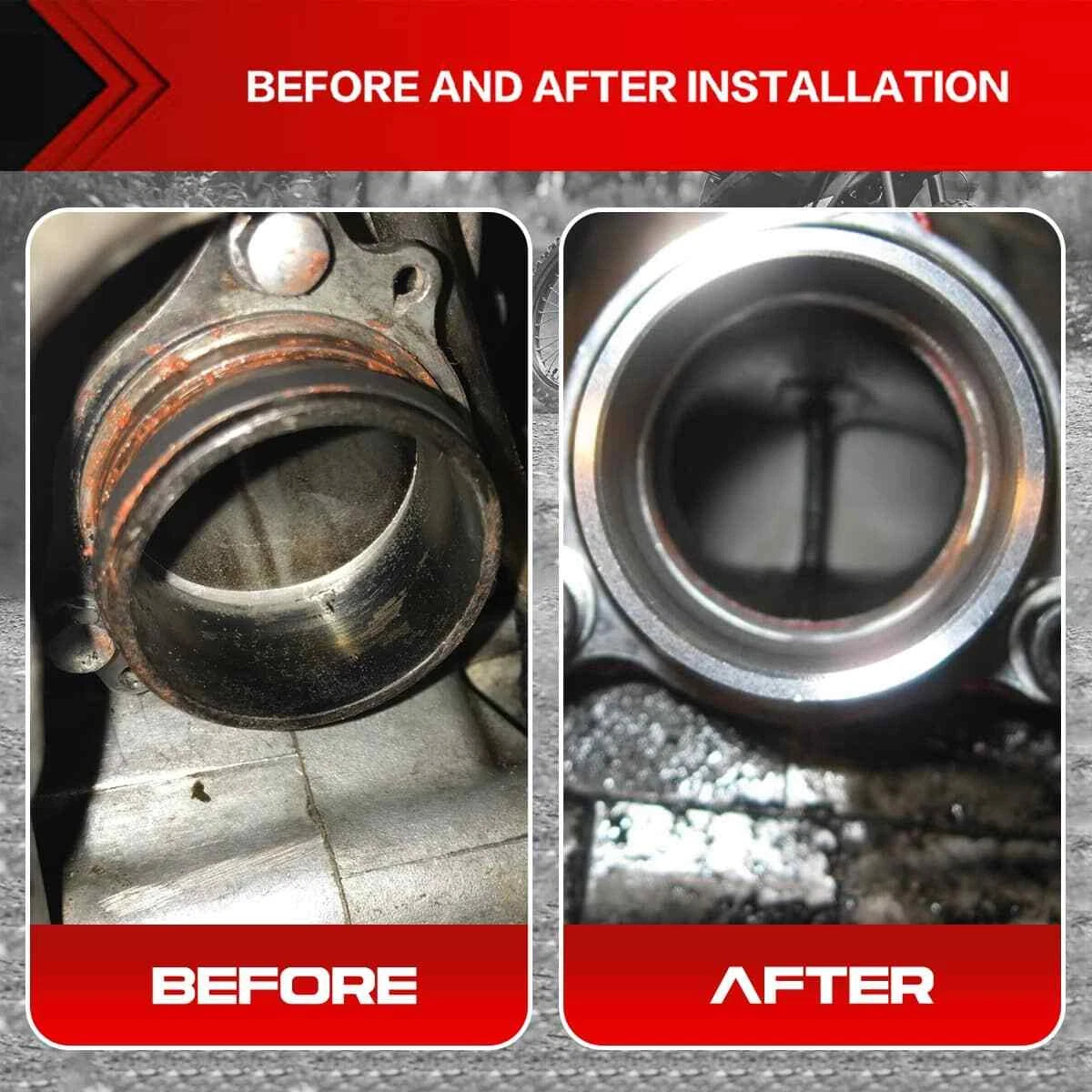

INSTALLATION NOTES

• Ensure exhaust pipes are not damaged or bent before installation.
• The female end of the pipe must be smooth and flat to seal correctly.
• If a stock metal crush gasket was previously used, a groove may be present in the pipe; in this case a small amount of RTV sealant may assist sealing.
• Professional installation is recommended for best results.
