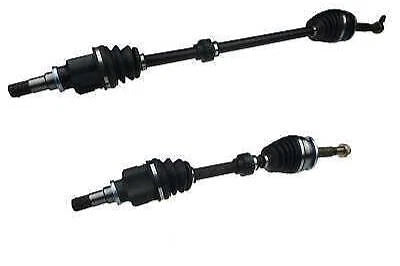

CV Joint Axle Drive Shaft Set RH & LH for Toyota Corolla ZRE152 ZRE182

PRODUCT OVERVIEW

This CV joint axle drive shaft set includes both right-hand and left-hand replacement shafts for compatible Toyota Corolla ZRE152 and ZRE182 models. Supplied as a matched pair for straightforward installation.

WHAT'S INCLUDED

• 1 x CV shaft – right-hand side (driver)
• 1 x CV shaft – left-hand side (passenger)
• 2 x hub nuts

FEATURES & BENEFITS

• Manufactured to OEM specifications for fit, performance and reliability.
• Heat-treated chrome steel construction for extended service life.
• High-quality neoprene dust boots with stainless steel clamps to reduce contamination.
• Molybdenum grease for smooth operation at varying angles, speeds and high RPM.

SPECIFICATIONS – RIGHT-HAND SIDE

• Spline count (wheel side): 26
• Spline count (inner side): 20
• Overall length: ~945.0 mm
• Hub nut thread: M22 x 1.5

SPECIFICATIONS – LEFT-HAND SIDE

• Spline count (wheel side): 26
• Spline count (inner side): 20
• Overall length: ~660.0 mm
• Hub nut thread: M22 x 1.5

WARRANTY

• CV driveshafts: 12 months / 20,000 km (whichever occurs first).
• CV boots: 3 months from date of purchase.

FITMENT NOTICE

Verify spline counts, lengths and hub nut size against your existing components before purchase and installation. Refer to your vehicle’s specifications or consult a qualified technician if unsure.
