Front Diff Laminating Brace Strengthening Kit for Nissan Patrol GQ GU

PRODUCT OVERVIEW

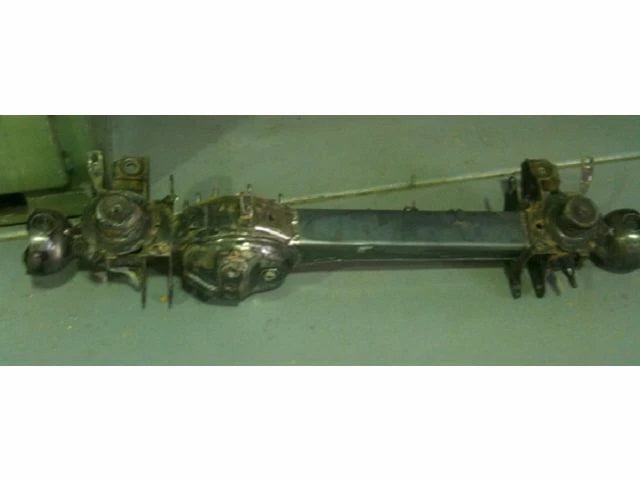

This front diff laminating brace strengthening kit is designed to reinforce the front differential housing on Nissan Patrol GQ, GU and Maverick applications. The weld-on gusset and brace system helps prevent diff bending and provides additional protection for key components during heavy off-road use.

KEY FEATURES

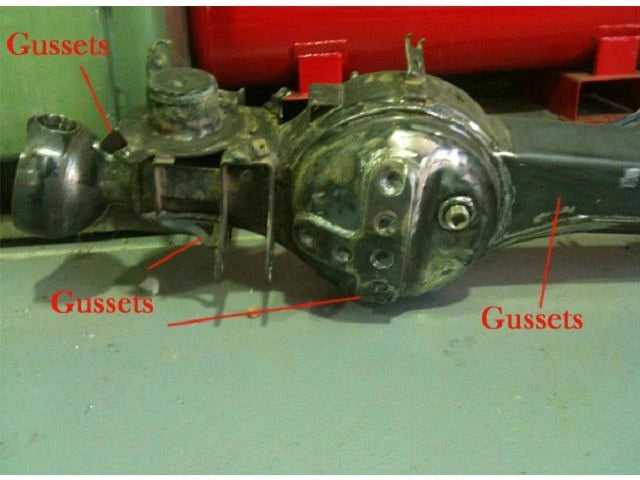

• Comprehensive weld-on brace kit to strengthen front diff housing
• Designed to reduce diff bending under hard off-road impacts

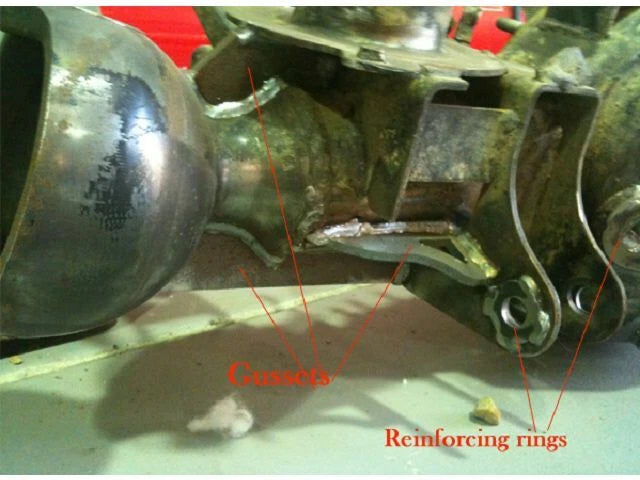

• Can be mounted on top or underneath the diff housing (3 mm folded gusset)
• Compatible with Nissan Patrol GQ, GU and Maverick diff housings
• Tested in off-road race applications for durability and strength

FITMENT

• Fit for Nissan Patrol
• Fits GQ, GU and Maverick front diff housings
• On GQ and Maverick, the length of the main 3 mm folded gusset must be trimmed with one straight cut to suit
• Designed to be welded to the diff housing; professional installation recommended
• Extended bump stops may be required; check clearance between sump and diff before welding

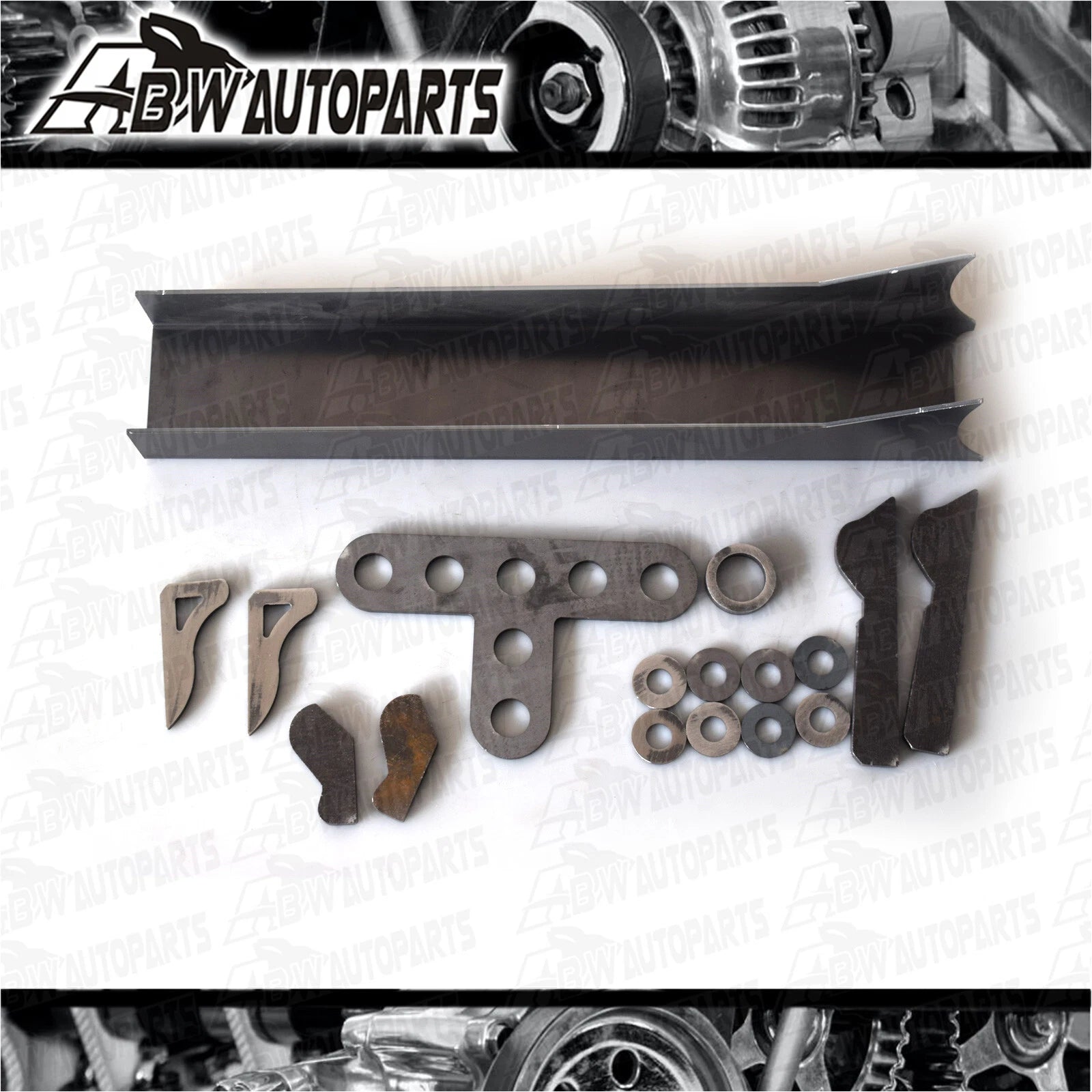

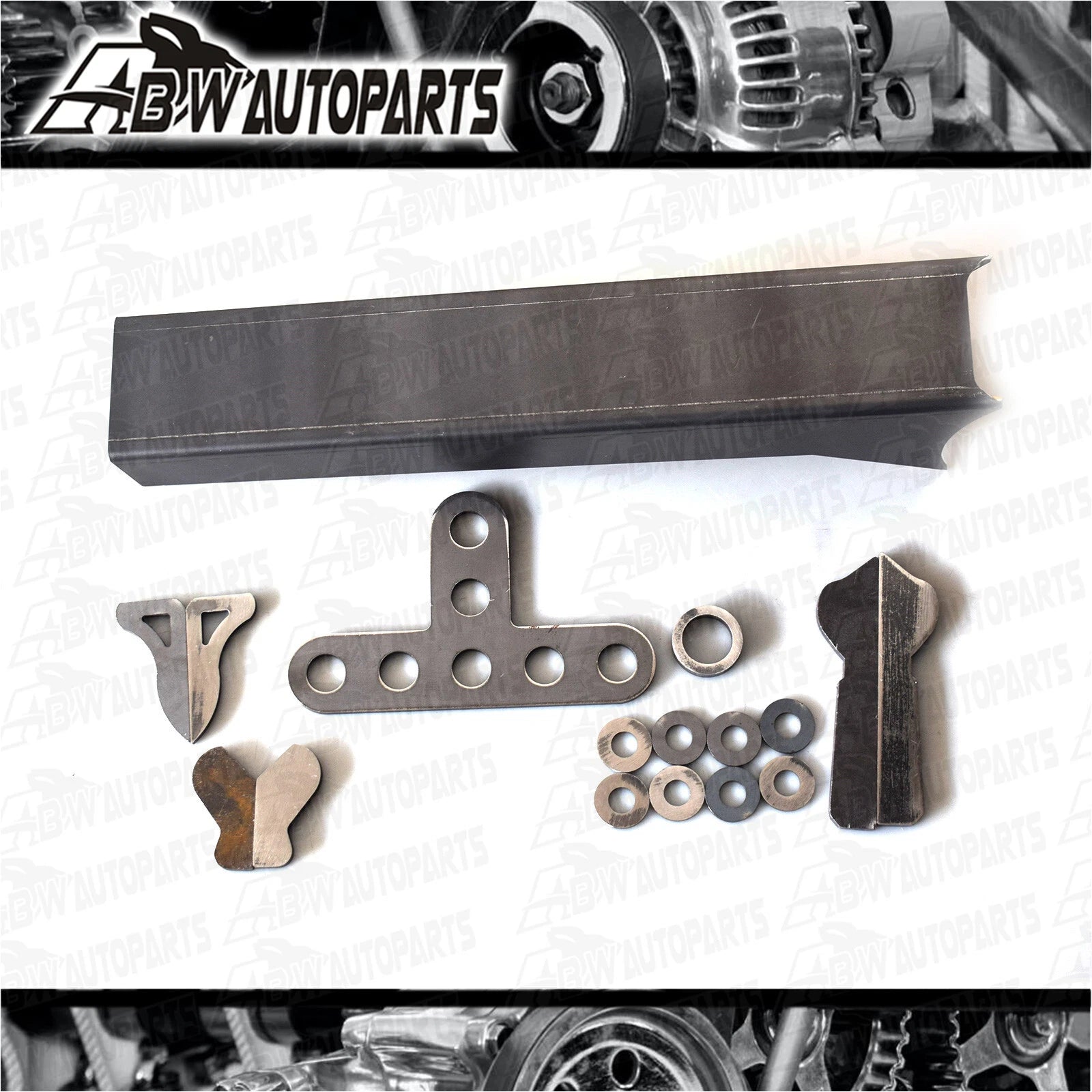

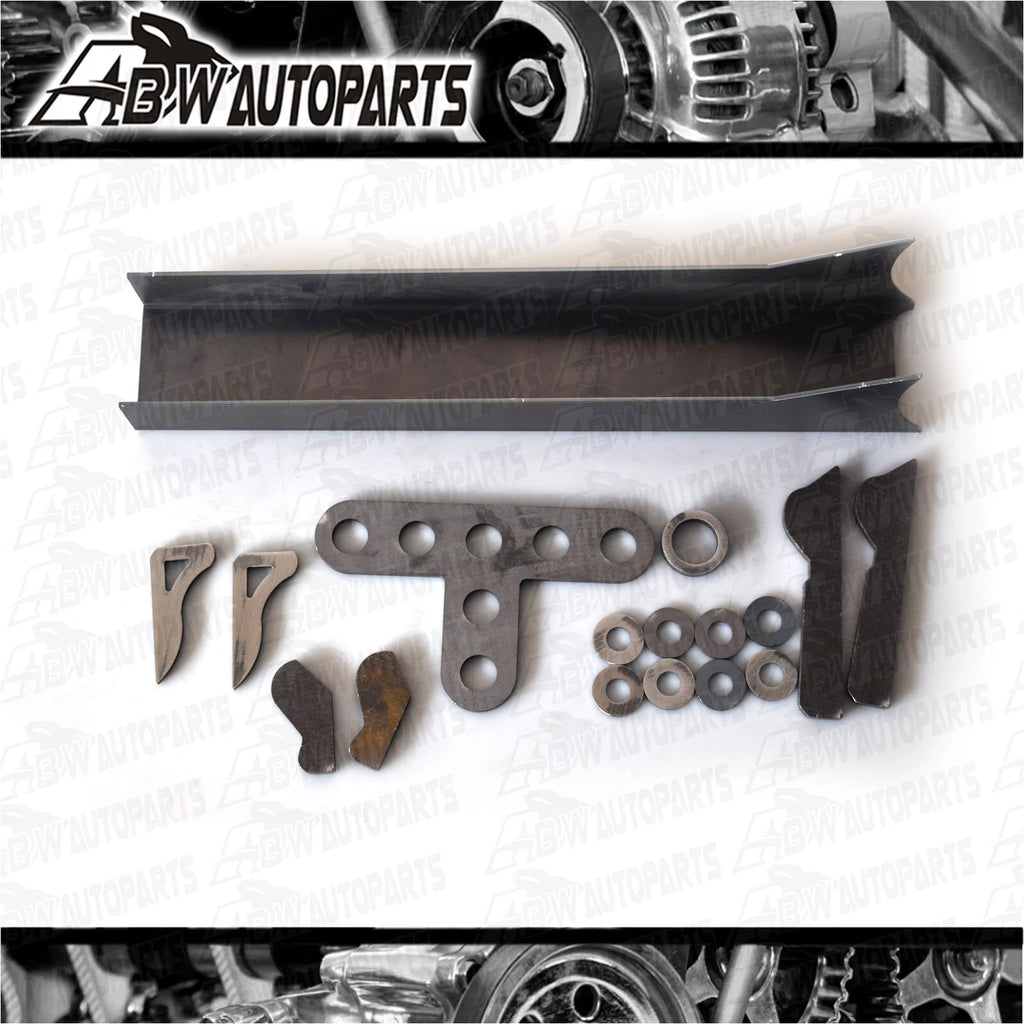

PACKAGE CONTENTS

• 1 x 3 mm folded gusset (can be mounted under or on top of diff)
• 2 x 8 mm long underside gussets to knuckle
• 2 x 8 mm short top side gussets to knuckle
• 2 x 6 mm back stay braces to help prevent diff bending backwards on hard hits
• 1 x 6 mm pinion guard to protect the pinion from impacts
• 8 x 3 mm radius arm bolt washers to help prevent bolt holes from elongating
• 1 x 8 mm drain plug ring to protect the drain plug

SPECIFICATIONS

• Type: Diff laminating brace strengthening kit, front
• Manufacturer Part Number: DBOXNS02ABW-2
• Material thicknesses: 3 mm, 6 mm and 8 mm steel components as listed
• Installation: Weld-on (modification and fabrication required)
