Digital EGT Exhaust Temperature Gauge 12V Blue LED Universal

PRODUCT OVERVIEW

This digital exhaust gas temperature (EGT) gauge allows you to accurately monitor exhaust temperature and set a custom alarm level to protect your engine under load, towing, or performance driving conditions.

KEY FEATURES

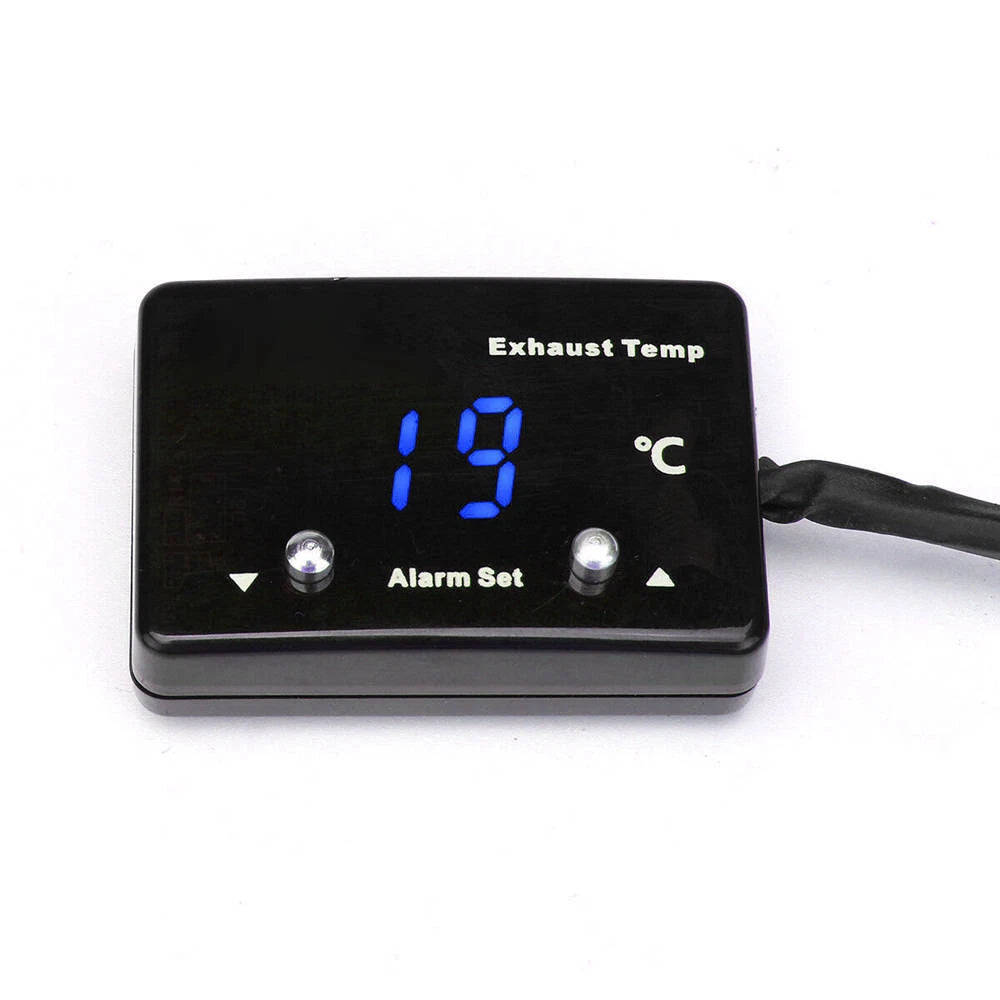

• Digital display with bright blue LED for clear visibility

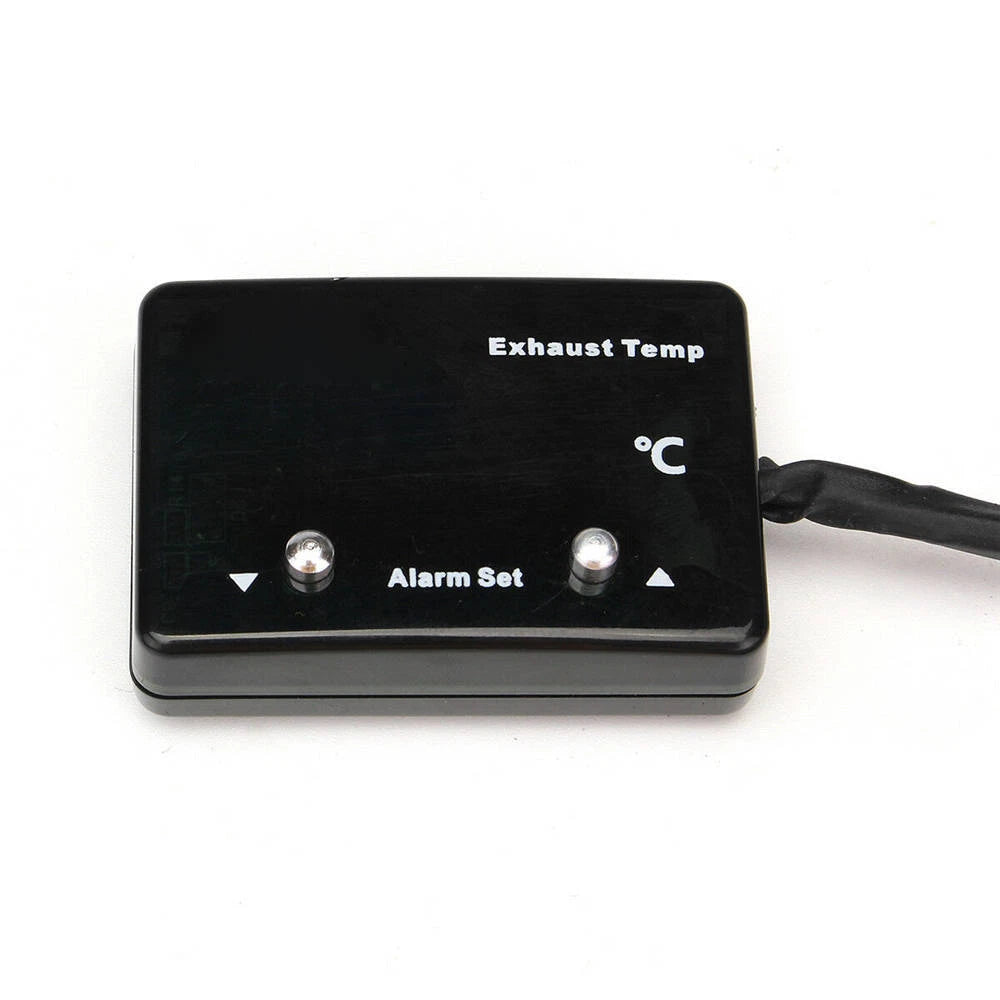

• Adjustable temperature alarm using two-button controls
• Universal 12V DC compatibility for cars, motorcycles, boats, ATVs, UTVs, campers, caravans and trailers
• Simple wiring with only power, ground and sensor connections
• Compact gauge body for flexible mounting locations

BENEFITS

• Monitors exhaust gas temperature to help prevent engine damage
• Ideal for turbo diesel and petrol engines, especially when towing or under heavy load
• Provides real-time feedback on engine heat and stress

SPECIFICATIONS

• Measurement range: 0 – 1000°C
• Power supply: 12V DC, max. 0.3A
• Sensor mounting thread: NPT 1/8"

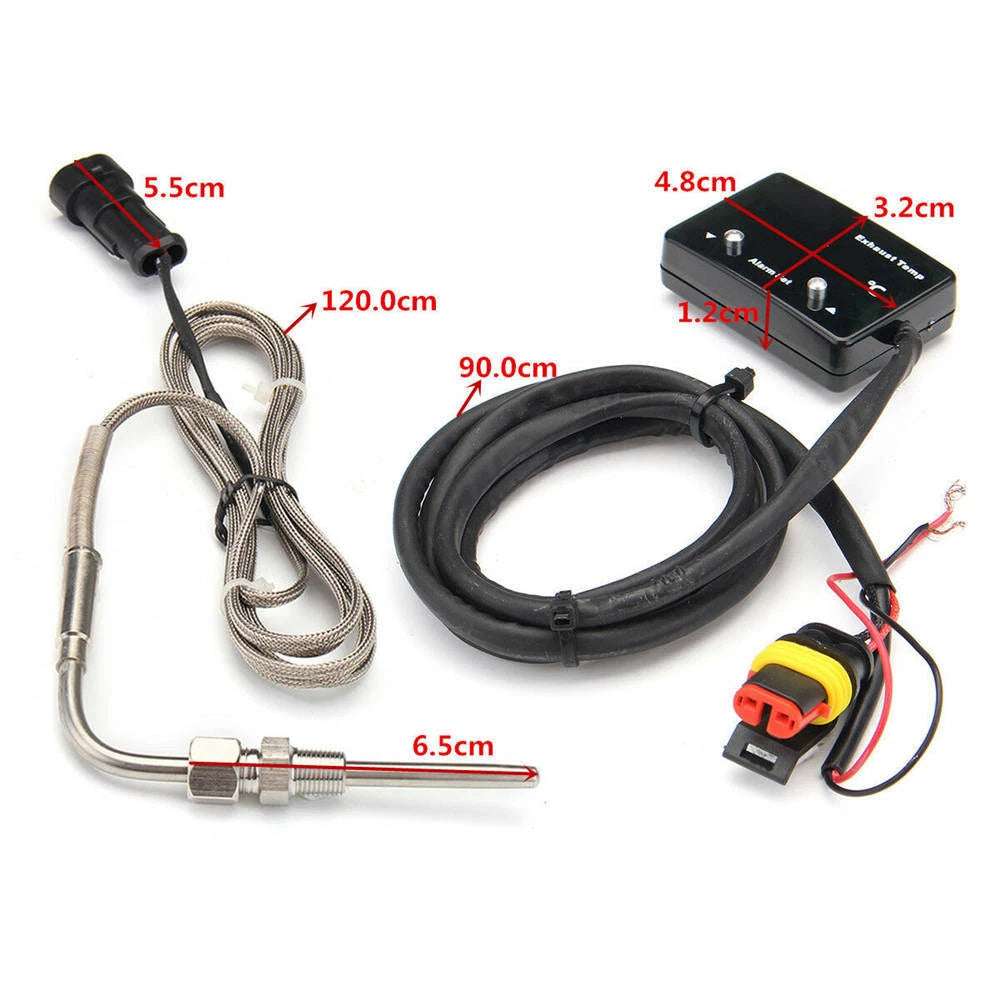

• Gauge size (approx.): 5 × 3.4 × 1.3 cm (2 × 1.3 × 0.5 in, L × W × H)
• Application: Universal for most 12V vehicles and equipment

ALARM SETTING INSTRUCTIONS

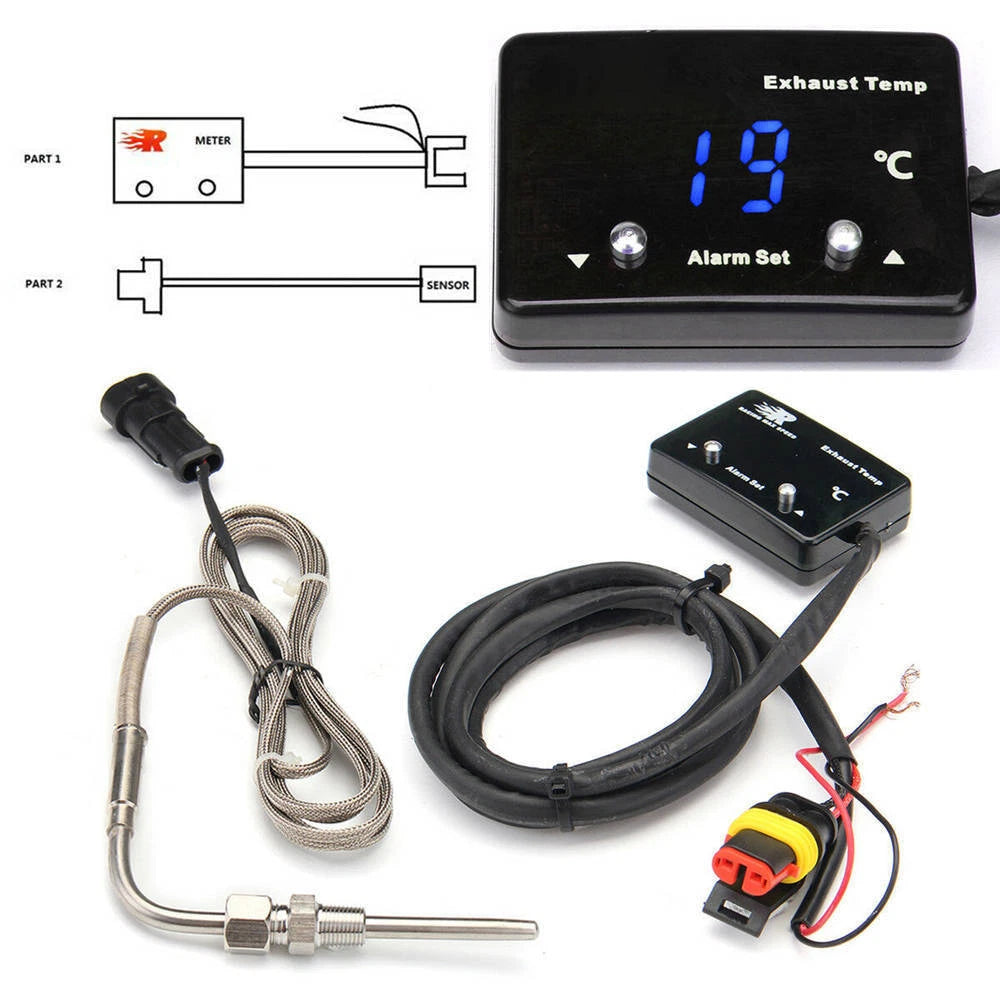

• Connect the main gauge unit and sensor module.
• Use the two buttons on the main unit to set the alarm temperature.
• Press either button to enter alarm setting mode (LED will flash).
• Left button: decrease value; right button: increase value.
• After setting the desired alarm value, wait ~5 seconds for the gauge to store the setting.

WIRING INSTRUCTIONS

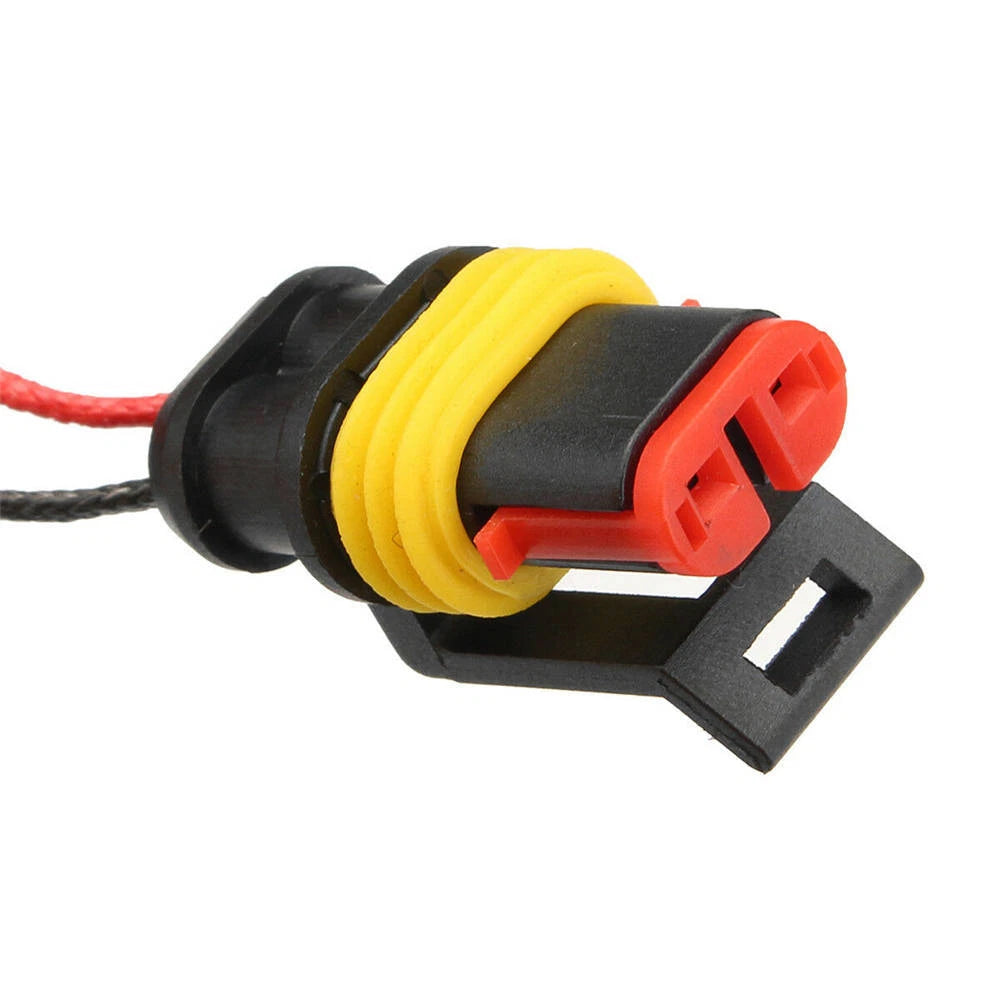

• Red wire: connect to +12V on an ignition-switched circuit (power only when ignition is ON).
• Black wire: connect to battery negative or a clean chassis ground.

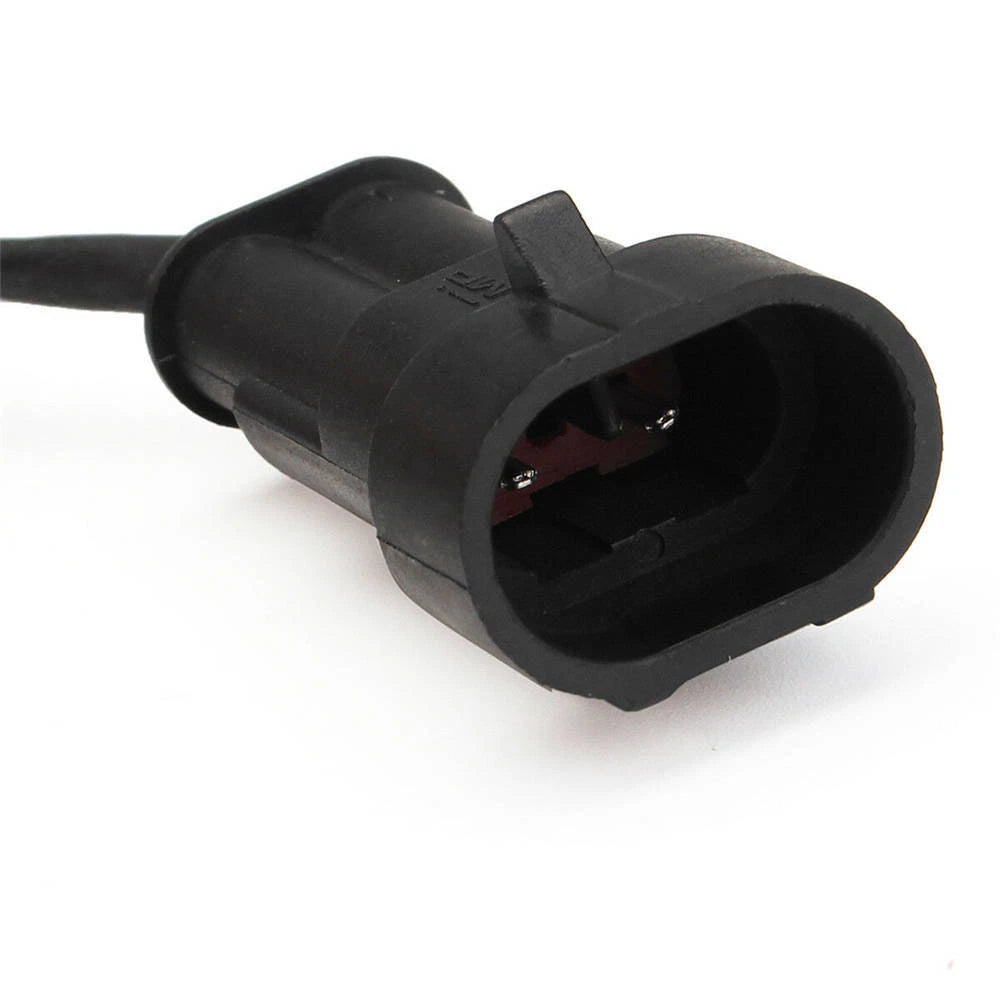

• Install the sensor in the exhaust using the NPT 1/8" threaded port and connect to the gauge harness.

PACKAGE CONTENTS

• 1 × Digital exhaust gas temperature (EGT) gauge
• 1 × EGT temperature sensor
