Digital Exhaust Gas Temperature Gauge EGT Pyrometer 12V Universal

PRODUCT OVERVIEW

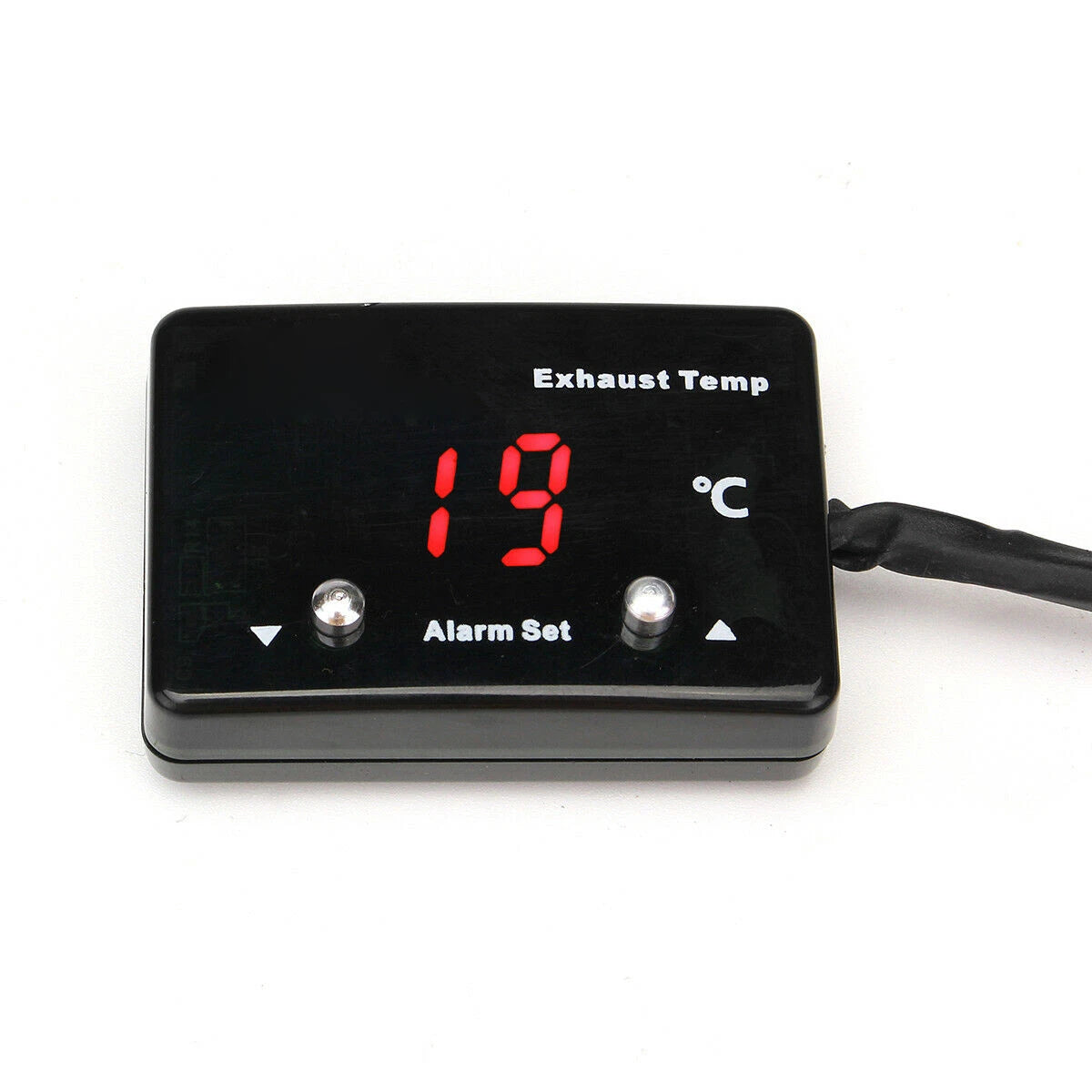

This digital exhaust gas temperature (EGT) gauge allows you to accurately monitor exhaust temperatures and set a custom over-temperature alarm. Ideal for turbocharged diesel and petrol applications and universal 12V installations.

KEY FEATURES

• Digital LED display with clear red illumination
• User-adjustable high-temperature alarm setting
• Includes EGT sensor and wiring for complete installation
• Helps protect engine and turbo by monitoring exhaust heat
• Suitable for towing, performance, and off-road use
• Universal for most 12V vehicles: cars, motorcycles, boats, ATV/UTV, campers, caravans, trailers, and more

SPECIFICATIONS

• Measurement range: 0 – 1000°C
• Power supply: 12V DC, max. 0.3A
• Sensor mounting thread: 1/8" NPT

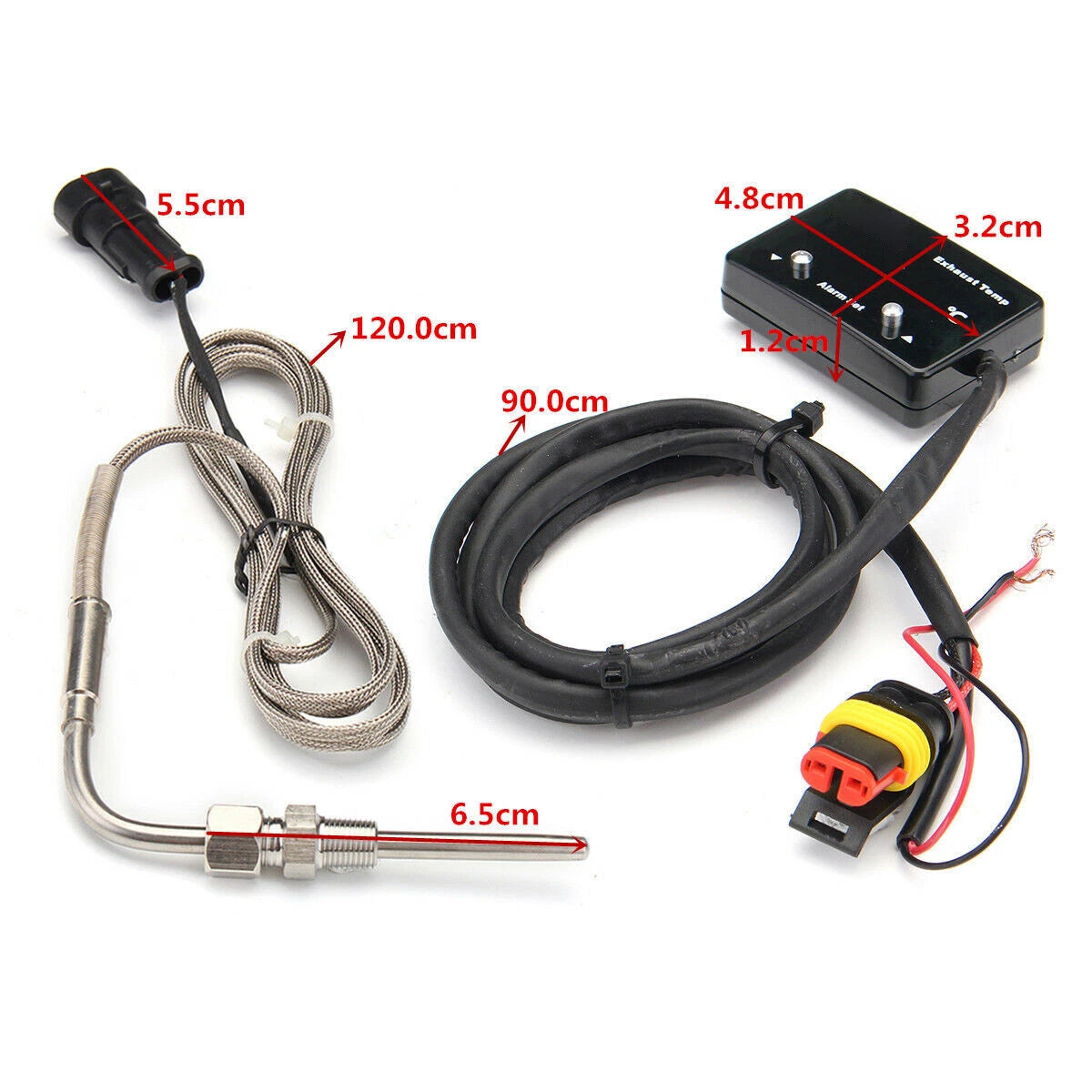

• Gauge dimensions (L × W × H): 5 × 3.4 × 1.3 cm (2 × 1.3 × 0.5 in)
• Application: Universal for cars, motorcycles and other 12V models

ALARM SETUP

• Connect the gauge display and sensor harness.
• Use the two buttons on the gauge to adjust the alarm temperature.
• Press a button to enter setting mode (LED will flash).
• Use the left button to decrease and the right button to increase the alarm value.
• After setting, wait ~5 seconds for the gauge to store the alarm temperature.

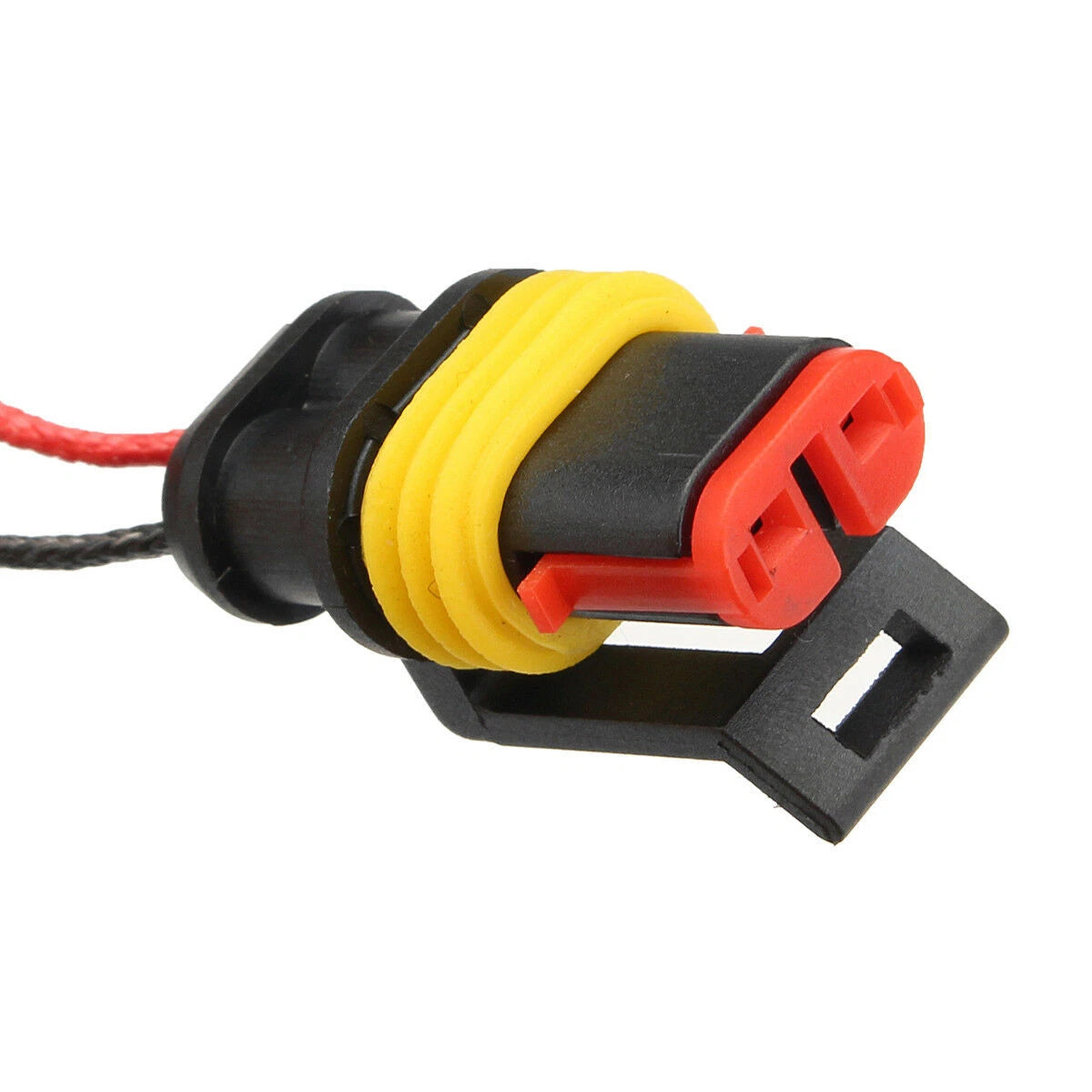

WIRING & INSTALLATION

• Red wire: connect to +12V on an ignition-switched circuit (power on with key).
• Black wire: connect to battery negative or a solid chassis ground.
• Mount the EGT sensor using the 1/8" NPT thread in a suitable exhaust location.
• Route the sensor cable safely away from heat and moving components to the gauge.

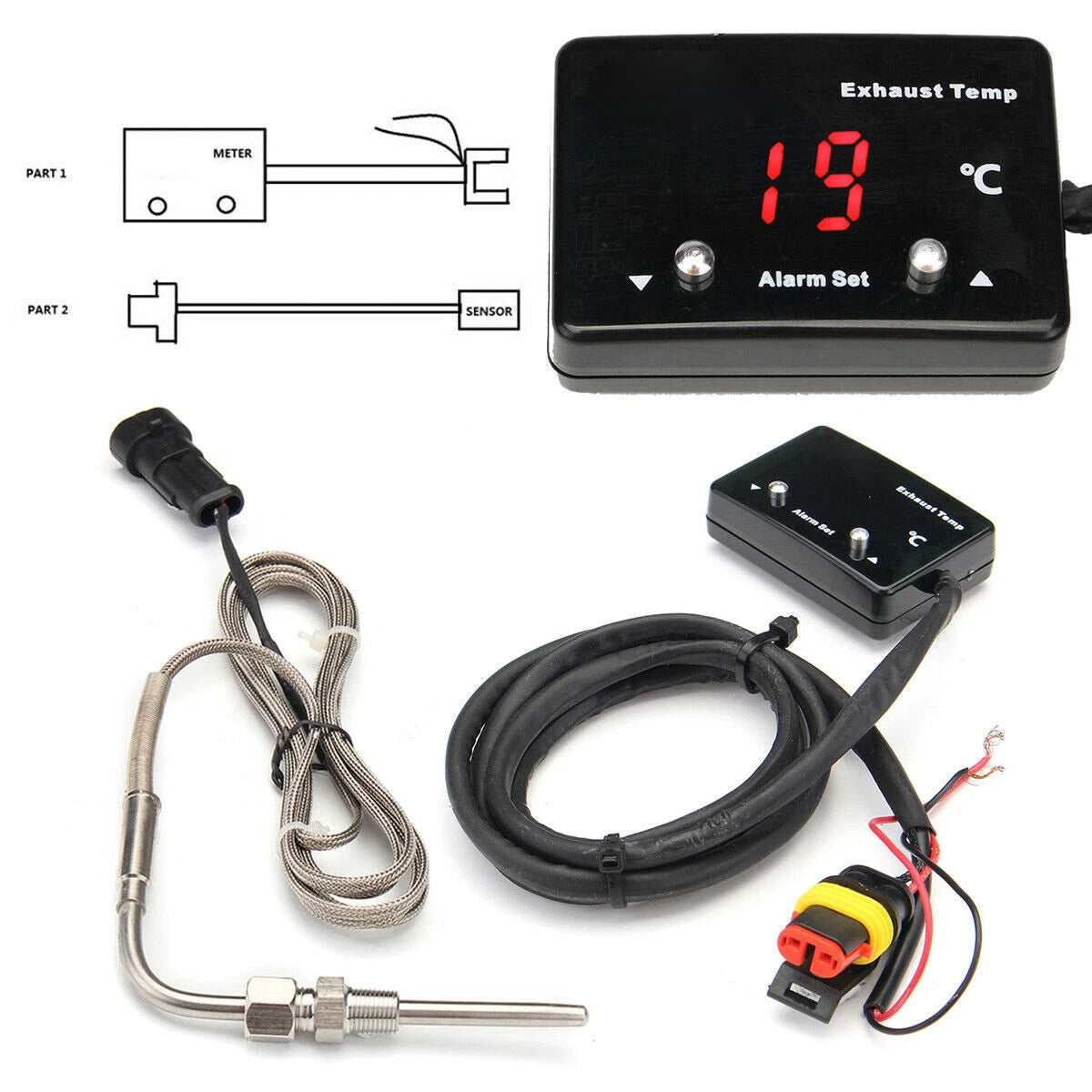

PACKAGE CONTENTS

• 1 × Digital exhaust gas temperature gauge
• 1 × EGT sensor with lead
