Dual Battery Tray for Toyota Hilux KUN26 KUN25 1KD-FTV 3.0L 2005-2015

PRODUCT OVERVIEW

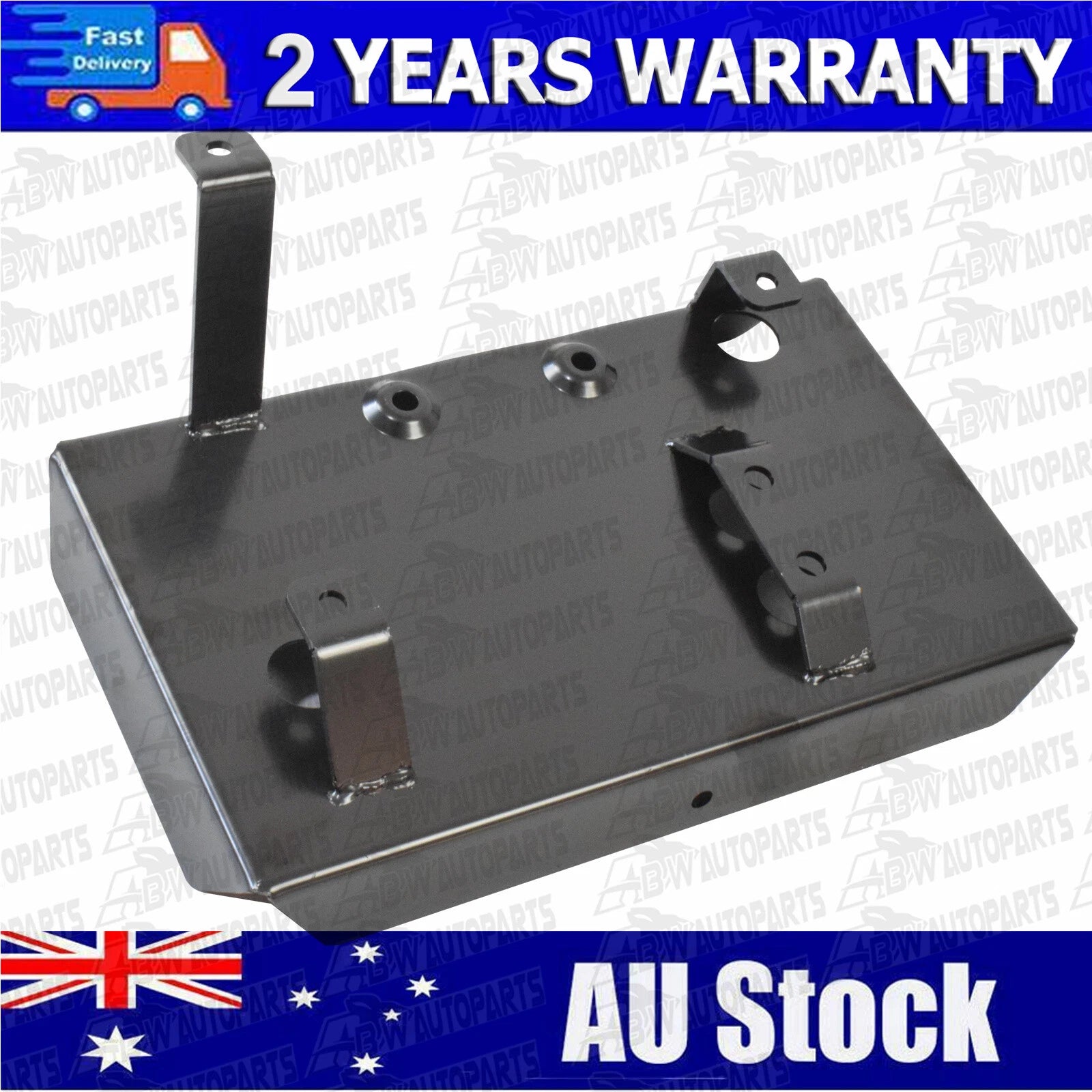

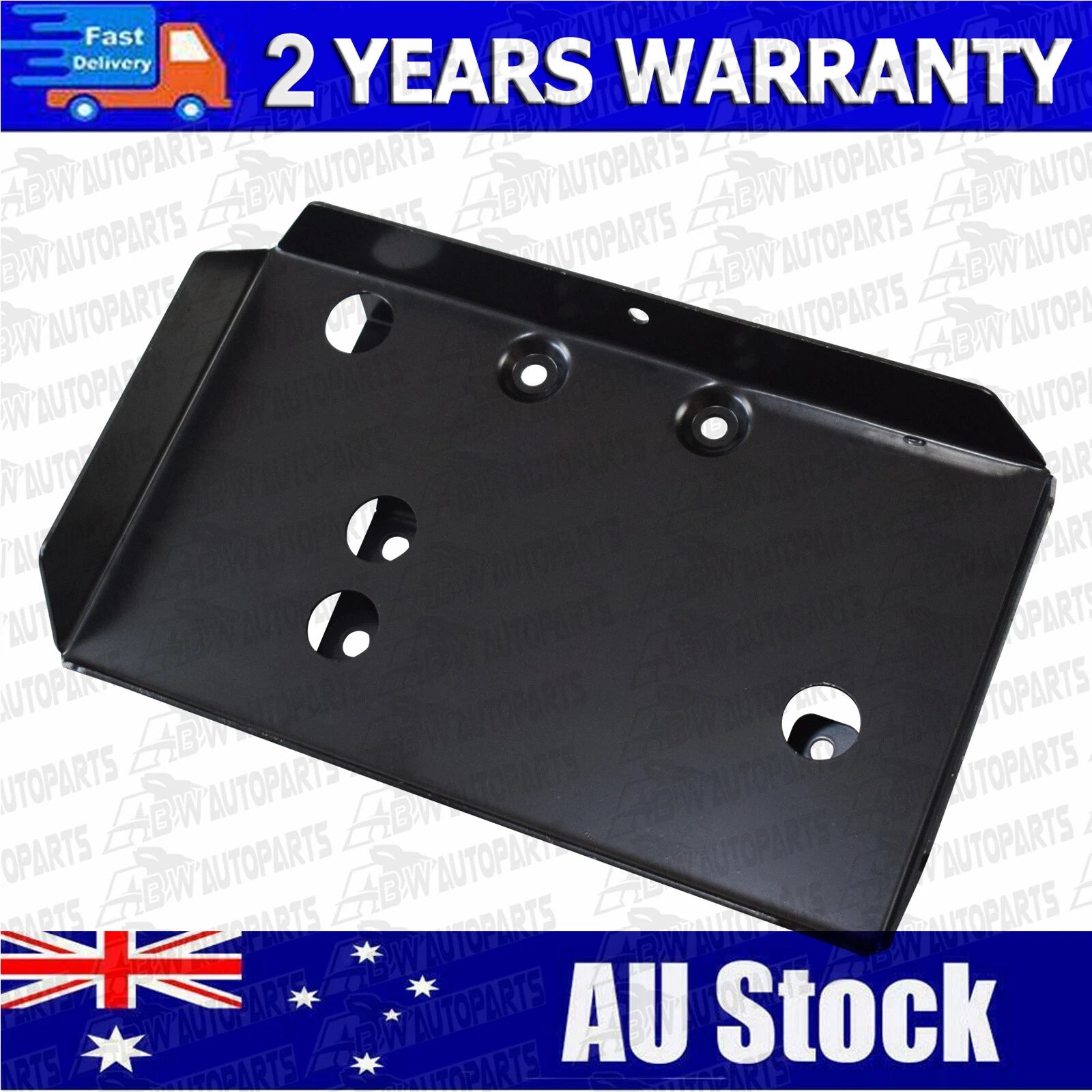

This dual battery tray kit is engineered for Toyota Hilux SR models KUN26 and KUN25 with 1KD-FTV 3.0L diesel and 4.0L V6 petrol engines, model years 2005–2015. Designed to securely mount an auxiliary battery in demanding 4WD and off-road conditions.

KEY FEATURES

• Heavy-duty 2.5 mm plated steel construction for strength and corrosion resistance.
• Mounted on the passenger-side rear of the engine bay.
• High sides, top mounts and pressed base for improved rigidity and battery support.
• Rounded corners on folded tray returns for safer handling.

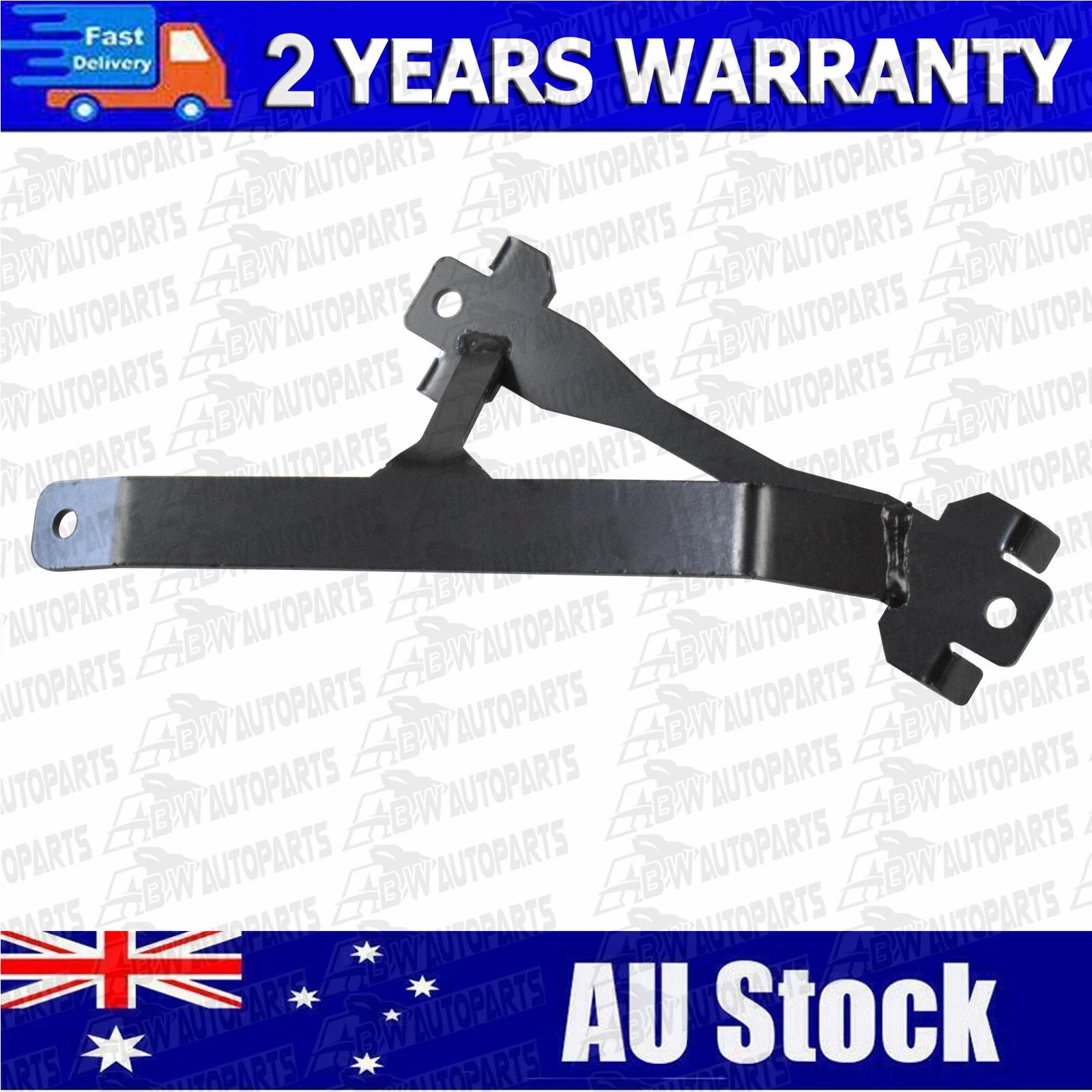

• Improved top bracket for secure battery clamping.

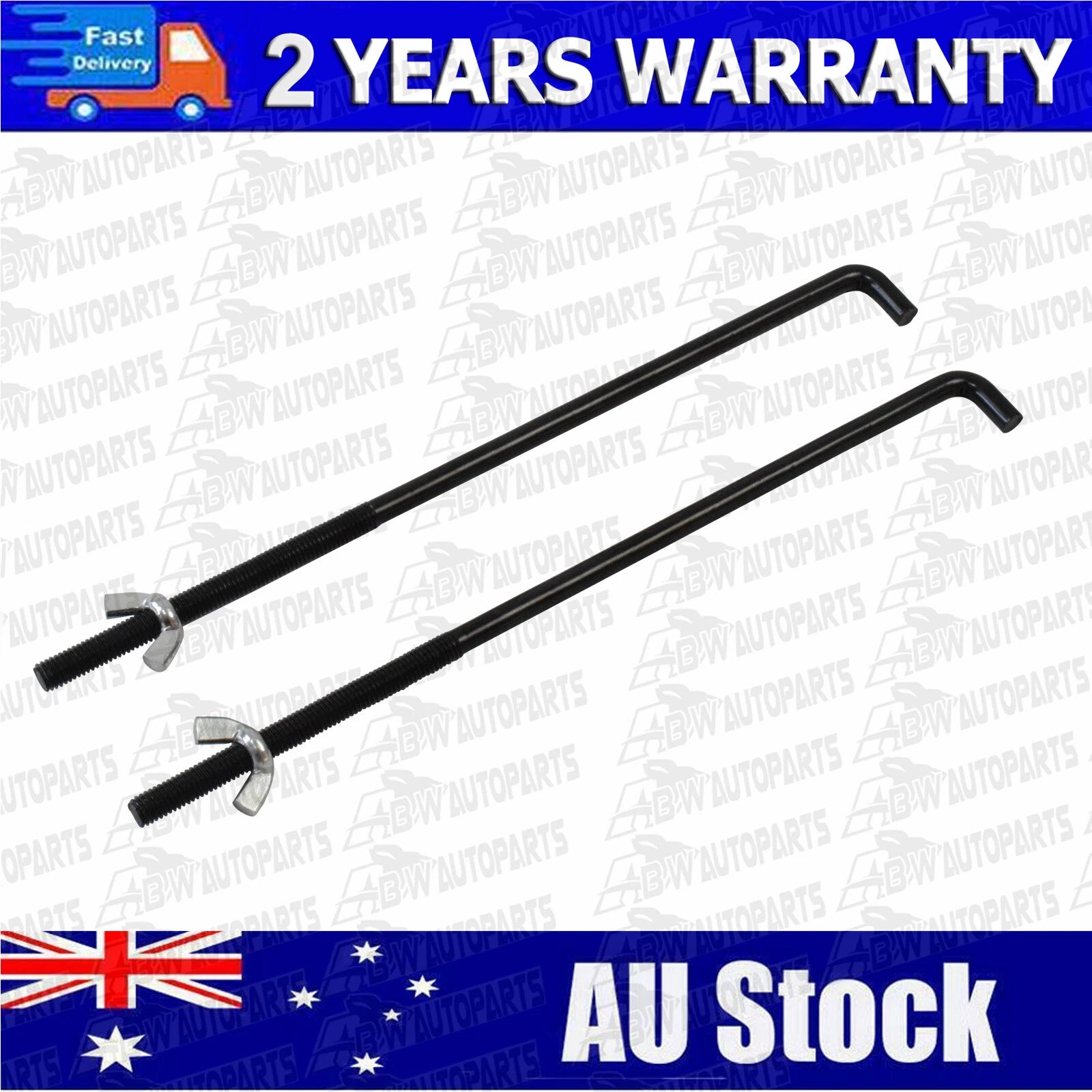

• Longer, larger-diameter 6.5 mm hold-down bolts for added security.

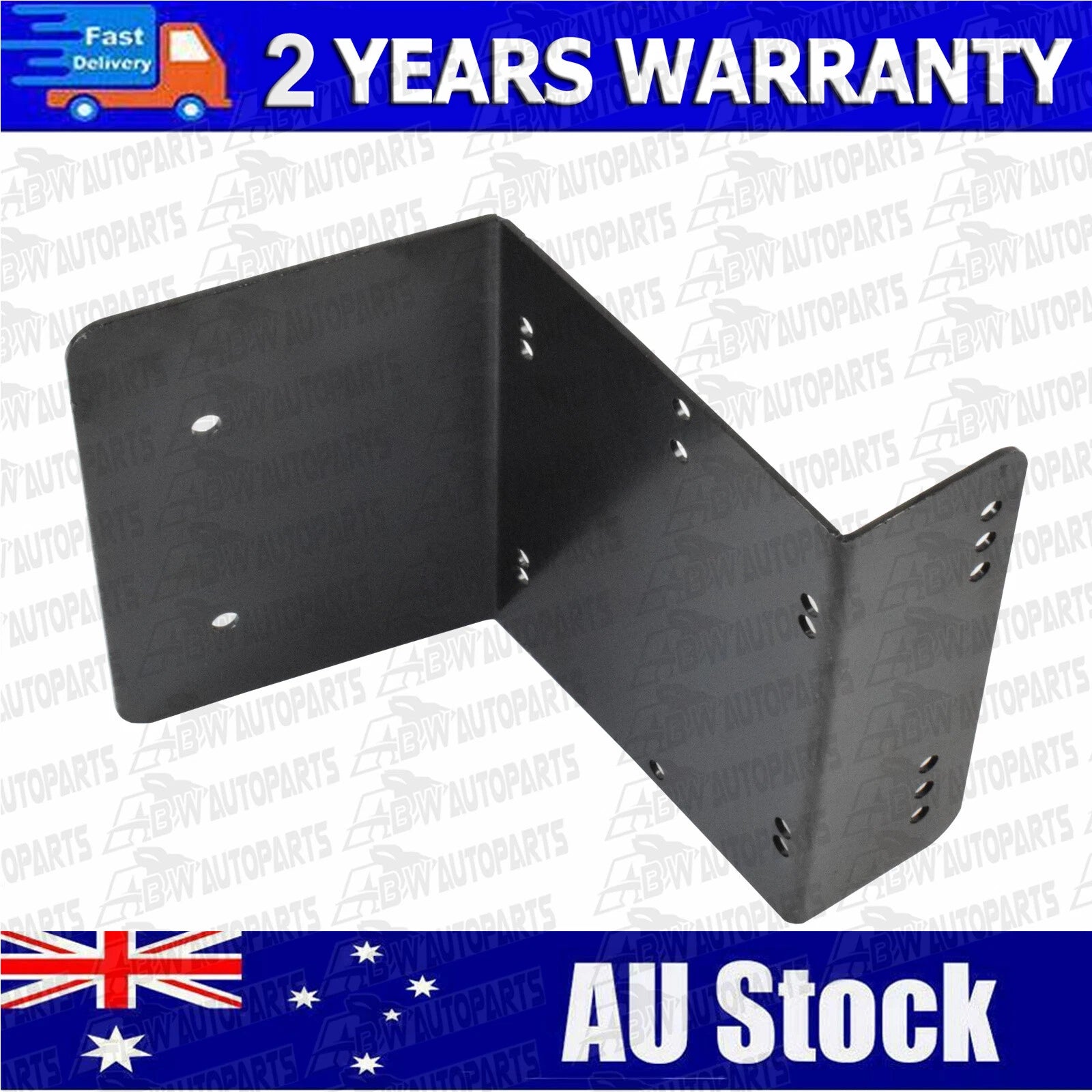

• Updated computer mounting bracket included.

BATTERY CAPACITY & COMPATIBILITY

• Accepts a 12" battery (approx. 303 mm x 173 mm).
• Suits common deep-cycle sizes such as Exide ED5, Exide ST27DC95, OPTIMA D27 and similar.
• Suitable for both manual and automatic transmission vehicles.

FITMENT NOTES

• Tray installs in the passenger-side rear corner of the engine bay.
• Some vehicles may have optional modules in this location that require relocation or a smaller battery.
• Always confirm available space and battery dimensions before installation.
• Professional installation is highly recommended, especially where additional modules are present.

VEHICLE APPLICATION

• Toyota Hilux SR KUN26 / KUN25
• Engine: 1KD-FTV 3.0L diesel & 4.0L V6 petrol
• Model years: 2005–2015

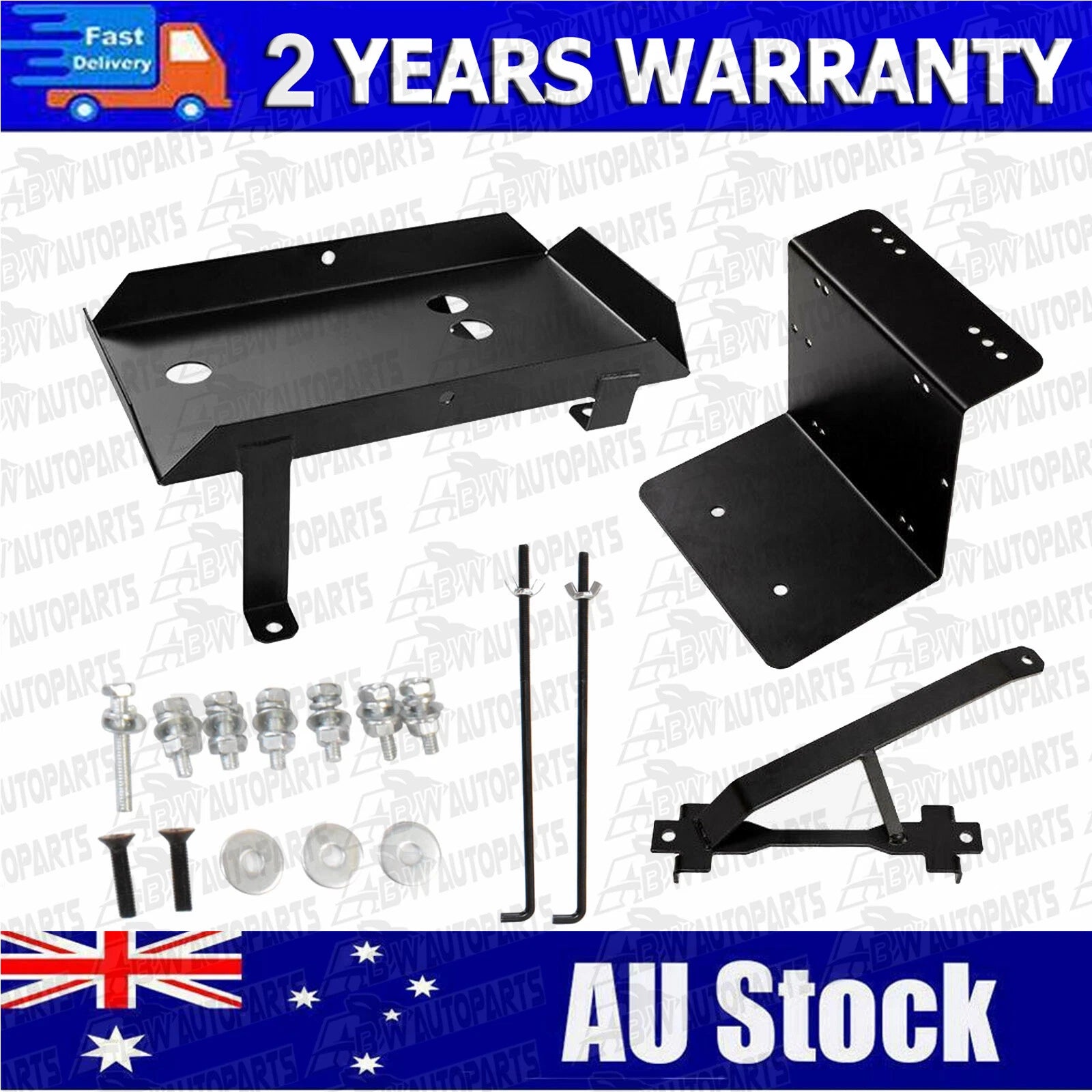

PACKAGE CONTENTS

• 1 x Dual battery tray
• Mounting brackets
• Bolts, nuts and washers
