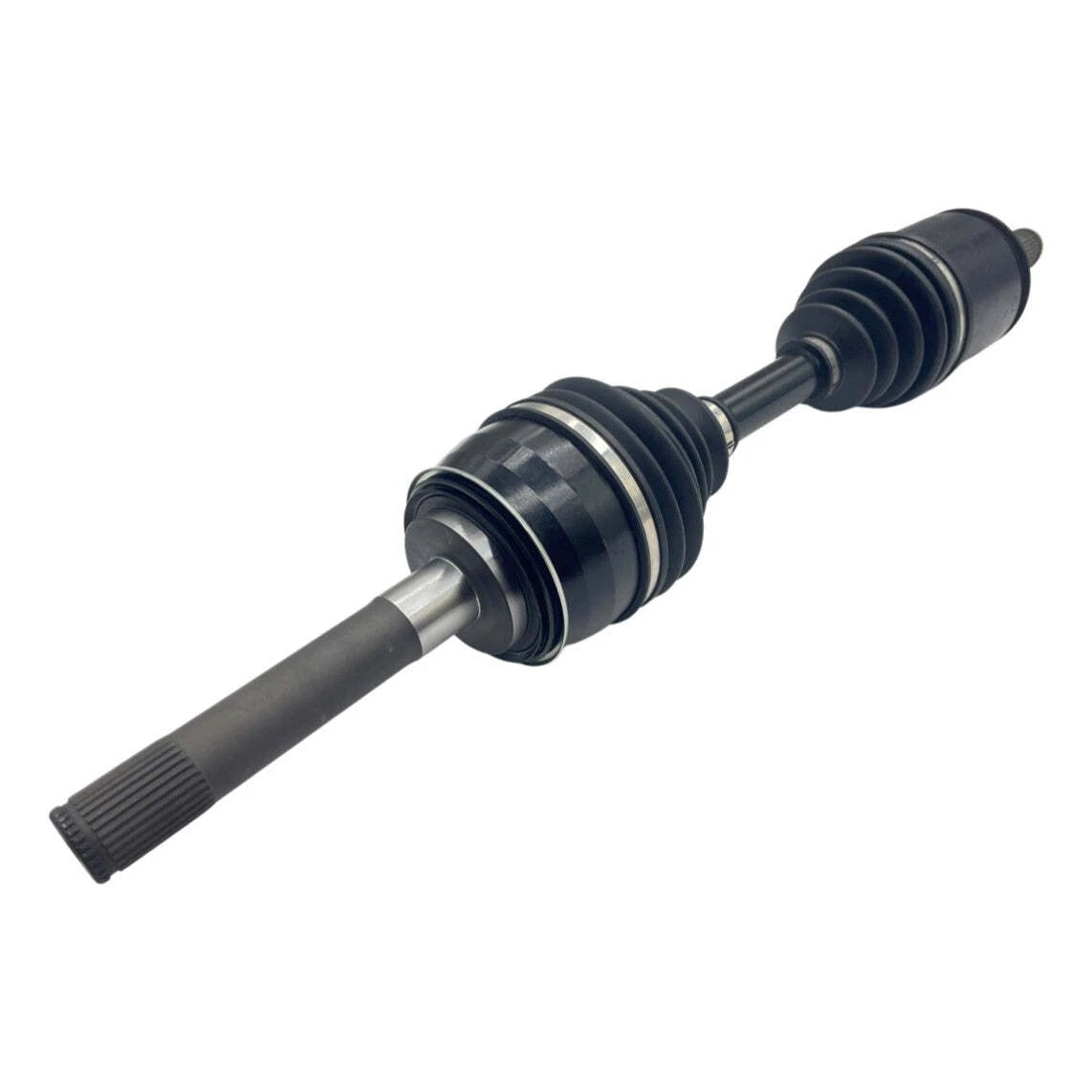

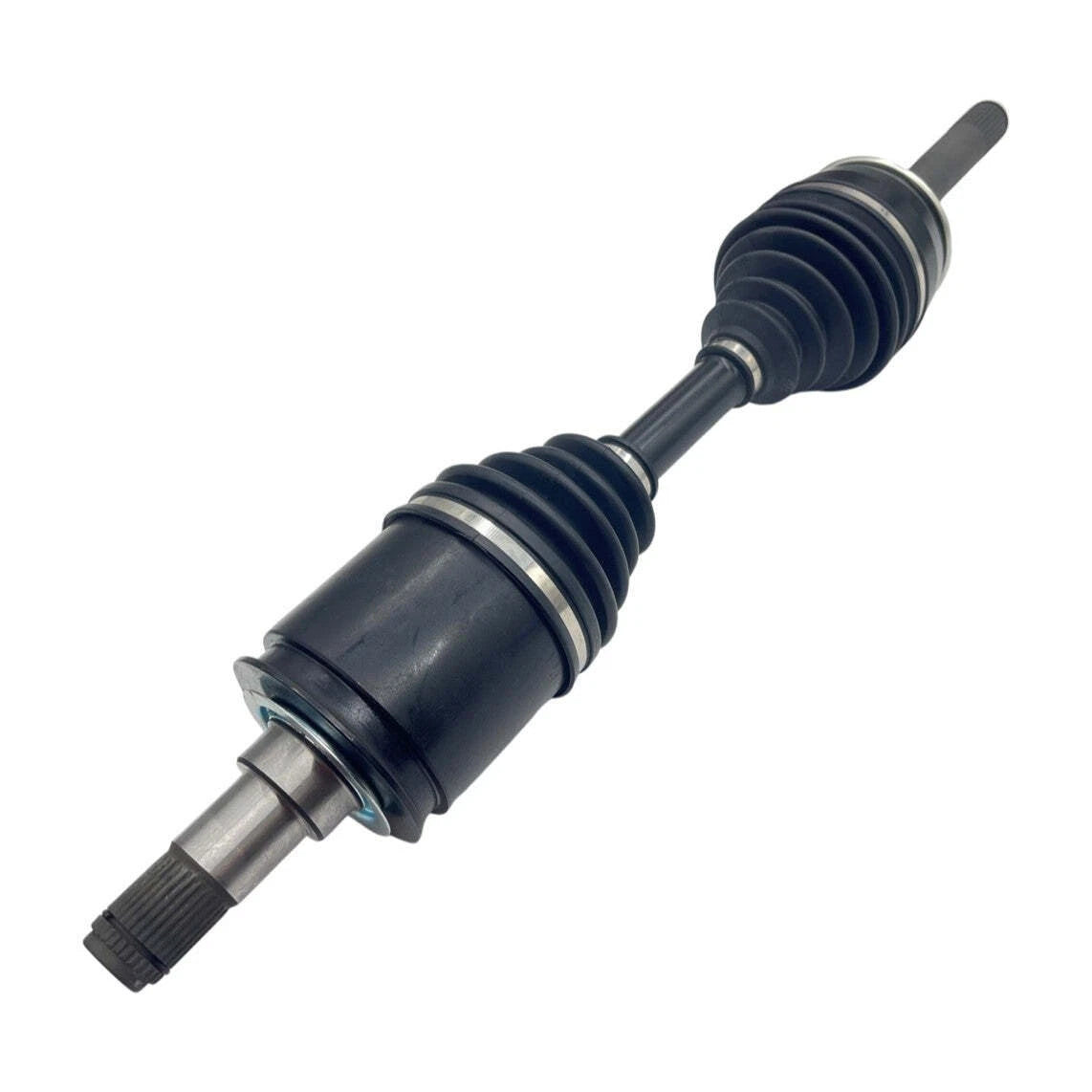

Extended CV Axle Shaft for Toyota Landcruiser 100 Series HDJ100 UZJ100

PRODUCT OVERVIEW

This extended CV axle shaft is engineered for Toyota Landcruiser 100 Series HDJ100R and UZJ100R, as well as Lexus LX470 UZJ100R 4WD applications. It is built to OEM-equivalent standards for strength, durability, and smooth driveline operation.

KEY FEATURES

• Heat-treated chrome steel construction for maximum strength and long service life
• High-quality neoprene dust boots with stainless steel clamps to resist contamination
• Pre-packed with moly grease for smooth operation at varying angles and speeds
• OEM-style ball design constant velocity joint for reliable power delivery

WHAT'S INCLUDED

• 1 x complete CV axle shaft assembly

SPECIFICATIONS

• Vehicle application: Toyota Landcruiser HDJ100R (1998–2007)
• Vehicle application: Toyota Landcruiser UZJ100R (1998–2007)
• Vehicle application: Lexus LX470 UZJ100R 4WD (05/1998–2008)
• Wheel side spline count: 30T
• Differential side spline count: 30T
• Diff side seal inner diameter: 47.0 mm
• Compressed length: 729.0 mm
• Design: Ball type CV joint

PERFORMANCE & DURABILITY

The CV shaft is designed for demanding 4WD and on-road use, providing consistent performance under high torque and at high rotational speeds. The combination of heat-treated components, moly grease, and robust sealing helps minimise wear and maintain smooth driveline operation over time.

WARRANTY

• CV driveshaft: 12-month / 20,000 km warranty
• CV boots: 3-month warranty from date of purchase

Always confirm spline counts, dimensions, and vehicle details against your existing component before installation.
