Auto Transmission Oil Pan Kit for BMW ZF 8HP45Z 8HP50Z 8HP75Z 8HP70Z

PRODUCT OVERVIEW

This automatic transmission oil pan kit is designed as a direct replacement for BMW vehicles equipped with ZF 8HP45Z, 8HP50Z, 8HP70Z and 8HP75Z 8-speed gearboxes. It helps restore proper sealing, filtration and lubrication performance of the transmission.

KEY FEATURES

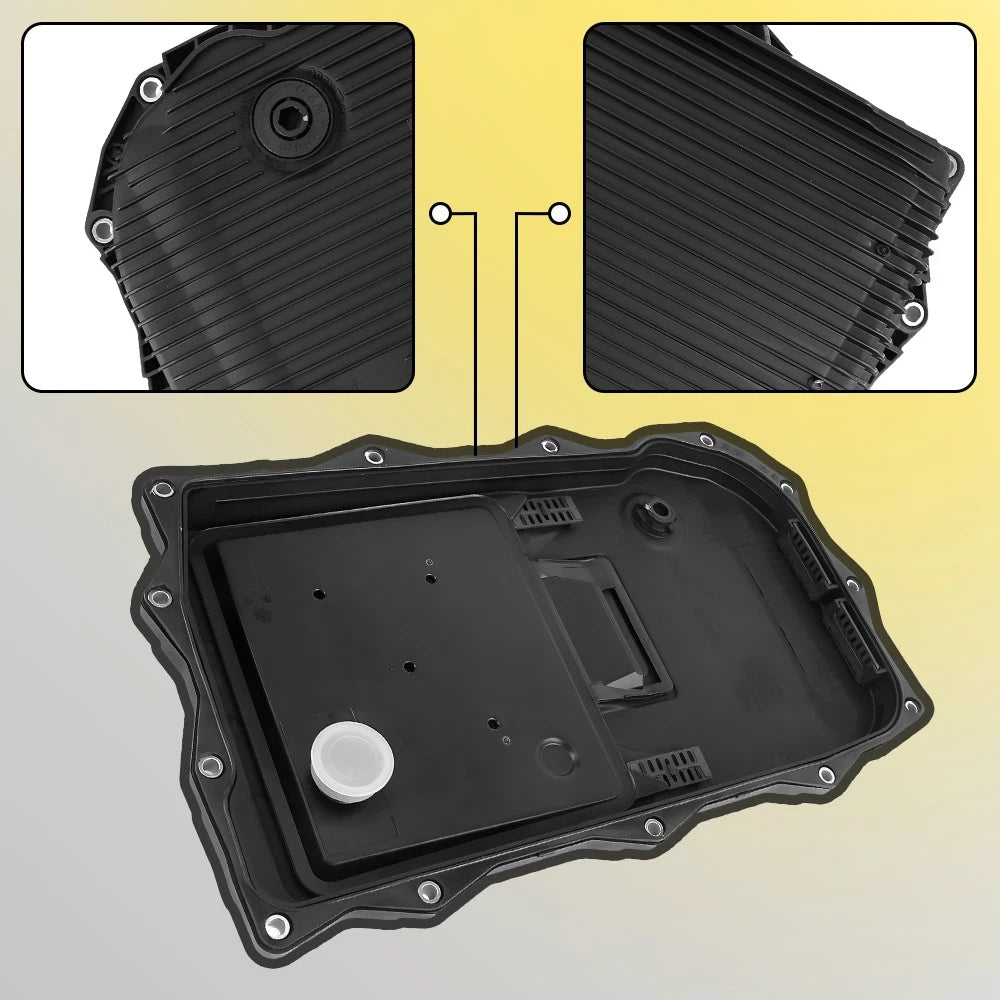

• Integrated oil sump and filter design for efficient ATF circulation and cooling.
• High-quality plastic construction for durability and reliable sealing.
• Helps address leaks, low oil level, overheating and excessive oil consumption.
• Protects automatic transmission fluid from foreign contaminants.
• Bolt-on, direct replacement fitment for ZF 8HP 8-speed transmissions.

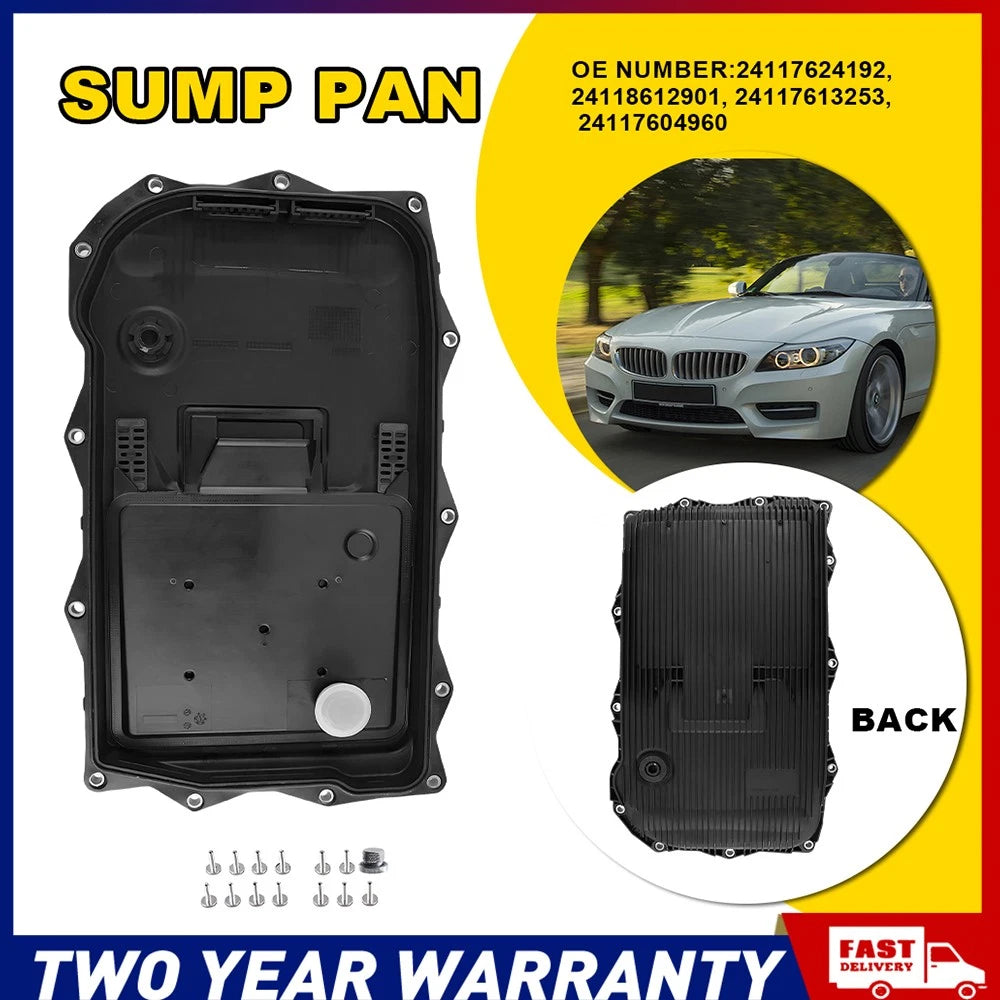

OE REFERENCE NUMBERS

This kit replaces or cross-references the following OE / OEM part numbers:

• 24117624192
• 24118612901
• 24117613253
• 24117604960

SPECIFICATIONS

• Transmission type: ZF 8HP45Z / 8HP50Z / 8HP70Z / 8HP75Z (8-speed automatic)
• Type: Transmission oil pan with integrated filter

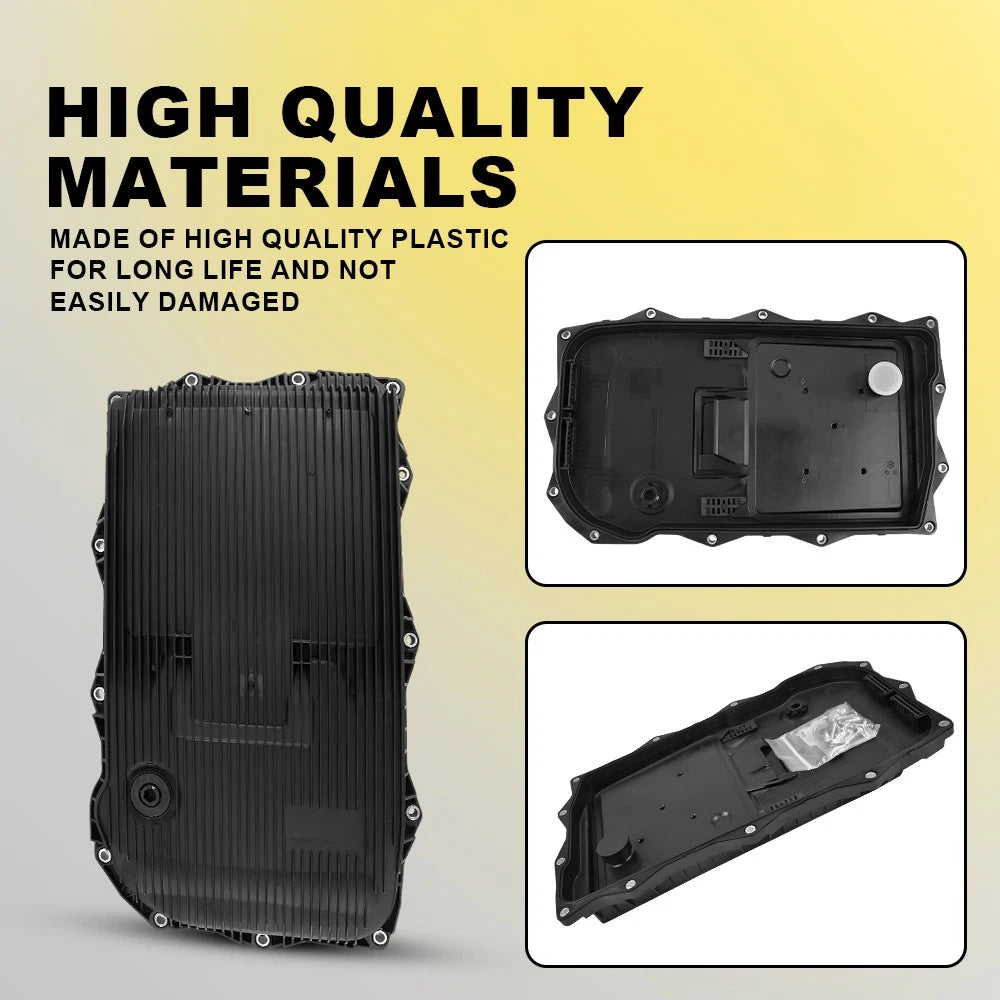

• Material: Plastic
• Colour: Black
• Mounting style: Bolt-on
• Placement on vehicle: Lower transmission

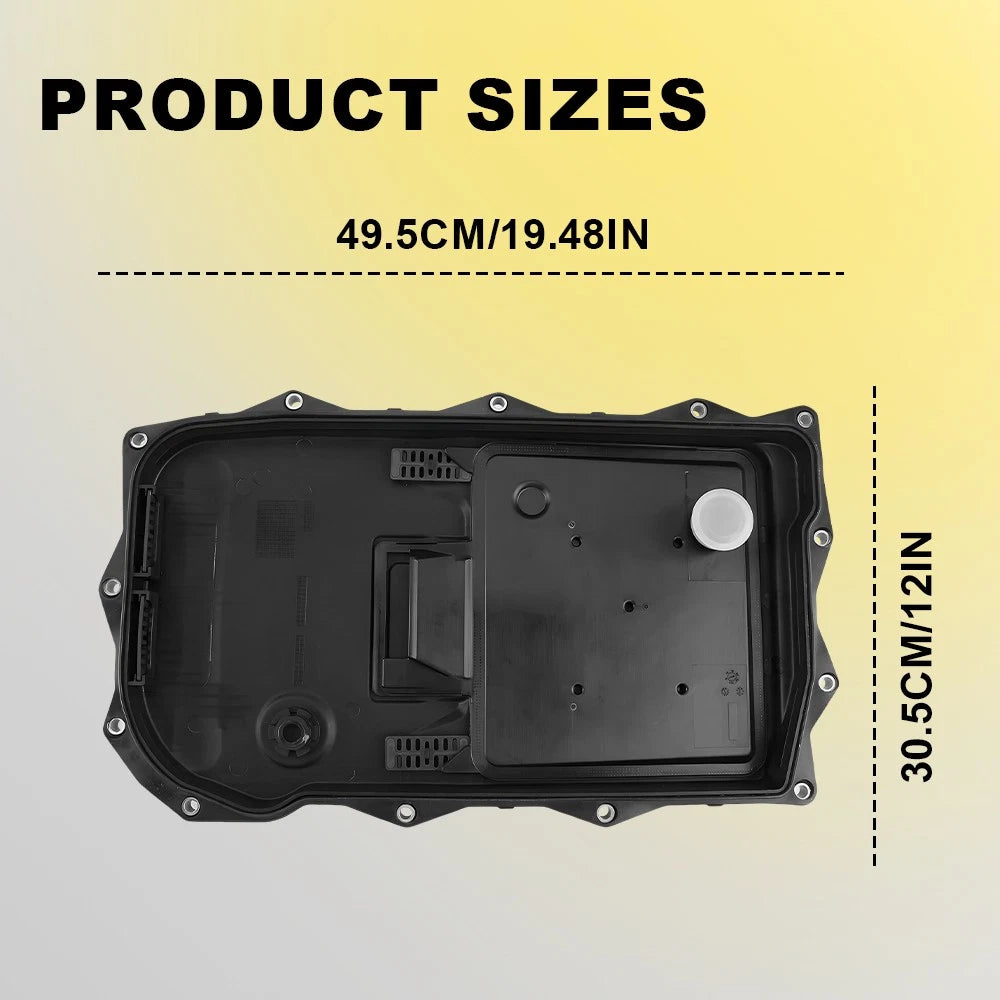

• Item length: 49.5 cm (19.48 in)
• Item width: 30.5 cm (12 in)
• Operating temperature range: -40°C to 60°C

PACKAGE CONTENTS

• 1 × automatic transmission oil pan kit
• Integrated filter (pre-installed in pan)
• Drain plug and required mounting hardware/bolts

FITMENT NOTES

Designed for select BMW models equipped with ZF 8HP 8-speed automatic transmissions (including various 1 Series, 2 Series, 3 Series, 4 Series, 5 Series, 6 Series, 7 Series, X1, X3, X4, X5, X6 and Z4 applications across the listed production years).

Always confirm compatibility by matching the OE part numbers and your vehicle’s transmission code before purchase.

INSTALLATION INFORMATION

• Direct replacement, bolt-on installation.
• Professional installation and correct ATF specification/level are strongly recommended.
• Ensure sealing surfaces are clean and follow torque specifications for pan bolts.
