810mm Rear Axle Kit with Brake Rotor & 428 Sprocket for DIY Go Kart ATV

OVERVIEW

This 810mm rear axle kit is designed for DIY rebuild projects on go karts, ATVs, quads and drift trikes. It includes an axle, 190mm brake disc, 428 41T chain sprocket, wheel hubs and bearings for a complete rear drive and braking solution.

APPLICATION

Suitable for custom DIY projects using vertical or horizontal engines of any displacement, as well as compatible electric motors. Ideal for small off-road vehicles, karts and drift trikes where a robust rear axle assembly is required.

FEATURES

• High-strength chrome axle construction, bend-resistant, supports more than 220 kg load.
• 428 chain sprocket can be replaced with other sprockets of matching dimensions.
• Symmetric axle design allows brake disc and sprocket positions to be interchanged.
• Works with vertical or horizontal engines and compatible electric motors.
• Fits 6"–10" wheels with 78 mm bolt distance (4-bolt hubs).

SPECIFICATIONS

• Axle overall length (end to end): 810 mm
• Maximum axle diameter (thickest section): 30 mm
• Chain sprocket: 428, 41 teeth
• Brake disc diameter: 190 mm
• Wheel size compatibility: 6"–10" (with 78 mm bolt distance)

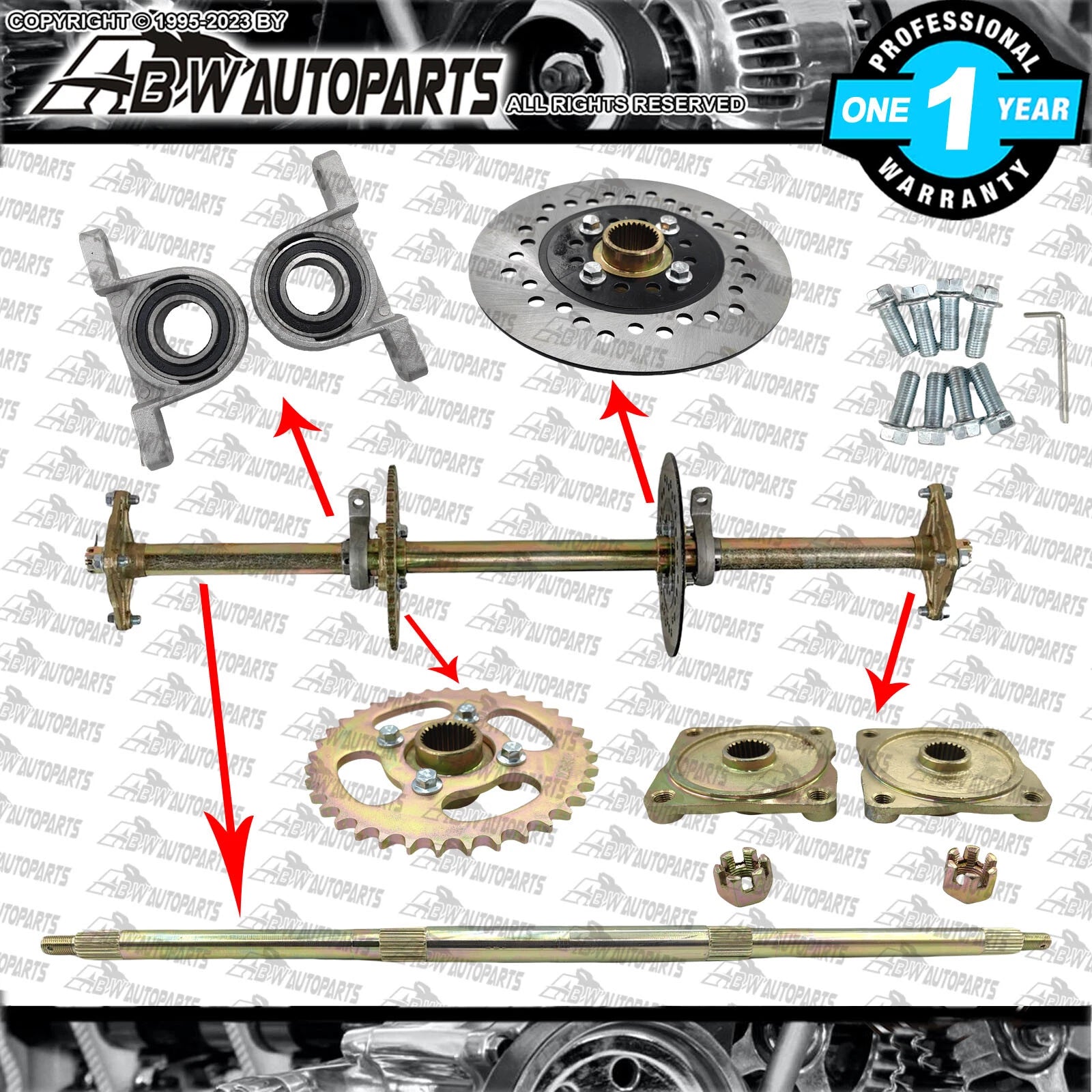

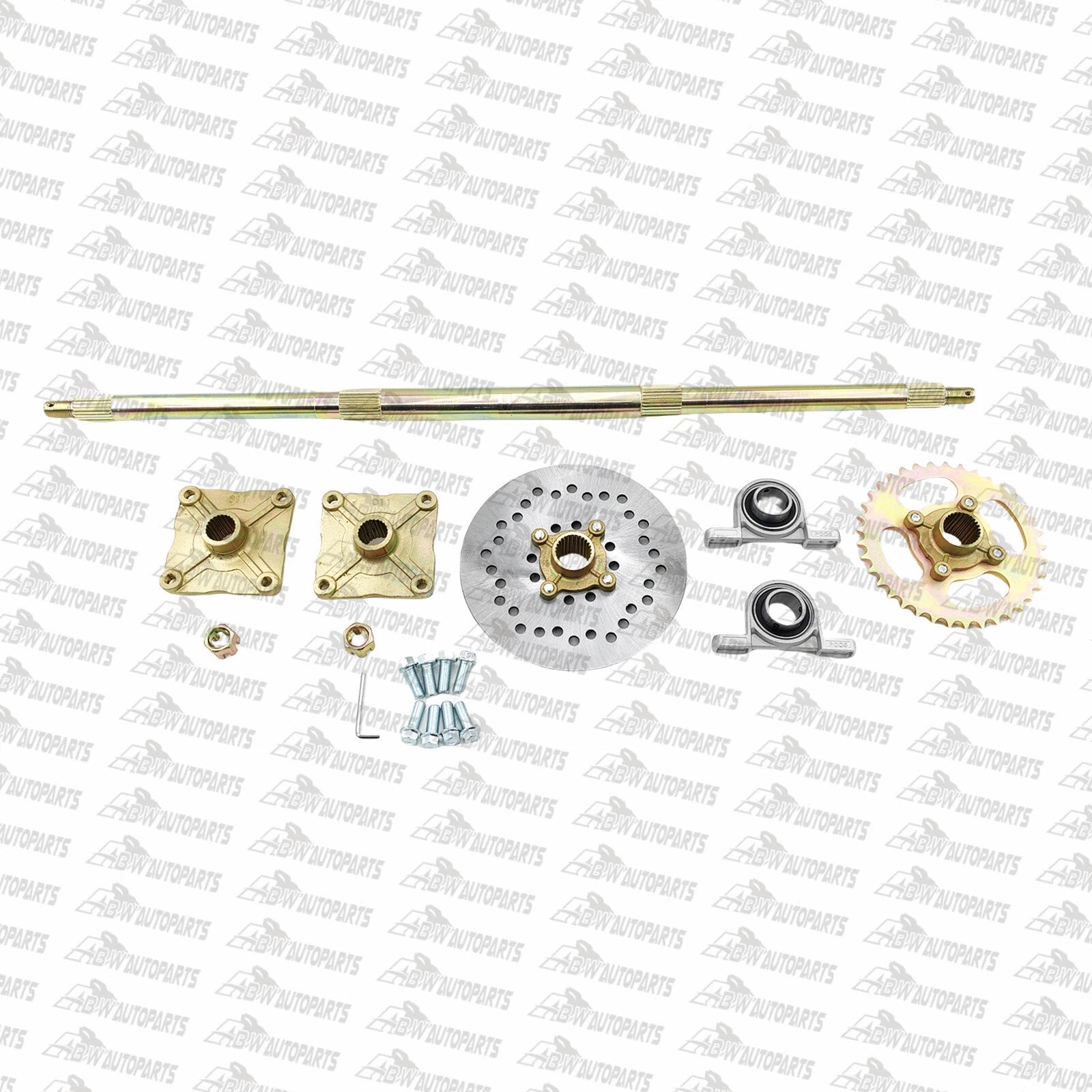

PACKAGE CONTENTS

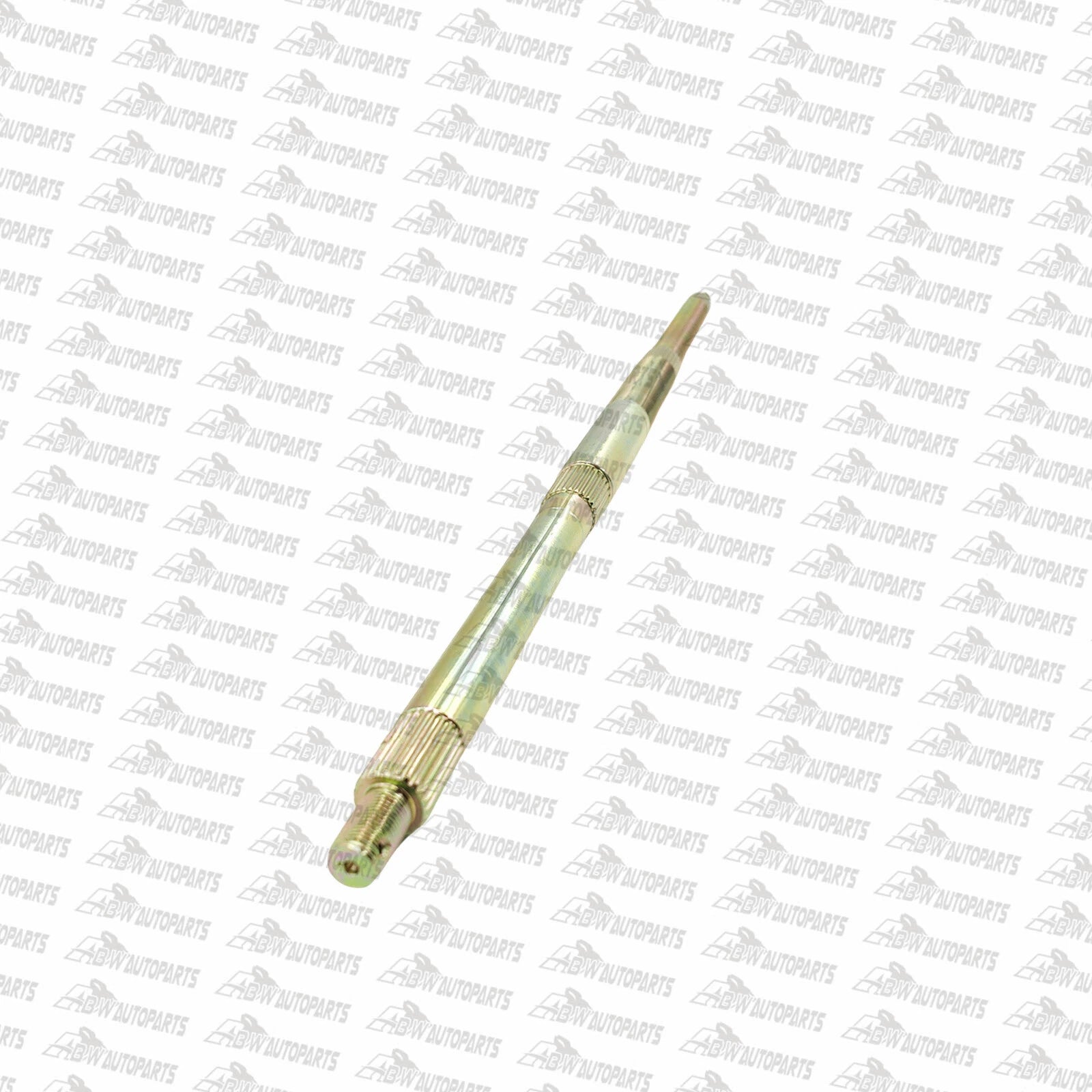

• 1 x rear axle (810 mm)

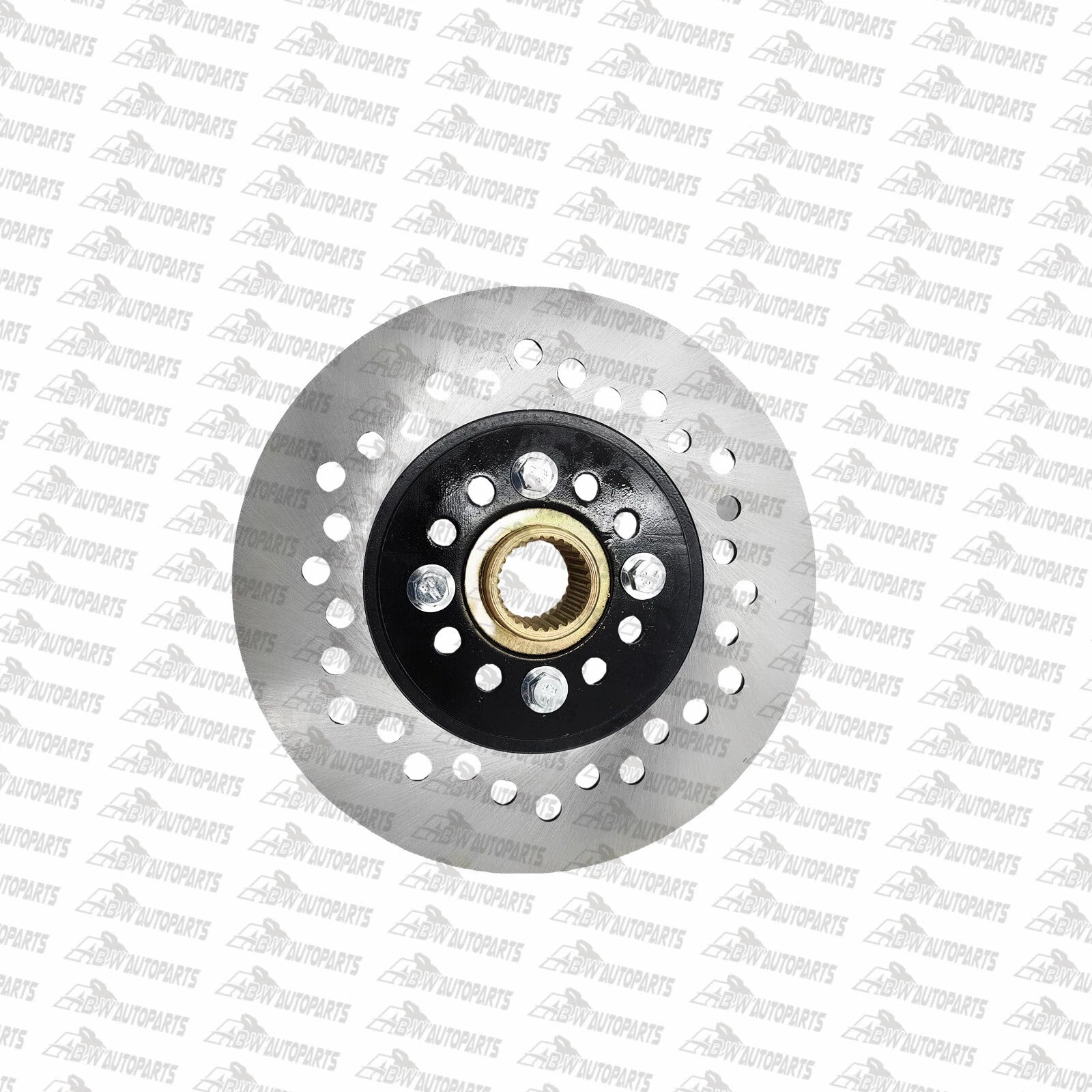

• 1 x brake disc rotor (190 mm)
• 1 x 428 chain sprocket (41T)
• 2 x pillow block bearings

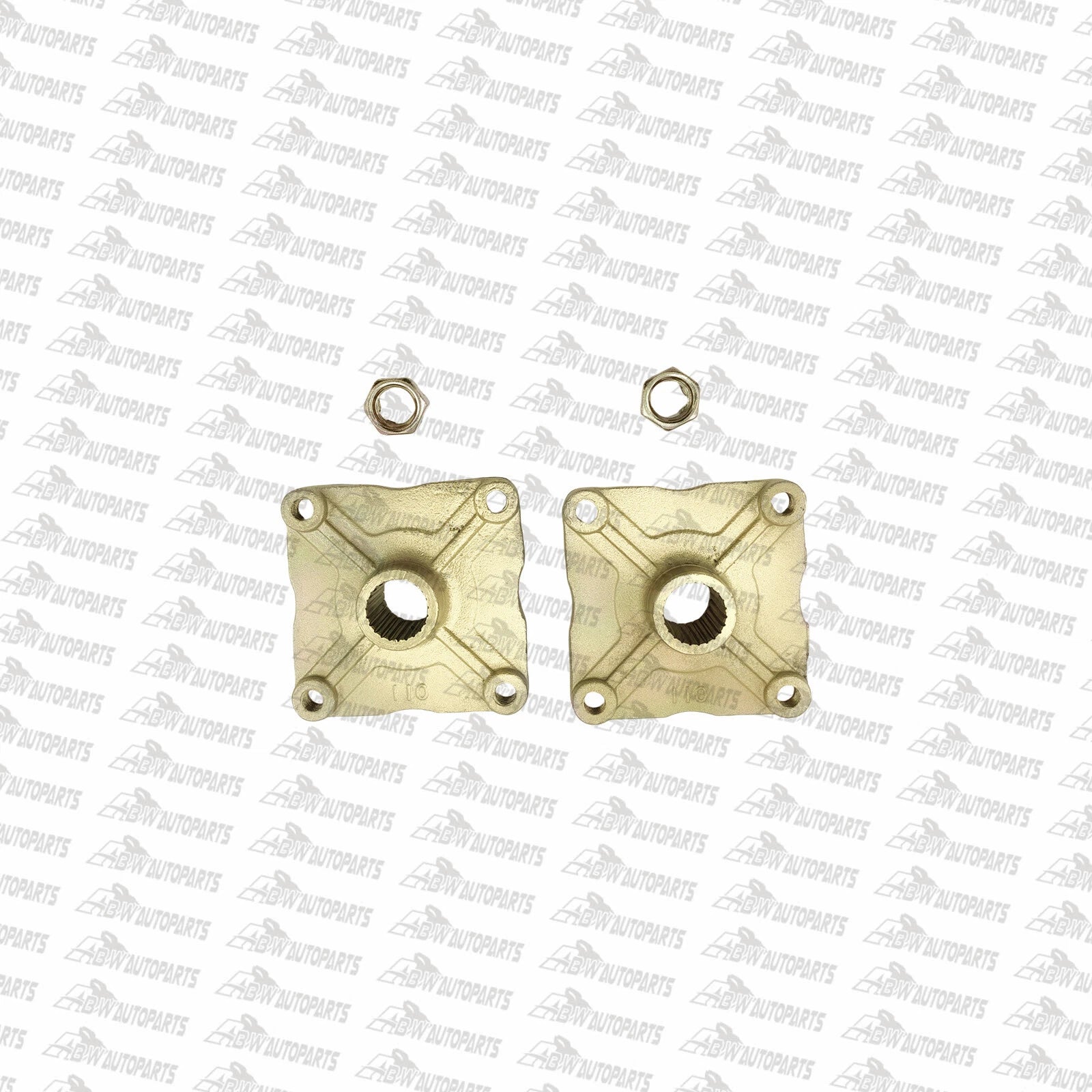

• 2 x 4-bolt type wheel hubs

NOTES

• No installation instructions included.
• Verify axle length, hub pattern and sprocket/rotor dimensions before purchase for your specific project.
