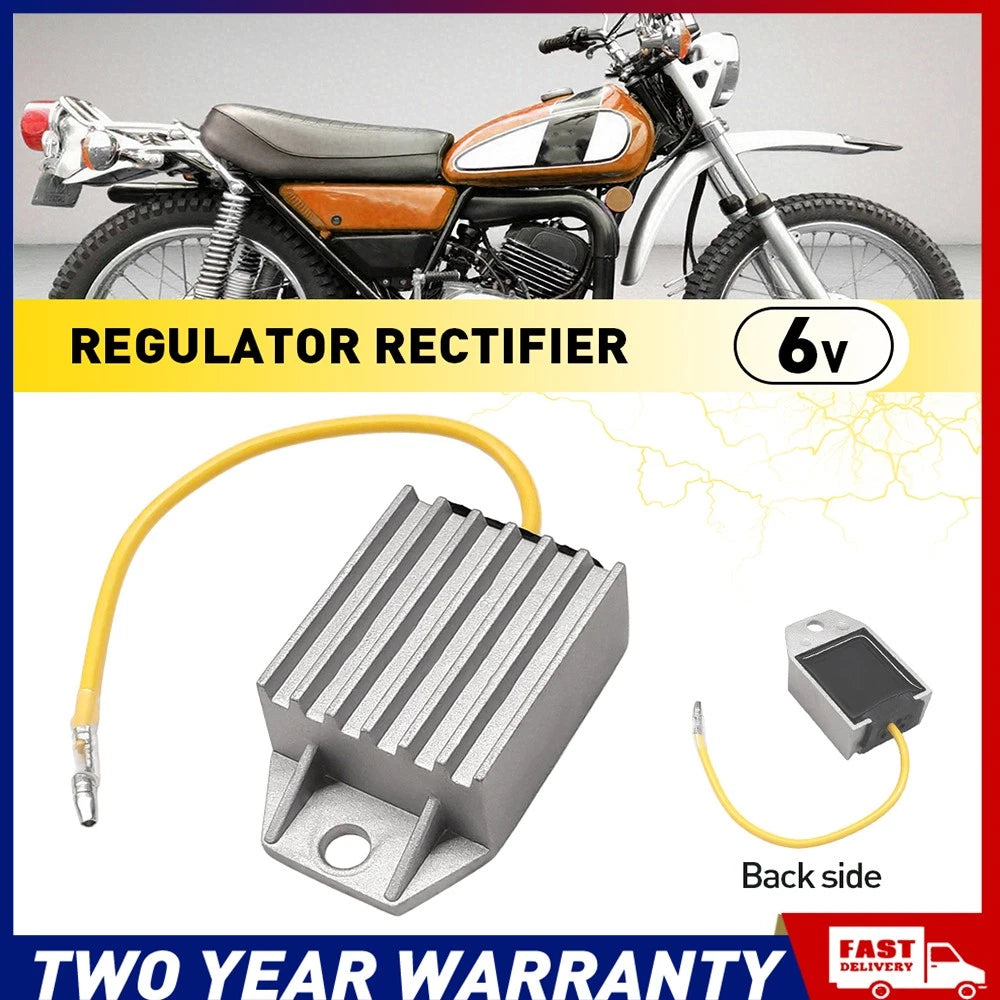

6V Rectifier Regulator 1-Wire for Yamaha DT & XT Motorcycles

PRODUCT OVERVIEW

This 6V 1-wire rectifier regulator is designed to stabilize charging voltage and protect the electrical system on compatible Yamaha DT and XT motorcycles. It serves as a direct replacement for worn or failing original units.

KEY FEATURES

• Converts high, unstable AC output to stable DC power
• Helps protect battery and vehicle electrical circuits
• Reduces electrical load and supports longer component life
• Durable metal housing with effective heat dissipation
• Plug-and-play design for straightforward installation

SPECIFICATIONS

• Voltage: 6V

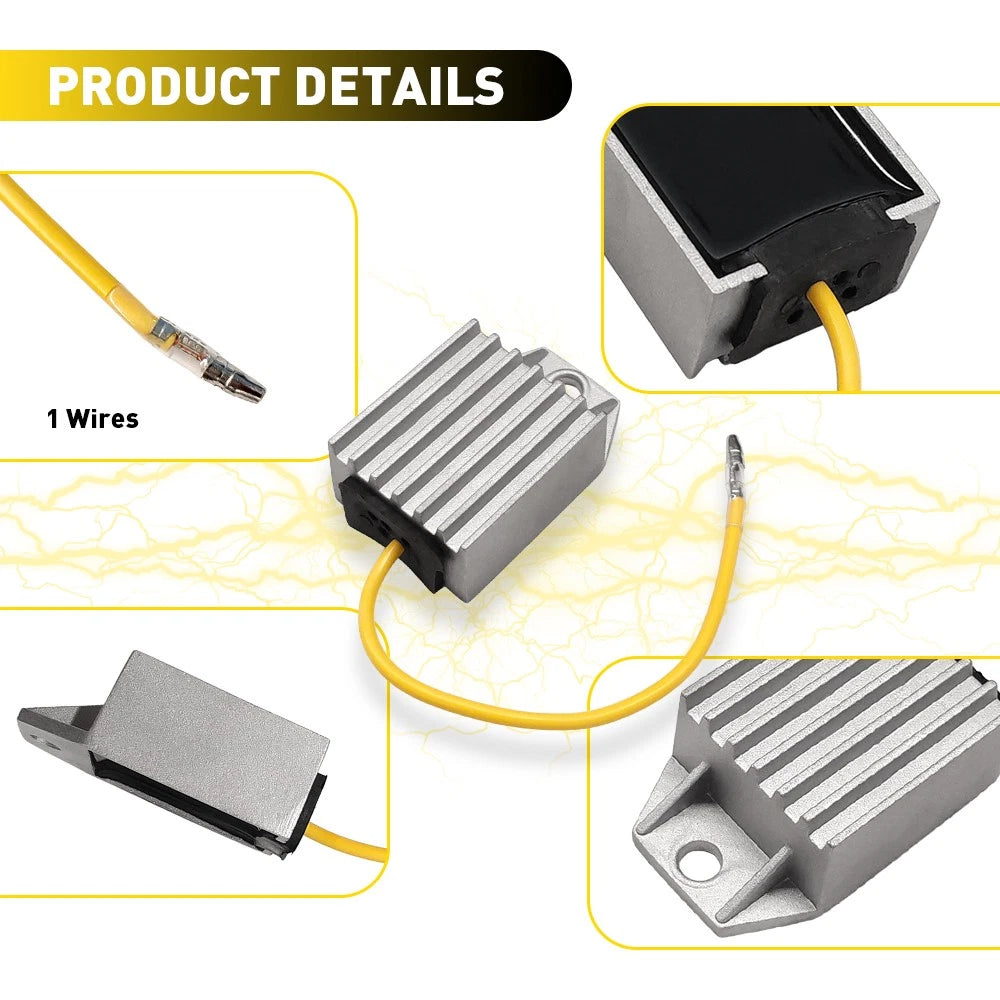

• Wiring: 1-wire configuration
• Material: Metal housing
• Colour: Silver
• Working temperature: -40 to 60℃
• Packaging weight: 65 g

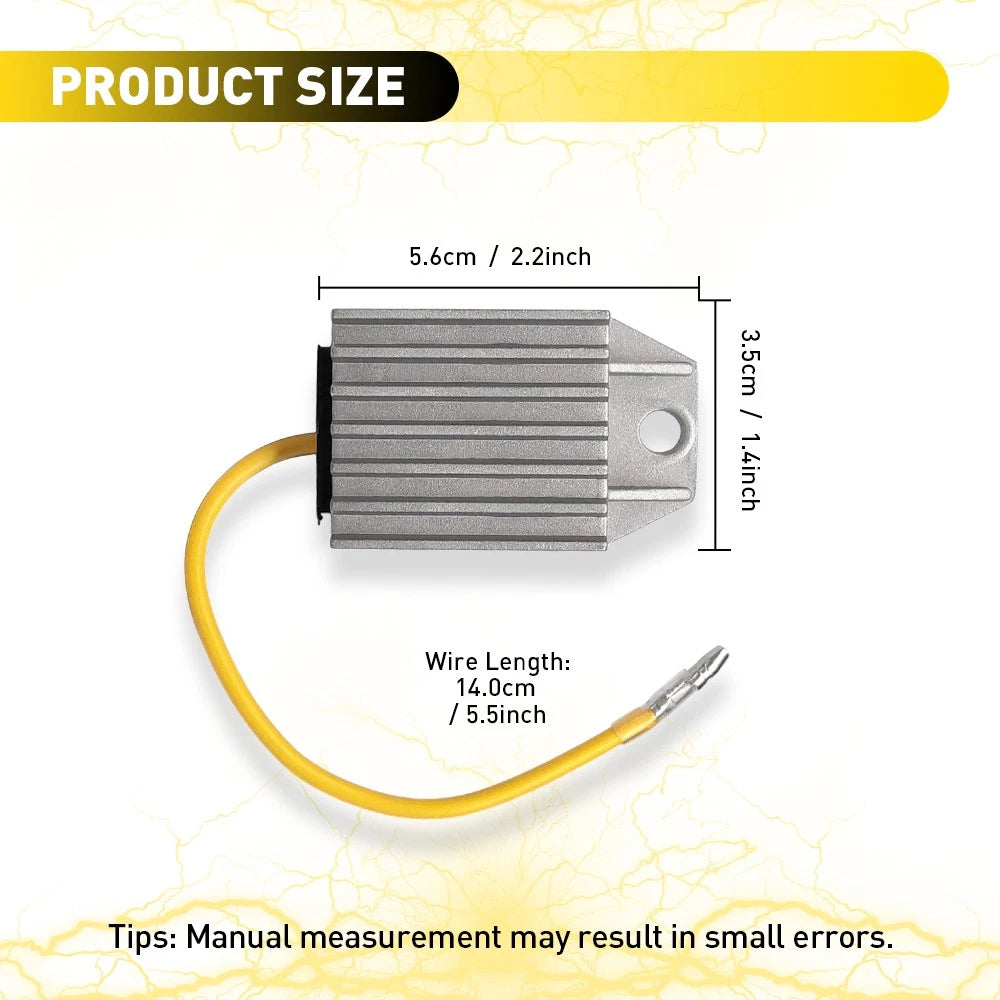

• Package size (approx.): 16 x 12 x 4 cm
• Product type: Regulator / rectifier

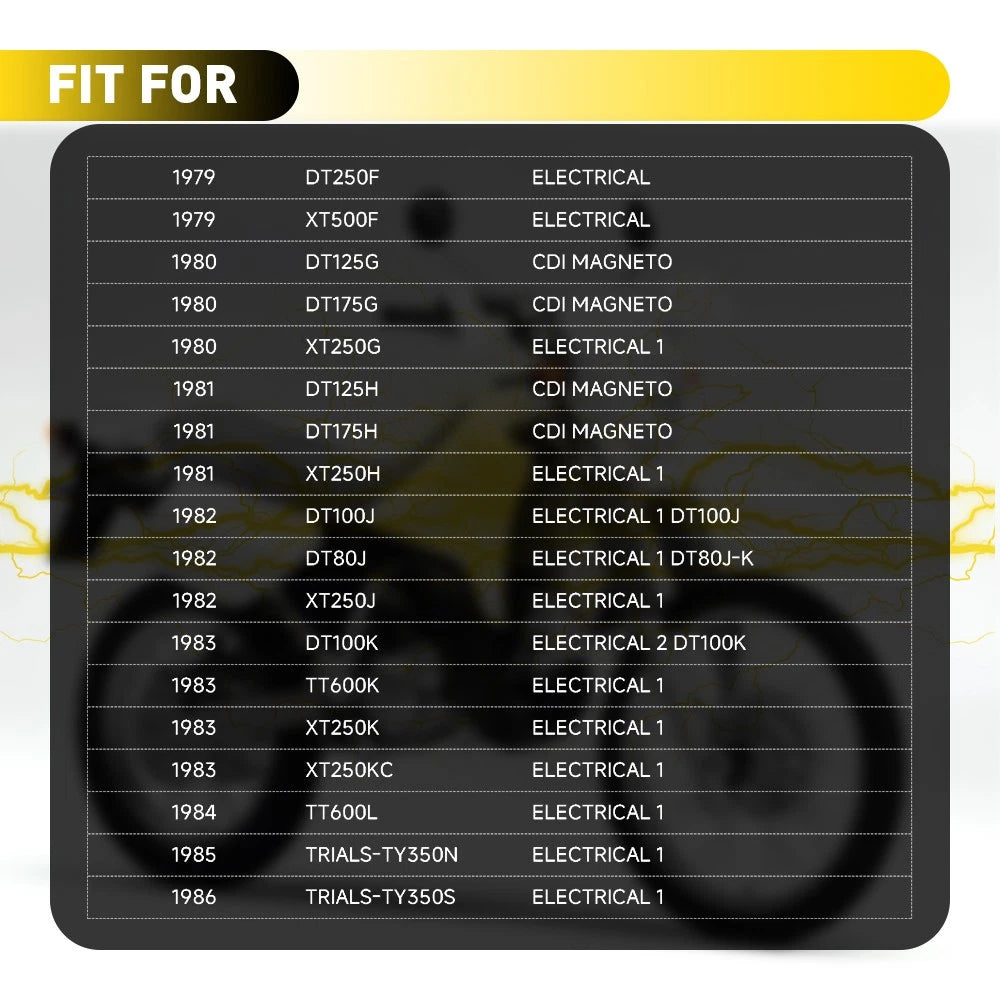

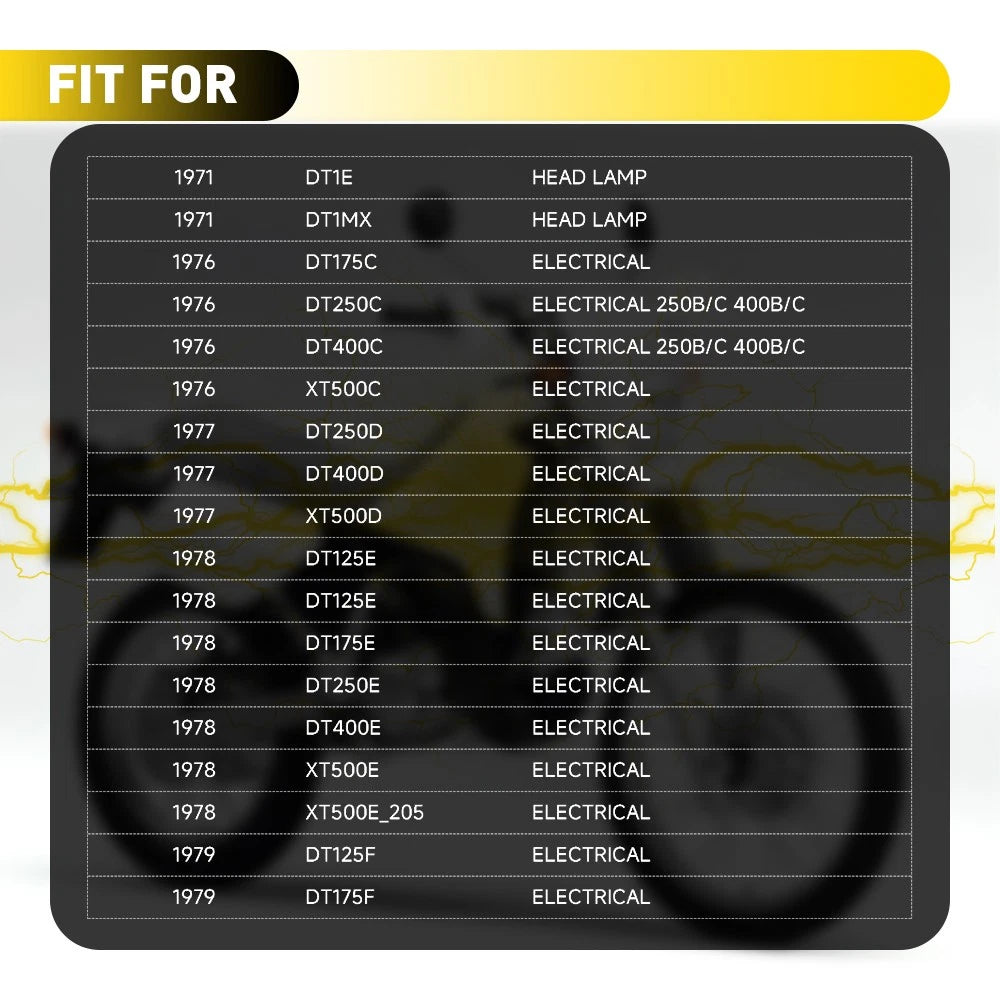

FITMENT DETAILS

This unit is suitable for various classic Yamaha DT and XT models equipped with a 6V electrical system, including (but not limited to):

• 1971 DT1E (Head Lamp circuit)
• 1971 DT1MX (Head Lamp circuit)
• 1976 DT175C (Electrical)
• 1976 DT250C (Electrical 250B / 250C / 400B / 400C)
• 1976 DT400C (Electrical 250B / 250C / 400B / 400C)
• 1976 XT500C (Electrical)
• 1977 DT250D (Electrical)
• 1977 DT400D (Electrical)
• 1977 XT500D (Electrical)
• 1978 DT125E / DT175E / DT250E / DT400E (Electrical)
• 1978 XT500E / XT500E_205 (Electrical)
• 1979 DT125F / DT175F / DT250F (Electrical)
• 1979 XT500F (Electrical)
• 1980 DT125G / DT175G (CDI / Magneto)
• 1980 XT250G (Electrical 1)
• 1981 DT125H / DT175H (CDI / Magneto)
• 1981 XT250H (Electrical 1)
• 1982 DT80J / DT100J (Electrical)
• 1982 XT250J (Electrical 1)
• 1983 DT100K (Electrical 2)
• 1983 TT600K (Electrical 1)
• 1983 XT250K / XT250KC (Electrical 1)
• 1984 TT600L (Electrical 1)
• 1985 TY350N (Trials, Electrical 1)
• 1986 TY350S (Trials, Electrical 1)

Fitment list is a guide only. Please compare your original part and electrical specifications (6V, 1-wire) before purchase.

INSTALLATION & MAINTENANCE

• Direct replacement for the original rectifier regulator
• Ensure all connections are clean and secure before powering on
• Regularly inspect the rectifier if you notice dim lighting, weak charging, or electrical instability
• Replace promptly if the unit shows signs of overheating or failure to maintain system voltage

PACKAGE CONTENTS

• 1 x 6V rectifier regulator (1-wire)
