For Isuzu D-MAX Dmax Oil Catch Can Kit MU-X 2017-20 3.0L Turbo Diesel 4JJ1-TCX

*Fast Delivery from AU.

*Trusted Aussie Seller. Local Warehouse Warranty.

*Local Pick up available Mon.-Fri. 9:00am to 4:00pm*

Description:

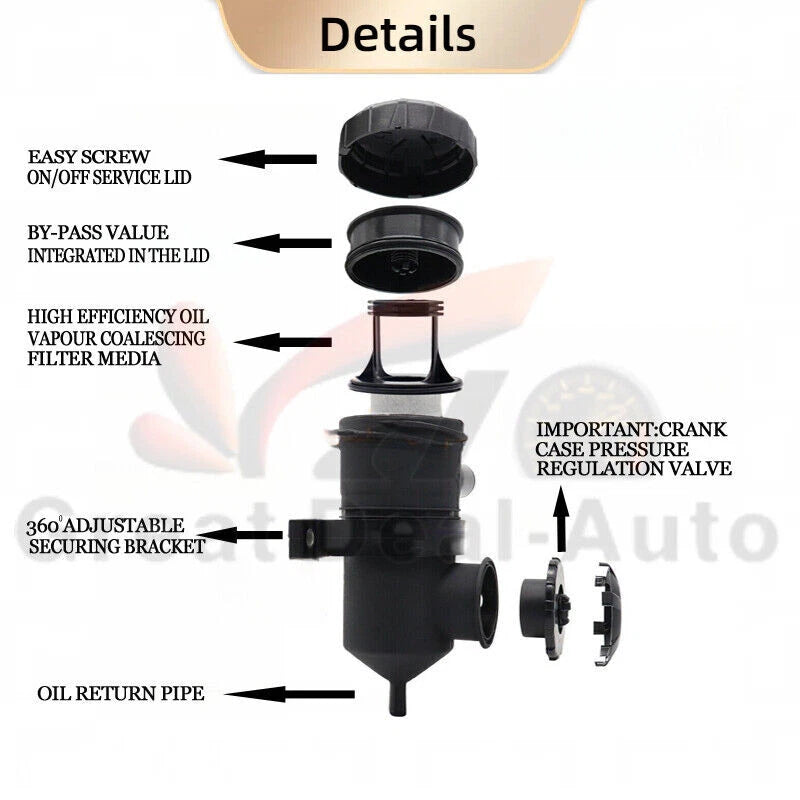

• This unit fits inline between hose from the top of the crankcase back to the air intake, removing oily sludge and condensation, saving the intercooler and turbo from blocking up. The filter element is normally changed at about 40,000 kms intervals.

Suit:

Features:

• Top quality Aftermarket part
• Highly efficient oil separation
• Less motor oil consumption
• Maintenance friendly
• Integrated safety feature
• Light and robust design with no electrical energy required
• Compact design
• Low pressure loss
• Low running costs

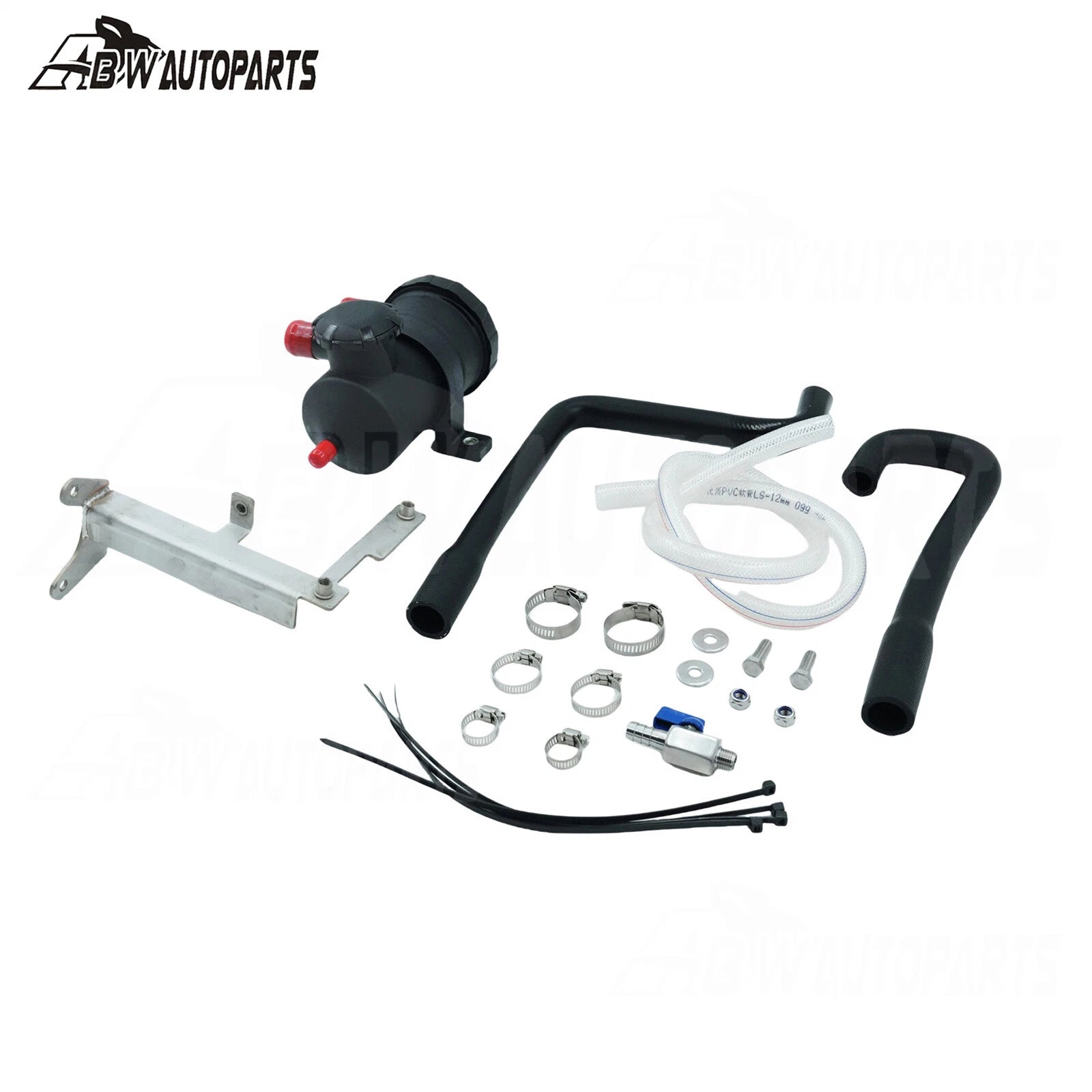

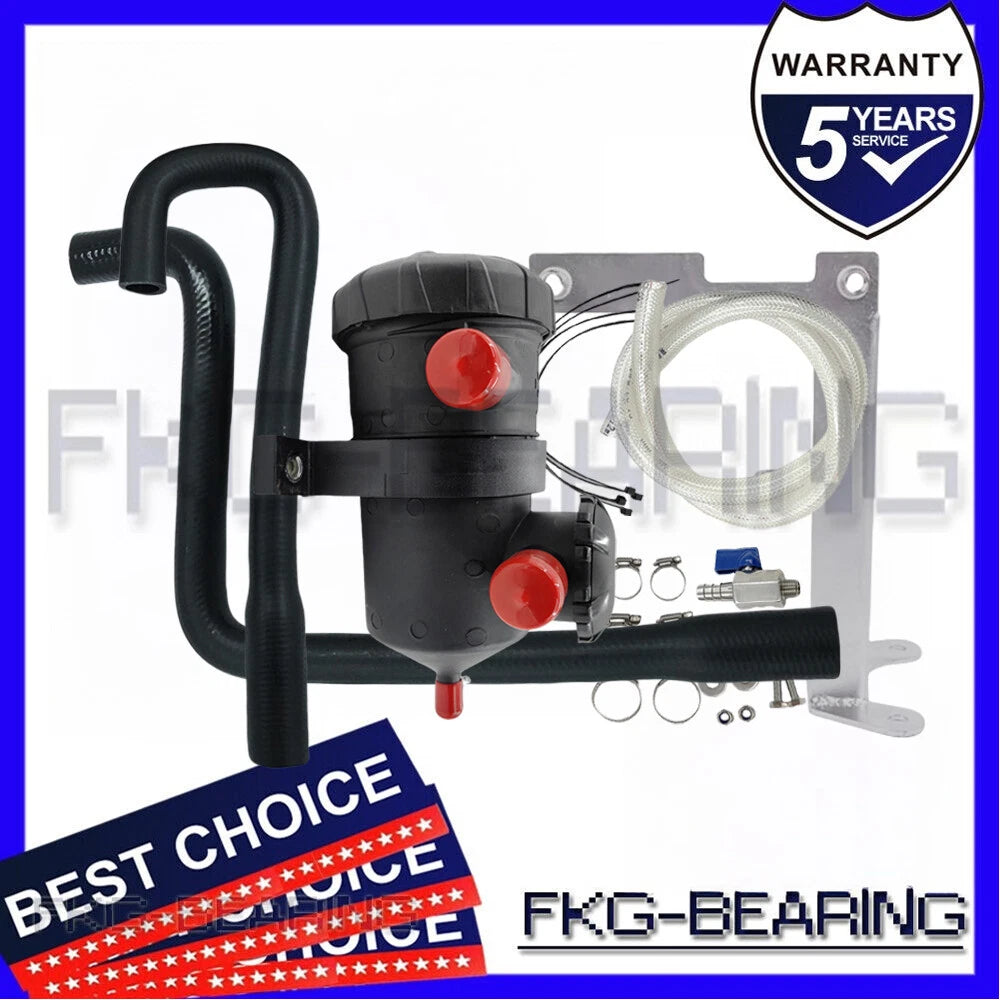

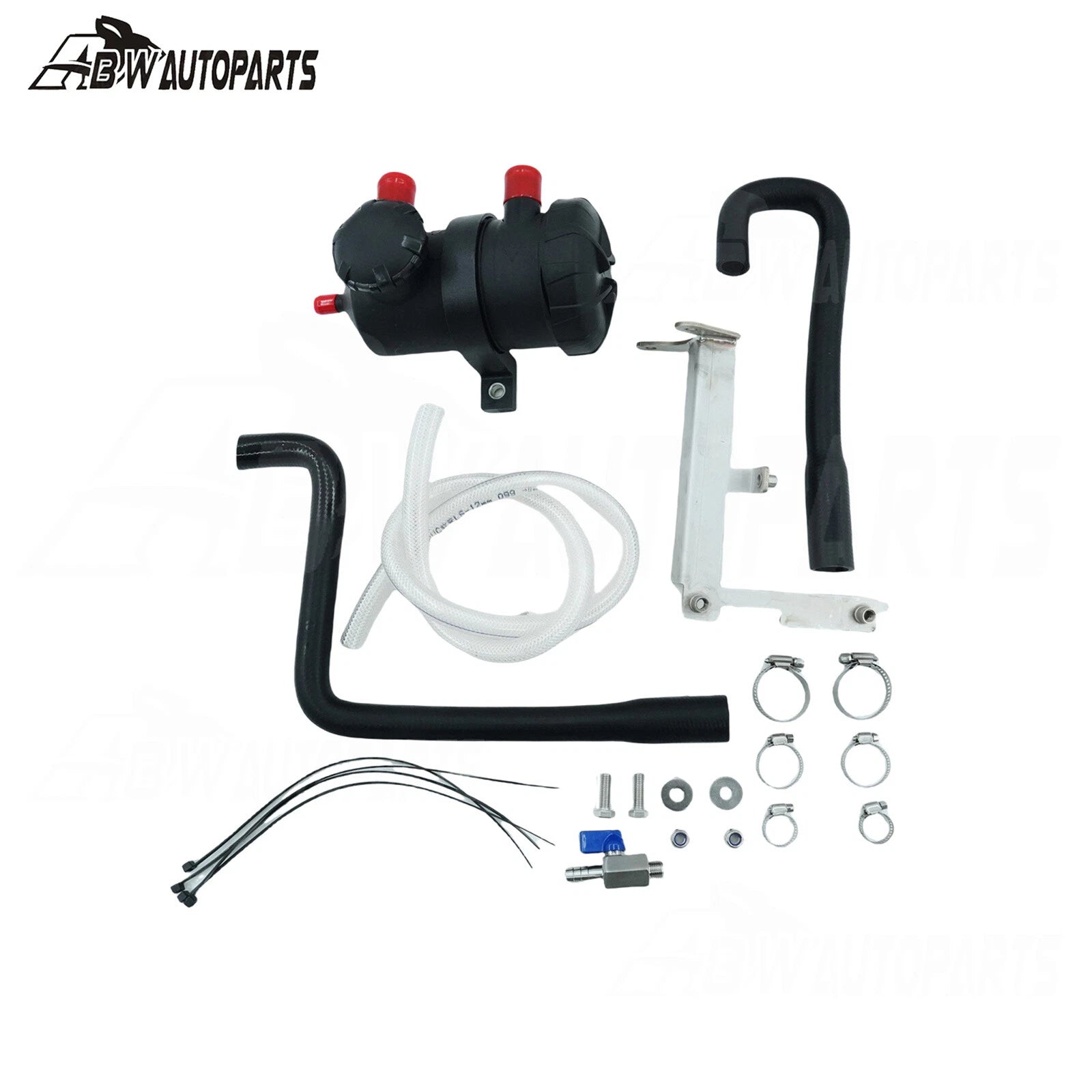

Package:

• 1x Stainless Steel Bracket
• 1x Oil Catch Can (with filter)
• 1x Drain Kit
• 1x Top Hose
• 1x Bottom Hose

Note:

**Does NOT fit the Overland Models

**Designed for Australian Models (Right Hand Drive), Overseas Models May Have Differences.

**Professional installation is highly recommended.

Please double check the vehicle’s original part number before purchasing this part.

How to install?

STEP5: Feed the Drain Hose down through the bottom of the engine bay, down the side of the chassis rail and along the Wheel Arch. Trim the Drain Hose to the desired length. Insert the Drain Tap. Secure with Clamp.

**Ensure Tap is CLOSED ****

Cable tie where necessary.

STEP7: Remove the 'S-shaped' Breather hose from between the Crankcase Outlet and the Air Intake. Take the supplied Shorter 'J-Type Hose' and Connect the flanged end of to the Can's Lower Outlet. Connect the other end to the Air Intake hose fitting (found in frontof the Turbo, beneath the OEM-Orange Turbo Hose).
