Front & Rear Brake Pads and Disc Rotor Kit for Toyota Prado 120

PRODUCT OVERVIEW

Complete front and rear brake service kit including disc rotors and brake pads for Toyota Prado 120 series (GRJ120, KZJ120, KDJ120, RZJ120; check detailed compatibility before purchase).

KIT CONTENTS

• 2 x Front disc rotors
• 2 x Rear disc rotors
• 1 x Set of front brake pads (with wear sensor where applicable)
• 1 x Set of rear brake pads (with wear sensor where applicable)

DISC ROTOR FEATURES

• OE-style design for direct fitment
• Optimal thermal conductivity for consistent braking
• Helps reduce brake judder and vibration
• Improved damping to minimise braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and performance
• Maximised rotor service life
• Effective braking with reduced pedal effort
• Lower operating temperatures to reduce stress on components
• Reduced wear for longer-lasting braking system

BRAKE PAD FEATURES

• Manufactured to JIS D-4411 industrial standard
• Formulated for Japanese and Korean vehicles
• Excellent, consistent pedal feel
• Low brake noise for comfortable driving
• Low dust formulation to help keep wheels cleaner
• Suitable for everyday and commuting use

DISC ROTOR DIMENSIONS

Front / Rear rotor dimensions:

• Diameter: 338 / 312 mm
• Height: 68 / 68 mm
• Max. thickness: 32 / 18 mm
• Min. thickness: 30 / 16 mm
• Centre hole: 108 / 106 mm
• Number of studs: 6
• Vented / Solid: Vented

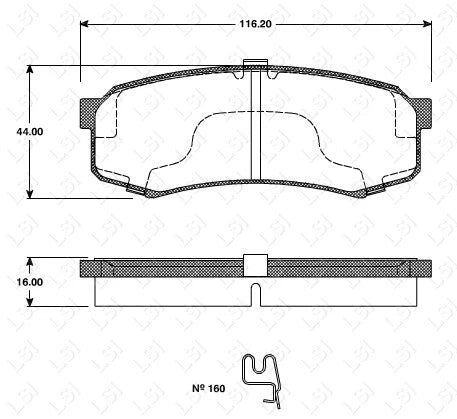

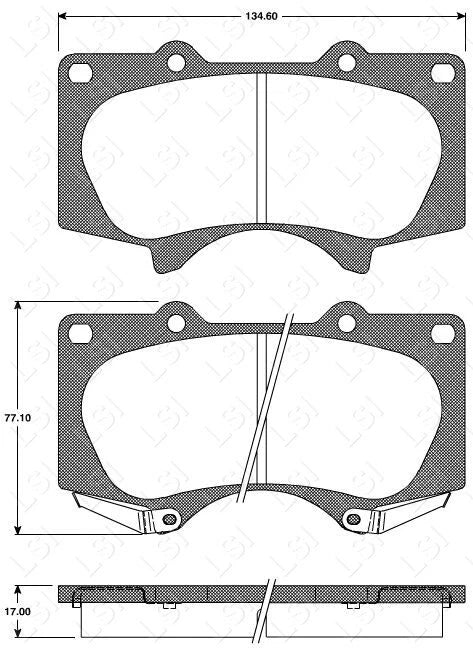

BRAKE PAD MEASUREMENTS

Front / Rear pad measurements:

• Length: 135 / 116 mm
• Height: 77.1 / 44 mm
• Thickness: 16.9 / 15.5 mm

VEHICLE COMPATIBILITY

Use this list as a guide only. Always confirm part numbers and dimensions against your existing components before ordering.

• Toyota Prado RZJ120 & RZJ120R (selected models, 3/2003–8/2004)
• Toyota Prado KZJ120 & KZJ120R 3.0TD 96 kW 4WD (approx. 3/2003–2/2007)
• Toyota Prado KDJ120R (selected models, within 1/2003–8/2009 range)
• Toyota Prado GRJ120 & GRJ120R 4.0L V6 179 kW GX, GXL, Grande & VX 4WD (approx. 3/2002–10/2009)

IMPORTANT NOTES

• Parts compatibility charts are a guide only; there may be variations within the same model and year range.
• Check all dimensions and specifications against your original rotors and pads before purchase.
• Professional installation is recommended for all braking components.
• 1-year parts replacement warranty, subject to proof of purchase and correct installation.
