Front & Rear Brake Pads + Rotors Kit for BMW 1 Series E87 116i 118i 284mm

PRODUCT OVERVIEW

Complete front and rear brake service kit for BMW 1 Series E87 116i / 118i models using 284mm front brake rotors. Includes matched disc rotors and brake pads designed to meet OE performance and fitment.

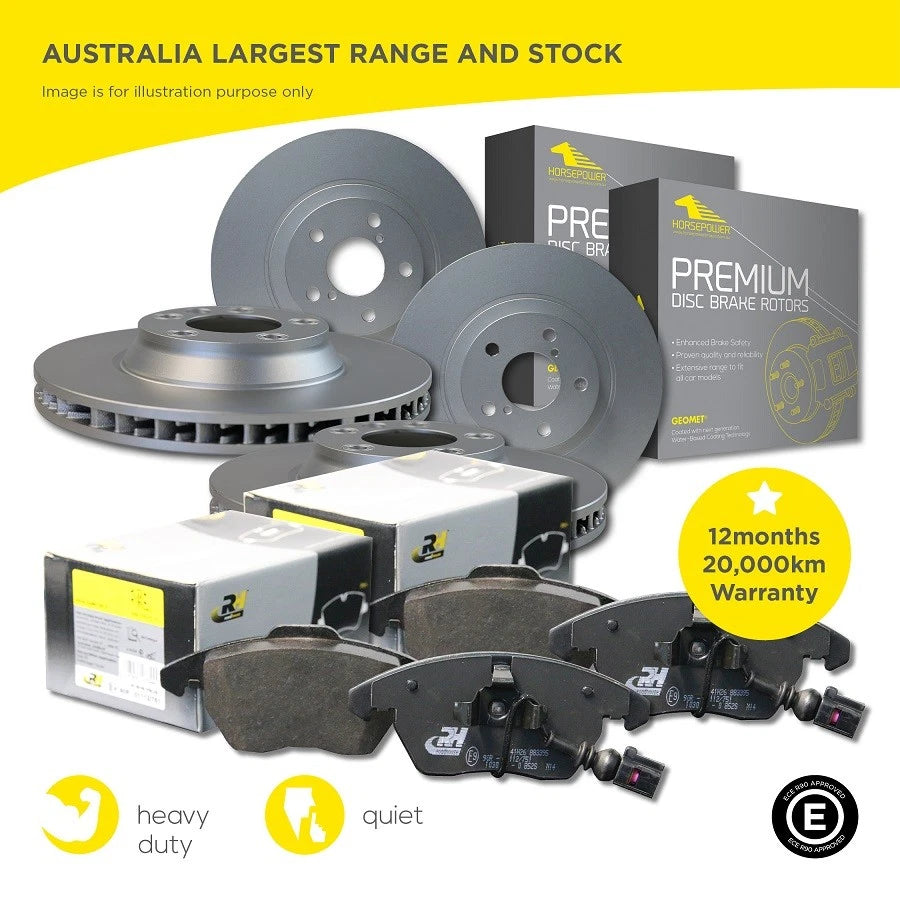

KIT CONTENTS

• 2 x Front disc brake rotors (284mm)
• 2 x Rear disc brake rotors
• 1 x Set of front brake pads (with wear sensor if applicable)
• 1 x Set of rear brake pads (with wear sensor if applicable)

DISC ROTOR FEATURES

• Direct match to OE design and fitment
• Optimised thermal conductivity for stable braking
• Helps prevent brake judder and vibration
• Reduced braking noise through improved damping characteristics
• High resistance to distortion and thermal cracking
• Improved braking safety and performance
• Engineered for long rotor life
• High braking effectiveness with reduced pedal effort
• Lower operating temperatures to reduce stress on brake components
• Lower wear for extended service life

BRAKE PAD FEATURES

• European OE-quality friction material
• High durability versus most aftermarket brands
• Consistent and firm pedal feel
• High-temperature performance formulation
• Shortened braking distance (tested improvement of up to 7.4%)
• ECE R90 approved for road use

DISC ROTOR SPECIFICATIONS

Front / rear rotor dimensions (where two values are shown, the first is front and the second is rear):

• Diameter: 284mm / 280mm
• Height: 73mm / 65mm
• Maximum thickness: 22mm / 10mm
• Minimum thickness: 20.4mm / 8.4mm
• Centre bore: 79mm / 75mm
• Wheel studs: 5 / 5
• Vented / solid: Vented front / solid rear

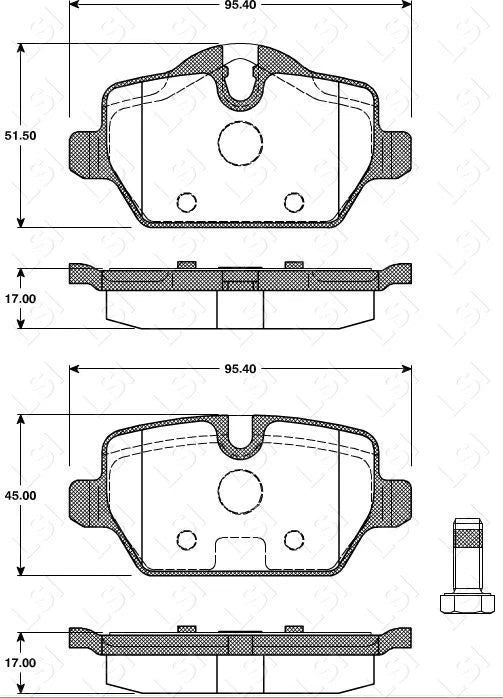

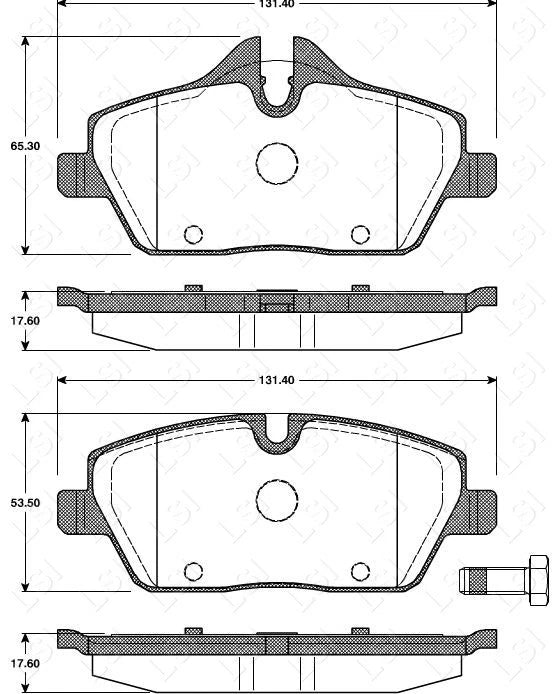

BRAKE PAD DIMENSIONS

Front / rear pad dimensions (where two values are shown, the first is front and the second is rear):

• Length: 131.4mm / 95mm
• Height: 65.3mm / 45mm
• Thickness: 17.6mm / 17mm

FITMENT & IMPORTANT NOTES

• Kit is for vehicles equipped with 284mm front brake rotors.
• Some BMW 1 Series E87 variants may use different rotor or pad sizes within the same year range.
• Verify rotor diameter and specifications on your vehicle before purchase.
• If unsure, confirm compatibility using your VIN or existing brake measurements.

WARRANTY INFORMATION

• Supplied with 1-year parts replacement warranty (subject to terms).
• Proof of purchase is required for all warranty claims.
• Return freight and installation labour costs are not covered.
