Front & Rear Brake Pads and Rotors Kit for Ford Falcon EF EL XR6 XR8 94-98

PRODUCT OVERVIEW

Complete front and rear brake service kit including disc rotors and brake pads, engineered as an OE-style replacement for selected Ford Falcon EF / EL models (including ABS, XR6, XR8) from 1994-1998.

KIT CONTENTS

• 2 x Front disc rotors
• 2 x Rear disc rotors
• 1 x Set of front brake pads (with wear sensor(s) if applicable)
• 1 x Set of rear brake pads (with wear sensor(s) if applicable)

DISC ROTOR FEATURES

• Direct OE-style fitment and geometry
• Optimised thermal conductivity for stable performance
• Helps reduce brake judder and vibration
• Improved noise damping characteristics
• High resistance to distortion and thermal cracking
• Enhanced braking safety and stopping performance
• Long rotor service life
• Effective braking with reduced pedal effort
• Lower operating temperatures to minimise component stress
• Reduced wear for extended component life

BRAKE PAD FEATURES

• Manufactured to JIS D-4411 industrial standard
• Formulation suitable for Australian, Japanese and Korean vehicles
• Consistent, confident pedal feel
• Low brake noise characteristics
• Low dust output to help keep wheels cleaner
• Suitable for everyday road use and commuting

DISC ROTOR DIMENSIONS

Front / Rear (where two values are shown).

• Diameter: 287 mm / 299 mm
• Height: 70 mm / 56.5 mm
• Maximum thickness: 25 mm / 10 mm
• Minimum thickness: 22 mm / 8.5 mm
• Centre hole: Hub / 71 mm
• Number of studs: 5 / 5
• Vented / Solid: V / S

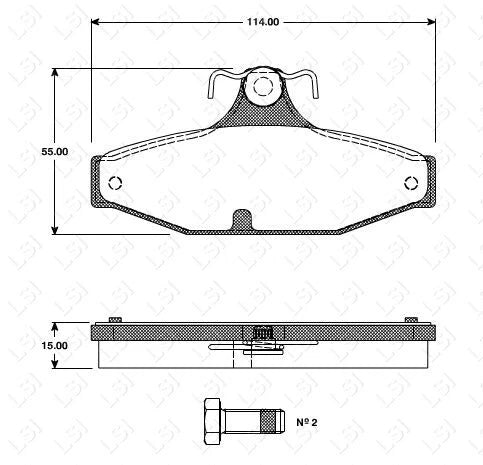

BRAKE PAD MEASUREMENTS

Front / Rear (where two values are shown).

• Length: 130 mm / 114 mm
• Height: 62 mm / 55 mm
• Thickness: 13 mm / 15 mm

IMPORTANT NOTES

• Parts compatibility data is a guide only; variations may exist within the same model and year range.
• Always compare critical dimensions and specifications with your original components before purchase and installation.
• Professional installation and proper bedding-in of pads and rotors are recommended for optimal performance and safety.
