Front & Rear Brake Pads and Rotors Kit for Mitsubishi Challenger 3.0 V6 1998–2006

PRODUCT OVERVIEW

Complete front and rear brake service kit including matched disc rotors and brake pads for Mitsubishi Challenger 3.0 V6 (1998–2006). Designed as an OE-style replacement for reliable, quiet and consistent braking performance.

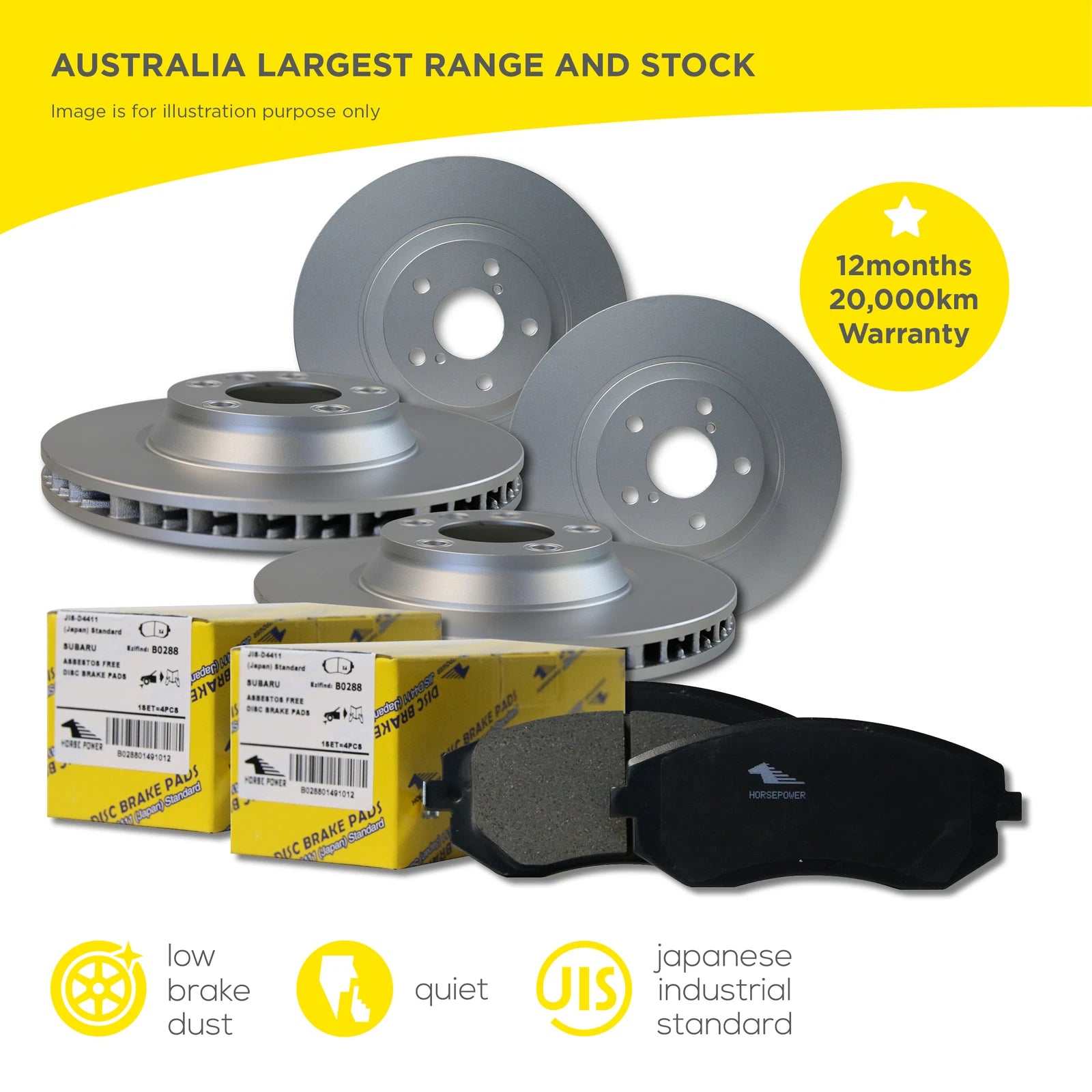

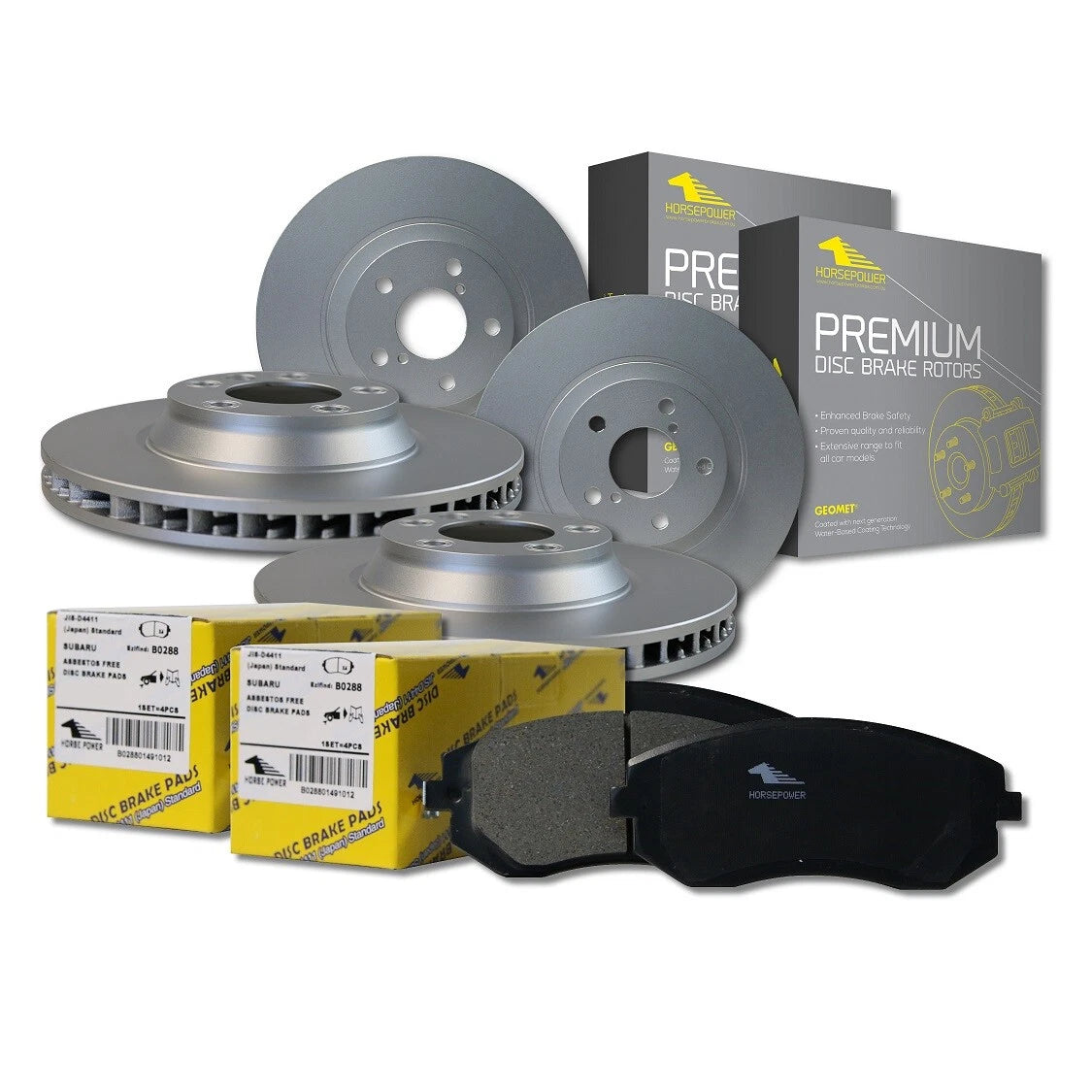

KIT CONTENTS

• 2 x Front disc rotors
• 2 x Rear disc rotors
• 1 x Set of front brake pads (with wear sensor if applicable)
• 1 x Set of rear brake pads (with wear sensor if applicable)

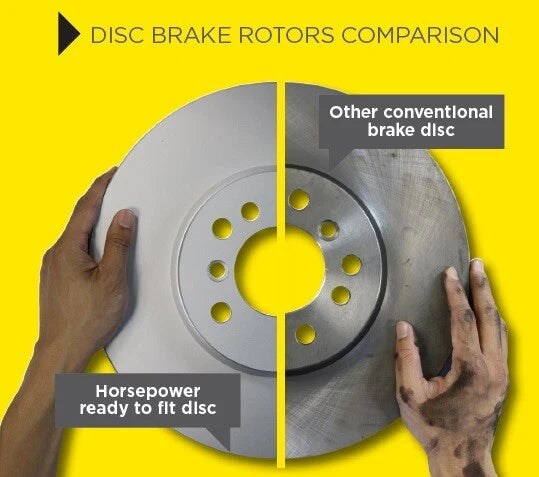

DISC ROTOR FEATURES

• Direct replacement, matched to OE design
• Optimised thermal conductivity to reduce heat build-up
• Helps prevent brake judder and vibration
• Reduced braking noise with improved damping characteristics
• High resistance to distortion and thermal cracking
• Enhanced braking safety and overall performance
• Long rotor service life
• Improved brake effectiveness with less pedal effort
• Lower operating temperatures to reduce stress on components
• Reduced wear for extended component life

BRAKE PAD FEATURES

• Manufactured to JIS D-4411 industrial standard
• Formulation suitable for Australian, Japanese and Korean vehicles
• Consistent, confident pedal feel
• Low brake noise for quiet operation
• Low dust output to help keep wheels cleaner
• Ideal for everyday driving conditions

DISC ROTOR DIMENSIONS

Front / Rear (where two values are shown):

• Diameter: 276 mm / 315 mm
• Height: 45 mm / 84 mm
• Maximum thickness: 24 mm / 18 mm
• Minimum thickness: 22.4 mm / 16.0 mm
• Centre hole: 87 mm / 108 mm
• Number of studs: 6 / 6
• Vented / solid: Vented front / solid rear

BRAKE PAD DIMENSIONS

Front / Rear (where two values are shown):

• Length: 150.0 mm / 78.8 mm
• Height: 59.0 mm / 55.2 mm
• Thickness: 16.0 mm / 15.0 mm

FITMENT NOTICE

Vehicle compatibility can vary within the same model and year range. Please compare the listed dimensions with your existing rotors and pads or consult your mechanic to confirm suitability for your Mitsubishi Challenger 3.0 V6 (1998–2006) before purchase.

INSTALLATION & WARRANTY

• Professional installation by a qualified technician is strongly recommended
• Bed-in procedure should be followed to achieve optimal braking performance
• Supplied with a 1-year parts replacement warranty (return freight and labour not included)
