Front 4WD Brake Pads & Rotors Kit for Toyota RAV4 ACA33 ACA38 GSA33 06-12

PRODUCT OVERVIEW

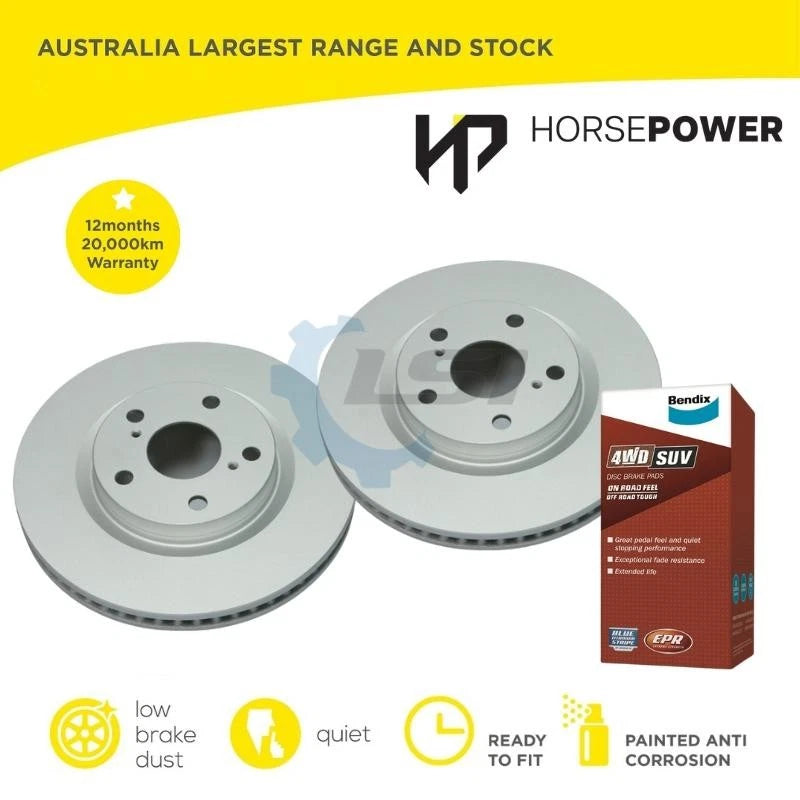

This front brake kit includes two vented disc rotors and one set of front brake pads for left and right wheels. It is designed as an OE-style replacement for selected Toyota RAV4 models using 296 mm front discs. Please confirm rotor diameter and specifications before purchase.

KEY FEATURES – DISC ROTORS

• OE-style design for direct replacement fit
• Optimal thermal conductivity for improved heat dissipation
• Helps prevent brake judder and vibration
• Reduced braking noise thanks to improved damping characteristics
• High resistance to distortion and thermal cracking
• Enhanced braking safety and performance
• Maximised rotor service life
• Improved brake effectiveness with less pedal effort
• Lower operating temperatures to reduce stress on brake components
• Reduced wear for longer-lasting braking performance

DISC ROTOR SPECIFICATIONS

• Diameter: 296 mm
• Height: 50 mm
• Maximum thickness: 28 mm
• Minimum thickness: 26 mm
• Centre hole: 62 mm
• Number of studs: 5
• Type: Vented

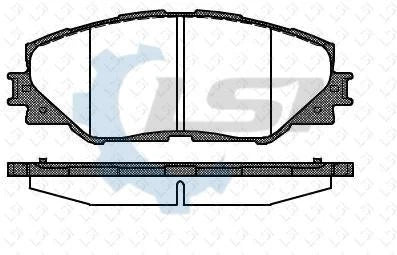

BRAKE PAD DIMENSIONS

• Length: 147 mm
• Height: 57 mm
• Thickness: 17 mm

COMPATIBLE VEHICLES

Use as a guide only. Always check disc diameter, pad shape, and specifications against your existing brakes.

• Toyota RAV4 ACA33 / ACA33R 2.4L 4WD and ACA38R FWD with 296 mm front disc, approx. 11/2005–01/2013 (front)
• Toyota RAV4 GSA33 / GSA33R 3.5L V6 4WD with 296 mm front disc, approx. 10/2007–01/2013 (front)
• Toyota RAV4 ALA49 / ALA49R GX, GXL, Cruiser 2.2TD AWD, 02/2013 onwards (front)
• Toyota RAV4 ASA44 / ASA44R GX, GXL, Cruiser 2.5L AWD, 02/2013 onwards (front)

PACKAGE CONTENTS

• 2 x front vented disc rotors
• 1 x set of front brake pads (LH and RH)

IMPORTANT NOTES

• Compare all measurements and specifications with your original parts before ordering.
• Professional installation and proper bedding-in of brake pads and rotors are recommended.
• Intended as a replacement for vehicles originally equipped with 296 mm front rotors.
