Front Bendix 4WD Brake Pads & Rotors Kit for Toyota RAV4 ACA20–23 2000–2006

PRODUCT OVERVIEW

This front Bendix 4WD brake kit includes two vented disc rotors and one set of front brake pads, designed as an OE-style replacement for Toyota RAV4 ACA20, ACA21, ACA22 and ACA23 models from 2000–2006.

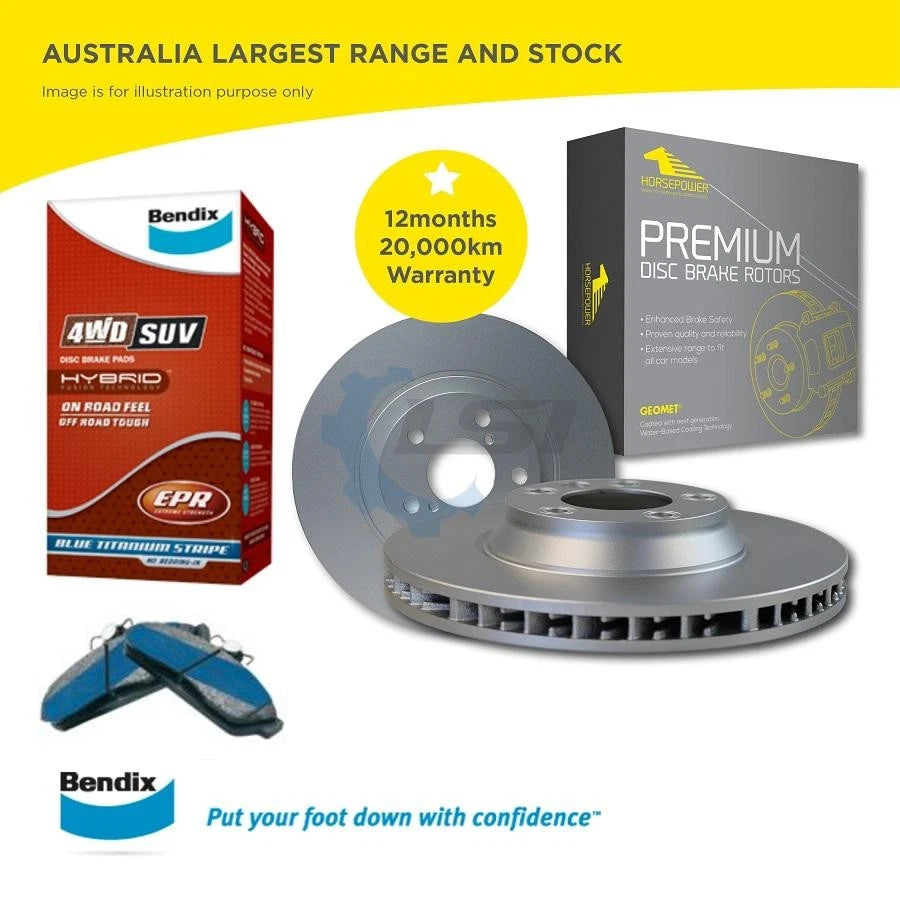

KIT CONTENTS

• 2 x front disc brake rotors (LH and RH)
• 1 x set of front Bendix 4WD brake pads (for both front wheels)

DISC ROTOR FEATURES

• OE-style design for direct fit and reliable performance
• Optimised thermal conductivity to manage heat build-up
• Helps prevent brake judder and vibration
• Reduced braking noise with improved damping characteristics
• High resistance to distortion and thermal cracking
• Improved braking safety and overall stopping performance
• Maximised rotor service life
• Effective braking with reduced pedal effort
• Lower operating temperatures to reduce stress on brake components
• Reduced wear for longer-lasting braking components

DISC ROTOR SPECIFICATIONS

• Diameter: 275 mm
• Height: 50 mm
• Maximum thickness: 24.8 mm
• Minimum thickness: 23 mm
• Centre hole: 62 mm
• Stud holes: 5
• Type: Vented

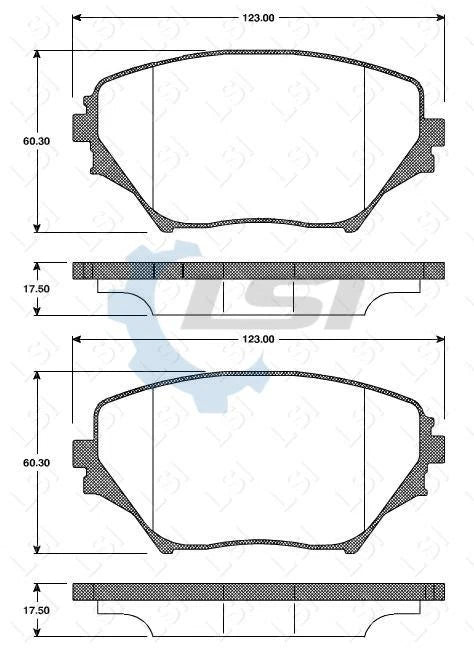

BRAKE PAD DIMENSIONS

• Length: 123 mm
• Height: 60 mm
• Thickness: 17 mm

FITMENT INFORMATION

Front Bendix 4WD brake pads and disc rotors suitable for Toyota RAV4 ACA20, ACA21, ACA22 and ACA23 models from 2000–2006. Please confirm all dimensions and specifications against your existing components before purchase, as variations may exist within the same model years.

WARRANTY

Supplied with a 1-year parts replacement warranty, subject to correct installation and normal use. Proof of purchase is required for all warranty claims. Installation labour and return freight are not covered.
