Front Brake Rotor & Pad Kit for Holden Berlina VE 2006-2013

PRODUCT OVERVIEW

This kit includes 2 x front disc rotors and 1 x set of front brake pads, supplied as a matched set for left-hand and right-hand wheels. Designed as an OE-style replacement to restore safe and consistent braking performance.

KEY FEATURES

• OE-style rotor design for direct fitment and proper caliper clearance
• Optimised thermal conductivity for effective heat dissipation
• Helps reduce brake judder and vibration
• Improved damping characteristics to minimise braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and pedal feel
• Long rotor service life under normal driving conditions
• Reduced pedal effort for strong, predictable braking
• Lower operating temperatures to reduce stress on brake components
• Lower wear rate for extended pad and rotor life

DISC ROTOR SPECIFICATIONS (FRONT)

• Diameter: 298 mm
• Height: 52 mm
• Maximum thickness: 30 mm
• Minimum thickness: 28 mm
• Centre hole: 67.5 mm
• Number of studs: 5
• Type: Vented

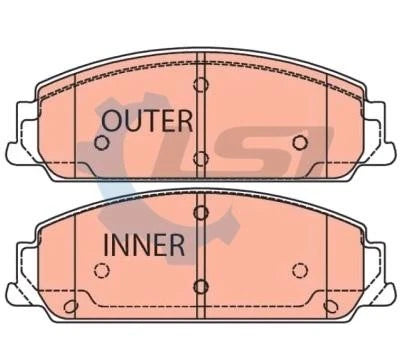

BRAKE PAD DIMENSIONS (FRONT)

• Length: 153 mm
• Height: 53 mm
• Thickness: 17 mm

COMPATIBILITY INFORMATION

This front rotor and pad kit suits selected Holden VE and VF V6 models using 298 mm front discs. It is commonly used on:

• Commodore VE / VF V6 variants including Omega, SV6 and Berlina
• WM-series V6 variants including Calais, Caprice and Statesman
• Approximate year range: 09/2006–2017 (front axle)
• Some V8 models may also use these 298 mm discs – always confirm disc diameter before ordering

Important: Always check your existing rotor diameter, stud count and mounting dimensions against the specifications above before purchase.

CONTENTS

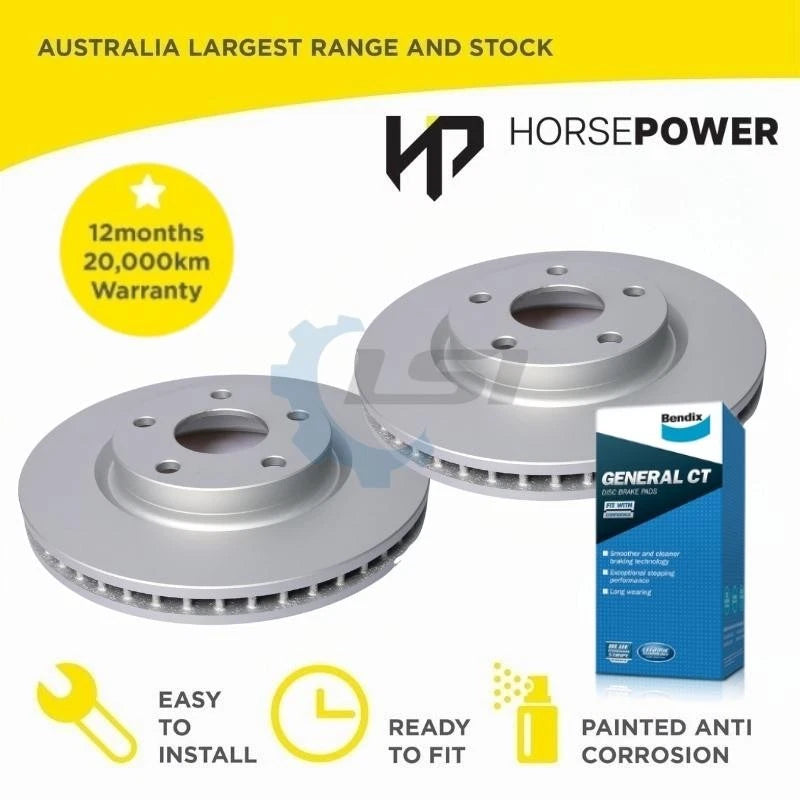

• 2 x Front disc rotors (298 mm, vented)
• 1 x Set of front brake pads (for both LH and RH wheels)

NOTES

• Professional installation is recommended
• Bed-in procedure should be followed for new pads and rotors
• Inspect all braking components and replace hardware as required
