Front Bendix Brake Pads & 308mm Disc Rotors for VW Caravelle T5 2006-2016

PRODUCT OVERVIEW

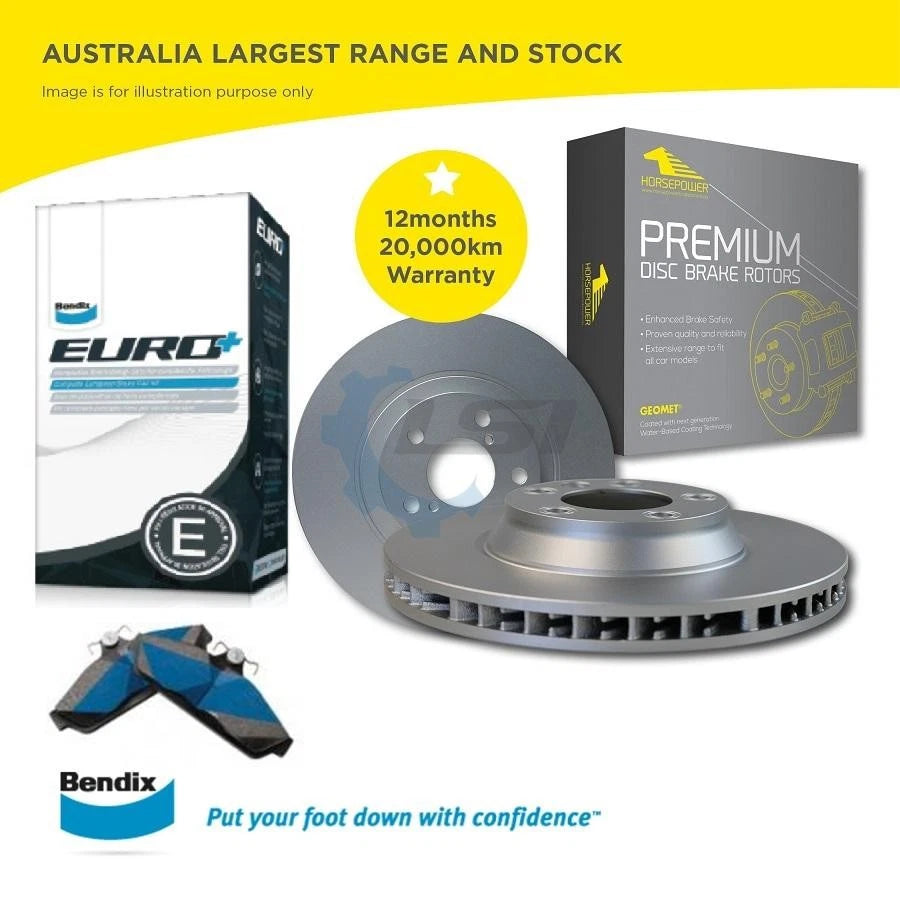

This front brake kit includes 2 x 308mm vented disc rotors and 1 x set of Bendix front brake pads for left-hand (LH) and right-hand (RH) wheels, designed for Volkswagen Caravelle T5 models from 2006-2016 using 308mm front rotors.

KEY FEATURES

• Matched to OE design for reliable fit and performance
• Optimal thermal conductivity to manage heat build-up
• Helps reduce brake judder and vibration
• Improved damping to minimise braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and stopping performance
• Long rotor life with reduced wear
• Effective braking with reduced pedal effort
• Lower operating temperatures to protect brake components

Horsepower Premium Geomet coated rotors provide superior corrosion resistance and consistent braking performance.

DISC ROTOR SPECIFICATIONS (FRONT)

• Diameter: 308 mm
• Height: 55.2 mm
• Maximum thickness: 29.3 mm
• Minimum thickness: 25.5 mm
• Centre hole: 76 mm
• Number of studs: 5
• Type: Vented

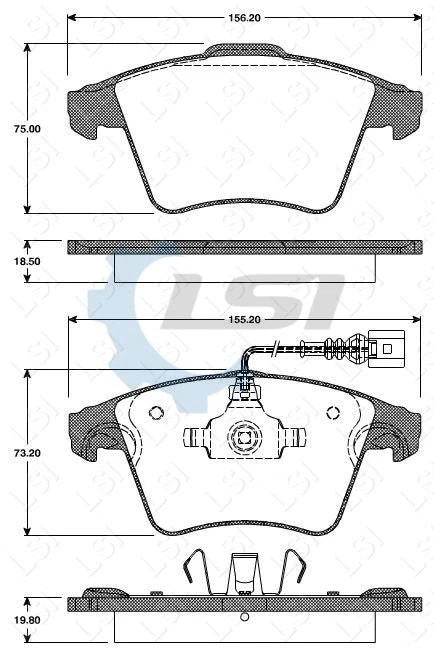

BRAKE PAD DIMENSIONS (FRONT)

• Length: 155 / 156 mm
• Height: 73 / 75 mm
• Thickness: 19.8 / 18.5 mm

KIT CONTENTS

• 2 x Front 308mm vented disc rotors
• 1 x Set of front Bendix brake pads (for both LH and RH wheels)
• Front brake wear sensors included

FITMENT & COMPATIBILITY

This kit is suitable only for vehicles equipped with 308mm front disc rotors. For correct fitment, confirm your existing rotor diameter before purchase. If unsure, check your vehicle specifications or verify by VIN with your parts supplier or mechanic.

WARRANTY

Supplied with a 1-year parts replacement warranty (conditions apply). Install using correct workshop procedures and torque settings. Keep your purchase invoice as proof of purchase for any warranty claim.
