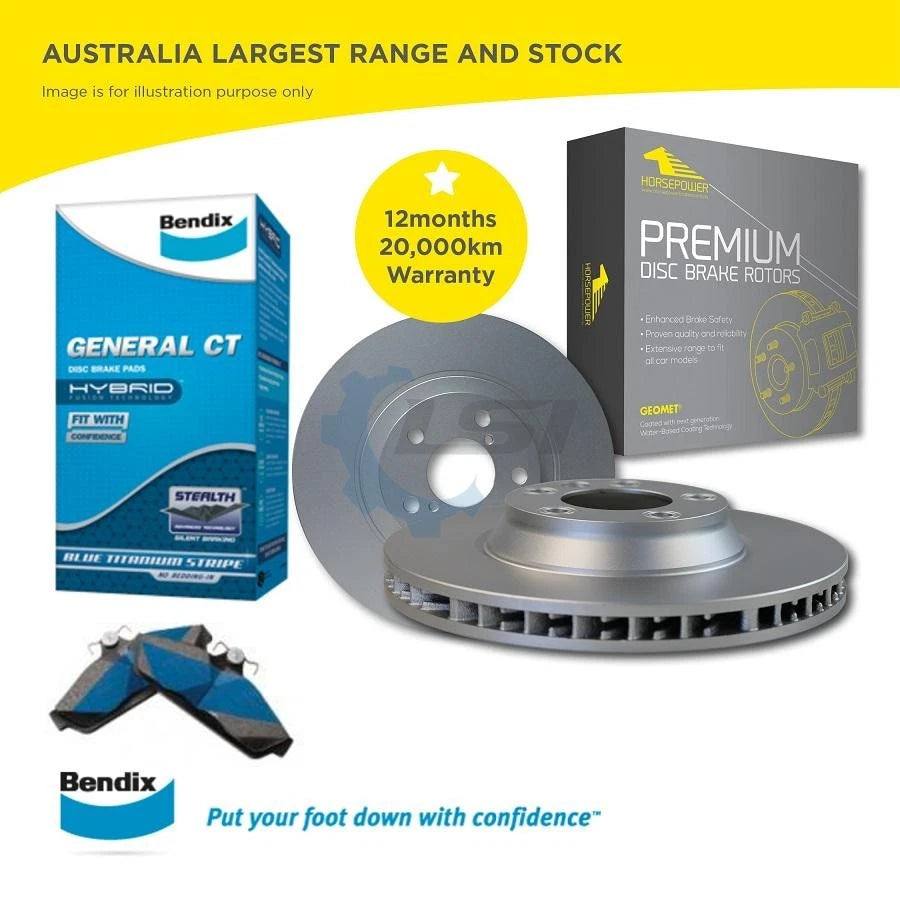

Mitsubishi Lancer CG CH Front Brake Rotors & Bendix Pads Kit 2.0L 4-Stud

PRODUCT OVERVIEW

This front brake kit for Mitsubishi Lancer CG and CH (2.0L, 4-stud, 2002–2007) includes two vented disc rotors and one set of Bendix brake pads, providing a matched replacement solution for both left-hand and right-hand front wheels. The components are designed to meet OE specifications for fitment and performance.

KEY FEATURES & BENEFITS

• Direct OE-style fitment for Mitsubishi Lancer CG CH 2.0 front axle (4-stud).
• Complete front set: 2x disc rotors plus 1x Bendix brake pad set.
• Vented rotor design for improved thermal conductivity and cooler operating temperatures.
• Brake pads engineered to minimise noise and judder for smoother, quieter braking.
• High resistance to thermal cracking and distortion for long rotor service life.
• Optimised friction characteristics to reduce pedal effort and enhance braking control.

ROTOR SPECIFICATIONS (FRONT)

• Diameter: 256 mm
• Height: 45 mm
• Maximum thickness: 24 mm
• Minimum thickness: 22.4 mm
• Centre hole: 64 mm
• Stud holes: 4
• Type: Vented

BRAKE PAD DIMENSIONS (FRONT)

• Length: 114 mm
• Height: 57 mm
• Thickness: 15 mm

APPLICATION NOTES

Intended for Mitsubishi Lancer CG and CH 2.0L models with 4-stud front hubs within the 2002–2007 production range. Always confirm rotor and pad dimensions, stud count, and centre bore against existing components before installation.
