Front Brake Rotors & Pads Kit for Toyota Corolla ZRE152 ZRE182 DB1802

PRODUCT OVERVIEW

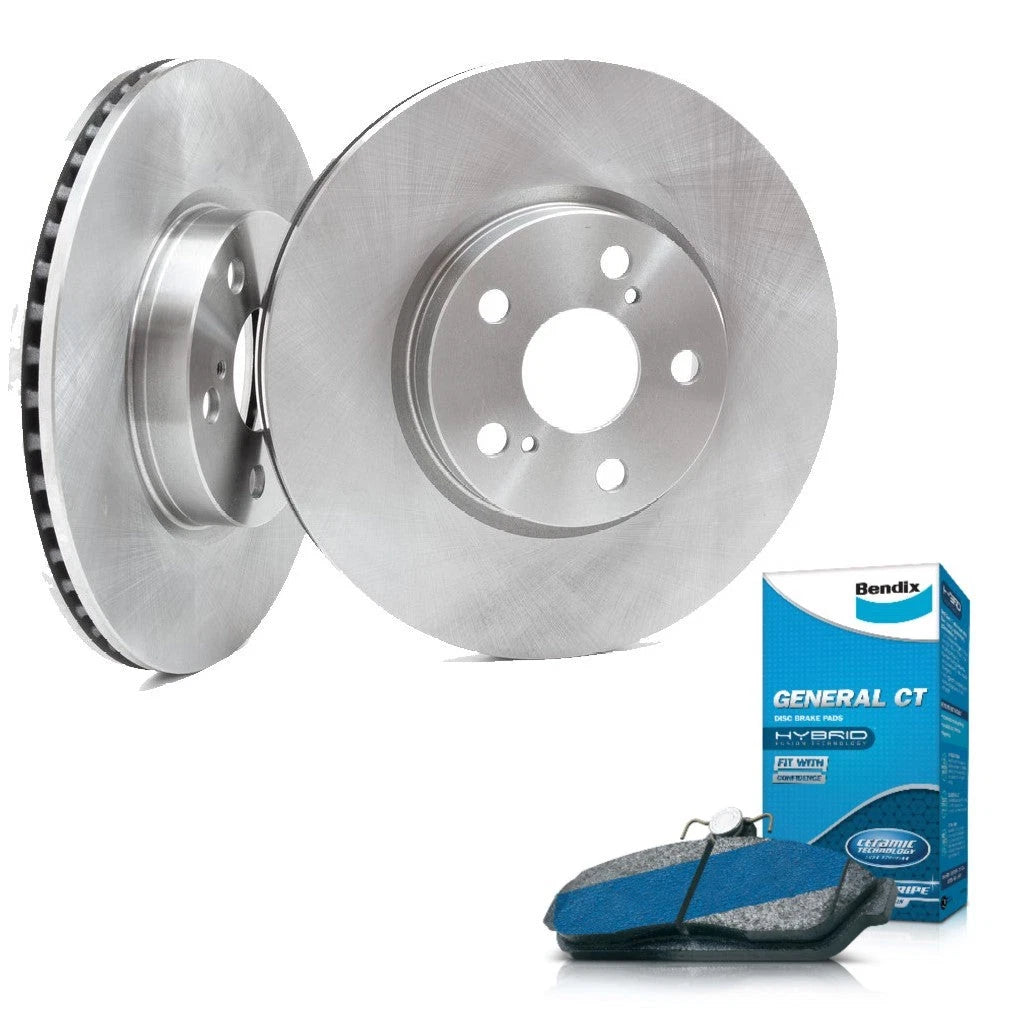

Brand new front brake kit including a pair of disc rotors and a full set of four brake pads. Designed as an OEM-style replacement to restore reliable braking performance for compatible Toyota Corolla models.

KEY FEATURES

• Includes left and right front brake disc rotors and 4 matching pads
• Outside diameter (OD) 275mm for specified Corolla applications
• Manufactured in world-class facilities to strict quality standards
• Rotors are heat tempered for improved thermal absorption and stability
• Engineered to help reduce vibration, noise and uneven wear
• Geomet anti-rust coating on non-friction surfaces for enhanced corrosion resistance
• 12 month / 20,000 km warranty (whichever occurs first)

PART NUMBERS

• Brake Disc Rotors: BDR10000X2
• Brake Pads: DB1802

COMPATIBLE VEHICLES

This kit is suitable for selected front-wheel drive Toyota Corolla models using DB1802 front pads and 275mm front rotors. Confirm part numbers and dimensions against your existing components before purchase.

• Toyota Corolla ZRE182 1.8L 2ZR-FE FWD MT / CVT (10/2012 - 08/2018)
  Models include Ascent, Ascent Sport, Levin, RZ, ZR, SX
• Toyota Corolla ZRE152 / ZRE142 1.8L 2ZR-FE FWD MT / AT / CVT (10/2006 - 12/2015)
  Models include Ascent, Sport, ZR, SX, Rumion, Axio, Conquest, Fielder, Levin, Ultima, Edge

Note: Always check stud pattern, rotor dimensions and pad profile against your vehicle before installation.

WHAT'S INCLUDED

• 2 x Front disc brake rotors (BDR10000X2)
• 4 x Front brake pads (DB1802)

ROTOR SPECIFICATIONS

• Outside diameter (OD): 275mm
• Studs & PCD: 5 x 114.3mm
• Hat height: 46.2mm
• Thickness (new): 22mm
• Minimum thickness: 19mm
• Centering hole diameter: 62mm
• Coating: Geomet anti-rust on non-braking surfaces

BRAKE PAD SPECIFICATIONS (DB1802)

• Length: 139.2mm
• Height: 55.5mm
• Thickness: 17.5mm

ADDITIONAL INFORMATION

Brake components are manufactured to OEM specifications and tolerances to support straightforward fitment and consistent braking performance. Professional installation and correct bedding-in of new pads and rotors are recommended for optimal results.
