Front Bendix Brake Pads & Rotors Kit for Toyota Hilux 319mm VSC 4WD

PRODUCT OVERVIEW

Premium front brake upgrade kit featuring Bendix 4WD brake pads and Geomet-coated front disc rotors, designed to deliver reliable stopping power and enhanced corrosion resistance for compatible Toyota Hilux 4WD models with VSC.

IMPORTANT SIZE NOTE

Suitable for vehicles using 319mm outer diameter front rotors only. If your vehicle requires 297mm OD rotors, use part number BDR10017 instead.

KEY FEATURES

• Engineered for strong, consistent braking performance under normal driving conditions
• Geomet anti-rust coating for superior corrosion protection
• Improved heat management to help reduce brake fade
• Precision machining for smooth operation and extended component life

VEHICLE COMPATIBILITY

Front axle fitment for selected Toyota Hilux 4WD models equipped with Vehicle Stability Control (VSC), using 319mm OD front rotors, including but not limited to:

• Toyota Hilux GGN25 / GGN125 4.0L 1GR-FE 4WD AT/MT (03/2005 - 09/2017) – models SR, SR5, Extra Cab
• Toyota Hilux KUN25 / KUN26 4WD AT/MT (03/2005 - 09/2015) with VSC – models SR, SR5, Extra Cab, Workmate, X-Cab, SR5 Black

Confirm rotor outer diameter and specifications against your existing components before purchase.

ROTOR SPECIFICATIONS

• Outer diameter: 319mm
• Hat height: 67.5mm
• Thickness (new): 28mm
• Minimum thickness (wear limit): 26mm
• Center bore diameter: 108mm
• Stud pattern (PCD): 6 x 139.7mm
• Coating: Geomet anti-rust

BRAKE PAD DETAILS

• Pad type: Bendix 4WD brake pads
• Part number: DB1482

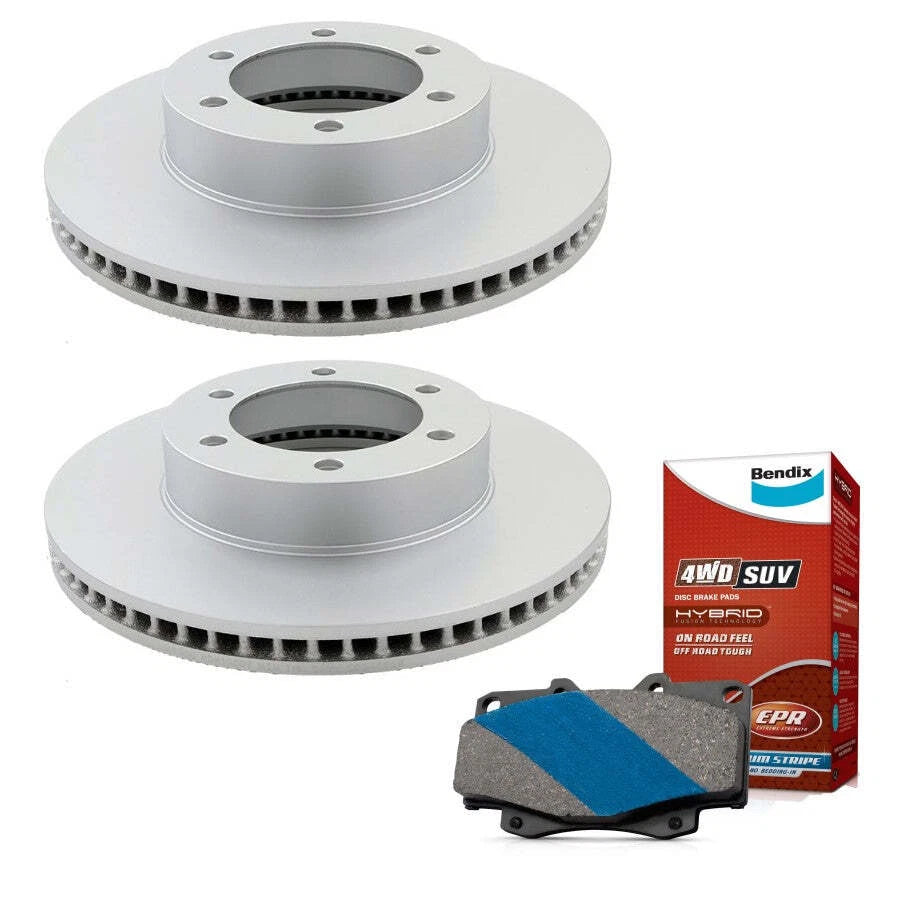

WHAT'S INCLUDED

• 2 x Front brake disc rotors (319mm OD)
• 1 x Set Bendix 4WD front brake pads – DB1482

ADDITIONAL INFORMATION

Precision-machined rotors and quality 4WD pads are designed to provide a smoother braking feel and long service life when correctly installed and maintained. Always have braking components fitted by a qualified technician and follow manufacturer torque and bedding-in procedures.
