Front Brake Disc Rotors 338mm for Toyota Prado 120 Series 2003-2009

PRODUCT OVERVIEW

Front brake disc rotor set (left and right) designed to match OE specifications for Toyota Prado 120 Series models RZJ120, KZJ120, KDJ120 and GRJ120 (2003-2009). Vented construction and precision machining support reliable, consistent braking performance.

KEY FEATURES

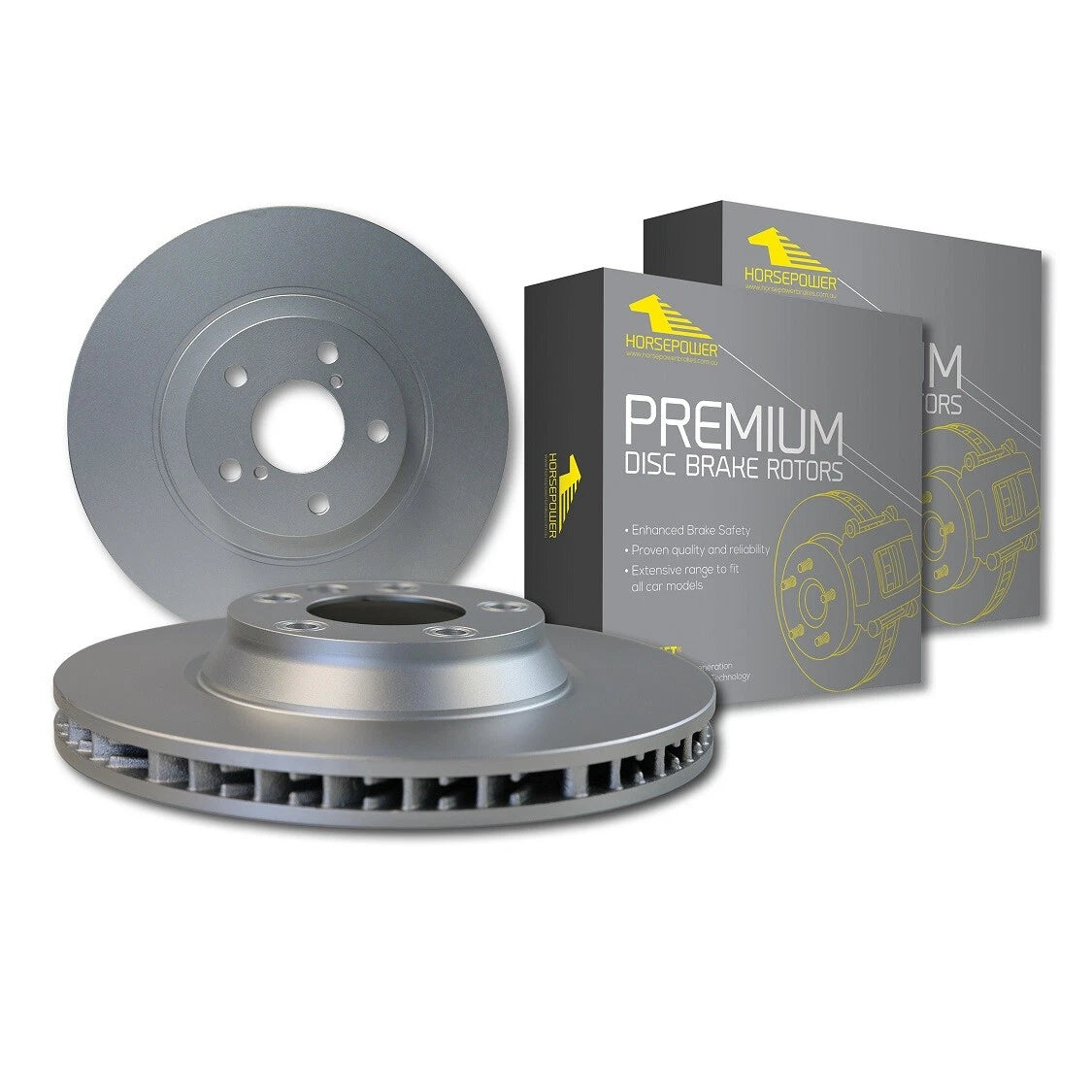

• 1 x left-hand (LH) and 1 x right-hand (RH) front disc rotor
• OE-style fitment and performance
• Optimised thermal conductivity for effective heat dissipation
• Helps reduce brake judder and vibration
• Improved damping characteristics to minimise brake noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and pedal feel
• Supports long rotor life and reduced component stress

SPECIFICATIONS

• Rotor type: Front, vented
• Outside diameter: 338 mm
• Overall height: 68 mm
• Maximum thickness: 28 mm
• Minimum thickness: 26 mm
• Centre hole diameter: 108 mm
• Stud holes: 6
• Part reference: HR7684

PACKAGE CONTENTS

• 2 x front disc rotors (LH and RH)

FITMENT NOTES

• Position: Front axle
• Suitable for Toyota Prado 120 Series RZJ120, KZJ120, KDJ120, GRJ120 (2003-2009) where rotor dimensions match specifications listed
• Also used on selected Hilux 4WD GGN25 Supercharged 2008-2018 where 338 mm front rotors are specified
• Please confirm all dimensions and vehicle details against your existing rotors before purchase
