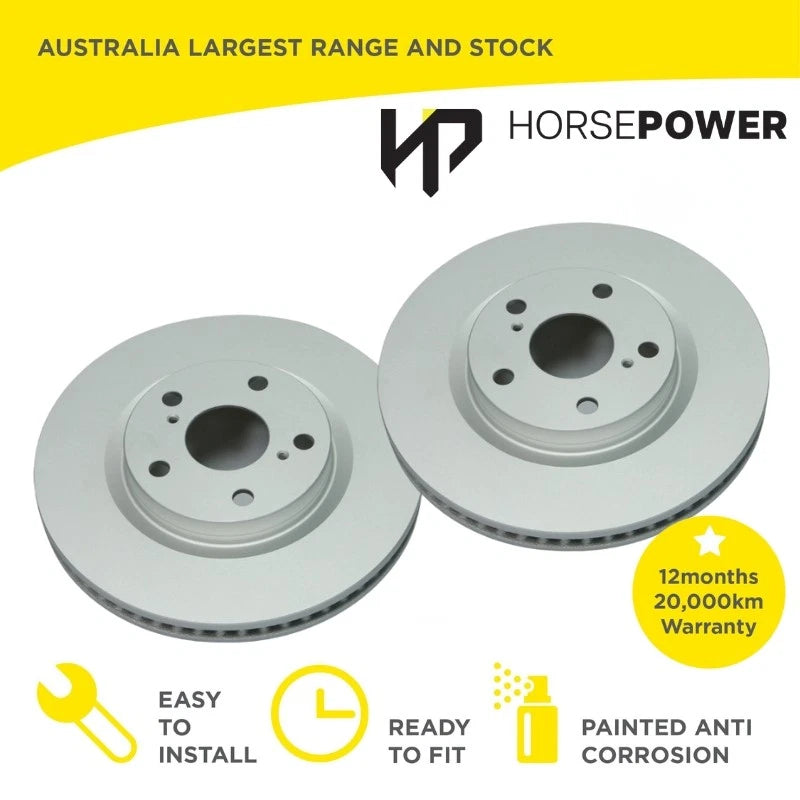

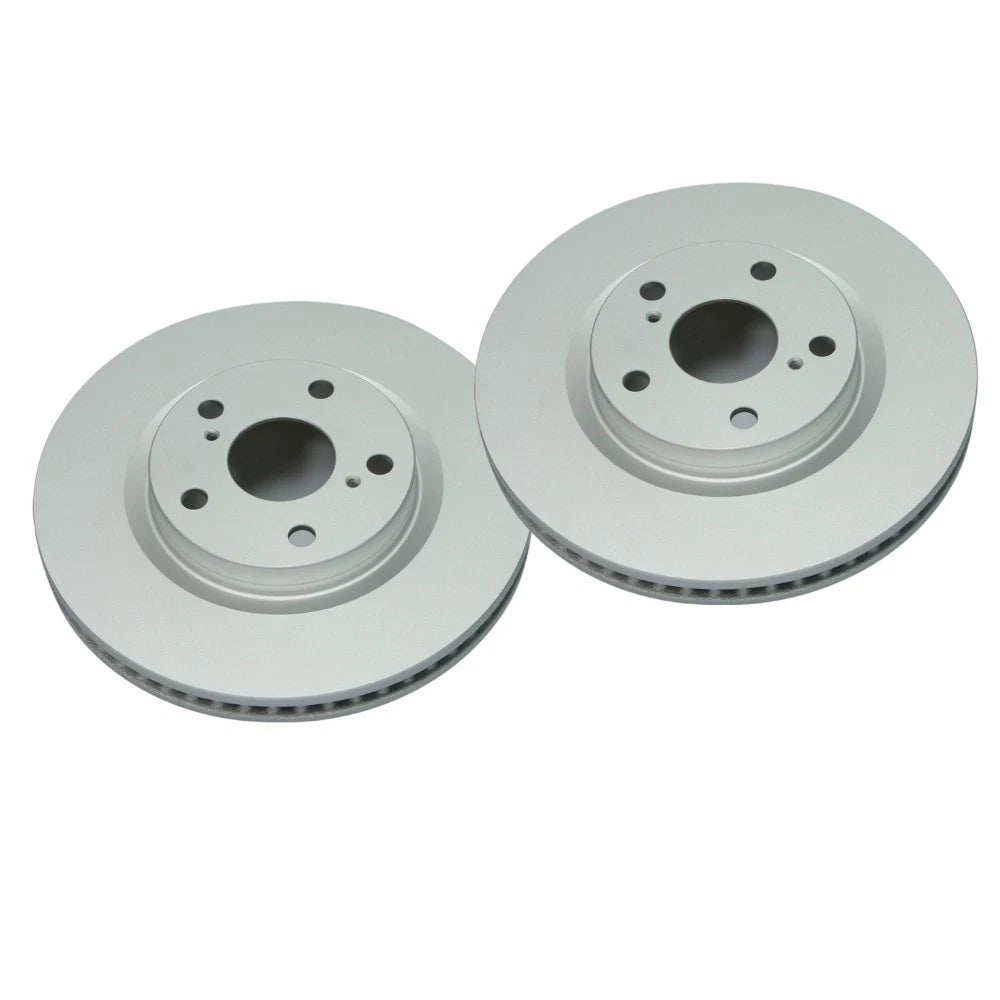

Front Brake Disc Rotor Pair 296mm for Toyota RAV4 ACA33 ACA38 GSA33 06-12

PRODUCT OVERVIEW

This front brake disc rotor set is designed as an OE-style replacement for Toyota RAV4 ACA33, ACA38 and GSA33 models (2006-2012) using 296mm vented rotors. Supplied as a matched left and right pair to restore safe and consistent braking performance.

KEY FEATURES

• Includes 1 x left-hand and 1 x right-hand front disc rotor
• Direct replacement, matching original equipment design
• Vented construction for optimal thermal conductivity
• Helps reduce brake judder and vibration
• Improved damping to minimise braking noise
• High resistance to distortion and thermal cracking
• Supports maximum rotor life and consistent performance
• Enhanced brake effectiveness with reduced pedal effort
• Lower operating temperatures to reduce stress on components
• Reduced wear for longer service life when used with quality pads

INCLUDED IN THE KIT

• 2 x front disc rotors (left-hand and right-hand)

SPECIFICATIONS

• Position: Front axle
• Rotor type: Vented
• Outside diameter: 296 mm
• Overall height: 50 mm
• Maximum thickness: 28 mm
• Minimum thickness: 26 mm
• Centre hole diameter: 62 mm
• Number of studs: 5

FITMENT NOTES

Compatible with selected Toyota RAV4 ACA33, ACA38 and GSA33 models using 296mm front vented rotors. As brake specifications can vary within the same year and model range, always confirm rotor dimensions, venting type and mounting details against the existing parts or OEM specifications before purchase and installation.

INSTALLATION & WARRANTY

• Professional installation by a qualified technician is recommended
• Inspect and clean hub faces, and replace pads if worn or contaminated
• Follow correct bedding-in procedure for new rotors and pads
• Supplied with a 1-year parts replacement warranty (labour and return freight not included)
