Front Brake Pads & Disc Rotor Kit for Ford Fiesta WS/WT 1.6 LX 2010-2013

PRODUCT OVERVIEW

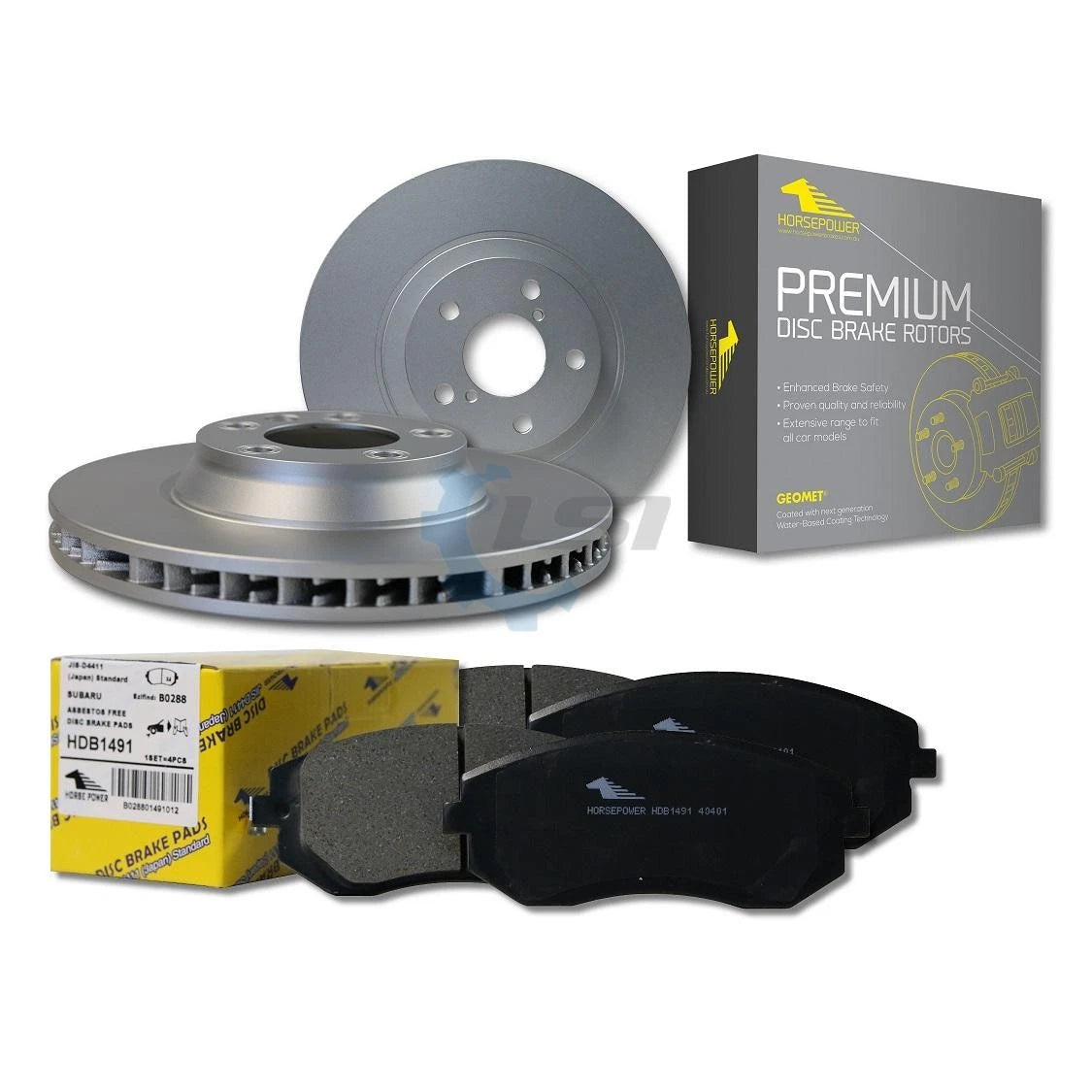

This front brake service kit includes 2 x vented disc rotors and 1 x set of ceramic brake pads for left-hand and right-hand front wheels. Designed as an OE-style replacement for selected Ford Fiesta WS/WT 1.6 LX models with 63.5mm centre hole rotors.

DISC ROTOR FEATURES

• OE-style design for direct replacement fitment
• Optimal thermal conductivity to manage heat
• Helps prevent brake judder and vibration
• Reduced braking noise due to improved damping
• High resistance to distortion and thermal cracking
• Improved braking safety and performance
• Maximised rotor service life
• High brake effectiveness with less pedal effort
• Lower operating temperatures to reduce stress on components
• Lower wear rate for extended component life

BRAKE PAD FEATURES

• Advanced ceramic friction formula
• Suitable for everyday road driving
• Consistent, precise pedal feel
• Low brake noise
• Low dust formulation to help keep wheels cleaner

DISC ROTOR SPECIFICATIONS (FRONT)

• Diameter: 258 mm
• Overall height: 44 mm
• Maximum thickness: 22 mm
• Minimum thickness: 20 mm
• Centre hole (hub bore): 63.5 mm
• Stud holes: 4
• Type: Vented

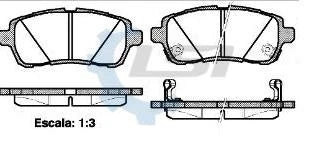

BRAKE PAD MEASUREMENTS (FRONT)

• Pad length: 125 mm
• Pad height: 52 mm
• Pad thickness: 16 mm

FITMENT & COMPATIBILITY NOTES

• Engine/variant: For selected Ford Fiesta WS/WT 1.6 LX models (front axle).
• Centre hole size: 63.5 mm. Some vehicles use a 55 mm centre hole rotor.
• Always confirm rotor dimensions and hub bore against existing parts before ordering.
• Parts compatibility tools are a guide only and should not replace physical measurement or OEM part verification.

PACKAGE CONTENTS

• 2 x Front vented disc rotors
• 1 x Set of front ceramic brake pads (for LH and RH wheels)

WARRANTY

• Supplied with 1-year parts replacement warranty (conditions apply).
• Proof of purchase is required for all warranty claims.
• Return freight and installation labour costs are not covered.
