Front Brake Disc Rotors & Ceramic Pads Kit for Hyundai i40 VF 2011-2018

PRODUCT OVERVIEW

This front brake kit includes 2 x 320mm vented disc rotors and 1 x set of ceramic brake pads, suitable for left and right front wheels on Hyundai i40 VF 2011-2018 models that use the 320mm rotor size. Designed as a direct replacement matching OE specifications for reliable everyday braking performance.

KIT CONTENTS

• 2 x Front vented disc rotors (320mm diameter)
• 1 x Set of front brake pads (for LH and RH wheels)

Note: Some vehicles in this range may use 300mm rotors. Please confirm rotor size or provide VIN before purchase if unsure.

DISC ROTOR FEATURES

• Direct fit, matched to OE design
• Optimal thermal conductivity for stable braking
• Helps prevent brake judder and vibration
• Improved damping to reduce braking noise
• High resistance to distortion and thermal cracking
• Enhanced braking safety and performance
• Designed for maximum rotor service life
• Efficient brake effectiveness with reduced pedal effort
• Lower operating temperatures to reduce stress on components
• Lower wear rate for longer-lasting braking system

BRAKE PAD FEATURES

• Advanced ceramic friction formula
• Engineered for Australian, Japanese and Korean vehicles
• Consistent, confident pedal feel
• Low brake noise for comfortable driving
• Low dust output to help keep wheels cleaner
• Suitable for daily and city driving conditions

DISC ROTOR SPECIFICATIONS (FRONT)

• Diameter: 320 mm
• Height: 47 mm
• Maximum thickness: 28 mm
• Minimum thickness: 26 mm
• Centre hole: 69 mm
• Number of studs: 5
• Type: Vented

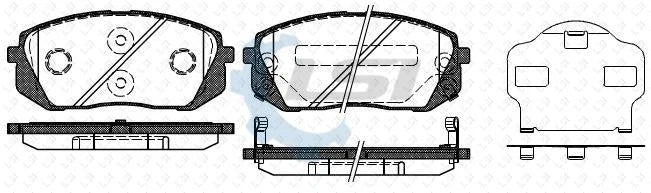

BRAKE PAD MEASUREMENTS (FRONT)

• Length: 138 mm
• Height: 61 mm
• Thickness: 17 mm

WARRANTY

This product is supplied with a 1-year parts replacement warranty (conditions apply). Installation labour and return freight are not covered. A copy of the purchase invoice is required for all warranty claims.
